Card-only and keypad readers for 125 kHz EM, 13.56 MHz MIFARE-family or dual-frequency cards, in mullion, 86–93 mm, 120 × 80 mm metal, glass and IP67 housings. Most output Wiegand 26/34; multi-technology models add RS485, Bluetooth LE or OSDP v2.2.

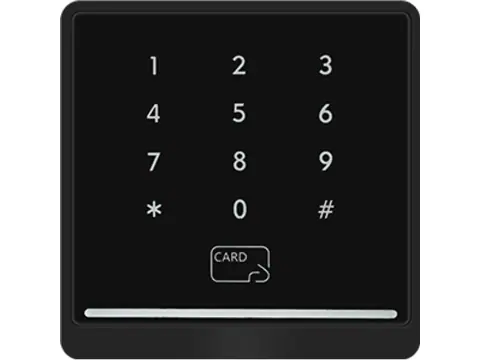

Square 89.5 mm touch-keypad reader for card plus PIN, reading up to 9 cm, in EM, MIFARE, sector-read, FeliCa and dual-frequency versions with Wiegand output.
Slim 86 × 86 mm metal reader with OSDP v2.2, RS485, Wiegand and Bluetooth LE 5.3. Reads 125 kHz EM plus MIFARE, DESFire EV1–EV3, ICODE and FeliCa; IP65.
Card-only 89.5 mm square reader with Wiegand 26/34 output (66 on upper tiers), in EM, MIFARE, sector-read, FeliCa and dual-frequency versions.
Card-plus-PIN reader in a 120 × 80 mm metal housing with physical keys, a doorbell button and Wiegand 26/34/66 output to your controller.
Faceted metal reader for harsh sites: –40 to +85 °C, IP65, 125 kHz + 13.56 MHz, Wiegand 26/34 and RS485, optional Bluetooth LE 5.1. Card-only or touch keypad.
Keyless 120 × 80 mm metal reader for EM or MIFARE cards. Outputs Wiegand 26/34 (66 on upper tiers) and is set up by swiping a configuration card.
Slim 153 × 45 mm mullion reader with touch keypad and doorbell key, in 125 kHz EM or 13.56 MHz MIFARE versions with Wiegand 26/34/66 output.
Keyless 93 mm metal reader with Wiegand 26/34/66 output. Five versions cover 125 kHz EM, MIFARE-family UIDs, protected sector data, FeliCa numbers and LEGIC cards.

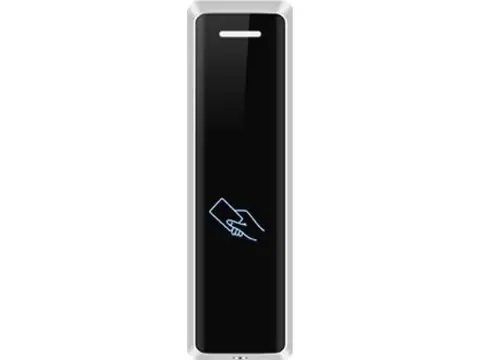

Card-only 153 × 45 mm mullion reader for narrow frames, in 125 kHz EM or 13.56 MHz MIFARE versions with Wiegand 26/34/66 output.

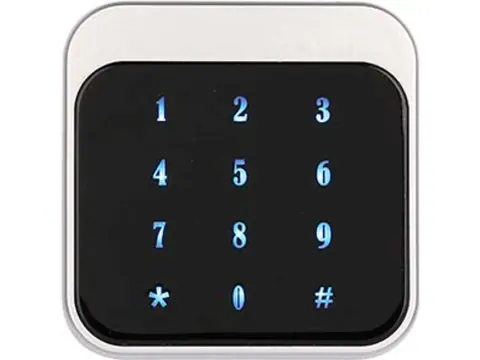

Compact 86 × 86 mm touch-keypad reader for card plus PIN, in 125 kHz EM or 13.56 MHz MIFARE versions with Wiegand 26/34/66 output.

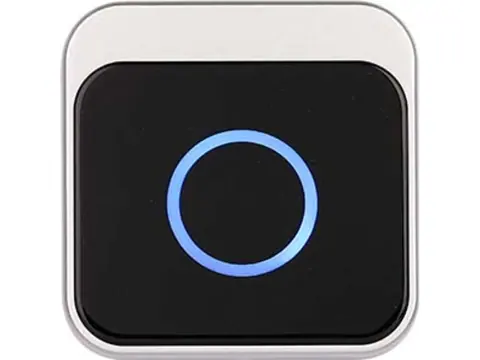

Card-only 86 × 86 mm reader for 125 kHz EM or 13.56 MHz MIFARE cards, with sector-read and FeliCa tiers and Wiegand 26/34/66 output.

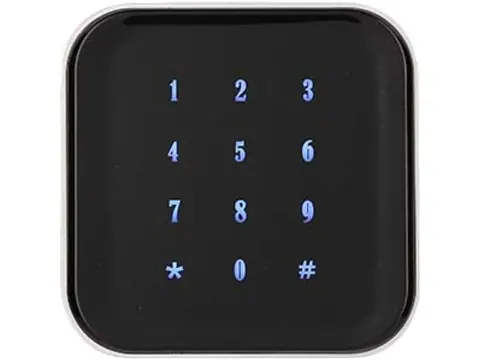

93 × 93 mm metal reader with touch keypad for card plus PIN, in 125 kHz EM or 13.56 MHz MIFARE versions with Wiegand 26/34/66 output.
Keyless 90 mm reader with a black glass panel, running-light LED and black or champagne-gold metal frame. 13.56 MHz or dual-frequency, Wiegand 26/34, no logo.

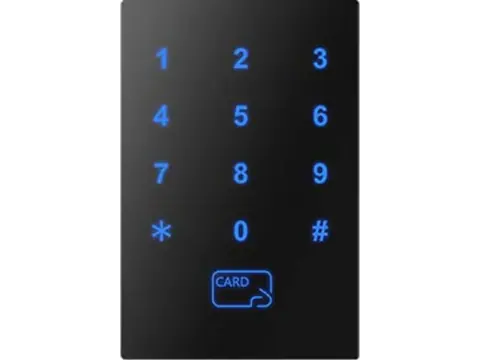

Touch-keypad reader in a 113 × 75 × 16 mm ABS housing: 125 kHz EM, 13.56 MHz MIFARE, sector-read, FeliCa or dual-frequency versions with Wiegand output.
Touch-keypad version of our 90 mm glass-and-metal reader. Reads 125 kHz EM and 13.56 MHz cards, outputs Wiegand 26/34; black or champagne-gold frame, no logo.

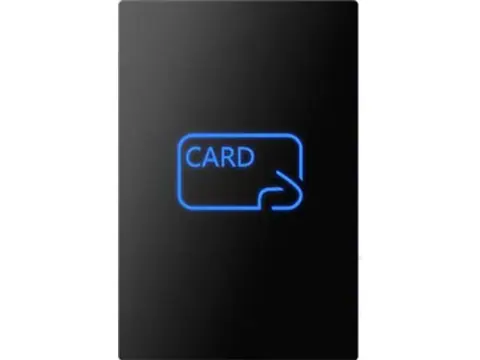

Card-only reader in a 113 × 75 × 16 mm ABS housing for 125 kHz EM, 13.56 MHz MIFARE, sector read, FeliCa or dual frequency, with Wiegand 26/34/66.
Large-frame 125 kHz EM reader for barrier gates and vehicle lanes, used with dedicated thick cards and wired to any controller with a Wiegand 26 input.

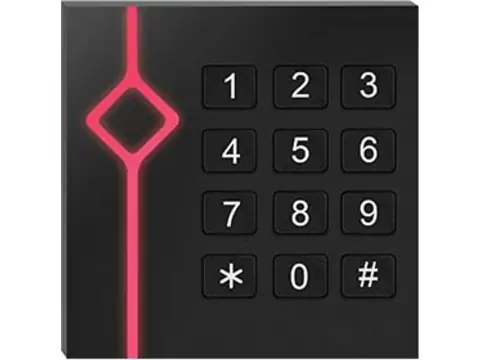

86 × 86 mm keypad reader with raised rubber keys, potted to IP67. 125 kHz EM, 13.56 MHz MIFARE or dual-frequency versions with Wiegand 26/34 output.

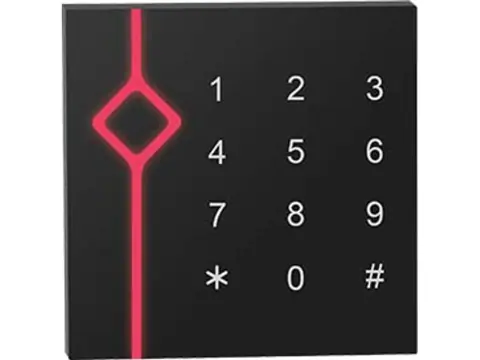

Square 90 mm keypad reader potted to IP67, with a red diamond light strip. 125 kHz EM or 13.56 MHz with MIFARE key authentication; Wiegand 26/34 output.

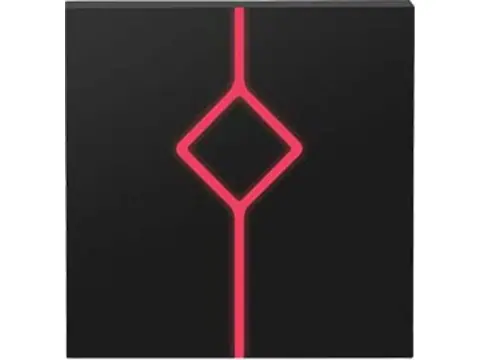

Square 90 × 90 mm card reader, epoxy-potted to IP67, with a lit diamond strip. Sends 125 kHz EM or 13.56 MHz MIFARE-family card numbers as Wiegand 26/34.

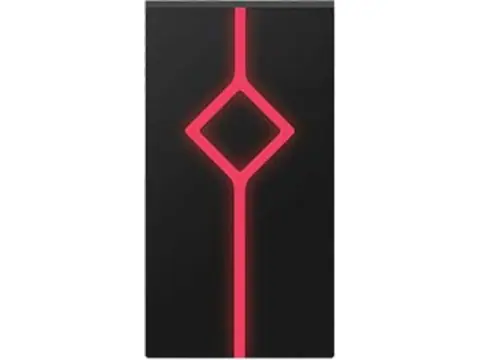

Slim 80.5 × 44 mm reader, epoxy-potted to IP67, with a lit diamond light strip. Sends 125 kHz EM or 13.56 MHz MIFARE-family card numbers as Wiegand 26/34.
These readers connect to any controller with a Wiegand input. Most families come in capability tiers, so one housing covers several card types:
Most models are set up by presenting a configuration card (Wiegand length, read mode, card key, number format), so there are no DIP switches or PC tools to take to site. On many models, tying the yellow lead to GND fixes Wiegand 26.
Readers without a stated IP rating should be mounted indoors or under a cover. Before wiring, check D0/D1, LED and buzzer lines against How to Wire a Wiegand Card Reader.
Compare Wiegand, OSDP and RS485 reader interfaces: wiring, cable limits, AES-128 Secure Channel and steps for a compatible access-control migration.
125 kHz cards are cheap but easy to clone; 13.56 MHz cards add memory and, on DESFire-class chips, AES security. Compare range, chips, security and migration.
Wiegand 26-bit is an even parity bit, 8-bit facility code, 16-bit card number and odd parity bit. Convert card numbers to hex and back with the calculator.
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
Match your controller. Wiegand 26 carries an 8-bit facility code and a 16-bit card number between two parity bits. Wiegand 34 carries 32 data bits, enough for a full 4-byte MIFARE UID without truncation. Most readers here switch between the two with a configuration card, and many can also be fixed at 26-bit by grounding a select lead.
Yes. Dual-frequency versions are offered in several housings, including slim ABS, 89.5 mm square, the IP67 86 mm keypad, glass-panel and multi-technology models. They read EM4100-family 125 kHz cards and 13.56 MHz MIFARE-family cards at the same door.
Upper-tier models read the iCLASS card serial number (CSN) only. They do not read protected iCLASS credential data, and Seos is not on the supported list. If your panel enrolled users by iCLASS credential number, the numbers will not match.
The keypad version sends keypresses over the same Wiegand lines as card data, and the controller checks the PIN. Controllers expect different PIN formats, so tell us your controller model and we will confirm the PIN output before dispatch.
