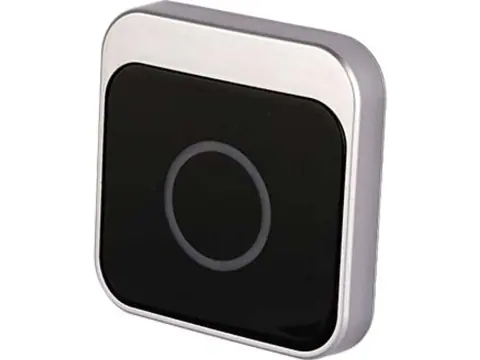

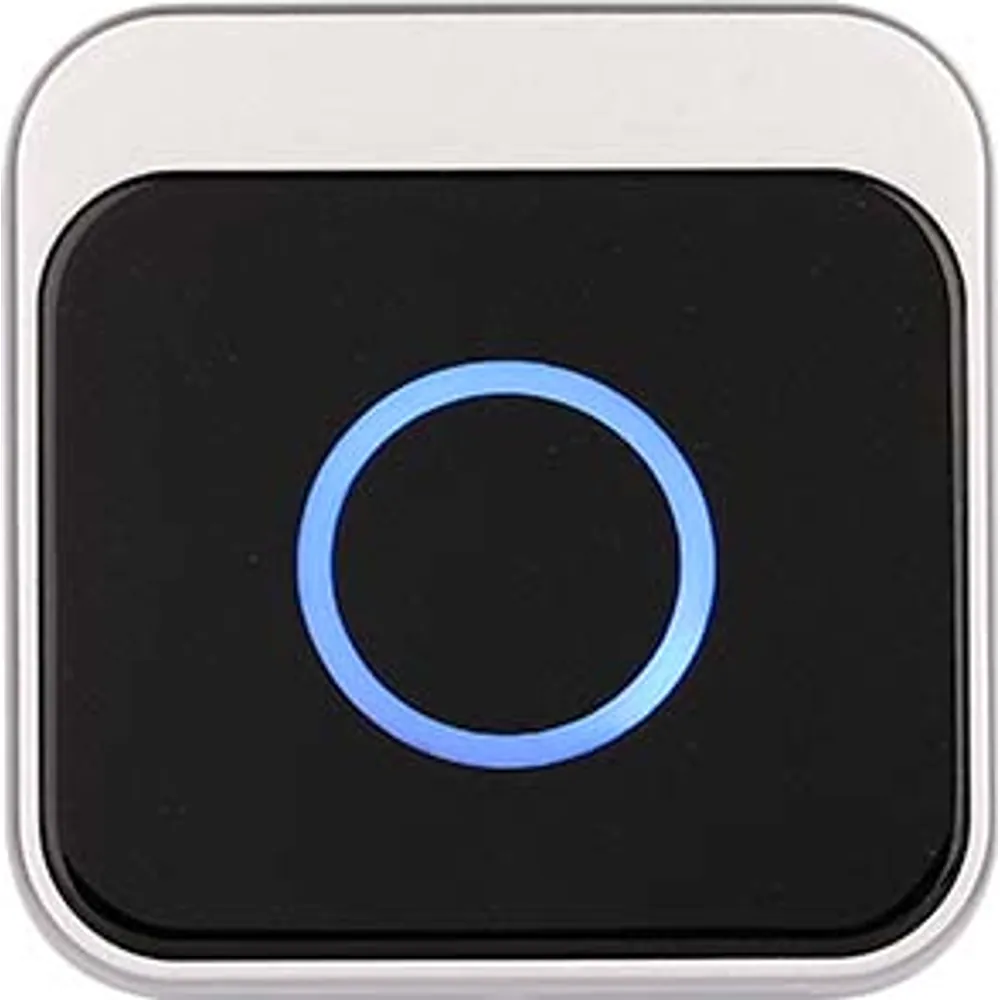

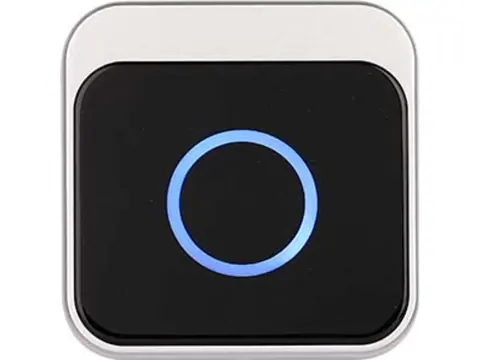

CR-210 86 mm Square Wiegand Card Reader, EM or MIFARE
Card-only 86 × 86 mm reader for 125 kHz EM or 13.56 MHz MIFARE cards, with sector-read and FeliCa tiers and Wiegand 26/34/66 output.
- Card-only 86 × 86 × 15.6 mm square housing
- Four tiers: 125 kHz EM, 13.56 MHz UID, sector/CPU data read, FeliCa UID
- Wiegand 26/34 on all tiers; Wiegand 66 on -MS and -MS-FC
- Configuration card sets Wiegand format, read mode, card key and number format
- 12 V DC (±5%), ≤ 200 mA; ESD and miswiring protection
- Frequency
- 125 kHz (-E) or 13.56 MHz (-M, -MS, -MS-FC)
- Output
- Wiegand 26/34; 66 on -MS tiers
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 86 × 86 × 15.6 mm
- Keypad
- None (card-only)
Reply within 24 hours Tested before dispatch Worldwide shipping
86 mm Square Wiegand Card Reader, EM or MIFARE: overview
The CR-210 is a card-only Wiegand reader in an 86 × 86 × 15.6 mm square housing, the footprint of an 86 mm wall switch plate. It is intended for doors, lift lobbies and meeting rooms that need a discreet reader in front of an existing access controller.
Four credential tiers are available. CR-210-E handles 125 kHz EM4100, EM4102 and EM4200-compatible cards and fobs. CR-210-M outputs the UID of 13.56 MHz MIFARE Classic, DESFire, Plus, Ultralight, NTAG2xx and CPU cards. CR-210-MS goes further, reading protected MIFARE Classic 1K/4K sectors and CPU card files as well as ISO/IEC 15693 UIDs and the iCLASS CSN, with Wiegand 66 available. CR-210-MS-FC adds FeliCa UIDs.
A configuration card sets the Wiegand format, read mode, card key and card-number format, so the reader can be matched to the controller on site. Card data arrives in under 120 ms, and the inputs have ESD and miswiring protection. The CR-200 is the touch-keypad version of this housing.
Integration notes
Power: 12 V DC (±5%), budget 200 mA. Leads: red +12 V, black GND, white D1, green D0, purple buzzer control, gray LED control; tie yellow to GND to lock Wiegand 26. No ingress rating is published, so fit it indoors or under cover.
CR-210 specifications
RF & credentials
| Frequency | 125 kHz (-E); 13.56 MHz (-M, -MS, -MS-FC) |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 |
| 125 kHz credentials | EM4100, EM4102, EM4200-compatible thick cards, thin cards and key fobs |
| 13.56 MHz UID read | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; ISO/IEC 14443 CPU cards |
| Data read (-MS, -MS-FC) | Protected sector data of MIFARE Classic 1K/4K; file data of CPU cards (card key set by configuration card) |
| Other UIDs (-MS, -MS-FC) | ISO/IEC 15693 tags (e.g. ICODE); iCLASS card serial number (CSN) only |
| FeliCa (-MS-FC) | FeliCa card UID |
| Response time | < 120 ms once a card is inside the read zone |
Interfaces
| Output | Wiegand 26 / 34 (all versions); Wiegand 66 (-MS, -MS-FC) |
|---|---|
| Setup | Configuration card: Wiegand format, read mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Operating current | ≤ 200 mA |
| Protection | ESD protection, miswiring protection |
Mechanical & environment
| Dimensions | 86 × 86 × 15.6 mm (±0.3 mm) |
|---|---|
| Operating temperature | –10 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
| Ingress rating | Not specified (indoor or sheltered mounting) |
Variant comparison
| Variant | 125 kHz EM | 13.56 MHz UID | MIFARE Classic / CPU data | ISO/IEC 15693 UID & iCLASS CSN | FeliCa UID | Wiegand output |
|---|---|---|---|---|---|---|
| CR-210-E | Yes | — | — | — | — | 26 / 34 |
| CR-210-M | — | MIFARE, NTAG, CPU | — | — | — | 26 / 34 |
| CR-210-MS | — | MIFARE, NTAG, CPU | Yes | Yes | — | 26 / 34 / 66 |
| CR-210-MS-FC | — | MIFARE, NTAG, CPU | Yes | Yes | Yes | 26 / 34 / 66 |
Choose the version by the credentials already in use on site. "CPU" = ISO/IEC 14443 CPU (smart) cards; iCLASS support is card serial number (CSN) only.
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 |
| Green | Wiegand D0 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-210-E | 125 kHz version: reads EM4100/EM4102/EM4200-compatible thick cards, thin cards and key fobs; Wiegand 26/34. | |
| CR-210-M | 13.56 MHz UID version: MIFARE Classic, DESFire EV1/EV2/EV3/Light, Plus S/X, Ultralight, NTAG2xx and ISO/IEC 14443 CPU card UIDs; Wiegand 26/34. | |
| CR-210-MS | 13.56 MHz secure-read version: all -M UIDs plus MIFARE Classic 1K/4K sector data and CPU card file data, ISO/IEC 15693 UID, iCLASS CSN only; Wiegand 26/34/66. | |
| CR-210-MS-FC | As -MS, plus FeliCa card UID (e.g. Octopus cards); Wiegand 26/34/66. |
Where the CR-210 is used
- Meeting-room and office doors on a Wiegand controller
- Apartment corridor doors where the reader should line up with 86 mm switch plates
- Lift lobby call-point readers passing card UIDs to the elevator board
- Budget EM-to-MIFARE upgrades using -M units on existing cabling
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
CR-210 FAQ
Which version reads 125 kHz key fobs?
CR-210-E. It reads EM4100, EM4102 and EM4200-compatible thick cards, thin cards and key fobs with Wiegand 26/34 output.
Can the reader output Wiegand 66?
Yes, on CR-210-MS and CR-210-MS-FC. The -E and -M versions output Wiegand 26 or 34.
Can it reuse my existing reader cable?
It uses the usual Wiegand reader wiring: power, ground, D0, D1, plus LED and buzzer control inputs. If your cable carries those conductors it can be reused.
Is there a keypad version?
Yes. The CR-200 uses the same 86 × 86 mm housing with a touch keypad.
