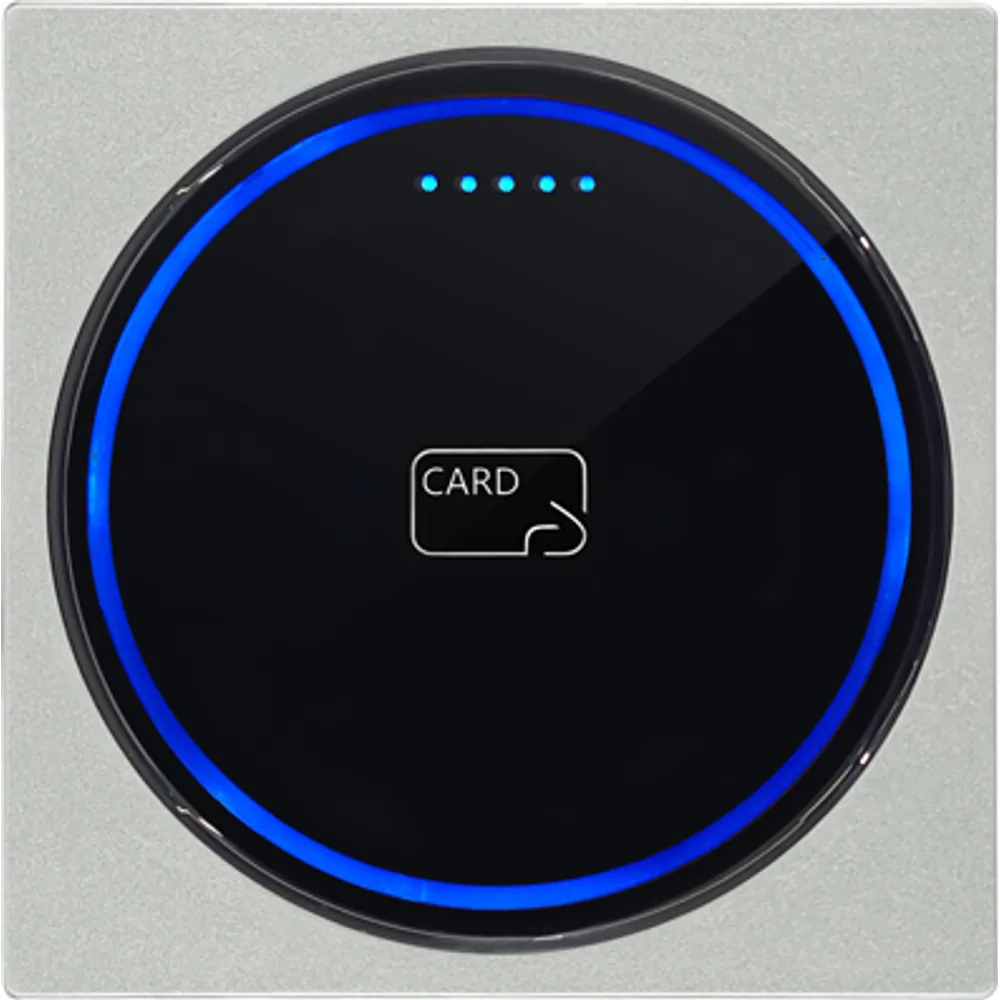

CR-300 OSDP & Wiegand Metal Card Reader, 125 kHz + 13.56 MHz + BLE
Slim 86 × 86 mm metal reader with OSDP v2.2, RS485, Wiegand and Bluetooth LE 5.3. Reads 125 kHz EM plus MIFARE, DESFire EV1–EV3, ICODE and FeliCa; IP65.
- OSDP v2.2, RS485 and Wiegand outputs plus Bluetooth LE 5.3 in one reader
- 125 kHz EM4100/4102/4200/4305/4450 and 13.56 MHz MIFARE, DESFire EV1–EV3, NTAG, FeliCa, ICODE
- ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092; NFC Forum Type 1–5 tags
- IP65 slim metal housing, 86 × 86 × 12 mm, RoHS compliant, no logo
- Wide 7–24 V DC input; ≤ 260 mA while reading at 12 V
- Frequency
- 125 kHz + 13.56 MHz + 2.4 GHz (BLE 5.3)
- Interfaces
- OSDP v2.2, RS485, Wiegand
- Read range
- 0–3 cm
- Power
- 7–24 V DC
- IP rating
- IP65
- Dimensions
- 86 × 86 × 12 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
OSDP & Wiegand Metal Card Reader, 125 kHz + 13.56 MHz + BLE: overview

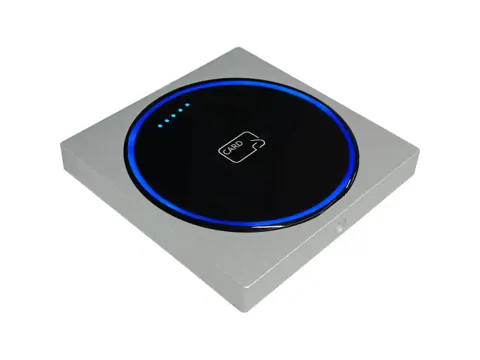

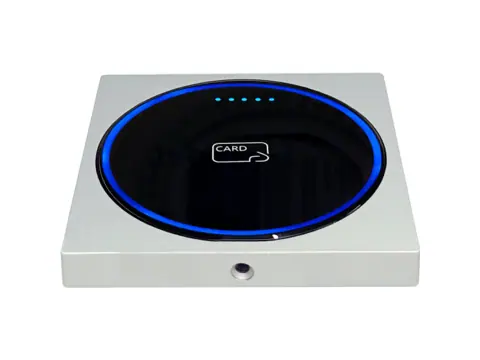

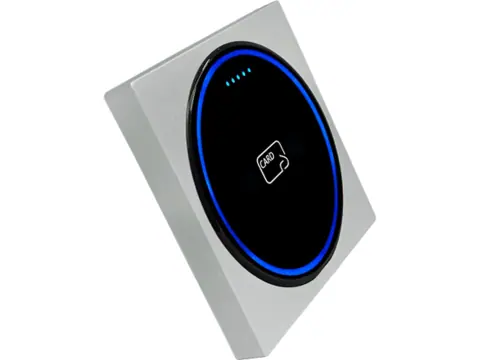

The CR-300 is a multi-technology wall reader for integrators who want one part for mixed card populations and a clear path from Wiegand to OSDP. It reads 125 kHz and 13.56 MHz credentials, accepts Bluetooth LE 5.3 as a third technology, and talks to the controller over Wiegand, RS485 or OSDP v2.2. The slim metal housing is 86 × 86 mm, rated IP65 and RoHS compliant.
At 13.56 MHz it is compatible with MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, MIFARE Ultralight and Ultralight C, NTAG2xx, CPU cards, FeliCa, ICODE and NFC Forum Type 1–5 tags, covering ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092. At 125 kHz it handles EM4100, EM4102, EM4200, EM4305 and EM4450. Reading distance is 0–3 cm, and anti-copy protection and tamper detection are built in.

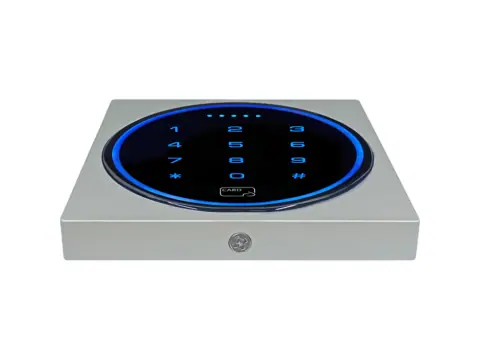

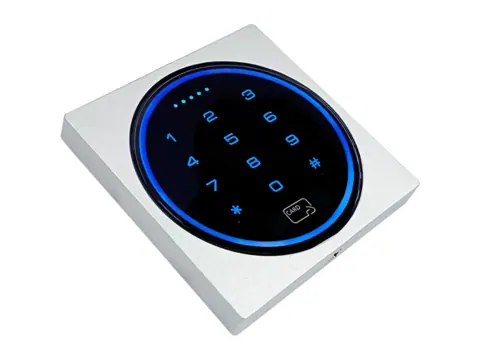

A wide 7–24 V DC input lets the reader share an existing 12 V or 24 V supply; at 12 V it draws ≤ 200 mA on standby and ≤ 260 mA while reading. It operates from –20 to +60 °C. Firmware and configuration parameters can be updated with a management tool, supplied on request. Choose CR-300-D-BT for a card-only face or CR-300-D-BT-K for the touch-keypad version; both ship with a silver shell, black panel and no logo.
Integration notes
Use the RS485 pair for OSDP v2.2 or the reader's plain RS485 mode, or wire Wiegand D0/D1 to legacy panels. Each unit has a 250 mm (9.8 in) cable; ask for the wiring diagram with your quote so the conductor colors can be matched to your panel.
More features
- Anti-copy protection, tamper detection and field firmware updates
- Card-only or touch-keypad versions
CR-300 specifications
RF & credentials
| Frequencies | 125 kHz, 13.56 MHz, 2.4 GHz (Bluetooth LE 5.3) |
|---|---|
| Standards | ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092 |
| 13.56 MHz credentials | MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, CPU cards, FeliCa, ICODE, NFC Forum Type 1–5 tags |
| 125 kHz credentials | EM4100, EM4102, EM4200, EM4305, EM4450 |
| Read range | 0–3 cm, depending on card and installation |
| Security | Anti-copy protection, tamper detection |
Interfaces
| Controller interfaces | Wiegand, RS485, OSDP v2.2 |
|---|---|
| Wireless | Bluetooth LE 5.3 |
| Keypad | None (CR-300-D-BT) or touch keypad (CR-300-D-BT-K) |
| Maintenance | Firmware upgrade and parameter update via management tool |
Electrical
| Supply voltage | 7–24 V DC |
|---|---|
| Standby current (12 V) | ≤ 200 mA |
| Operating current (12 V) | ≤ 260 mA |
Mechanical & environment
| Housing | Metal, silver front shell, black panel, no logo |
|---|---|
| Dimensions | 86 × 86 × 12 mm (±0.3 mm) |
| Cable | 250 mm (9.8 in) |
| Ingress rating | IP65 |
| Operating temperature | –20 to +60 °C (–4 to +140 °F) |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Compliance | RoHS |
Variant comparison
| Variant | Keypad | Credentials | Controller interfaces |
|---|---|---|---|
| CR-300-D-BT | None | 125 kHz + 13.56 MHz cards, Bluetooth LE 5.3 | Wiegand, RS485, OSDP v2.2 |
| CR-300-D-BT-K | Touch keypad | 125 kHz + 13.56 MHz cards, Bluetooth LE 5.3 | Wiegand, RS485, OSDP v2.2 |
Credential compatibility
| Technology | Supported credentials |
|---|---|
| 125 kHz | EM4100, EM4102, EM4200, EM4305, EM4450 |
| 13.56 MHz, ISO/IEC 14443A/B | MIFARE Classic, DESFire EV1/EV2/EV3, Ultralight, Ultralight C, NTAG2xx, CPU cards |
| 13.56 MHz, ISO/IEC 15693 | ICODE |
| 13.56 MHz, ISO/IEC 18092 (NFC) | FeliCa, NFC Forum Type 1–5 tags |
| 2.4 GHz | Bluetooth LE 5.3 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-300-D-BT | Card-only multi-technology reader: 125 kHz + 13.56 MHz + BLE 5.3; Wiegand, RS485, OSDP v2.2; silver/black, no logo. | |
| CR-300-D-BT-K | Touch-keypad multi-technology reader: 125 kHz + 13.56 MHz + BLE 5.3; Wiegand, RS485, OSDP v2.2; silver/black, no logo. |
Where the CR-300 is used
- Consolidating mixed EM and MIFARE card estates onto one reader model
- Panel upgrades that move doors from Wiegand to OSDP v2.2 over RS485
- Offices issuing DESFire EV3 cards alongside Bluetooth phone credentials
- Apartment entrances and gyms that need a slim IP65 metal reader
- White-label deployments where the reader must ship without a logo
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
CR-300 FAQ
Can I install it on Wiegand now and move to OSDP later?
Yes. The reader offers Wiegand for existing panels and RS485 with OSDP v2.2 for newer ones, so it can stay on the wall when the controller is upgraded; only the panel wiring and output setting change.
Does it support OSDP Secure Channel?
The reader supports OSDP v2.2. Secure Channel behavior depends on how your panel handles keys, so send us the controller model and we will confirm the configuration before dispatch.
What is the Bluetooth radio used for?
Bluetooth LE 5.3 is a third credential technology alongside 125 kHz and 13.56 MHz cards, for phone-based access. The phone side needs an app or platform that issues Bluetooth credentials for this reader.
What power supply does it need?
Any regulated supply from 7 to 24 V DC. At 12 V, budget up to 260 mA per reader while reading and up to 200 mA on standby.
Is it suitable for outdoor doors?
The housing is rated IP65 and operates from –20 to +60 °C, which suits covered outdoor entrances. For colder climates, the CR-310 is rated to –40 °C.
