PW-130 Access Control Power Supply Box, 12V 5A/10A, Tamper Switch
450 × 340 × 90 mm steel power box with a 12 V DC 5 A or 10 A supply, circuit breaker, tamper switch and lid-activated LED. Optional backup battery.
- 12 V DC ±10% output in 5 A or 10 A builds; the 10 A build powers up to 8 drop bolts
- 100–260 V AC, 50–65 Hz input covers 110–120 V and 220–240 V mains
- Standard tamper switch lets the server log cover-open events
- LED lights automatically when the lid opens and turns off when it closes
- 1.2 mm cold-rolled steel with baked matte black finish, 450 × 340 × 90 mm
- Output
- 12 V DC ±10%, 5 A or 10 A
- Input
- 100–260 V AC, 50–65 Hz
- Tamper switch
- Standard
- Enclosure
- 1.2 mm cold-rolled steel
- Dimensions
- 450 × 340 × 90 mm
- Battery backup
- Optional
Reply within 24 hours Tested before dispatch Worldwide shipping
Access Control Power Supply Box, 12V 5A/10A, Tamper Switch: overview

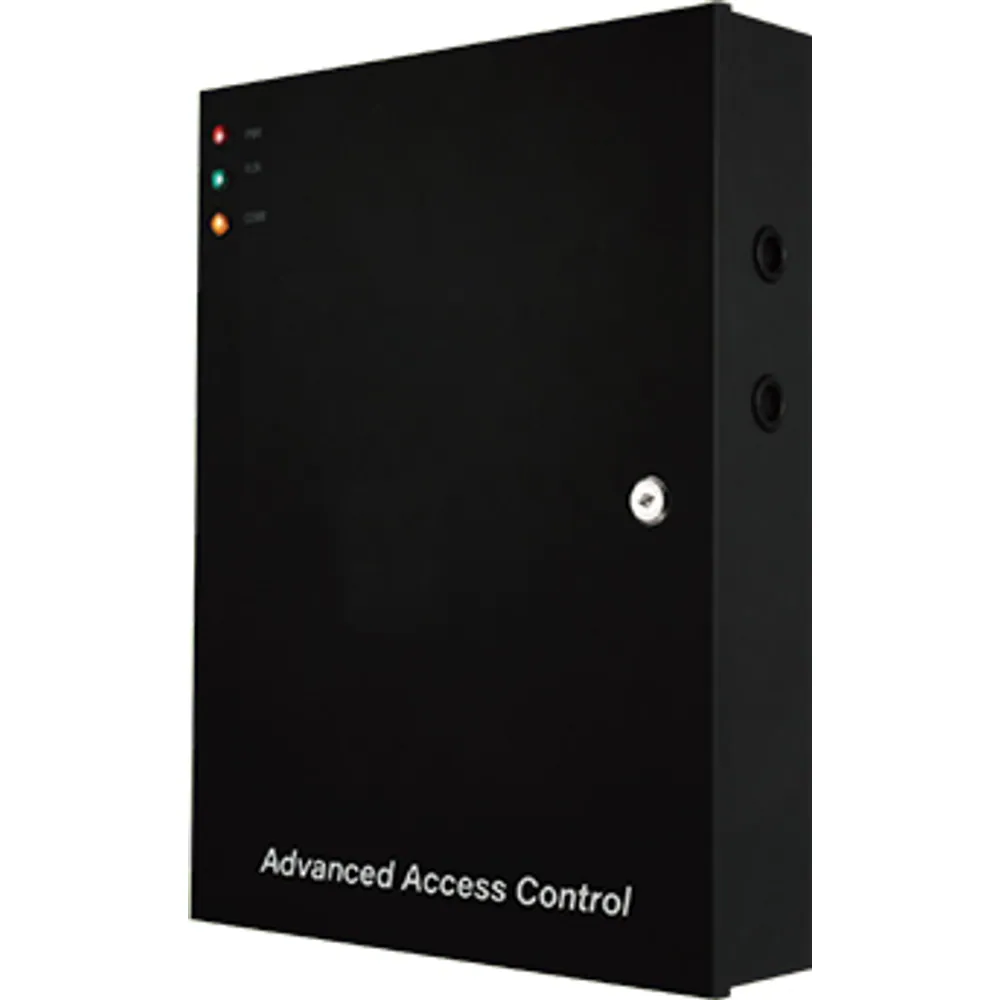

PW-130 is a lockable steel power box that brings the 12 V DC supply, mains breaker and controller wiring for an access control installation into one cabinet. The built-in supply accepts 100–260 V AC at 50–65 Hz and delivers 12 V DC ±10% at 5 A or 10 A. The 10 A build can power up to eight electric drop bolts at the same time, and an optional battery provides emergency power when the mains fails.
The cabinet measures 450 × 340 × 90 mm and is formed from 1.2 mm cold-rolled steel with a high-temperature baked, matte black finish that resists wear. A tamper switch is fitted as standard; wired to a controller input, it lets the management server log every time the cover is opened. A warm-white LED switches on automatically when the lid opens and off when it closes, so technicians can see the terminals without a flashlight.
Mains enters through a 2-pole, 20 A circuit breaker, and the unit ships with a 1.5 m power cord rated 250 V 10 A. Tell us the destination country so we can confirm the plug type before dispatch.
Integration notes
Mount the box close to the doors it serves and check your controller board against the internal space before ordering. Size the output at total device current plus 25–50% headroom, choosing the 10 A build for larger multi-door runs. Battery type and charging details for the optional battery are confirmed at quotation.
More features
- 2-pole 20 A circuit breaker and 1.5 m power cord rated 250 V 10 A
- Optional backup battery for emergency power
PW-130 specifications
Power
| Input | 100–260 V AC, 50–65 Hz |
|---|---|
| Output voltage | 12 V DC ±10% |
| Output current | 5 A or 10 A (by variant) |
| Load example | 10 A build powers up to 8 electric drop bolts simultaneously |
| Backup | Optional battery for emergency power |
| Circuit breaker | 2-pole, 20 A, 220 V rated |
| Power cord | 1.5 m, rated 250 V 10 A; plug type per destination country |
Enclosure
| Dimensions | 450 × 340 × 90 mm |
|---|---|
| Material | 1.2 mm cold-rolled steel |
| Finish | High-temperature baked paint, matte black |
| Tamper switch | Standard; cover-open events can be logged by the server via a controller input |
| Service light | Warm-white LED, on when the lid opens, off when it closes |
Variants
| SKU | Output | Load example | Backup battery |
|---|---|---|---|
| PW-130-5 | 12 V DC ±10%, 5 A | Smaller door groups (size to total load + headroom) | Optional |
| PW-130-10 | 12 V DC ±10%, 10 A | Up to 8 electric drop bolts simultaneously | Optional |
Enclosure, tamper switch, LED, breaker and power cord are the same on both builds.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| PW-130-5 | Access control power supply box, 12 V DC 5 A, tamper switch, lid LED, 2-pole breaker; backup battery optional | |
| PW-130-10 | Access control power supply box, 12 V DC 10 A (up to 8 drop bolts), tamper switch, lid LED, 2-pole breaker; backup battery optional |
Where the PW-130 is used
- Central power for a floor of drop-bolt doors from one 10 A cabinet
- Housing a door controller and its lock supply in one tamper-monitored box
- Sites on 110–120 V mains that need a 12 V access control supply
- Installations that need battery-backed lock power during mains outages
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
PW-130 FAQ
What is the difference between PW-130-5 and PW-130-10?
Only the supply rating: 12 V DC at 5 A or at 10 A. The 10 A build can run up to eight electric drop bolts at the same time.
Does it work on 110/120 V mains?
Yes. The supply accepts 100–260 V AC at 50–65 Hz, which covers both 110–120 V and 220–240 V mains.
How does the tamper switch report?
The switch changes state when the cover is opened. Wire it to a controller input and your access control server can log the event.
Is a backup battery included?
No, the battery is optional. Ask for battery type and charging details with your quotation so we can confirm the runtime you need.
Can a door controller be mounted inside?
The box is intended to hold controller wiring alongside the supply, but check your board size and fixing holes against the 450 × 340 × 90 mm cabinet before ordering.
