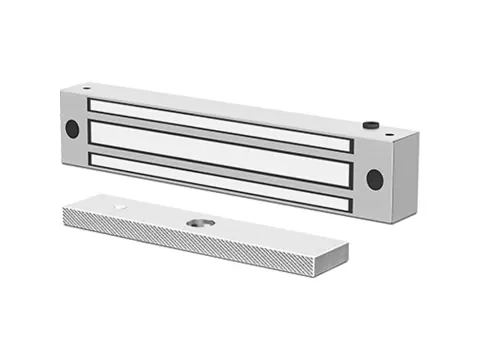

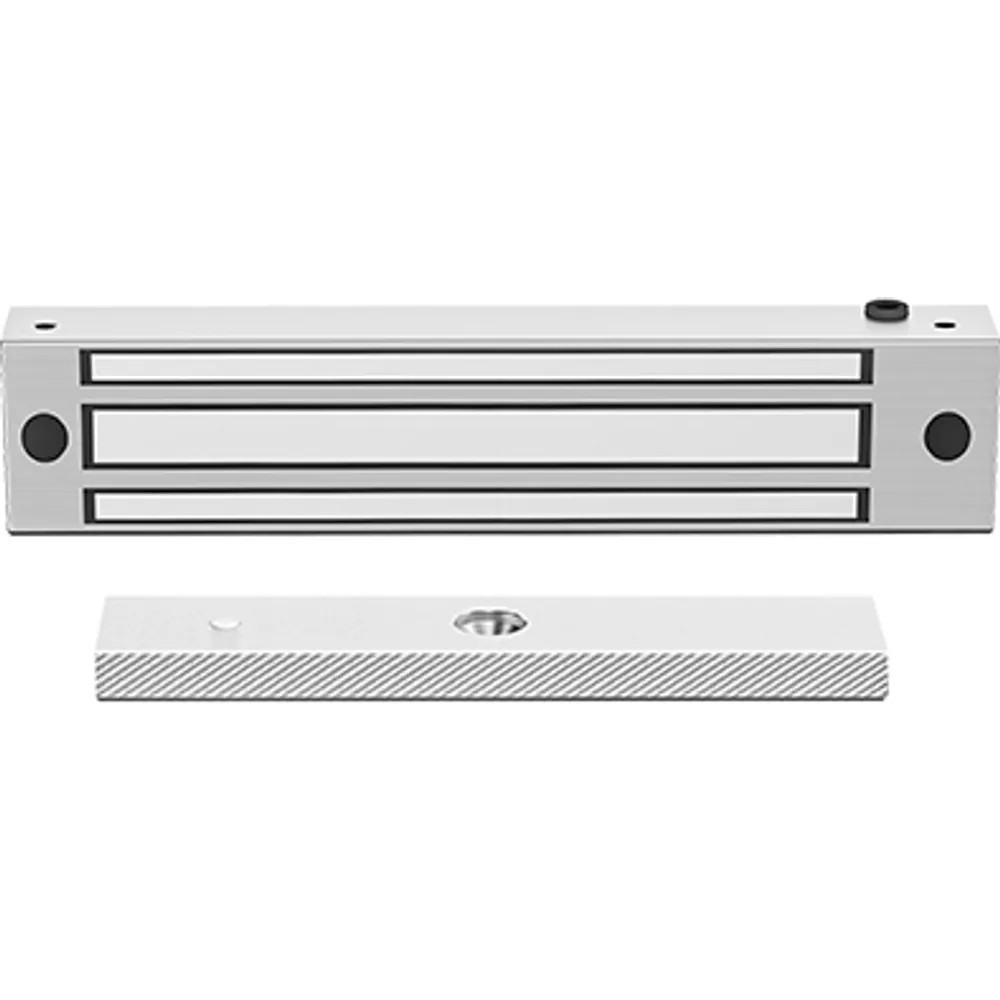

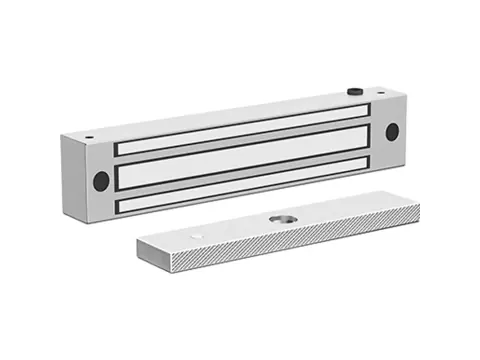

EL-120 Stainless Steel Waterproof 280 kg (600 lb) Magnetic Lock
Compact 210 mm stainless-steel maglock with 280 kg (600 lb) holding force, waterproof construction, selectable 12/24 V DC coil and a door-status output.
- 280 kg (600 lb) ±10% holding force in a compact 210 mm stainless-steel body
- Waterproof construction with double-insulated lock body
- Installer-selectable coil: 12 V DC at 460 mA or 24 V DC at 230 mA
- Door-status signal output for monitored doors
- Built-in MOV surge suppression protects controller relay contacts
- Holding force
- 280 kg (600 lb) ±10%
- Supply
- 12 or 24 V DC ±10%, selectable
- Current
- 460 mA @ 12 V / 230 mA @ 24 V
- Signal output
- Door status
- Lock body
- 210 × 42 × 28.5 mm
- Housing
- Stainless steel, waterproof
Reply within 24 hours Tested before dispatch Worldwide shipping
Stainless Steel Waterproof 280 kg (600 lb) Magnetic Lock: overview
EL-120 packs 280 kg (600 lb) ±10% of holding force into a stainless-steel body only 210 mm long, which helps where header length is limited or a 250 mm lock looks oversized. The waterproof construction and double-insulated lock body make it suitable for exterior doors, while the door-status output tells the controller whether the door is closed and secured.
Inside, an anti-residual-magnetism design with wear-resistant materials lets the armature release promptly, and the lock has no moving parts. A built-in MOV absorbs the reverse-voltage spike each time the coil de-energizes, which is kinder to the relay contacts in the controller or keypad driving it.
The installer sets the coil for 12 V DC ±10% (460 mA ±5%) or 24 V DC ±10% (230 mA ±5%). Operation is fail-safe: the door releases as soon as power is removed, so the lock can sit on a fire-alarm release loop. There is no built-in delay, so door-open time comes from the access controller.
Integration notes
Lock body 210 × 42 × 28.5 mm; armature plate 185 × 38 × 12 mm. It is listed for wooden, glass, metal and fire doors. Because the body and plate differ from our 250 mm locks, send us your door details if you need a bracket and we will confirm a match. Listed certifications are CE and RoHS.
More features
- Fail-safe operation; CE and RoHS listed
EL-120 specifications
Holding & locking
| Holding force | 280 kg (600 lb) ±10%, static straight pull |
|---|---|
| Lock type | Fail-safe (releases when power is removed) |
| Time delay | None built in |
| Residual magnetism | Anti-residual-magnetism design, wear-resistant materials |
Electrical
| Operating voltage | 12 V DC ±10% or 24 V DC ±10%, installer-selectable |
|---|---|
| Operating current | 460 mA ±5% at 12 V; 230 mA ±5% at 24 V |
| Surge protection | Built-in MOV (reverse-current / back-EMF suppression) |
| Signal output | Door status |
Mechanical & environment
| Lock body | 210 × 42 × 28.5 mm |
|---|---|
| Armature plate | 185 × 38 × 12 mm |
| Housing | Stainless steel |
| Insulation | Double-insulated lock body |
| Weather protection | Waterproof design; no IP code stated |
| Suitable doors | Wooden, glass, metal and fire doors |
Compliance
| Certifications listed | CE, RoHS (copies on request) |
|---|
Coil current by supply voltage
| Supply voltage | Coil current | Holding force |
|---|---|---|
| 12 V DC ±10% | 460 mA ±5% | 280 kg (600 lb) ±10% |
| 24 V DC ±10% | 230 mA ±5% | 280 kg (600 lb) ±10% |
Waterproof 280 kg (600 lb) locks compared
| SKU | Housing | Lock body | Armature plate | Current at 12 V / 24 V | Signal output |
|---|---|---|---|---|---|
| EL-110-280S | Aluminum alloy | 250 × 48 × 26 mm | 180 × 38 × 11 mm | 480 mA / 240 mA (±5%) | Door status |
| EL-120-280S | Stainless steel | 210 × 42 × 28.5 mm | 185 × 38 × 12 mm | 460 mA / 230 mA (±5%) | Door status |
| EL-130-280S | Stainless steel | 220 × 47 × 28 mm | 200 × 45 × 13 mm | 500 mA / 250 mA | Lock status |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-120-280S | Waterproof 280 kg (600 lb) single-door magnetic lock, stainless-steel housing, 210 mm body, 12/24 V DC selectable, door-status output |
Where the EL-120 is used
- Exterior office door where a 250 mm lock body is too long for the header
- Coastal or humid sites where a stainless-steel housing is specified
- Apartment entrance door monitored through the door-status output
- Fire-rated stair door released by the fire-alarm relay
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EL-120 FAQ
How does EL-120 differ from EL-110?
Both hold 280 kg (600 lb), are waterproof and have a door-status output. EL-120 uses a shorter 210 × 42 × 28.5 mm stainless-steel body and draws 460 mA at 12 V; EL-110 has a 250 mm aluminum-alloy body, draws 480 mA and also lists UL and FCC.
What current does it draw?
460 mA ±5% at 12 V DC or 230 mA ±5% at 24 V DC. Running at 24 V halves the current, which reduces voltage drop on long cable runs.
Is it suitable for glass doors?
Glass doors are listed alongside wooden, metal and fire doors. On frameless glass the 185 mm armature needs a clamp bracket, so send us the glass thickness and door layout and we will confirm one that fits.
Does it have a built-in time delay?
No. It releases the moment power is removed and relocks when power returns, so set the door-open time in the access controller or keypad.
