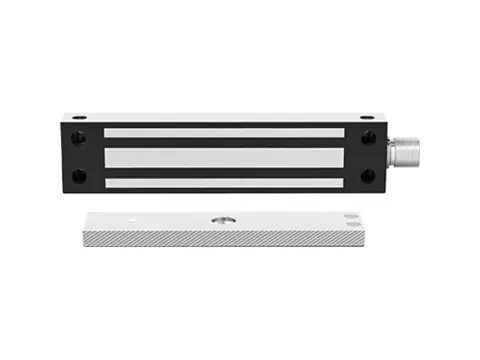

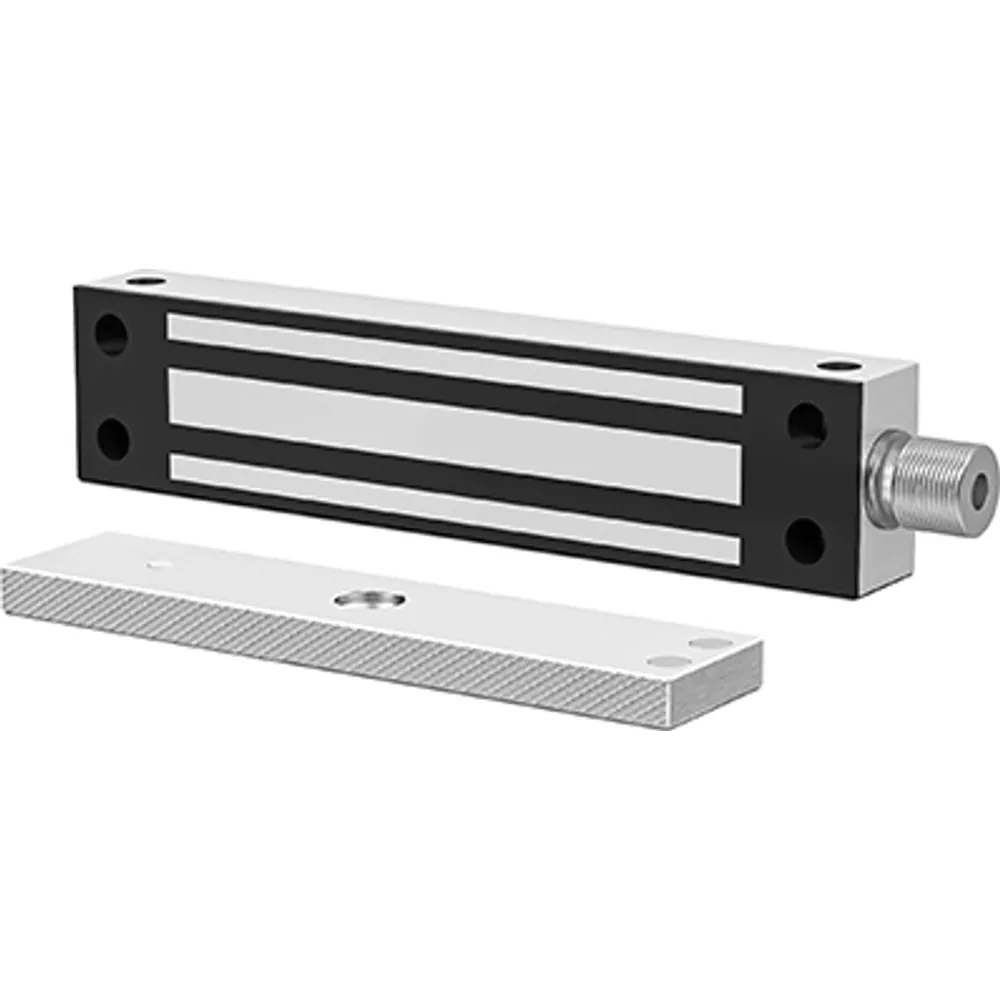

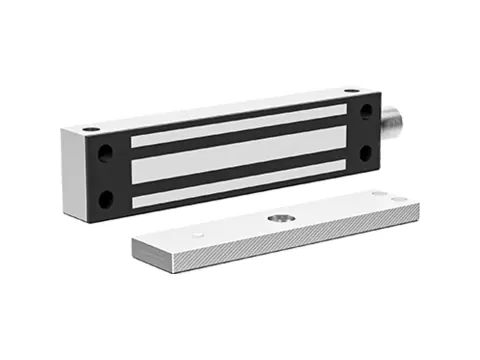

EL-130 Waterproof 280 kg (600 lb) Magnetic Lock, Wide Armature
Waterproof 280 kg (600 lb) stainless-steel maglock with an oversized 200 × 45 × 13 mm armature plate, lock-status output and selectable 12/24 V DC coil.
- Wide 200 × 45 × 13 mm armature plate on a 280 kg (600 lb) lock
- Lock-status signal output confirms the magnet has engaged
- Waterproof stainless-steel housing with double-insulated body
- Installer-selectable coil: 12 V DC at 500 mA or 24 V DC at 250 mA
- Built-in MOV surge suppression and anti-residual-magnetism design
- Holding force
- 280 kg (600 lb) ±10%
- Supply
- 12 or 24 V DC ±10%, selectable
- Current
- 500 mA @ 12 V / 250 mA @ 24 V
- Signal output
- Lock status
- Armature plate
- 200 × 45 × 13 mm
- Housing
- Stainless steel, waterproof
Reply within 24 hours Tested before dispatch Worldwide shipping
Waterproof 280 kg (600 lb) Magnetic Lock, Wide Armature: overview
EL-130 is a waterproof single-door magnetic lock with a noticeably larger armature plate than usual: 200 × 45 × 13 mm, against the 180 × 38 mm plates on our standard 280 kg locks. It holds 280 kg (600 lb) ±10% in static straight pull and carries a lock-status signal output, so the controller can confirm the magnet has actually engaged before it reports the door as secured.
The 220 × 47 × 28 mm body is housed in stainless steel with double insulation and is listed for wooden, metal and fire doors. An anti-residual-magnetism design and wear-resistant materials help the door release promptly, and with no moving parts there is nothing mechanical to jam. A built-in MOV clamps the switch-off spike from the coil to protect the relay that drives it.
Set the coil for 12 V DC ±10% (500 mA) or 24 V DC ±10% (250 mA) during installation. The lock is fail-safe, releasing whenever power is cut, and has no built-in delay, so relock timing is handled by the controller or keypad.
Integration notes
Allow for the 220 × 47 × 28 mm body on the frame header and the 200 × 45 × 13 mm plate on the door face when checking clearances. At 12 V, budget 500 mA for the coil plus the reader and controller load, with 25–50% headroom on the supply. Wire the lock-status contact to a controller door or auxiliary input. Listed certifications are CE and RoHS.
More features
- Fail-safe operation; CE and RoHS listed
EL-130 specifications
Holding & locking
| Holding force | 280 kg (600 lb) ±10%, static straight pull |
|---|---|
| Lock type | Fail-safe (releases when power is removed) |
| Time delay | None built in |
| Residual magnetism | Anti-residual-magnetism design, wear-resistant materials |
Electrical
| Operating voltage | 12 V DC ±10% or 24 V DC ±10%, installer-selectable |
|---|---|
| Operating current | 500 mA at 12 V; 250 mA at 24 V |
| Surge protection | Built-in MOV (reverse-current / back-EMF suppression) |
| Signal output | Lock status |
Mechanical & environment
| Lock body | 220 × 47 × 28 mm |
|---|---|
| Armature plate | 200 × 45 × 13 mm |
| Housing | Stainless steel |
| Insulation | Double-insulated lock body |
| Weather protection | Waterproof design; no IP code stated |
| Suitable doors | Wooden, metal and fire doors |
Compliance
| Certifications listed | CE, RoHS (copies on request) |
|---|
Coil current by supply voltage
| Supply voltage | Coil current | Holding force |
|---|---|---|
| 12 V DC ±10% | 500 mA | 280 kg (600 lb) ±10% |
| 24 V DC ±10% | 250 mA | 280 kg (600 lb) ±10% |
Waterproof 280 kg (600 lb) locks compared
| SKU | Housing | Lock body | Armature plate | Current at 12 V / 24 V | Signal output |
|---|---|---|---|---|---|
| EL-110-280S | Aluminum alloy | 250 × 48 × 26 mm | 180 × 38 × 11 mm | 480 mA / 240 mA (±5%) | Door status |
| EL-120-280S | Stainless steel | 210 × 42 × 28.5 mm | 185 × 38 × 12 mm | 460 mA / 230 mA (±5%) | Door status |
| EL-130-280S | Stainless steel | 220 × 47 × 28 mm | 200 × 45 × 13 mm | 500 mA / 250 mA | Lock status |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-130-280S | Waterproof 280 kg (600 lb) single-door magnetic lock, stainless-steel housing, 200 × 45 mm armature, 12/24 V DC selectable, lock-status output |
Where the EL-130 is used
- Exterior service door where the controller must confirm the lock has engaged, not just that the door is shut
- Metal or fire door with a stile wide enough for the larger armature plate
- Plant room or loading door on a fire-alarm release circuit
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EL-130 FAQ
How big is the armature plate compared with a standard 280 kg lock?
It measures 200 × 45 × 13 mm, versus 180 × 38 × 11 mm on EL-190, EL-200 and EL-110. Check that the door face has room for the larger plate before ordering.
What is the difference between lock status and door status?
A lock-status output reports whether the magnet is holding the armature, meaning the door is actually locked. A door-status output only shows whether the door is closed. EL-130 provides lock status; EL-110 and EL-120 provide door status.
Which doors is it listed for?
Wooden, metal and fire doors. For glass doors choose EL-110 or EL-120, which list glass among their door types.
What power supply do I need?
The lock draws 500 mA at 12 V DC or 250 mA at 24 V DC. Add the other door devices and 25–50% headroom; a 12 V 3 A supply such as PW-120 is a common choice for one door.
