XB-110 No-Touch Infrared Exit Button, 86 mm Stainless Plate
Touch-free infrared request-to-exit button on an 86 × 86 mm stainless-steel plate, 9–16 V DC, with NO/NC/COM outputs. Handprint or No Touch face graphic.
- Infrared no-touch sensing: a hand wave triggers the exit output
- 86 × 86 × 38 mm stainless-steel plate (±3 mm) in the square 86 mm format
- 9–16 V DC supply; output rated 2 A with automatic reset
- Five-lead wiring with NO, NC and COM for controller or standalone lock circuits
- Operating range –20 to +50 °C, 10–90% humidity
- Activation
- Infrared, no-touch
- Supply
- 9–16 V DC
- Output
- NO / NC / COM, 2 A rated
- Plate size
- 86 × 86 × 38 mm
- Housing
- Stainless steel
- Operating temperature
- –20 to +50 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
No-Touch Infrared Exit Button, 86 mm Stainless Plate: overview
XB-110 is a no-touch request-to-exit button for access-controlled doors. The user waves a hand in front of the infrared sensor and the button switches its output to release the lock, so nobody has to press the plate. That helps in clinics, food-handling areas and busy staff exits where hygiene or wear on a mechanical button is a concern.
The face plate is 86 × 86 mm stainless steel in the square 86 mm format, with a 38 mm overall depth (±3 mm). The sensor runs on 9–16 V DC, so it can share the 12 V supply that feeds the lock or controller. Its output is rated at 2 A and resets itself after each activation. Operating range is –20 to +50 °C at 10–90% humidity, and no IP rating is published, so plan it for indoor walls.

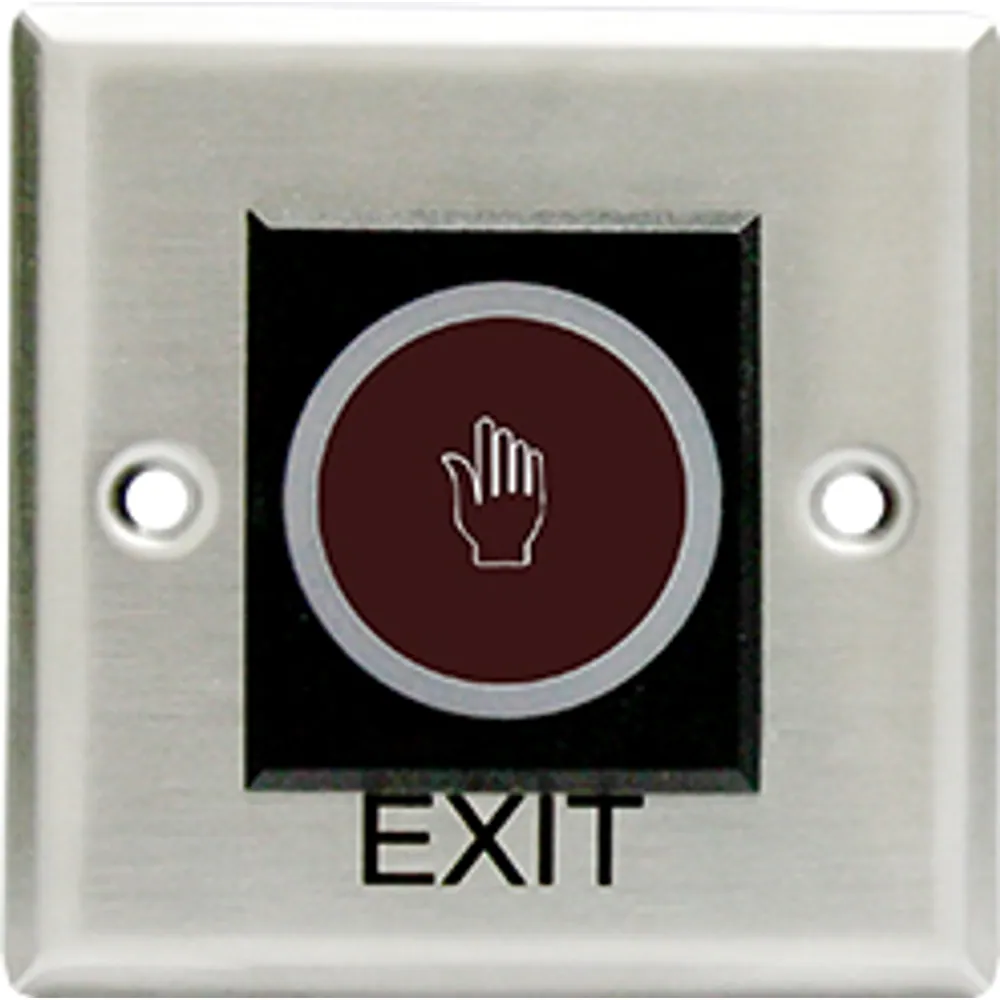

Two face graphics are available: a handprint symbol (XB-110-HP) or a printed "No Touch" legend (XB-110-NT). Both carry an EXIT marking and share the same electrical specification.
Integration notes

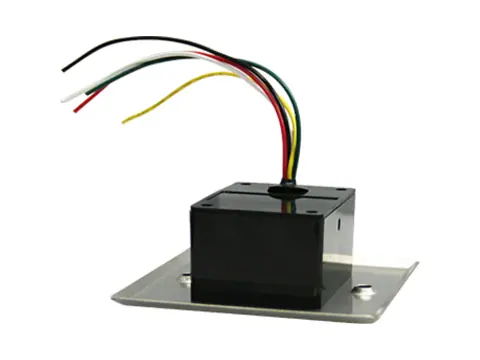

The button has five leads: red +12 V, black GND, yellow NO, white COM and green NC. For a standalone door with a fail-safe maglock or drop bolt, run the lock supply through COM and NC so the circuit opens while a hand is detected. For a controller, connect COM and NO to its exit (REX) input and let the controller set the release time.
More features
- Handprint or "No Touch" face graphic, both with EXIT marking
XB-110 specifications
Sensing & output
| Activation | Infrared hand detection, no contact |
|---|---|
| Output contacts | NO, NC, COM |
| Rated current | 2 A |
| Reset | Automatic (self-resetting after each activation) |
Electrical
| Supply voltage | 9–16 V DC |
|---|---|
| Wiring | 5 leads (see wiring table) |
Mechanical & environment
| Dimensions | 86 × 86 × 38 mm (±3 mm) |
|---|---|
| Housing | Stainless steel |
| Face graphic | Handprint symbol or "No Touch" legend, with EXIT marking |
| Operating temperature | –20 to +50 °C |
| Storage temperature | –20 to +65 °C |
| Operating humidity | 10–90% |
Wiring (lead colors)
| Lead color | Function |
|---|---|
| Red | +12 V DC (9–16 V DC range) |
| Black | GND |
| Yellow | NO (normally open) |
| White | COM |
| Green | NC (normally closed) |
Five-lead connection. Power the sensor from the controller auxiliary output or the 12 V lock supply.
Variants
| SKU | Face graphic | Plate |
|---|---|---|
| XB-110-HP | Handprint symbol + EXIT | 86 × 86 mm stainless steel |
| XB-110-NT | "No Touch" legend + EXIT | 86 × 86 mm stainless steel |
Face graphic is the only difference between variants.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| XB-110-HP | Infrared no-touch exit button, 86 × 86 mm stainless plate, handprint face graphic | |
| XB-110-NT | Infrared no-touch exit button, 86 × 86 mm stainless plate, "No Touch" face graphic |
Where the XB-110 is used
- Hygienic request-to-exit at clinic, lab and kitchen doors
- Staff exits in offices wired to a door controller REX input
- Standalone maglock doors where the button breaks the lock supply directly
- Apartment lobby exits where a push button would wear quickly
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
XB-110 FAQ
How do I wire it to a maglock without a controller?
Run the lock supply through COM and NC. When a hand is detected, the NC contact opens, power drops and the fail-safe lock releases; keep the lock current within the 2 A rating.
Does it need its own power supply?
It needs 9–16 V DC on the red and black leads, which is normally taken from the controller auxiliary output or the 12 V lock supply.
Can it be installed outdoors?
No IP rating is published for this model and it is rated –20 to +50 °C, so install it indoors. For exposed locations, see the IP67-rated XB-130.
What is the difference between XB-110-HP and XB-110-NT?
Only the face graphic: a handprint symbol or a printed "No Touch" legend. The electrical specification is identical.
Does the output latch?
No. The output resets automatically after each activation; set the door release time on the controller or lock.
