XB-120 No-Touch Infrared Exit Button, 115 × 70 mm Stainless Plate
No-touch infrared exit button on a rectangular 115 × 70 mm stainless-steel plate, 9–16 V DC, with NO/NC/COM outputs. Handprint or No Touch face graphic.
- Infrared no-touch activation: no button to press or wear out
- 115 × 70 × 38 mm stainless-steel plate (±3 mm), near a US single-gang footprint
- 9–16 V DC supply; output rated 2 A with automatic reset
- Five-lead wiring with NO, NC and COM outputs
- Operating range –20 to +50 °C, 10–90% humidity
- Activation
- Infrared, no-touch
- Supply
- 9–16 V DC
- Output
- NO / NC / COM, 2 A rated
- Plate size
- 115 × 70 × 38 mm
- Housing
- Stainless steel
- Operating temperature
- –20 to +50 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
No-Touch Infrared Exit Button, 115 × 70 mm Stainless Plate: overview

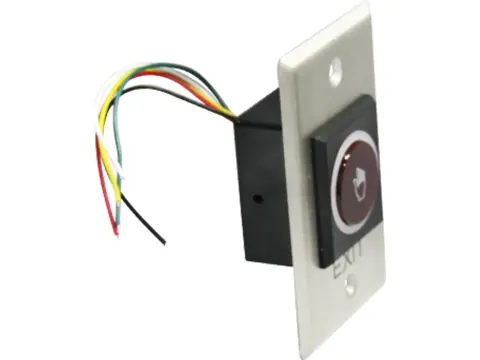

XB-120 is an infrared request-to-exit button on a rectangular 115 × 70 mm stainless-steel plate, 38 mm deep overall (±3 mm). The plate footprint is close to a US single-gang wall plate (4.5 × 2.75 in), which makes it a natural choice for projects that use rectangular plates rather than the square 86 mm format. A hand held near the sensor switches the output, so there is no button to press and no mechanical part to wear out.
Electrically it matches our XB-110: 9–16 V DC supply, an output rated 2 A, automatic reset after each activation, and operation from –20 to +50 °C at 10–90% humidity. The stainless housing is easy to wipe down. No IP rating is published, so install it on indoor walls or in fully sheltered positions.

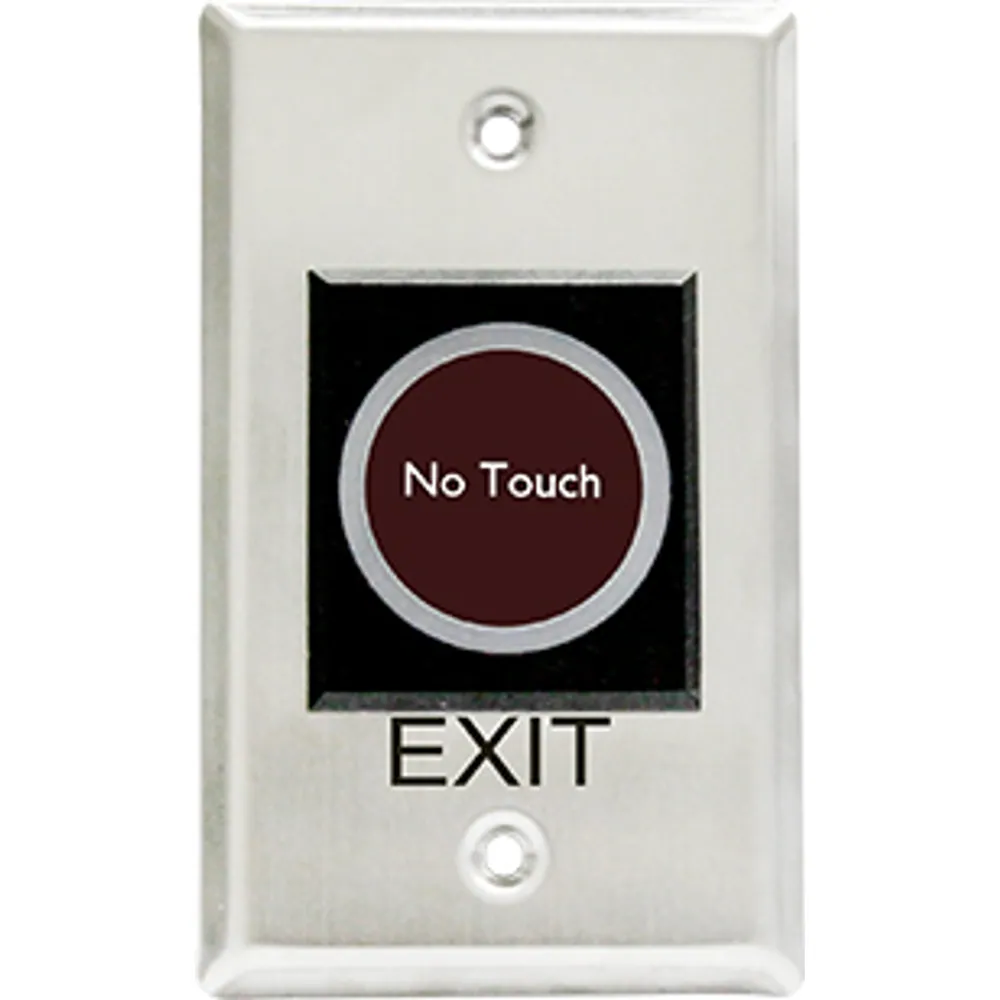

Order the handprint face (XB-120-HP) or the printed "No Touch" face (XB-120-NT); both carry an EXIT legend.
Integration notes

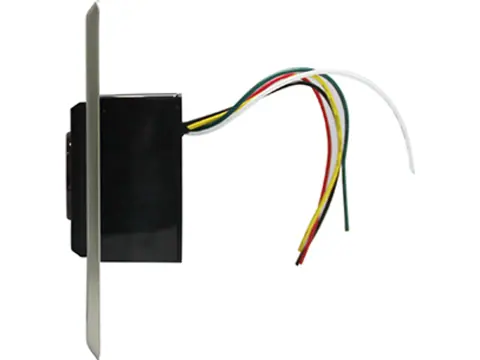

Five leads: red +12 V, black GND, yellow NO, white COM, green NC. Wire COM and NC in series with the supply of a fail-safe maglock or drop bolt for standalone doors, or COM and NO to a controller exit (REX) input. Take the sensor supply from the controller auxiliary output or the lock power supply.
More features
- Handprint or "No Touch" face graphic with EXIT legend
XB-120 specifications
Sensing & output
| Activation | Infrared hand detection, no contact |
|---|---|
| Output contacts | NO, NC, COM |
| Rated current | 2 A |
| Reset | Automatic (self-resetting after each activation) |
Electrical
| Supply voltage | 9–16 V DC |
|---|---|
| Wiring | 5 leads (see wiring table) |
Mechanical & environment
| Dimensions | 115 × 70 × 38 mm (±3 mm) |
|---|---|
| Housing | Stainless steel |
| Face graphic | Handprint symbol or "No Touch" legend, with EXIT marking |
| Operating temperature | –20 to +50 °C |
| Storage temperature | –20 to +65 °C |
| Operating humidity | 10–90% |
Wiring (lead colors)
| Lead color | Function |
|---|---|
| Red | +12 V DC (9–16 V DC range) |
| Black | GND |
| Yellow | NO (normally open) |
| White | COM |
| Green | NC (normally closed) |
Five-lead connection. Power the sensor from the controller auxiliary output or the 12 V lock supply.
Variants
| SKU | Face graphic | Plate |
|---|---|---|
| XB-120-HP | Handprint symbol + EXIT | 115 × 70 mm stainless steel |
| XB-120-NT | "No Touch" legend + EXIT | 115 × 70 mm stainless steel |
Face graphic is the only difference between variants.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| XB-120-HP | Infrared no-touch exit button, 115 × 70 mm stainless plate, handprint face graphic | |
| XB-120-NT | Infrared no-touch exit button, 115 × 70 mm stainless plate, "No Touch" face graphic |
Where the XB-120 is used
- Offices and clinics fitted out with rectangular wall plates
- Touch-free exits in food service and healthcare corridors
- Standalone maglock doors where the button interrupts the lock supply
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
XB-120 FAQ
Will it fit a US single-gang back box?
The 115 × 70 mm plate is close to a single-gang footprint, but screw spacing is not published. Request a sample to confirm the fit before a volume order.
How is it wired to an access controller?
Connect COM and NO to the controller exit or REX input, and power the sensor with 9–16 V DC on the red and black leads.
Can it switch a maglock directly?
Yes, for fail-safe locks: run the lock supply through COM and NC so power drops while a hand is detected. Keep the lock current within the 2 A rating.
Is it weatherproof?
No IP rating is published, so use it indoors. The IP67-rated XB-130 comes in a 115 × 70 mm version for exposed locations.
