XB-130 IP67 Touchless Infrared Exit Button, Metal, Dual LED
IP67 no-touch exit button with 0–15 cm infrared sensing, relay NO/NC/COM output and blue/green status LED. Three metal plate sizes in silver or gun gray.
- IP67-rated metal housing for exposed, wet or dusty door locations
- Infrared optical sensing with 0–15 cm detection distance
- Relay output with NO, NC and COM leads
- Dual LED: blue on standby, green when a hand is detected
- 12 V DC at ≤ 200 mA; 100,000-cycle service life
- Protection rating
- IP67
- Sensing distance
- 0–15 cm
- Output
- Relay, NO / NC / COM
- Supply
- 12 V DC, ≤ 200 mA
- Plate sizes
- 86 × 86 / 115 × 70 / 115 × 42 mm
- Service life
- 100,000 cycles
Reply within 24 hours Tested before dispatch Worldwide shipping
IP67 Touchless Infrared Exit Button, Metal, Dual LED: overview

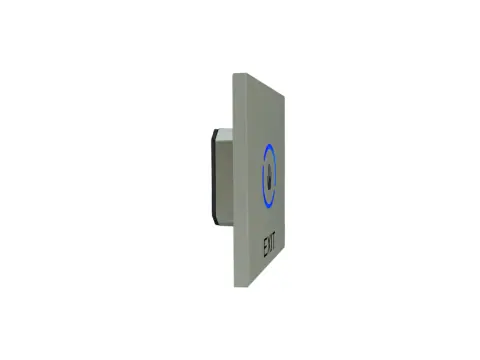

XB-130 is an IP67-rated touchless exit button for doors where a standard request-to-exit plate would face rain, splashes or dust. An infrared optical sensor detects a hand at 0–15 cm and switches a relay output, while a dual LED shows the state: blue on standby, green when a hand is sensed. The slim metal plate is rated for 100,000 operating cycles.

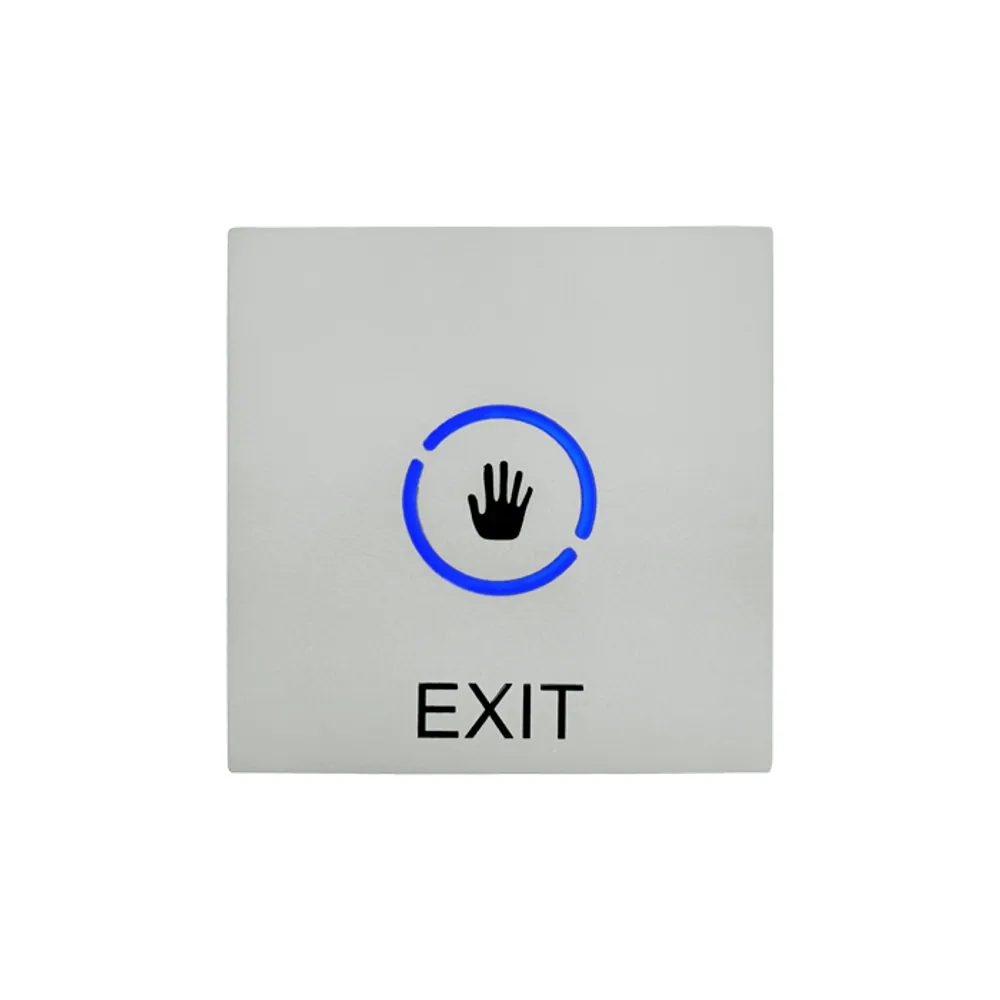

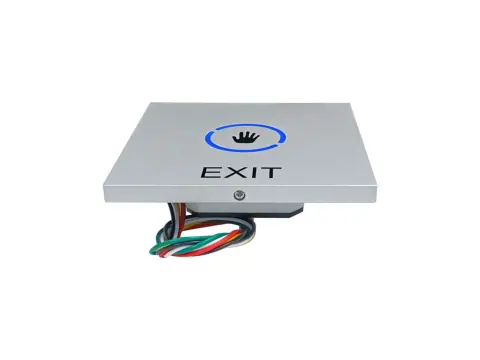

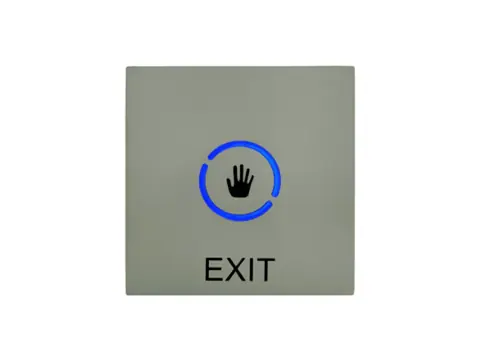

The series comes in three plate formats, each in silver or gun gray: 86 × 86 mm for square 86-type wall boxes, 115 × 70 mm wide, and a 115 × 42 mm narrow strip for tight mounting spaces. Every plate carries a palm symbol inside a circle with an EXIT legend printed below it.
The button runs from 12 V DC and draws no more than 200 mA. Operating range is –20 to +65 °C (–4 to 149 °F) at 20–80% RH non-condensing, with storage from –40 to +80 °C (–40 to 176 °F). RoHS compliance is stated for all versions.
Integration notes

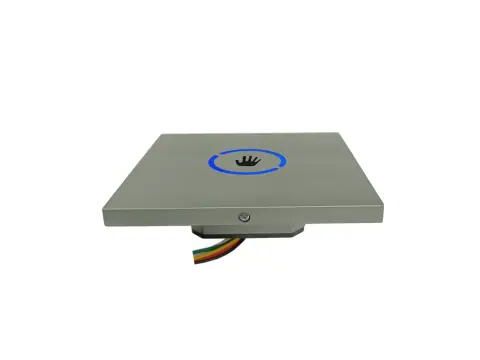

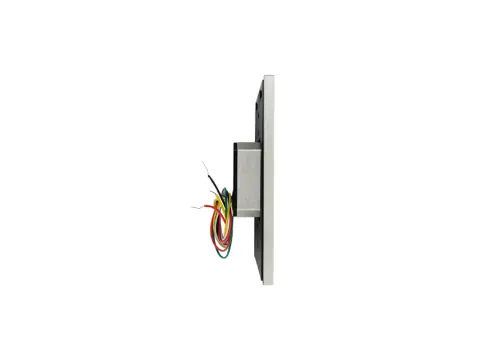

The five-lead cable is color-coded: red +12 V DC, black GND, white COM, green NC and blue NO. Use COM and NO into a controller exit input, or COM and NC in series with a fail-safe lock supply on standalone doors. Budget up to 200 mA per button when sizing the 12 V supply, and seal the cable entry in the wall box so the installation keeps its weather protection.
More features
- 86 × 86, 115 × 70 or 115 × 42 mm plates in silver or gun gray
- RoHS compliant; operating –20 to +65 °C (–4 to 149 °F)
XB-130 specifications
Sensing & output
| Sensing technology | Infrared optical, no-touch |
|---|---|
| Sensing distance | 0–15 cm |
| Output | Relay switching output (NO, NC, COM) |
| Indicators | Dual LED: blue on standby, green on detection |
Electrical
| Supply voltage | 12 V DC |
|---|---|
| Operating current | ≤ 200 mA |
Mechanical & environment
| Housing | Metal, ultra-thin plate design |
|---|---|
| Plate sizes | 86 × 86 mm (86-box), 115 × 70 mm (wide), 115 × 42 mm (narrow strip) |
| Finishes | Silver or gun gray |
| Face marking | Palm symbol inside a circle, EXIT printed below |
| Protection rating | IP67 |
| Operating temperature | –20 to +65 °C (–4 to 149 °F) |
| Storage temperature | –40 to +80 °C (–40 to 176 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Service life | 100,000 cycles |
Compliance
| Environmental | RoHS compliant |
|---|
Variant matrix
| SKU | Plate format | Plate size | Finish |
|---|---|---|---|
| XB-130-86-SV | 86-box square | 86 × 86 mm | Silver |
| XB-130-86-GY | 86-box square | 86 × 86 mm | Gun gray |
| XB-130-70-SV | Wide | 115 × 70 mm | Silver |
| XB-130-70-GY | Wide | 115 × 70 mm | Gun gray |
| XB-130-42-SV | Narrow strip | 115 × 42 mm | Silver |
| XB-130-42-GY | Narrow strip | 115 × 42 mm | Gun gray |
All variants share the same electrical specification and IP67 rating.
Wiring (lead colors)
| Pin | Lead color | Function |
|---|---|---|
| 1 | Red | +12 V DC |
| 2 | Black | GND |
| 3 | White | COM |
| 4 | Green | NC |
| 5 | Blue | NO |
Five-lead cable, numbered as on the pin definition.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| XB-130-86-SV | IP67 touchless infrared exit button, 86-box square 86 × 86 mm metal plate, silver finish | |
| XB-130-86-GY | IP67 touchless infrared exit button, 86-box square 86 × 86 mm metal plate, gun gray finish | |
| XB-130-70-SV | IP67 touchless infrared exit button, wide 115 × 70 mm metal plate, silver finish | |
| XB-130-70-GY | IP67 touchless infrared exit button, wide 115 × 70 mm metal plate, gun gray finish | |
| XB-130-42-SV | IP67 touchless infrared exit button, narrow strip 115 × 42 mm metal plate, silver finish | |
| XB-130-42-GY | IP67 touchless infrared exit button, narrow strip 115 × 42 mm metal plate, gun gray finish |
Where the XB-130 is used
- Pedestrian gates and exterior doors where the exit button faces rain or dust
- Narrow aluminum door frames using the 115 × 42 mm strip version
- Gym, pool and changing-area doors where touch-free, splash-resistant hardware is preferred
- Apartment lobbies that want a visible blue/green status indicator at the exit
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
XB-130 FAQ
What does IP67 mean for installation?
IP67 means the housing is dust-tight and withstands temporary immersion, so it suits exposed door frames and gate posts. Seal the cable entry in the wall box as well.
How far away does it detect a hand?
Detection distance is 0–15 cm from the plate. The LED changes from blue to green when a hand is sensed.
Which plate size should I choose?
86 × 86 mm fits square 86-type wall boxes, 115 × 70 mm suits rectangular plates, and the 115 × 42 mm strip fits tight frames. All three share the same electrical specification.
How much current does each button draw?
Up to 200 mA at 12 V DC. Include this in your power budget, especially when several buttons share one supply.
Is the gun gray version specified differently from silver?
No. Finish is the only difference between the -SV and -GY versions of each plate size.
