EL-170 Double Door Magnetic Lock 2 × 280 kg (600 lb) with Status
One 500 mm aluminum body holding two 280 kg (600 lb) magnets for double doors, with an NO/NC status signal output and 12 or 24 V DC operation.
- Two 280 kg (600 lb) magnets in one 500 mm body, one armature plate per leaf
- Status signal output with NO and NC contacts
- 12 V DC (2 × 480 mA) or 24 V DC (2 × 240 mA) operation
- Aluminum-alloy housing fastened with hex-socket security screws
- Fail-safe: both leaves release on power loss
- Holding force
- 2 × 280 kg (2 × 600 lb)
- Supply
- 12 or 24 V DC
- Current (total)
- 960 mA @ 12 V / 480 mA @ 24 V
- Status output
- Yes, NO/NC
- Lock body
- 500 × 47 × 26 mm
- Weight
- 4 kg
Reply within 24 hours Tested before dispatch Worldwide shipping
Double Door Magnetic Lock 2 × 280 kg (600 lb) with Status: overview

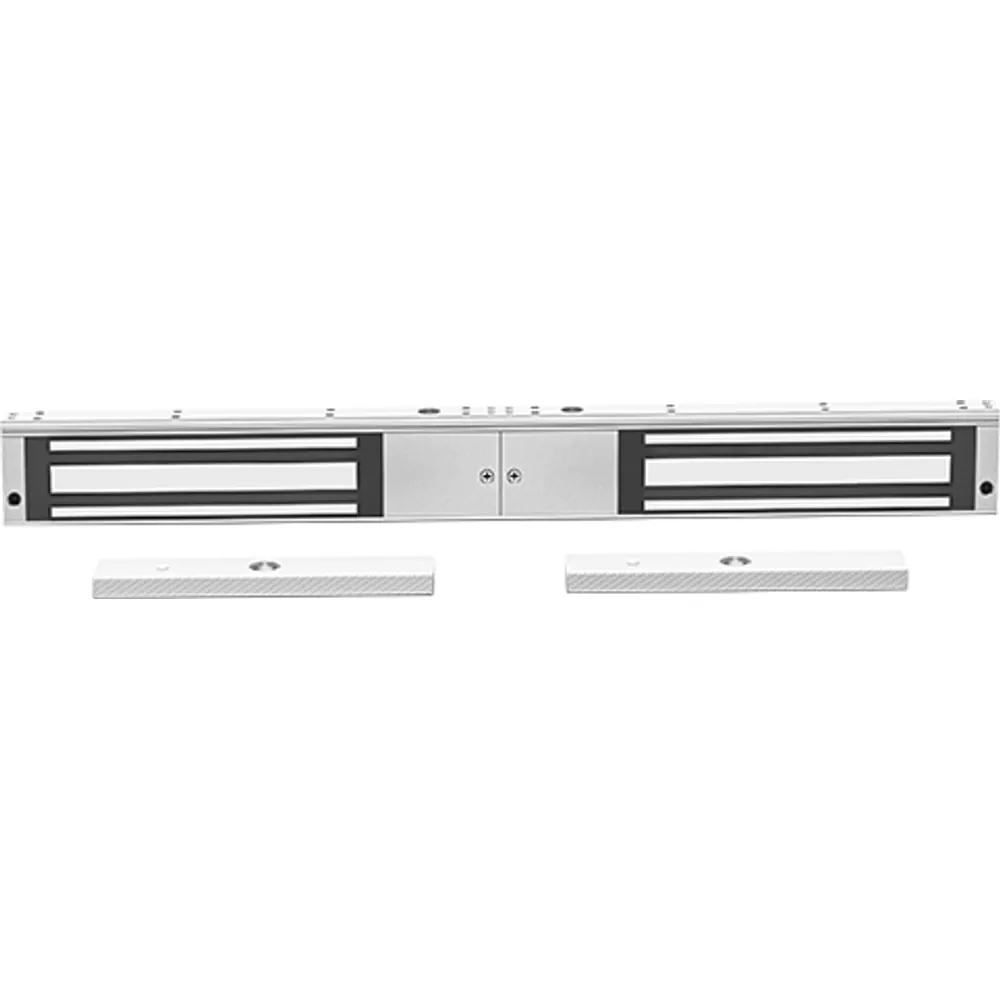

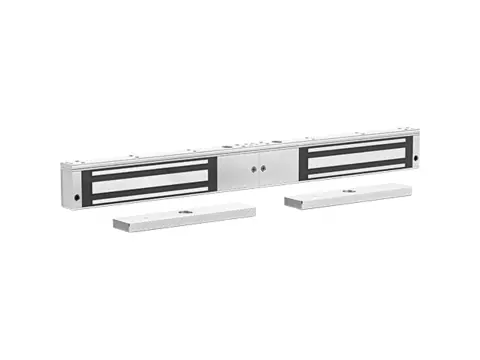

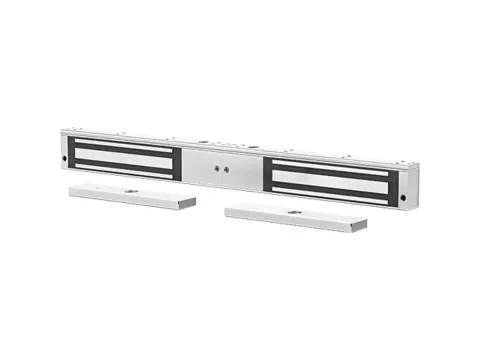

EL-170 secures a pair of doors with a single 500 × 47 × 26 mm lock body containing two 280 kg (600 lb) magnets, one for each leaf. Each leaf gets its own 180 × 38 × 11 mm armature plate, so both doors are held in straight pull. It is sometimes listed as a 1,200 lb double maglock, but each leaf is held at 600 lb. A status signal output with normally-open and normally-closed contacts reports back to the controller or alarm panel.
The housing is high-strength aluminum alloy fastened with hex-socket (Allen) screws, which resist casual tampering with ordinary screwdrivers. The lock runs from 12 V DC or 24 V DC and draws 480 mA per magnet at 12 V (960 mA total) or 240 mA per magnet at 24 V (480 mA total). Operation is fail-safe, so both leaves release when power is cut, and there is no built-in delay.
It is listed for wooden, glass, metal and fire double doors in lobbies, corridors and stairwells. For the same lock without the signal output, see EL-180.
Integration notes
Size the power supply for both magnets: close to 1 A at 12 V before readers and the controller are added, then allow 25–50% headroom. Wire the NO or NC status contact to the controller's door or auxiliary input to match how that input is configured. The lock weighs 4 kg, so fix the body into solid header material. On frameless glass leaves, carry each armature on an EL-150 U bracket.
More features
- Listed for wooden, glass, metal and fire double doors
EL-170 specifications
Holding & locking
| Holding force | 280 kg (600 lb) per leaf, straight pull; 2 magnets |
|---|---|
| Lock type | Fail-safe (releases when power is removed) |
| Time delay | None built in |
Electrical
| Input voltage | 12 V DC or 24 V DC (state supply voltage when ordering) |
|---|---|
| Working current | 480 mA × 2 at 12 V; 240 mA × 2 at 24 V |
| Signal output | Status signal, NO and NC |
Mechanical
| Lock body | 500 × 47 × 26 mm |
|---|---|
| Armature plates | 2 × 180 × 38 × 11 mm |
| Housing | High-strength aluminum alloy |
| Fasteners | Hex-socket (Allen) security screws |
| Weight | 4 kg |
| Suitable doors | Wooden, glass, metal and fire doors |
Current draw for power-supply sizing
| Supply | Per magnet | Both magnets |
|---|---|---|
| 12 V DC | 480 mA | 960 mA |
| 24 V DC | 240 mA | 480 mA |
Standard 280 kg (600 lb) lock range compared
| SKU | Doors | Holding force | Lock body | Status output | Weight |
|---|---|---|---|---|---|
| EL-190-280S | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | Yes, NO/NC | 2 kg |
| EL-200-280 | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | No | 2 kg |
| EL-170-280S | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | Yes, NO/NC | 4 kg |
| EL-180-280 | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | No | 4 kg |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-170-280S | Double-door magnetic lock, 2 × 280 kg (2 × 600 lb), 500 mm aluminum body, 12/24 V DC, NO/NC status output |
Where the EL-170 is used
- Main lobby double doors released by a card reader and the fire-alarm relay
- Corridor cross-doors where the status output feeds door-held-open alarms
- Double glass entrance with a U bracket on each frameless leaf
- Stairwell double doors on a fail-safe escape route
