EL-140 Maglock ZL Bracket for Inward-Opening Doors, 280 kg Locks
Two-piece Z and L aluminum bracket that lets a 280 kg (600 lb) magnetic lock secure a door opening toward the lock side; brushed finish, screws included.
- Z-plate plus L-plate set for 280 kg (600 lb) maglocks on inward-opening doors
- High-strength aluminum alloy with brushed finish
- Plates measure 250 × 28 × 48 mm and 180 × 50 × 50 mm; set weighs about 0.7 kg
- For wooden, metal and fire doors swinging one way through 90°
- Screw pack included
- Bracket type
- ZL (Z-plate + L-plate)
- For locks
- 280 kg (600 lb) magnetic locks
- Door
- Inward-opening, 90° one-way swing
- Material
- Aluminum alloy, brushed
- Size
- 250 × 28 × 48 mm + 180 × 50 × 50 mm
- Weight
- Approx. 0.7 kg
Reply within 24 hours Tested before dispatch Worldwide shipping

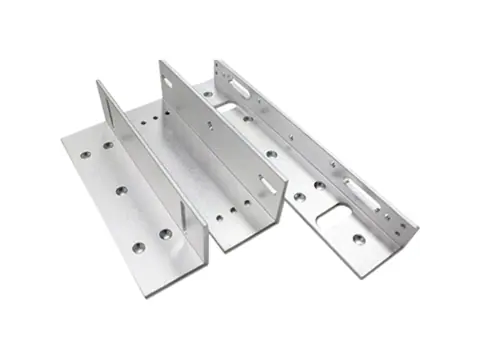

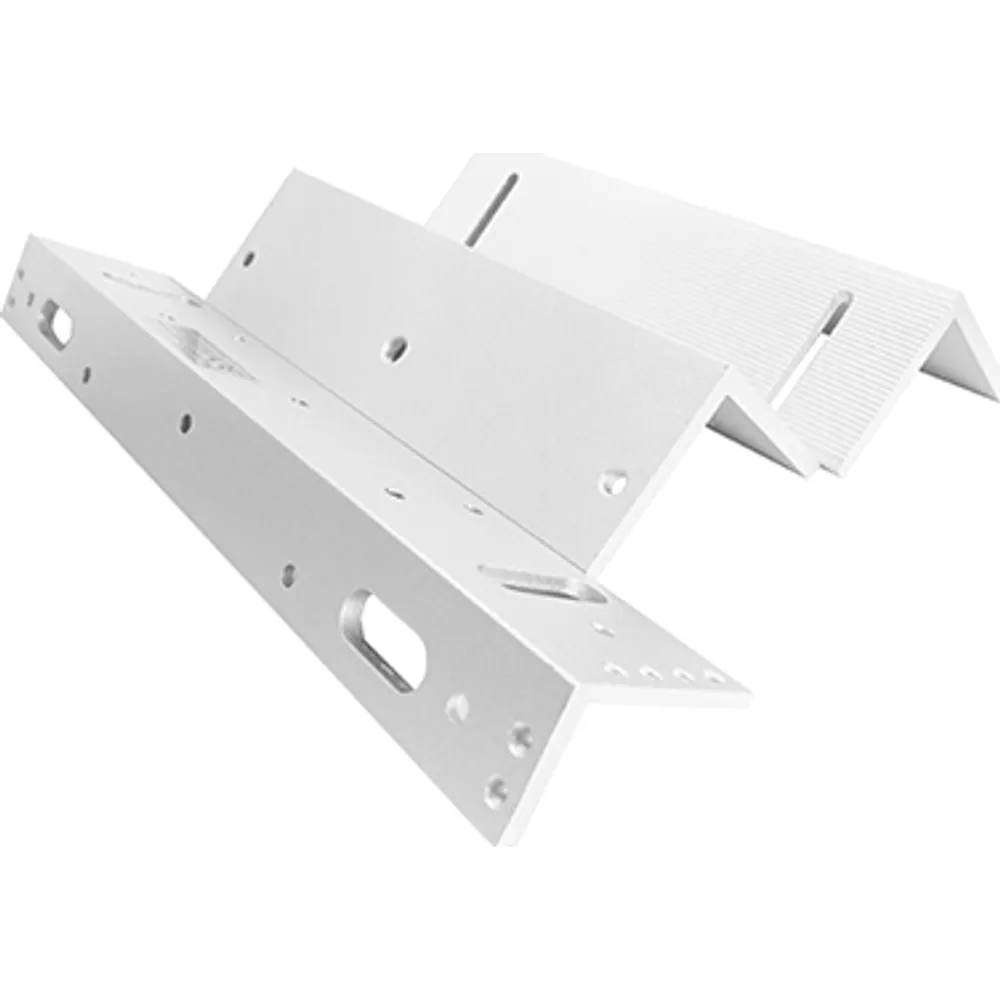

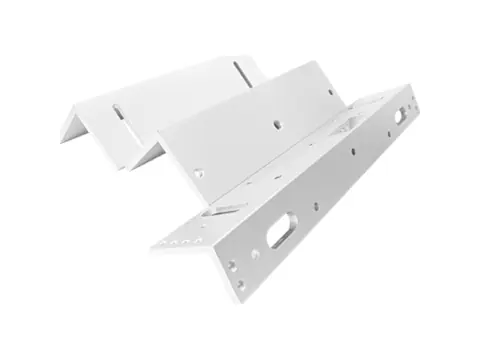

Maglock ZL Bracket for Inward-Opening Doors, 280 kg Locks: overview
A surface-mount magnetic lock normally sits on the side of the frame the door closes toward, so the door face lands flat on the magnet. When the door instead opens toward the lock side, as most inward-opening doors do with the lock on the room side, the lock body would sit in the door's path. EL-140 solves this with two parts: a Z-plate that repositions the lock body on the header and an L-plate that carries the armature on the door, so both faces meet squarely when the door closes.
Both parts are high-strength aluminum alloy with a brushed (wire-drawn) finish and measure 250 × 28 × 48 mm and 180 × 50 × 50 mm. The set weighs about 0.7 kg and ships with a screw pack. It is made for 280 kg (600 lb) magnetic locks on wooden, metal and fire doors that swing one way through 90°.
Getting the geometry right matters: a maglock only reaches its rated holding force when the armature pulls straight off the lock face, so a bracket that holds both parts rigidly and parallel is part of the lock's performance, not just a mounting accessory.
Integration notes
The plate dimensions follow our 250 mm lock bodies with 180 × 38 mm armatures, such as EL-190, EL-200 and EL-110. Check the door-top thickness and the clearance between frame stop and door before drilling. For frameless glass doors use the EL-150 U bracket instead, and where the header is simply too narrow for the lock body, the EL-160 L bracket.
EL-140 specifications
Fitment
| Applicable lock | 280 kg (600 lb) magnetic lock |
|---|---|
| Door opening | 90°, single direction |
| Door types | Wooden, metal and fire doors |
Construction
| Material | High-strength aluminum alloy |
|---|---|
| Finish | Brushed (wire-drawn) |
| Dimensions | 250 × 28 × 48 mm; 180 × 50 × 50 mm |
| Weight | Approx. 0.7 kg |
Package
| Accessories | 1 screw pack |
|---|
Which maglock bracket do I need?
| Door situation | Bracket | SKU |
|---|---|---|
| Door closes toward the lock side, header wide enough | None (surface mount) | — |
| Door opens toward the lock side (typical inswing) | ZL bracket (Z-plate + L-plate) | EL-140-280 |
| Header too narrow or recessed to seat the lock body | L bracket | EL-160-280 |
| Frameless glass leaf under a framed header, 8–15 mm glass | U bracket | EL-150-280 |
Bracket sizes follow a 250 mm lock body and a 180 × 38 mm armature plate; we confirm hole alignment when you order.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-140-280 | ZL bracket set (Z-plate + L-plate) for 280 kg magnetic locks, brushed aluminum alloy, with screw pack |
Where the EL-140 is used
- Inward-opening office door with the maglock fitted on the room side
- Fire door retrofit where the door opens toward the lock mounting side
- Metal plant-room door that swings into the protected area
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EL-140 FAQ
When do I need a ZL bracket?
When the door opens toward the side where the lock is mounted, which is typical of inward-opening doors. The Z-plate positions the lock body and the L-plate holds the armature so the two meet when the door closes.
Which locks does EL-140 fit?
It is made for 280 kg (600 lb) magnetic locks, and its plates follow our 250 mm bodies with 180 × 38 mm armatures, such as EL-190, EL-200 and EL-110. If you are fitting another lock, send us its model and we will check the hole pattern.
Can I use it on a glass door?
It is listed for wooden, metal and fire doors. For frameless glass leaves use the EL-150 U bracket, which clamps glass 8–15 mm thick.
What is in the package?
The Z-plate, the L-plate and one screw pack. The magnetic lock is ordered separately.
Before you buy
