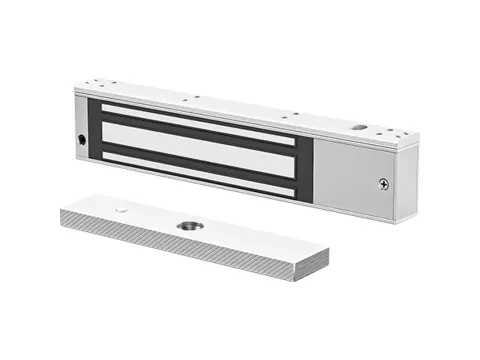

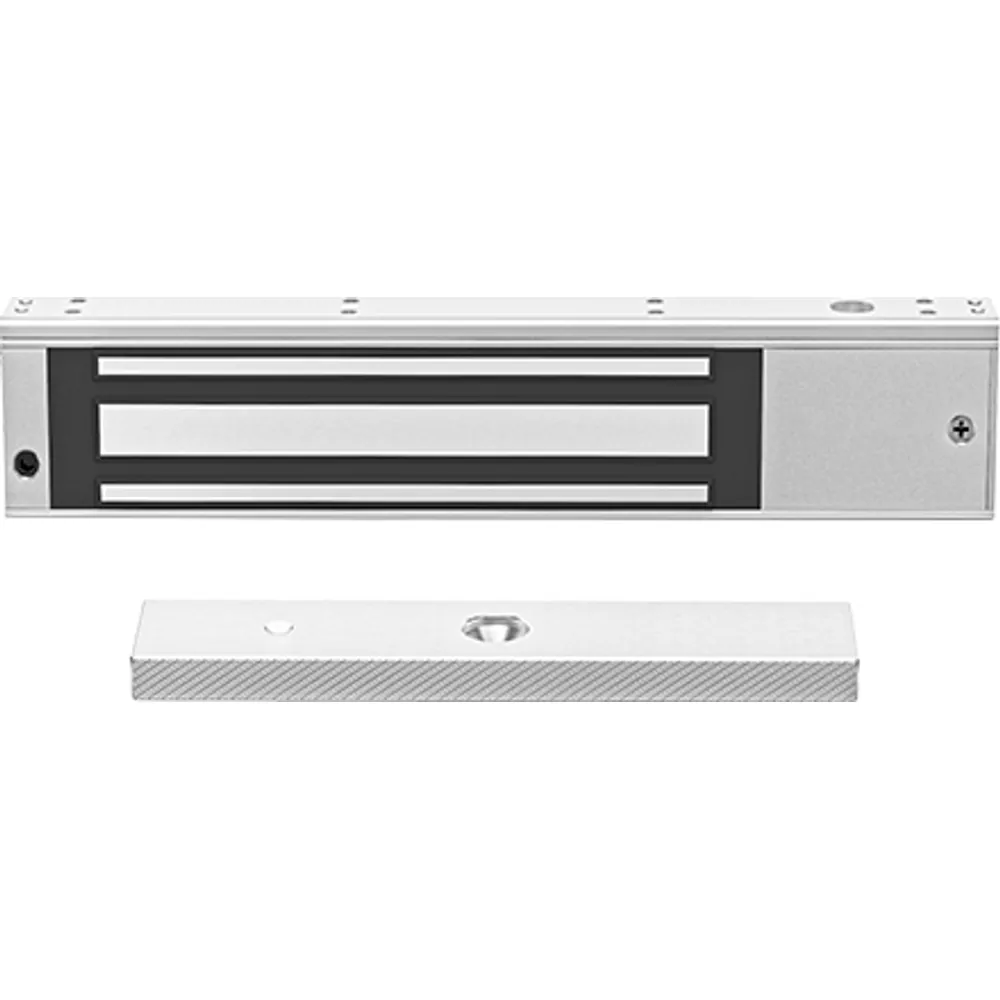

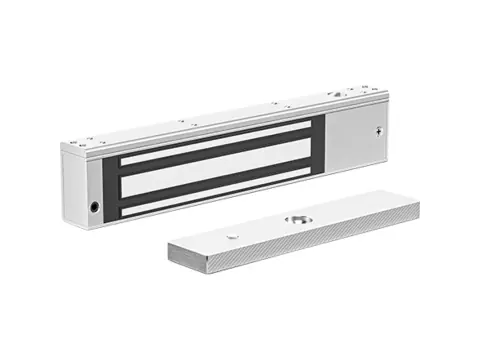

EL-190 280 kg (600 lb) Magnetic Lock with Status Output, 12/24 V
Single-door 280 kg (600 lb) maglock with NO/NC status output, a 250 × 47 × 26 mm aluminum-alloy body and a 12 or 24 V DC coil drawing 480/240 mA.
- 280 kg (600 lb) straight-pull holding force for single doors
- Status signal output with NO and NC contacts
- 12 V DC at 480 mA or 24 V DC at 240 mA
- 250 × 47 × 26 mm aluminum-alloy body with hex-socket security screws
- Fail-safe: releases on power loss; no built-in delay
- Holding force
- 280 kg (600 lb)
- Supply
- 12 or 24 V DC
- Current
- 480 mA @ 12 V / 240 mA @ 24 V
- Status output
- Yes, NO/NC
- Lock body
- 250 × 47 × 26 mm
- Weight
- 2 kg
Reply within 24 hours Tested before dispatch Worldwide shipping
280 kg (600 lb) Magnetic Lock with Status Output, 12/24 V: overview
EL-190 is our standard single-door magnetic lock for integrators who want feedback from the lock itself. It holds 280 kg (600 lb) in straight pull and provides a status signal with normally-open and normally-closed contacts, so the controller or alarm panel can log when the door is secured and flag it when it is not.
The 250 × 47 × 26 mm body is high-strength aluminum alloy closed with hex-socket (Allen) screws for tamper resistance, and the 180 × 38 × 11 mm armature plate mounts on the door leaf. It draws 480 mA at 12 V DC or 240 mA at 24 V DC. The lock is fail-safe, releasing on loss of power, and has no internal delay, so door-open time is set in the controller.
It is listed for wooden, glass, metal and fire doors and weighs 2 kg. For the same lock without the signal output, see EL-200; for doors and gates exposed to rain, the waterproof EL-110 has the same 250 mm body length.
Integration notes
Mount the body under the header on the side the door closes toward, and fix the armature so it meets the lock face squarely. Doors that open toward the lock side need the EL-140 ZL bracket, narrow headers the EL-160 L bracket and frameless glass leaves the EL-150 U bracket. Switch the coil through the controller's lock relay and wire the NO or NC status contact to a door or auxiliary input. Size the supply at 480 mA plus the other door devices, with 25–50% headroom.
More features
- Matching brackets: EL-140 ZL, EL-160 L and EL-150 U
EL-190 specifications
Holding & locking
| Holding force | 280 kg (600 lb), straight pull |
|---|---|
| Lock type | Fail-safe (releases when power is removed) |
| Time delay | None built in |
Electrical
| Input voltage | 12 V DC or 24 V DC (state supply voltage when ordering) |
|---|---|
| Working current | 480 mA at 12 V; 240 mA at 24 V |
| Signal output | Status signal, NO and NC |
Mechanical
| Lock body | 250 × 47 × 26 mm |
|---|---|
| Armature plate | 180 × 38 × 11 mm |
| Housing | High-strength aluminum alloy |
| Fasteners | Hex-socket (Allen) security screws |
| Weight | 2 kg |
| Suitable doors | Wooden, glass, metal and fire doors |
Standard 280 kg (600 lb) lock range compared
| SKU | Doors | Holding force | Lock body | Status output | Weight |
|---|---|---|---|---|---|
| EL-190-280S | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | Yes, NO/NC | 2 kg |
| EL-200-280 | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | No | 2 kg |
| EL-170-280S | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | Yes, NO/NC | 4 kg |
| EL-180-280 | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | No | 4 kg |
Which maglock bracket do I need?
| Door situation | Bracket | SKU |
|---|---|---|
| Door closes toward the lock side, header wide enough | None (surface mount) | — |
| Door opens toward the lock side (typical inswing) | ZL bracket (Z-plate + L-plate) | EL-140-280 |
| Header too narrow or recessed to seat the lock body | L bracket | EL-160-280 |
| Frameless glass leaf under a framed header, 8–15 mm glass | U bracket | EL-150-280 |
Bracket sizes follow a 250 mm lock body and a 180 × 38 mm armature plate; we confirm hole alignment when you order.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-190-280S | Single-door magnetic lock, 280 kg (600 lb), 250 mm aluminum body, 12/24 V DC, NO/NC status output |
Where the EL-190 is used
- Office or classroom door where the controller logs door-secured status
- Server or stock room door with held-open alarms driven by the status contact
- Apartment building entrance released by a reader, exit button and fire-alarm relay
- Gym or club door on a monitored, fail-safe escape route
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EL-190 FAQ
How does EL-190 differ from EL-200?
They share the same 250 × 47 × 26 mm body, 280 kg (600 lb) holding force and 480/240 mA current. EL-190 adds a status signal output with NO and NC contacts; EL-200 has none.
What power supply do I need?
The lock draws 480 mA at 12 V DC or 240 mA at 24 V DC. Add the reader, controller and exit button, then 25–50% headroom; a 12 V 3 A supply such as PW-120 suits a typical single door.
Which bracket do I need?
None if the door closes toward the lock side on a wide enough header. Use the EL-140 ZL bracket when the door opens toward the lock, the EL-160 L bracket for narrow headers and the EL-150 U bracket for frameless glass 8–15 mm thick.
Can I use it outdoors?
No weather rating is stated for EL-190. For gates and exterior doors exposed to rain, use the waterproof EL-110, which has the same 250 mm body length.
