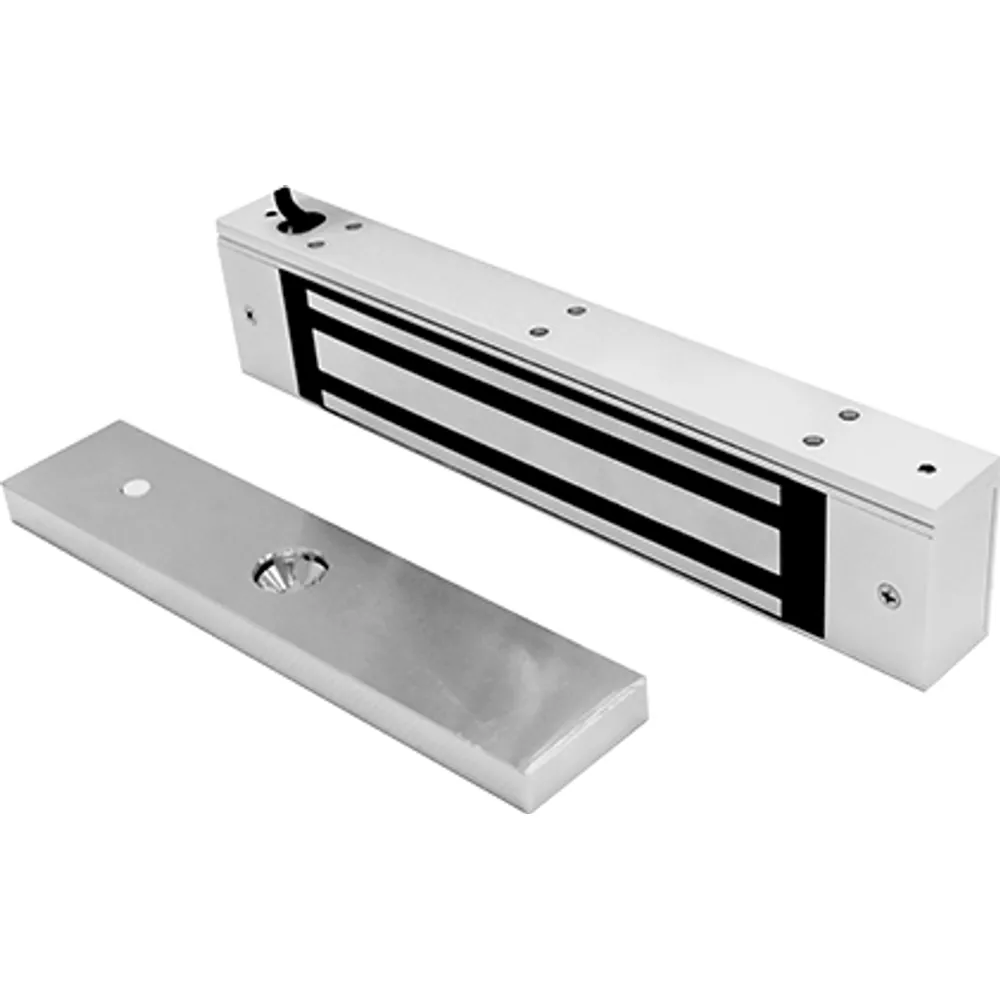

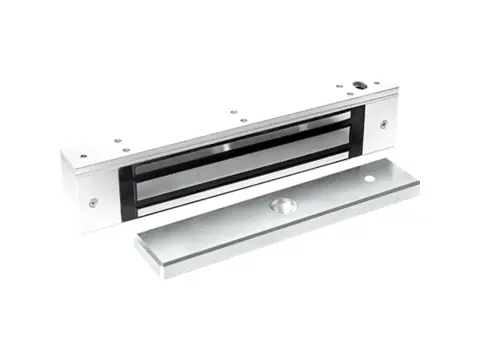

EL-110 Waterproof 280 kg (600 lb) Magnetic Lock with Door Status
Waterproof single-door maglock holding 280 kg (600 lb), with an aluminum-alloy housing, installer-selectable 12/24 V DC coil and a door-status output.
- 280 kg (600 lb) ±10% static straight-pull holding force
- Waterproof build: aluminum-alloy housing and double-insulated lock body
- Installer-selectable coil: 12 V DC at 480 mA or 24 V DC at 240 mA
- Door-status signal output for held-open and forced-door monitoring
- Built-in MOV suppresses coil switch-off spikes to protect controller relays
- Holding force
- 280 kg (600 lb) ±10%
- Supply
- 12 or 24 V DC ±10%, selectable
- Current
- 480 mA @ 12 V / 240 mA @ 24 V
- Signal output
- Door status
- Lock body
- 250 × 48 × 26 mm
- Housing
- Aluminum alloy, waterproof
Reply within 24 hours Tested before dispatch Worldwide shipping
Waterproof 280 kg (600 lb) Magnetic Lock with Door Status: overview
EL-110 is a surface-mount electromagnetic lock for single doors that face the weather, such as courtyard gates, exterior staff entrances and service doors. It holds 280 kg (600 lb) ±10% in static straight pull and sends a door-status signal back to the controller, so the system can tell a secured door from one left ajar.
The housing is high-strength aluminum alloy and the lock body is double insulated. An anti-residual-magnetism design and wear-resistant materials help the armature break away cleanly each time the door is released, and because the holding force is purely electromagnetic there are no latches or springs to wear out. A built-in MOV clamps the voltage spike produced when the coil switches off, protecting the relay contacts of the controller or keypad that drives it.
The installer sets the coil for 12 V DC ±10% (480 mA ±5%) or 24 V DC ±10% (240 mA ±5%). Like any maglock it is fail-safe: removing power releases the door, which suits escape routes and fire-alarm release circuits. There is no built-in relock delay, so door-open time is set in the controller or keypad.
Integration notes
The lock body measures 250 × 48 × 26 mm and the armature plate 180 × 38 × 11 mm. It is listed for wooden, glass, metal and fire doors. Add the EL-140 ZL bracket where the door opens toward the lock side, the EL-160 L bracket on narrow headers and the EL-150 U bracket on frameless glass leaves. Listed certifications are UL, CE, FCC and RoHS; ask us for copies if your specification requires them.
More features
- Fail-safe operation releases the door on power loss
- Listed certifications: UL, CE, FCC, RoHS (documents on request)
EL-110 specifications
Holding & locking
| Holding force | 280 kg (600 lb) ±10%, static straight pull |
|---|---|
| Lock type | Fail-safe (releases when power is removed) |
| Time delay | None built in |
| Residual magnetism | Anti-residual-magnetism design, wear-resistant materials |
Electrical
| Operating voltage | 12 V DC ±10% or 24 V DC ±10%, installer-selectable |
|---|---|
| Operating current | 480 mA ±5% at 12 V; 240 mA ±5% at 24 V |
| Surge protection | Built-in MOV (reverse-current / back-EMF suppression) |
| Signal output | Door status |
Mechanical & environment
| Lock body | 250 × 48 × 26 mm |
|---|---|
| Armature plate | 180 × 38 × 11 mm |
| Housing | High-strength aluminum alloy |
| Insulation | Double-insulated lock body |
| Weather protection | Waterproof design; no IP code stated |
| Suitable doors | Wooden, glass, metal and fire doors |
Compliance
| Certifications listed | UL, CE, FCC, RoHS (copies on request) |
|---|
Coil current by supply voltage
| Supply voltage | Coil current | Holding force |
|---|---|---|
| 12 V DC ±10% | 480 mA ±5% | 280 kg (600 lb) ±10% |
| 24 V DC ±10% | 240 mA ±5% | 280 kg (600 lb) ±10% |
Waterproof 280 kg (600 lb) locks compared
| SKU | Housing | Lock body | Armature plate | Current at 12 V / 24 V | Signal output |
|---|---|---|---|---|---|
| EL-110-280S | Aluminum alloy | 250 × 48 × 26 mm | 180 × 38 × 11 mm | 480 mA / 240 mA (±5%) | Door status |
| EL-120-280S | Stainless steel | 210 × 42 × 28.5 mm | 185 × 38 × 12 mm | 460 mA / 230 mA (±5%) | Door status |
| EL-130-280S | Stainless steel | 220 × 47 × 28 mm | 200 × 45 × 13 mm | 500 mA / 250 mA | Lock status |
Which maglock bracket do I need?
| Door situation | Bracket | SKU |
|---|---|---|
| Door closes toward the lock side, header wide enough | None (surface mount) | — |
| Door opens toward the lock side (typical inswing) | ZL bracket (Z-plate + L-plate) | EL-140-280 |
| Header too narrow or recessed to seat the lock body | L bracket | EL-160-280 |
| Frameless glass leaf under a framed header, 8–15 mm glass | U bracket | EL-150-280 |
Bracket sizes follow a 250 mm lock body and a 180 × 38 mm armature plate; we confirm hole alignment when you order.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-110-280S | Waterproof 280 kg (600 lb) single-door magnetic lock, aluminum-alloy housing, 12/24 V DC selectable, door-status output |
Where the EL-110 is used
- Pedestrian gate next to a vehicle barrier, released by a card reader or keypad
- Exterior staff or delivery entrance on a warehouse or plant building
- Apartment lobby door tied into the fire-alarm release relay
- Monitored service door where the status output feeds the alarm panel
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EL-110 FAQ
Can EL-110 be used on an outdoor gate?
Yes. It is the waterproof version of our 250 mm, 280 kg lock, with an aluminum-alloy housing and double-insulated body for doors and gates exposed to weather. No IP code is published, so if your specification names one, ask for test data before ordering.
What power supply does it need?
The coil draws 480 mA at 12 V DC or 240 mA at 24 V DC. Add the reader, controller and exit button load plus 25–50% headroom; a 12 V 3 A supply such as PW-120 covers a typical single door.
Is it fail-safe or fail-secure?
Fail-safe. The door is held only while the coil is powered, so a power cut or fire-alarm release opens it. If the door must stay locked during an outage, add battery backup to the power supply.
How is the door-status output used?
Wire it to the door-sensor or auxiliary input of your controller or alarm panel. The system can then raise door-held-open and forced-door alarms.
Which bracket do I need?
None if the door closes toward the lock side and the header is wide enough. Use the EL-140 ZL bracket when the door opens toward the lock, the EL-160 L bracket for narrow headers and the EL-150 U bracket for frameless glass 8–15 mm thick.
