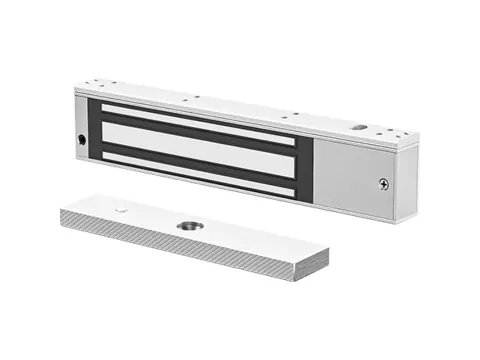

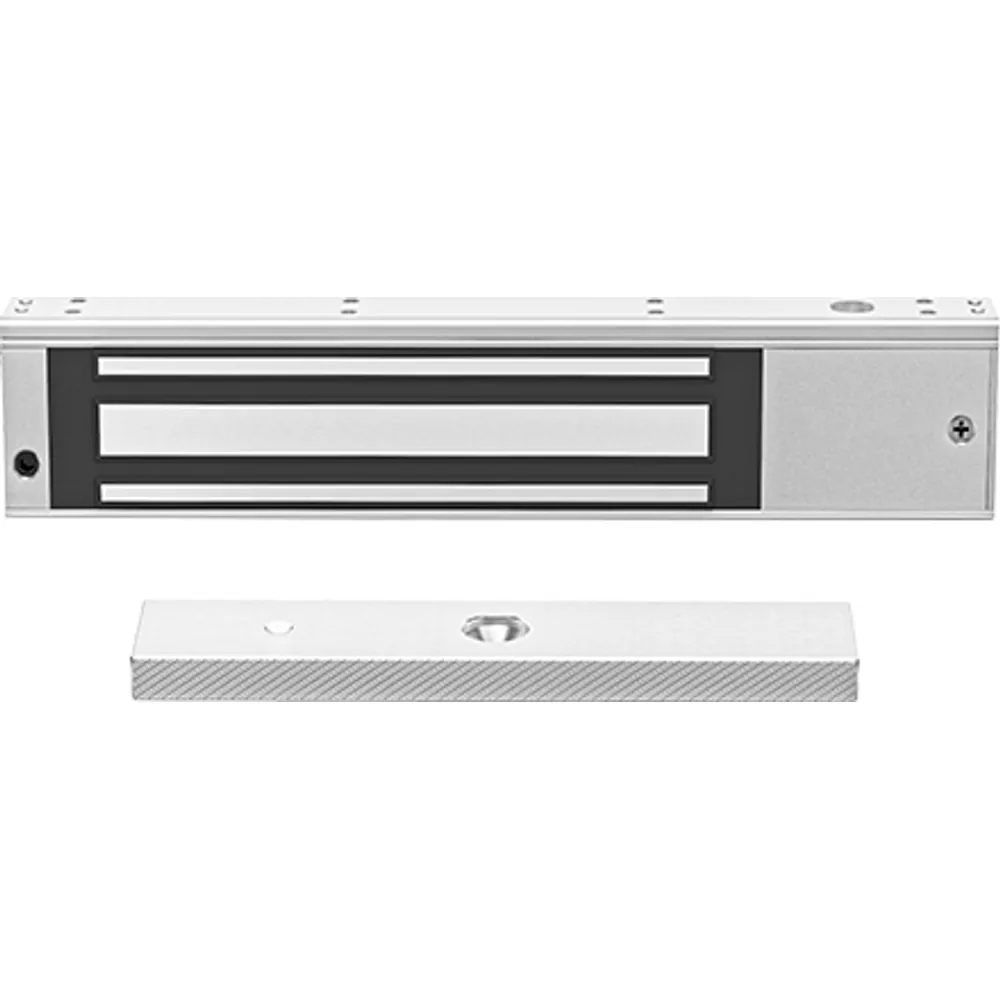

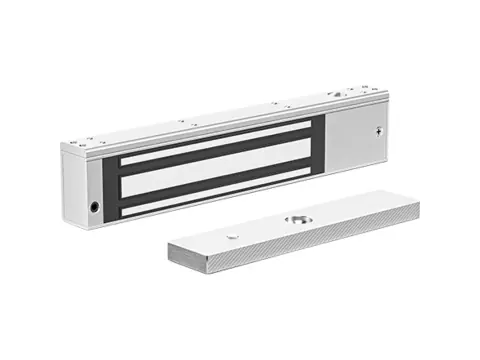

EL-200 280 kg (600 lb) Single Door Magnetic Lock, 12/24 V DC
Fail-safe 280 kg (600 lb) single-door maglock with a 250 × 47 × 26 mm aluminum-alloy body, 12 or 24 V DC coil (480/240 mA) and hex-socket screws.
- 280 kg (600 lb) straight-pull holding force for single doors
- 12 V DC at 480 mA or 24 V DC at 240 mA
- 250 × 47 × 26 mm aluminum-alloy body, 2 kg
- Hex-socket security screws resist casual tampering
- Fail-safe with no built-in delay; timing set by the controller
- Holding force
- 280 kg (600 lb)
- Supply
- 12 or 24 V DC
- Current
- 480 mA @ 12 V / 240 mA @ 24 V
- Status output
- None
- Lock body
- 250 × 47 × 26 mm
- Weight
- 2 kg
Reply within 24 hours Tested before dispatch Worldwide shipping
280 kg (600 lb) Single Door Magnetic Lock, 12/24 V DC: overview
EL-200 is the base 280 kg (600 lb) magnetic lock in our range: a single-door, surface-mount electromagnetic lock for doors that need to be held and released without status feedback. It pairs with any access controller, standalone keypad or exit button that can switch a 12 V or 24 V DC lock supply.
The 250 × 47 × 26 mm body is high-strength aluminum alloy, assembled with hex-socket (Allen) screws that are harder to remove with everyday tools, and it weighs 2 kg. A 180 × 38 × 11 mm armature plate mounts on the door leaf. Current draw is 480 mA at 12 V DC or 240 mA at 24 V DC.
Like all maglocks it is fail-safe: the door releases the moment the supply is interrupted, which suits escape routes and fire-alarm release. There is no built-in delay, so door-open time comes from the controller, keypad or a timed exit button. Where the controller needs to know whether the door is secured, EL-190 is the same lock with an NO/NC status output.
Integration notes
Mount the body on the header on the side the door closes toward, with the armature meeting the lock face squarely. For doors that open toward the lock side use the EL-140 ZL bracket; for narrow headers the EL-160 L bracket; for frameless glass leaves the EL-150 U bracket. It is listed for wooden, glass, metal and fire doors.
More features
- Matching brackets: EL-140 ZL, EL-160 L and EL-150 U
EL-200 specifications
Holding & locking
| Holding force | 280 kg (600 lb), straight pull |
|---|---|
| Lock type | Fail-safe (releases when power is removed) |
| Time delay | None built in |
Electrical
| Input voltage | 12 V DC or 24 V DC (state supply voltage when ordering) |
|---|---|
| Working current | 480 mA at 12 V; 240 mA at 24 V |
| Signal output | None |
Mechanical
| Lock body | 250 × 47 × 26 mm |
|---|---|
| Armature plate | 180 × 38 × 11 mm |
| Housing | High-strength aluminum alloy |
| Fasteners | Hex-socket (Allen) security screws |
| Weight | 2 kg |
| Suitable doors | Wooden, glass, metal and fire doors |
Standard 280 kg (600 lb) lock range compared
| SKU | Doors | Holding force | Lock body | Status output | Weight |
|---|---|---|---|---|---|
| EL-190-280S | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | Yes, NO/NC | 2 kg |
| EL-200-280 | Single | 280 kg (600 lb) | 250 × 47 × 26 mm | No | 2 kg |
| EL-170-280S | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | Yes, NO/NC | 4 kg |
| EL-180-280 | Double | 2 × 280 kg (2 × 600 lb) | 500 × 47 × 26 mm | No | 4 kg |
Which maglock bracket do I need?
| Door situation | Bracket | SKU |
|---|---|---|
| Door closes toward the lock side, header wide enough | None (surface mount) | — |
| Door opens toward the lock side (typical inswing) | ZL bracket (Z-plate + L-plate) | EL-140-280 |
| Header too narrow or recessed to seat the lock body | L bracket | EL-160-280 |
| Frameless glass leaf under a framed header, 8–15 mm glass | U bracket | EL-150-280 |
Bracket sizes follow a 250 mm lock body and a 180 × 38 mm armature plate; we confirm hole alignment when you order.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-200-280 | Single-door magnetic lock, 280 kg (600 lb), 250 mm aluminum body, 12/24 V DC, no signal output |
Where the EL-200 is used
- Standalone keypad door kit with an exit button and 12 V power supply
- Internal office or storeroom door released by a card reader
- Apartment amenity room door on a fire-alarm release circuit
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
EL-200 FAQ
Does EL-200 report door or lock status?
No, it has no signal output. For status feedback choose EL-190, which is the same lock with NO/NC status contacts.
Can a standalone keypad drive it directly?
Yes, if the keypad relay can switch a 12 V DC load of at least 480 mA. Check the keypad relay rating against the lock current before wiring.
What power supply do I need?
480 mA at 12 V DC or 240 mA at 24 V DC for the lock. Add the other devices plus 25–50% headroom; a 12 V 3 A supply such as PW-120 covers a typical single door.
Which bracket fits an inward-opening door?
Use the EL-140 ZL bracket when the door opens toward the lock side. Its plates follow this lock’s 250 mm body and 180 × 38 mm armature.
