CR-200 86 mm Touch Keypad Card Reader, Wiegand 26/34/66
Compact 86 × 86 mm touch-keypad reader for card plus PIN, in 125 kHz EM or 13.56 MHz MIFARE versions with Wiegand 26/34/66 output.
- Touch keypad for card plus PIN in an 86 × 86 × 15.6 mm housing
- 125 kHz EM or 13.56 MHz MIFARE/CPU versions, plus sector-read and FeliCa tiers
- Wiegand 26/34 on all versions; Wiegand 66 on -MS and -MS-FC
- Configuration-card setup, no PC software required
- 12 V DC (±5%), ≤ 200 mA; response < 120 ms
- Frequency
- 125 kHz (-E) or 13.56 MHz (-M, -MS, -MS-FC)
- Output
- Wiegand 26/34; 66 on -MS tiers
- Keypad
- Touch keys
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 86 × 86 × 15.6 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
86 mm Touch Keypad Card Reader, Wiegand 26/34/66: overview

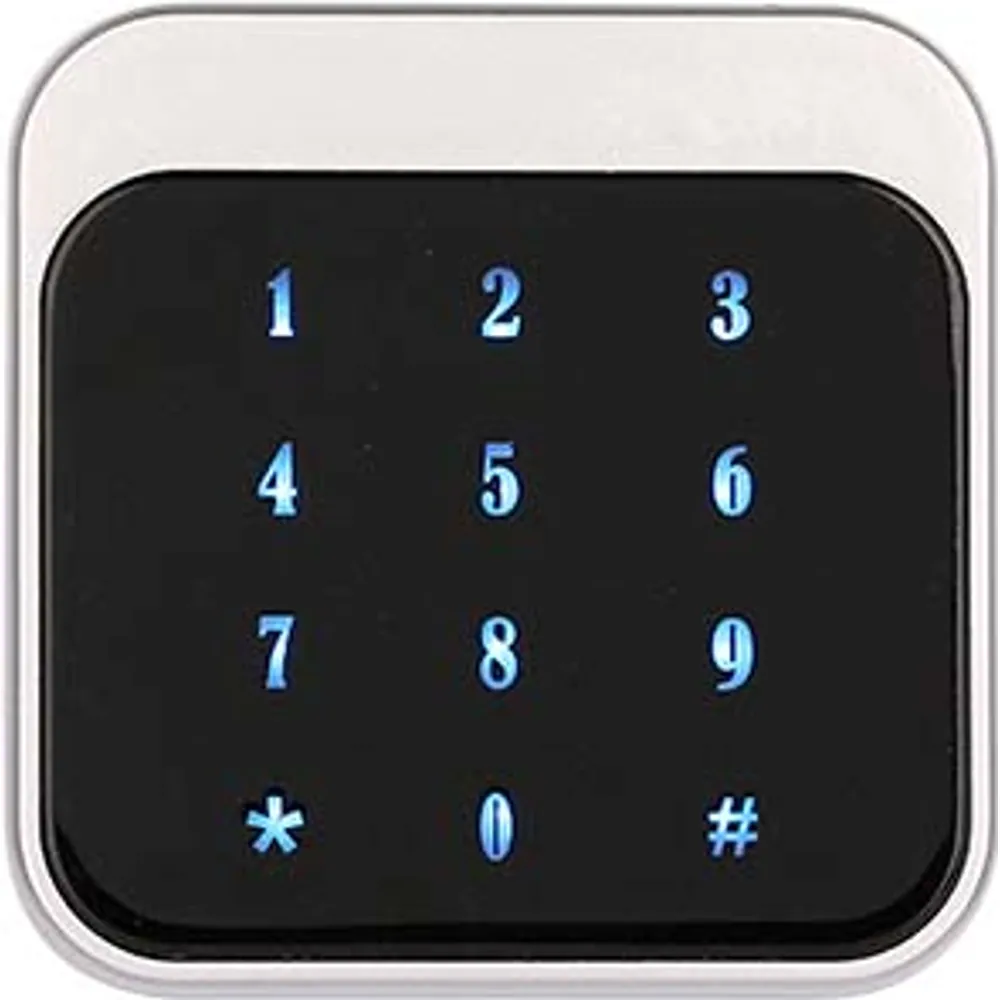

The CR-200 is a touch-keypad card reader in a compact 86 × 86 × 15.6 mm square housing, the same footprint as an 86 mm wall switch plate. It sends card numbers and PIN entries to your access controller over Wiegand and comes in four credential tiers.
For 125 kHz sites, CR-200-E reads EM4100, EM4102 and EM4200-compatible cards and fobs. CR-200-M reads the UID of 13.56 MHz MIFARE Classic, DESFire, Plus, Ultralight, NTAG2xx and CPU cards. CR-200-MS reads protected MIFARE Classic 1K/4K sectors and CPU card files, adds ISO/IEC 15693 UIDs and the iCLASS CSN, and offers Wiegand 66. CR-200-MS-FC also reads FeliCa UIDs.
Installers set the Wiegand format, read mode, card key and card-number format by swiping a configuration card, with no software needed. Card data reaches the controller in under 120 ms, and the inputs have ESD and miswiring protection. The keyless version of this housing is the CR-210.
Integration notes
Supply 12 V DC (±5%), up to 200 mA. Leads: red +12 V, black GND, white D1, green D0, purple buzzer control, gray LED control; connect yellow to GND to fix Wiegand 26. PIN entries share the Wiegand pair and the keypad format is not published, so tell us your controller model and we confirm it. No ingress rating is published; mount it indoors or under cover.
CR-200 specifications
RF & credentials
| Frequency | 125 kHz (-E); 13.56 MHz (-M, -MS, -MS-FC) |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 |
| 125 kHz credentials | EM4100, EM4102, EM4200-compatible thick cards, thin cards and key fobs |
| 13.56 MHz UID read | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; ISO/IEC 14443 CPU cards |
| Data read (-MS, -MS-FC) | Protected sector data of MIFARE Classic 1K/4K; file data of CPU cards (card key set by configuration card) |
| Other UIDs (-MS, -MS-FC) | ISO/IEC 15693 tags (e.g. ICODE); iCLASS card serial number (CSN) only |
| FeliCa (-MS-FC) | FeliCa card UID |
| Response time | < 120 ms once a card is inside the read zone |
Interfaces
| Output | Wiegand 26 / 34 (all versions); Wiegand 66 (-MS, -MS-FC) |
|---|---|
| Setup | Configuration card: Wiegand format, read mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
| Keypad | Touch keys |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Operating current | ≤ 200 mA |
| Protection | ESD protection, miswiring protection |
Mechanical & environment
| Dimensions | 86 × 86 × 15.6 mm (±0.3 mm) |
|---|---|
| Operating temperature | –10 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
| Ingress rating | Not specified (indoor or sheltered mounting) |
Variant comparison
| Variant | 125 kHz EM | 13.56 MHz UID | MIFARE Classic / CPU data | ISO/IEC 15693 UID & iCLASS CSN | FeliCa UID | Wiegand output |
|---|---|---|---|---|---|---|
| CR-200-E | Yes | — | — | — | — | 26 / 34 |
| CR-200-M | — | MIFARE, NTAG, CPU | — | — | — | 26 / 34 |
| CR-200-MS | — | MIFARE, NTAG, CPU | Yes | Yes | — | 26 / 34 / 66 |
| CR-200-MS-FC | — | MIFARE, NTAG, CPU | Yes | Yes | Yes | 26 / 34 / 66 |
Choose the version by the credentials already in use on site. "CPU" = ISO/IEC 14443 CPU (smart) cards; iCLASS support is card serial number (CSN) only.
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 |
| Green | Wiegand D0 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-200-E | 125 kHz version: reads EM4100/EM4102/EM4200-compatible thick cards, thin cards and key fobs; Wiegand 26/34. | |
| CR-200-M | 13.56 MHz UID version: MIFARE Classic, DESFire EV1/EV2/EV3/Light, Plus S/X, Ultralight, NTAG2xx and ISO/IEC 14443 CPU card UIDs; Wiegand 26/34. | |
| CR-200-MS | 13.56 MHz secure-read version: all -M UIDs plus MIFARE Classic 1K/4K sector data and CPU card file data, ISO/IEC 15693 UID, iCLASS CSN only; Wiegand 26/34/66. | |
| CR-200-MS-FC | As -MS, plus FeliCa card UID (e.g. Octopus cards); Wiegand 26/34/66. |
Where the CR-200 is used
- Apartment and office doors where the reader should match 86 mm wall plates
- Card-plus-PIN control for stock rooms and records rooms
- Lift lobby readers that require a PIN outside office hours
- Replacing 86 mm keypad readers with a MIFARE-capable -M or -MS unit
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
CR-200 FAQ
How big is the CR-200?
86 × 86 × 15.6 mm (±0.3 mm), the same square footprint as an 86 mm wall switch plate.
How are PIN entries sent?
Key presses are sent over the same Wiegand data pair as card numbers. The PIN format is not listed, so we confirm it against your controller before dispatch.
Which version should I choose for MIFARE Classic cards?
CR-200-M if the controller enrolls UIDs; CR-200-MS if you want the reader to output data from a protected sector using your card key.
Can I use it outdoors?
No ingress rating is published, so use it indoors or under a canopy. For exposed doors choose an IP-rated reader.
