CR-270 IP67 Dual-Frequency Keypad Card Reader, Wiegand, 86 mm
86 × 86 mm keypad reader with raised rubber keys, potted to IP67. 125 kHz EM, 13.56 MHz MIFARE or dual-frequency versions with Wiegand 26/34 output.
- Raised, flame-retardant rubber keys (0–9, *, #) in an 86 × 86 × 16 mm IP67 housing
- CR-270-D reads 125 kHz EM and 13.56 MHz MIFARE-family cards in one reader
- MIFARE key authentication before UID output; CR-270-M also reads sector content
- Wiegand 26 or 34 output, yellow lead to GND fixes Wiegand 26
- Configuration card sets Wiegand mode, card key and number format
- Frequency
- 125 kHz (-E), 13.56 MHz (-M) or both (-D)
- Output
- Wiegand 26 / 34
- Keypad
- Raised rubber keys, flame-retardant
- IP rating
- IP67, epoxy-potted
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 86 × 86 × 16 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP67 Dual-Frequency Keypad Card Reader, Wiegand, 86 mm: overview

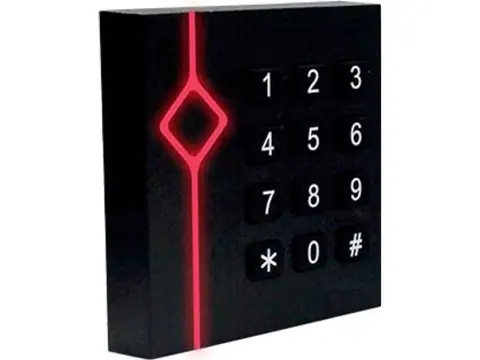

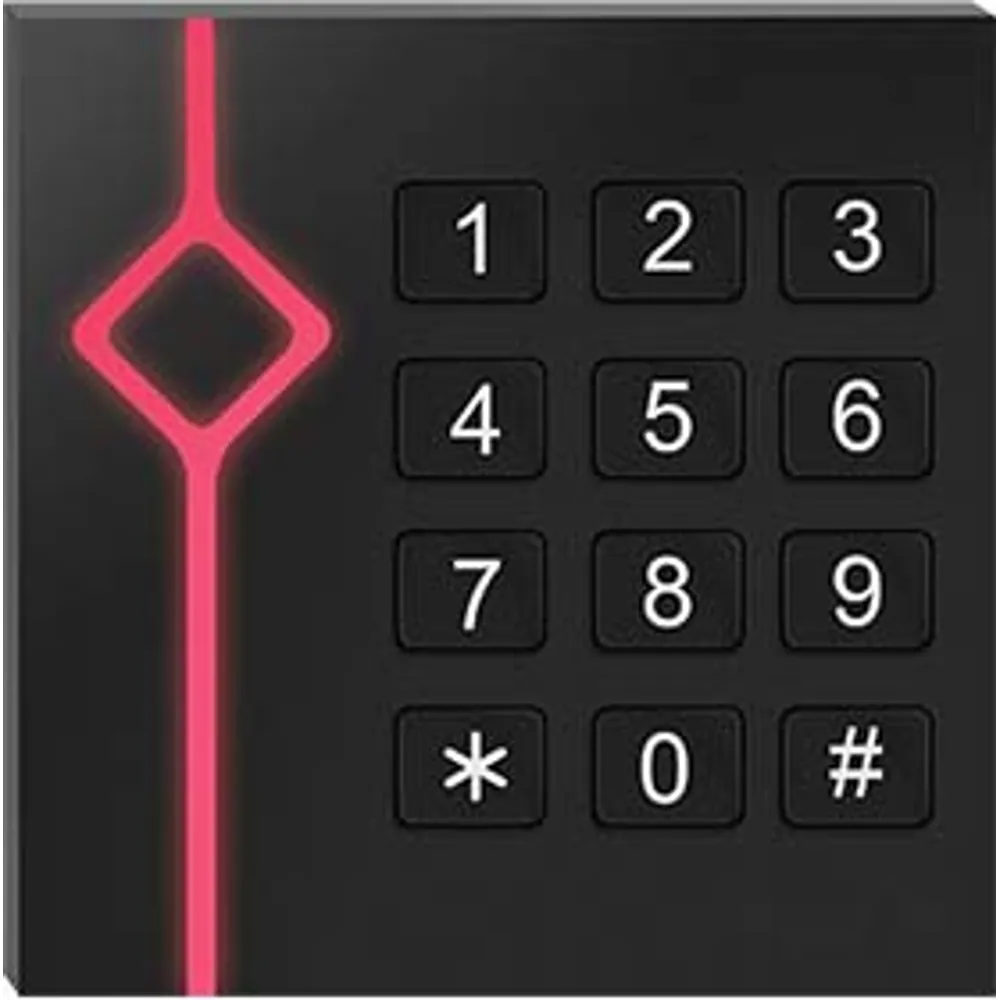

The CR-270 is an 86 × 86 × 16 mm keypad reader with raised, flame-retardant rubber keys, for entrances where users prefer tactile buttons or wear gloves. It shares the epoxy-potted IP67 construction and red diamond-and-line light strip of the decorative range, and it outputs Wiegand 26 or 34 to the door controller.
Three versions are available. CR-270-E reads 125 kHz EM-type cards and fobs. CR-270-M reads ISO/IEC 14443A/B UIDs (MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/NTAG216 and CPU cards) and can authenticate with a MIFARE key before sending the UID or read MIFARE sector content. CR-270-D covers both bands, reading EM cards alongside key-authenticated MIFARE UIDs, which makes it the practical choice while a site migrates from 125 kHz to 13.56 MHz.
A configuration card sets the Wiegand mode, card key and number format at the door. The reader draws up to 200 mA at 12 V DC, reads at 0–3 cm and works from –20 to +65 °C, with anti-static design and short-circuit protection on its outputs.
Integration notes
Red is +12 V, black GND, green D0 and white D1; purple and gray take buzzer and LED control from the controller. Grounding yellow fixes the output at Wiegand 26. The keypad output format is not listed in the base specification, so tell us your controller model and we will confirm the setting before dispatch.
More features
- 12 V DC, ≤ 200 mA; –20 to +65 °C; red diamond light strip
CR-270 specifications
RF & credentials
| Frequency | 125 kHz (CR-270-E); 13.56 MHz (CR-270-M); 125 kHz + 13.56 MHz (CR-270-D) |
|---|---|
| 125 kHz credentials (-E, -D) | EM-type (ID) thick cards, thin cards and key fobs - card number |
| 13.56 MHz credentials (-M, -D) | ISO/IEC 14443A/B UID: MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight, NTAG213/NTAG216, CPU smart cards |
| MIFARE secure read | UID output after MIFARE key authentication (-M, -D); MIFARE sector content read (-M) |
| Read range | 0–3 cm, depending on card type and installation |
Interfaces
| Output | Wiegand 26 or Wiegand 34 |
|---|---|
| Keypad | 12 raised rubber keys: 0–9, *, # |
| Setup | Configuration card: Wiegand mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Working current | ≤ 200 mA |
| Output short-circuit protection | Responds in ≤ 100 µs |
| ESD | Anti-static protection design |
Mechanical & environment
| Housing | Black, epoxy-potted, red diamond light strip, flame-retardant rubber keys |
|---|---|
| Ingress rating | IP67 |
| Dimensions | 86 × 86 × 16 mm (±0.3 mm) |
| Operating temperature | –20 to +65 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% |
Variant comparison
| Variant | Frequency | 125 kHz EM cards | 13.56 MHz UID | MIFARE key auth / sector read | Output |
|---|---|---|---|---|---|
| CR-270-E | 125 kHz | Yes | — | — | Wiegand 26 / 34 |
| CR-270-M | 13.56 MHz | — | MIFARE Classic, DESFire, Ultralight, NTAG, CPU | Key-authenticated UID and sector read | Wiegand 26 / 34 |
| CR-270-D | 125 kHz + 13.56 MHz | Yes | MIFARE Classic, DESFire, Ultralight, NTAG, CPU | Key-authenticated UID | Wiegand 26 / 34 |
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| Green | Wiegand D0 |
| White | Wiegand D1 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-270-E | 125 kHz EM-type keypad reader, 86 mm IP67 housing with rubber keys, Wiegand 26/34. | |
| CR-270-M | 13.56 MHz keypad reader: ISO/IEC 14443A/B UIDs, MIFARE key-authenticated UID and sector read, Wiegand 26/34. | |
| CR-270-D | Dual-frequency keypad reader: 125 kHz EM-type cards plus 13.56 MHz UIDs with MIFARE key authentication, Wiegand 26/34. |
Where the CR-270 is used
- Apartment blocks replacing 125 kHz fobs with MIFARE cards door by door, using CR-270-D
- Outdoor staff entrances where users wear gloves and need tactile keys
- Card-plus-PIN doors on an existing Wiegand controller
- Gyms and clubs that want a potted IP67 reader in wet or humid areas
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
CR-270 FAQ
Which version suits a 125 kHz to 13.56 MHz migration?
CR-270-D reads both 125 kHz EM-type cards and 13.56 MHz MIFARE-family UIDs, so old and new credentials work on the same door while cards are replaced.
Are the keys touch-sensitive or mechanical?
They are raised rubber keys made from a flame-retardant material. The keypad sits in the same epoxy-potted IP67 housing as the card reader.
How does the CR-270 differ from the CR-260?
The CR-270 is 86 × 86 mm with raised rubber keys and adds a dual-frequency option. The CR-260 is a 90 × 90 mm keypad version offered in 125 kHz or 13.56 MHz only.
How are PIN entries passed to the controller?
Keypad entries go out on the Wiegand D0/D1 lines. Send us your controller model with the order and we will confirm the matching keypad output setting before dispatch.
