CR-290 Glass Touch Keypad Card Reader, Dual-Frequency, Wiegand
Touch-keypad version of our 90 mm glass-and-metal reader. Reads 125 kHz EM and 13.56 MHz cards, outputs Wiegand 26/34; black or champagne-gold frame, no logo.
- 12-key touch keypad behind black glass, with black or champagne-gold metal frame
- Dual-frequency: 125 kHz EM-type cards plus 13.56 MHz MIFARE, DESFire and CPU card UIDs
- Wiegand 34 standard, Wiegand 26 by grounding the yellow lead
- Gradient running-light LED bar; ships without a logo
- Read range 0–5 cm; 12 V DC, ≤ 200 mA; –20 to +60 °C
- Frequency
- 125 kHz + 13.56 MHz
- Output
- Wiegand 34 / 26
- Keypad
- 12-key touch keypad
- Read range
- 0–5 cm
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 90 × 90 × 20.8 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Glass Touch Keypad Card Reader, Dual-Frequency, Wiegand: overview

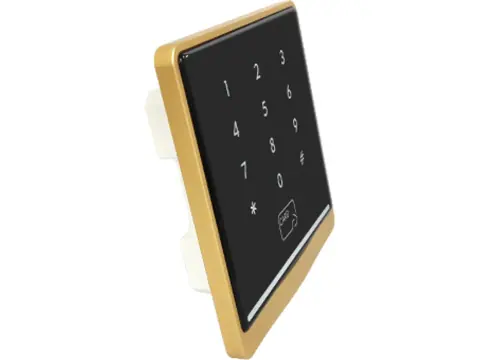

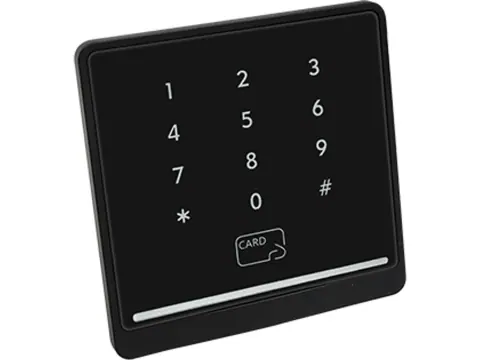

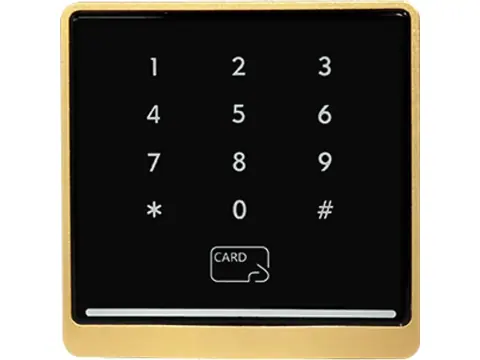

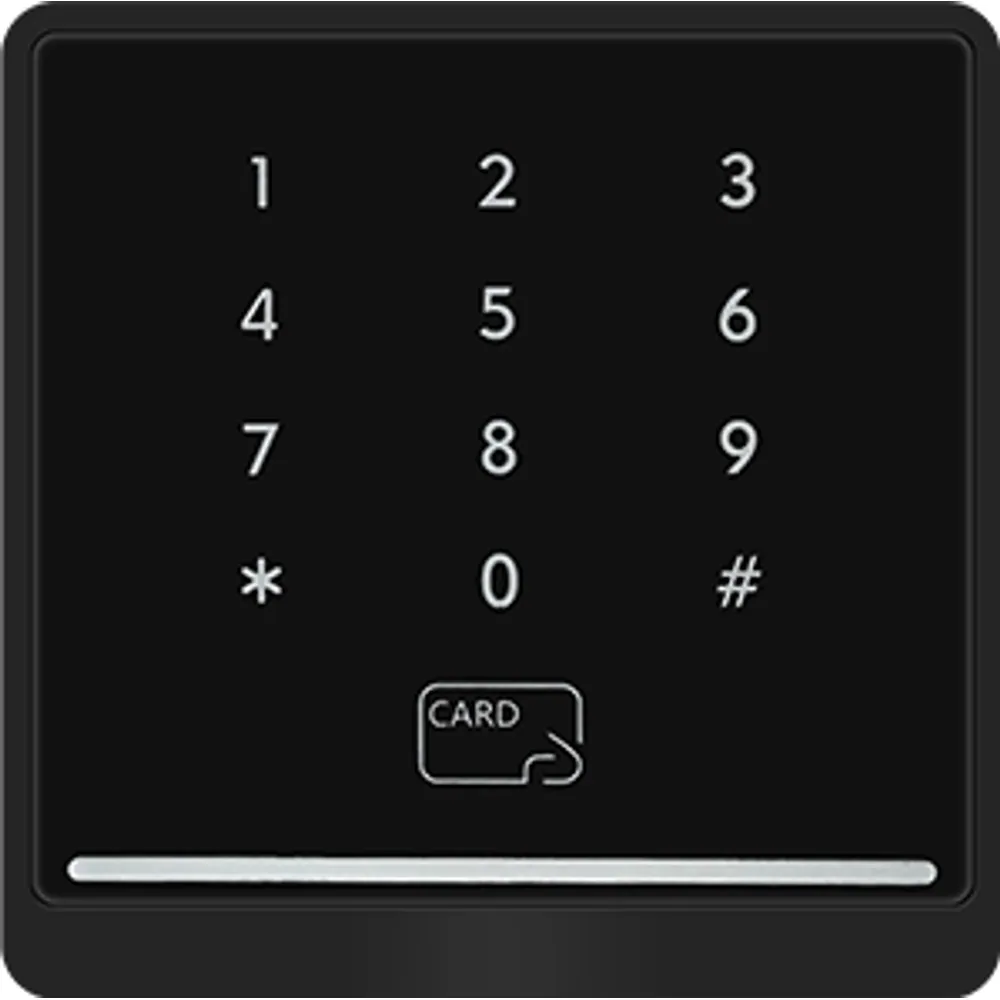

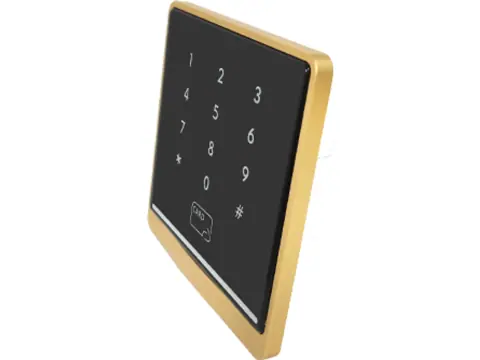

The CR-290 is the keypad version of our glass-and-metal reader: a black glass face with a 12-key touch pad, a gradient running-light bar and a black or champagne-gold metal frame. It measures 90 × 90 × 20.8 mm and ships without a logo, which suits hotels, serviced apartments and offices where the door hardware has to match the interior.
Every CR-290 is dual-frequency. It reads 125 kHz EM-type cards and the UIDs of 13.56 MHz ISO/IEC 14443A/B credentials, including MIFARE cards, DESFire and CPU cards, at 0–5 cm. Card numbers and keypad entries leave on the Wiegand lines, 34-bit as standard or 26-bit when selected, so the reader fits controllers that expect either format.
Configuration cards change the output parameters on site without software. The reader takes 12 V DC at up to 200 mA, operates from –20 to +60 °C and is designed to resist metal shielding, so metal surrounds are not a problem.
Integration notes
The 220 mm (8.7 in) pigtail uses red for +12 V, black for GND, green for D0 and white for D1, with purple for buzzer control and gray for LED control. Grounding yellow switches the output to Wiegand 26. Give us your panel model when ordering so we can check the keypad output setting, and treat the unit as an indoor reader because no ingress rating is published.
More features
- Matches the card-only CR-280 for mixed keypad and card doors
CR-290 specifications
RF & credentials
| Frequency | 125 kHz + 13.56 MHz (all versions) |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B |
| 13.56 MHz credentials | MIFARE cards, MIFARE DESFire, CPU cards - UID |
| 125 kHz credentials | EM-type (ID) cards and key fobs |
| Read range | 0–5 cm, depending on card type and installation |
Interfaces
| Output | Wiegand 34 (standard) or Wiegand 26 |
|---|---|
| Keypad | Touch keypad: 0–9, *, # |
| Setup | Configuration card for output parameters |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to switch the output to Wiegand 26 |
| Cable | 220 mm (8.7 in) pigtail, ±10 mm |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Working current | ≤ 200 mA |
Mechanical & environment
| Housing | Black glass panel, metal front frame (black or champagne gold), no logo |
|---|---|
| Indicator | Gradient running-light LED bar |
| Dimensions | 90 × 90 × 20.8 mm (±0.5 mm) |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% |
| Ingress rating | Not specified (indoor mounting) |
Variant comparison
| Variant | Frequency | Frame color | Keypad | Output |
|---|---|---|---|---|
| CR-290-D-BK | 125 kHz + 13.56 MHz | Black | Touch, 12 keys | Wiegand 34 / 26 |
| CR-290-D-GD | 125 kHz + 13.56 MHz | Champagne gold | Touch, 12 keys | Wiegand 34 / 26 |
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| Green | Wiegand D0 |
| White | Wiegand D1 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Supplied on a 220 mm (8.7 in) pigtail. Output is Wiegand 34 unless the yellow lead is grounded.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-290-D-BK | Dual-frequency glass touch-keypad reader, black metal frame, no logo, Wiegand 34/26. | |
| CR-290-D-GD | Dual-frequency glass touch-keypad reader, champagne-gold metal frame, no logo, Wiegand 34/26. |
Where the CR-290 is used
- Serviced apartments issuing guest PINs alongside MIFARE key cards
- Office suites mixing legacy EM fobs with new 13.56 MHz staff cards
- Premium lobbies pairing the keypad CR-290 with the card-only CR-280
- White-label projects that need an unbranded glass keypad reader
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
CR-290 FAQ
Is there a 13.56 MHz-only CR-290?
No. The keypad version is supplied only as a dual-frequency reader. For a card-only unit in the same housing, the CR-280 comes in 13.56 MHz and dual-frequency builds.
Which Wiegand formats does it output?
Wiegand 34 as standard. Connect the yellow lead to GND to switch to Wiegand 26 for panels that accept only the 26-bit format.
Which frame colors are available?
Black (CR-290-D-BK) or champagne gold (CR-290-D-GD), both with a black glass panel and no logo.
What cards does it read?
125 kHz EM-type cards and fobs, plus the UIDs of 13.56 MHz ISO/IEC 14443A/B cards such as MIFARE, DESFire and CPU cards, at up to 5 cm.
