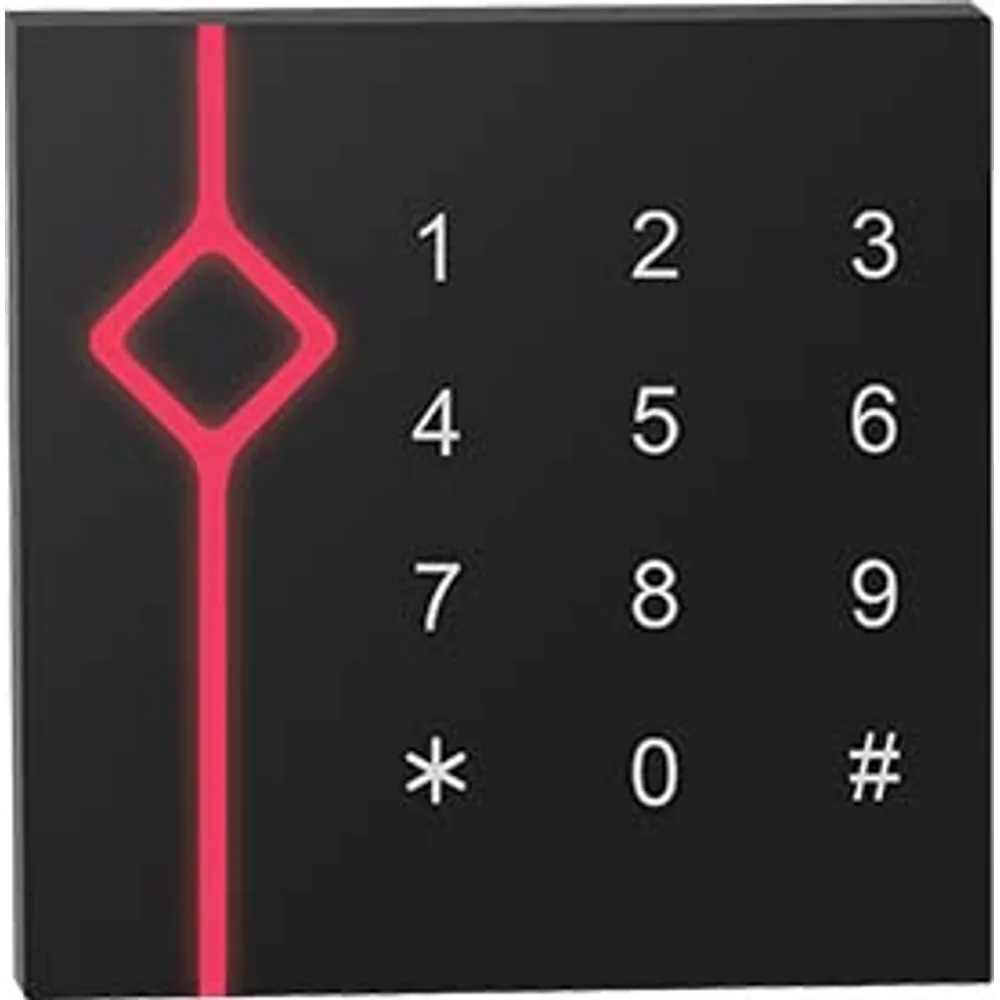

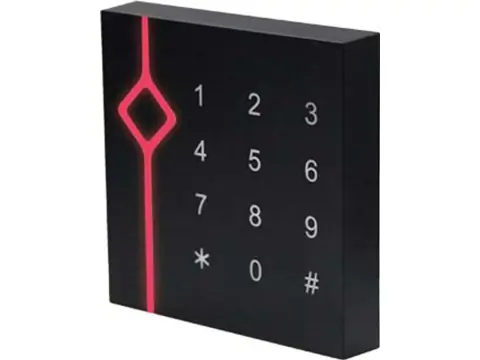

CR-260 IP67 Waterproof Keypad Card Reader, Wiegand, 90 mm Square
Square 90 mm keypad reader potted to IP67, with a red diamond light strip. 125 kHz EM or 13.56 MHz with MIFARE key authentication; Wiegand 26/34 output.
- 12-key keypad (0–9, *, #) in a 90 × 90 × 16 mm IP67 epoxy-potted housing
- CR-260-M authenticates with a MIFARE key for UID output or reads MIFARE sector content
- CR-260-E reads 125 kHz EM-type cards and key fobs
- Wiegand 26 or 34 output to any standard access controller
- Configuration card sets Wiegand mode, card key and number format
- Frequency
- 125 kHz (-E) or 13.56 MHz (-M)
- Output
- Wiegand 26 / 34
- Keypad
- 12 keys (0–9, *, #)
- IP rating
- IP67, epoxy-potted
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 90 × 90 × 16 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP67 Waterproof Keypad Card Reader, Wiegand, 90 mm Square: overview
The CR-260 adds a 12-key keypad (0–9, * and #) to the square 90 × 90 mm decorative housing, for doors that need a PIN as well as a card or that must admit users who have left their card at home. Like the card-only versions, it is filled with epoxy resin, rated IP67 and finished with a red diamond-and-line light strip. It connects to any access controller with a Wiegand input.
CR-260-E reads 125 kHz EM-type cards and fobs. CR-260-M reads ISO/IEC 14443A/B UIDs, including MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/NTAG216 and CPU cards. It can also authenticate with a MIFARE key before sending the UID, or read MIFARE sector content, which helps a site move away from plain UID matching without replacing the controller.
Wiegand 26 or 34 output, the card key and the number format are set with a configuration card. Supply is 12 V DC at up to 200 mA, reading distance is up to 3 cm, and the reader operates from –20 to +65 °C with anti-static and output short-circuit protection.
Integration notes
Wire red to +12 V, black to GND, green to D0 and white to D1; purple and gray accept buzzer and LED control from the panel. Ground the yellow lead for fixed Wiegand 26. The keypad output format is not listed in the base specification, so include your controller model with the order and we will confirm the keypad setting before dispatch.
More features
- Red illuminated diamond light strip on a black housing
CR-260 specifications
RF & credentials
| Frequency | 125 kHz (CR-260-E); 13.56 MHz (CR-260-M) |
|---|---|
| 125 kHz credentials | EM-type (ID) thick cards, thin cards and key fobs - card number |
| 13.56 MHz credentials | ISO/IEC 14443A/B UID: MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight, NTAG213/NTAG216, CPU smart cards |
| MIFARE secure read (-M) | UID output after MIFARE key authentication; MIFARE sector content read |
| Read range | 0–3 cm, depending on card type and installation |
Interfaces
| Output | Wiegand 26 or Wiegand 34 |
|---|---|
| Keypad | 12 keys: 0–9, *, # |
| Setup | Configuration card: Wiegand mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Working current | ≤ 200 mA |
| Output short-circuit protection | Responds in ≤ 100 µs |
| ESD | Anti-static protection design |
Mechanical & environment
| Housing | Black, epoxy-potted, red diamond light strip, integrated keypad |
|---|---|
| Ingress rating | IP67 |
| Dimensions | 90 × 90 × 16 mm (±0.2 mm) |
| Operating temperature | –20 to +65 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% |
Variant comparison
| Variant | Frequency | Cards read | MIFARE key authentication / sector read | Output |
|---|---|---|---|---|
| CR-260-E | 125 kHz | EM-type thick cards, thin cards, key fobs | — | Wiegand 26 / 34 |
| CR-260-M | 13.56 MHz | MIFARE Classic 1K/4K, DESFire, Ultralight, NTAG213/216, CPU cards (UID) | Yes (MIFARE Classic) | Wiegand 26 / 34 |
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| Green | Wiegand D0 |
| White | Wiegand D1 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-260-E | 125 kHz EM-type keypad reader, 90 mm square IP67 housing, Wiegand 26/34. | |
| CR-260-M | 13.56 MHz keypad reader: ISO/IEC 14443A/B UIDs plus MIFARE key-authenticated UID or sector read, 90 mm square IP67 housing, Wiegand 26/34. |
Where the CR-260 is used
- Residential and serviced-apartment entrances that combine card and PIN
- Exposed staff doors where a potted IP67 keypad reader is needed
- Clubs and gyms moving from plain MIFARE UIDs to key-authenticated reads
- Design-led lobbies that match the card-only CR-250 in the same housing
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
CR-260 FAQ
How are PIN entries sent to the controller?
Keypad entries leave on the same Wiegand D0/D1 lines as card numbers. The PIN format must match your panel, so include the controller model with your inquiry and we will confirm the keypad setting before shipping.
Does the IP67 rating cover the keypad?
Yes. The rating applies to the complete reader, keypad included, and the electronics behind the keys are potted in epoxy resin.
Can CR-260-M read protected MIFARE sectors?
Yes. Besides plain UID reading, it can authenticate with a MIFARE key before outputting the UID or read sector content. The card key is set with the configuration card.
What is the read distance?
Up to 3 cm, depending on the card type and the mounting environment.
