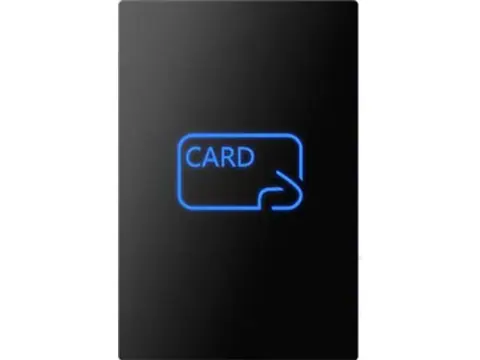

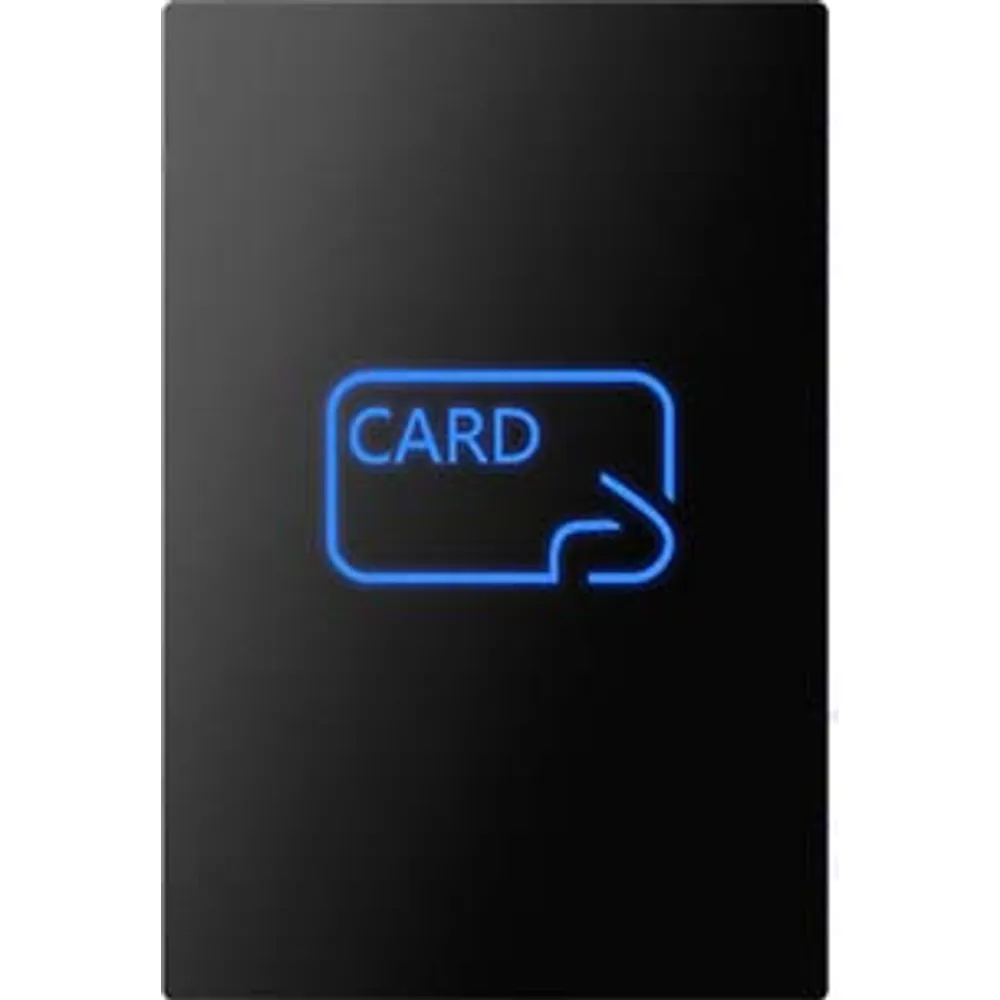

CR-150 Slim Wiegand Card Reader, 125 kHz, 13.56 MHz or Dual
Card-only reader in a 113 × 75 × 16 mm ABS housing for 125 kHz EM, 13.56 MHz MIFARE, sector read, FeliCa or dual frequency, with Wiegand 26/34/66.
- Card-only ABS reader only 16 mm deep, 113 × 75 mm face
- Dual-frequency -D reads 125 kHz EM and 13.56 MHz MIFARE/NTAG cards
- -MS tiers read MIFARE Classic 1K/4K sectors, CPU files, ISO/IEC 15693 UID and iCLASS CSN
- Wiegand 26/34 on all versions; Wiegand 66 on -MS, -MS-FC and -D
- Setup by configuration card, no software or DIP switches
- Frequency
- 125 kHz, 13.56 MHz or dual (by version)
- Output
- Wiegand 26/34/66
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 113 × 75 × 16 mm
- Housing
- ABS, no keypad
- Response
- < 120 ms
Reply within 24 hours Tested before dispatch Worldwide shipping
Slim Wiegand Card Reader, 125 kHz, 13.56 MHz or Dual: overview

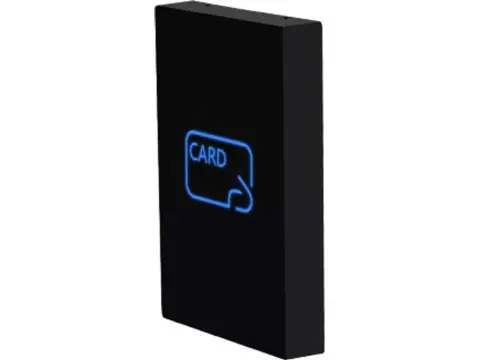

The CR-150 is a card-only access reader in a thin 113 × 75 × 16 mm ABS housing, for interior doors, cabinets and reception gates where a heavy metal reader would be overkill. It reports card numbers over Wiegand 26, 34 or 66 and is stocked in five credential versions, including a dual-frequency model for sites moving from 125 kHz proximity cards to 13.56 MHz MIFARE.
The -E reads 125 kHz EM4100, EM4102 and EM4200-compatible cards and fobs. The -M returns 13.56 MHz UIDs from MIFARE Classic, DESFire, Plus, Ultralight, NTAG2xx and CPU cards. The -MS reads protected MIFARE Classic 1K/4K sectors and CPU card files as well, plus ISO/IEC 15693 UIDs and the iCLASS CSN; the -MS-FC adds FeliCa. The -D accepts both EM and MIFARE/NTAG credentials, so old and new cards work on the same door while you re-badge staff.
All settings are changed by swiping a configuration card: Wiegand format, read mode, card key and card-number format. Once a card is in the field its number reaches the controller in under 120 ms, and the electronics include ESD and miswiring protection. The CR-140 shares this housing and adds a touch keypad for doors that need card plus PIN.
Integration notes
Supply 12 V DC (±5%) and allow up to 200 mA. Leads: red +12 V, black GND, white D1, green D0, purple buzzer control, gray LED control, and yellow, which fixes the output at Wiegand 26 when tied to GND. No ingress rating is published, so keep it indoors or under cover.
More features
- 12 V DC (±5%), ≤ 200 mA; response < 120 ms
CR-150 specifications
RF & credentials
| Frequency | 125 kHz (-E); 13.56 MHz (-M, -MS, -MS-FC); 125 kHz + 13.56 MHz (-D) |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 |
| 125 kHz credentials | EM4100, EM4102, EM4200-compatible thick cards, thin cards and key fobs |
| 13.56 MHz UID read | MIFARE Classic Mini/EV1, MIFARE DESFire EV1/EV2/EV3/Light, MIFARE Plus S/X, MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; ISO/IEC 14443 CPU cards (CPU cards not listed for -D) |
| Data read (-MS, -MS-FC) | Protected sector data of MIFARE Classic 1K/4K; file data of CPU cards (card key set by configuration card) |
| Other UIDs (-MS, -MS-FC) | ISO/IEC 15693 tags (e.g. ICODE); iCLASS card serial number (CSN) only |
| FeliCa (-MS-FC) | FeliCa card UID |
| Response time | < 120 ms once a card is inside the read zone |
Interfaces
| Output | Wiegand 26 / 34 (all versions); Wiegand 66 (-MS, -MS-FC, -D) |
|---|---|
| Setup | Configuration card: Wiegand format, read mode, card key, card-number format |
| Controller inputs | Buzzer control, LED control |
| Format lead (yellow) | Connect to GND to fix the output at Wiegand 26 |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Operating current | ≤ 200 mA |
| Protection | ESD protection, miswiring protection |
Mechanical & environment
| Dimensions | 113 × 75 × 16 mm (±1 mm) |
|---|---|
| Housing | ABS, card-only (no keypad) |
| Operating temperature | –10 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 15–90% RH |
| Ingress rating | Not specified (indoor or sheltered mounting) |
Variant comparison
| Variant | 125 kHz EM | 13.56 MHz UID | MIFARE Classic / CPU data | ISO/IEC 15693 UID & iCLASS CSN | FeliCa UID | Wiegand output |
|---|---|---|---|---|---|---|
| CR-150-E | Yes | — | — | — | — | 26 / 34 |
| CR-150-M | — | MIFARE, NTAG, CPU | — | — | — | 26 / 34 |
| CR-150-MS | — | MIFARE, NTAG, CPU | Yes | Yes | — | 26 / 34 / 66 |
| CR-150-MS-FC | — | MIFARE, NTAG, CPU | Yes | Yes | Yes | 26 / 34 / 66 |
| CR-150-D | Yes | MIFARE, NTAG | — | — | — | 26 / 34 / 66 |
Choose the version by the credentials already in use on site. "CPU" = ISO/IEC 14443 CPU (smart) cards; iCLASS support is card serial number (CSN) only.
Wire colors
| Wire | Function |
|---|---|
| Red | +12 V DC |
| Black | GND |
| White | Wiegand D1 |
| Green | Wiegand D0 |
| Purple | Buzzer control input |
| Gray | LED control input |
| Yellow | Connect to GND to fix the output at Wiegand 26 |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CR-150-E | 125 kHz version: reads EM4100/EM4102/EM4200-compatible thick cards, thin cards and key fobs; Wiegand 26/34. | |
| CR-150-M | 13.56 MHz UID version: MIFARE Classic, DESFire EV1/EV2/EV3/Light, Plus S/X, Ultralight, NTAG2xx and ISO/IEC 14443 CPU card UIDs; Wiegand 26/34. | |
| CR-150-MS | 13.56 MHz secure-read version: all -M UIDs plus MIFARE Classic 1K/4K sector data and CPU card file data, ISO/IEC 15693 UID, iCLASS CSN only; Wiegand 26/34/66. | |
| CR-150-MS-FC | As -MS, plus FeliCa card UID (e.g. Octopus cards); Wiegand 26/34/66. | |
| CR-150-D | Dual-frequency version: 125 kHz EM4100/EM4102/EM4200 plus 13.56 MHz MIFARE Classic/DESFire/Plus/Ultralight/NTAG2xx UIDs; Wiegand 26/34/66. |
Where the CR-150 is used
- Interior office doors on a standard Wiegand controller
- Reception and pedestrian gates that need a thin card reader
- Mixed EM and MIFARE card populations during a credential changeover (-D)
- Unstaffed shop or locker-room entrances using MIFARE cards
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
CR-150 FAQ
Which version should I order for a site with both EM and MIFARE cards?
Order CR-150-D. It reads 125 kHz EM4100/EM4102/EM4200 and 13.56 MHz MIFARE/NTAG UIDs and outputs Wiegand 26, 34 or 66.
Can the -M version read DESFire cards?
It reads the UID of DESFire EV1, EV2, EV3 and Light cards. It does not read DESFire application data.
How is the output format changed?
Swipe the configuration card to choose the Wiegand format and card-number format. Tying the yellow lead to GND fixes the output at Wiegand 26.
Is the CR-150 suitable for outdoor doors?
No ingress rating is published, so we recommend indoor or sheltered mounting. Choose an IP-rated reader for exposed doors.
