EL-160 Maglock L Bracket for 280 kg (600 lb) Magnetic Locks

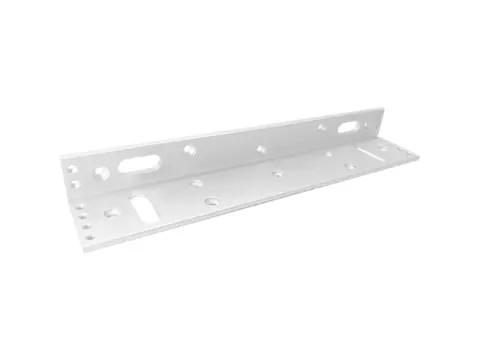

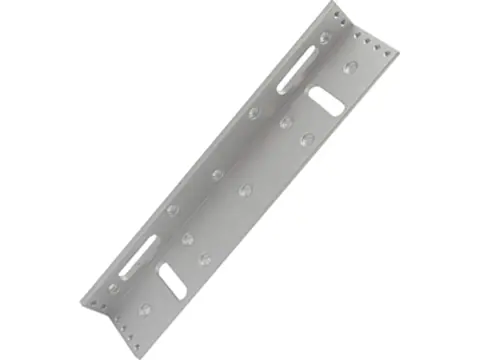

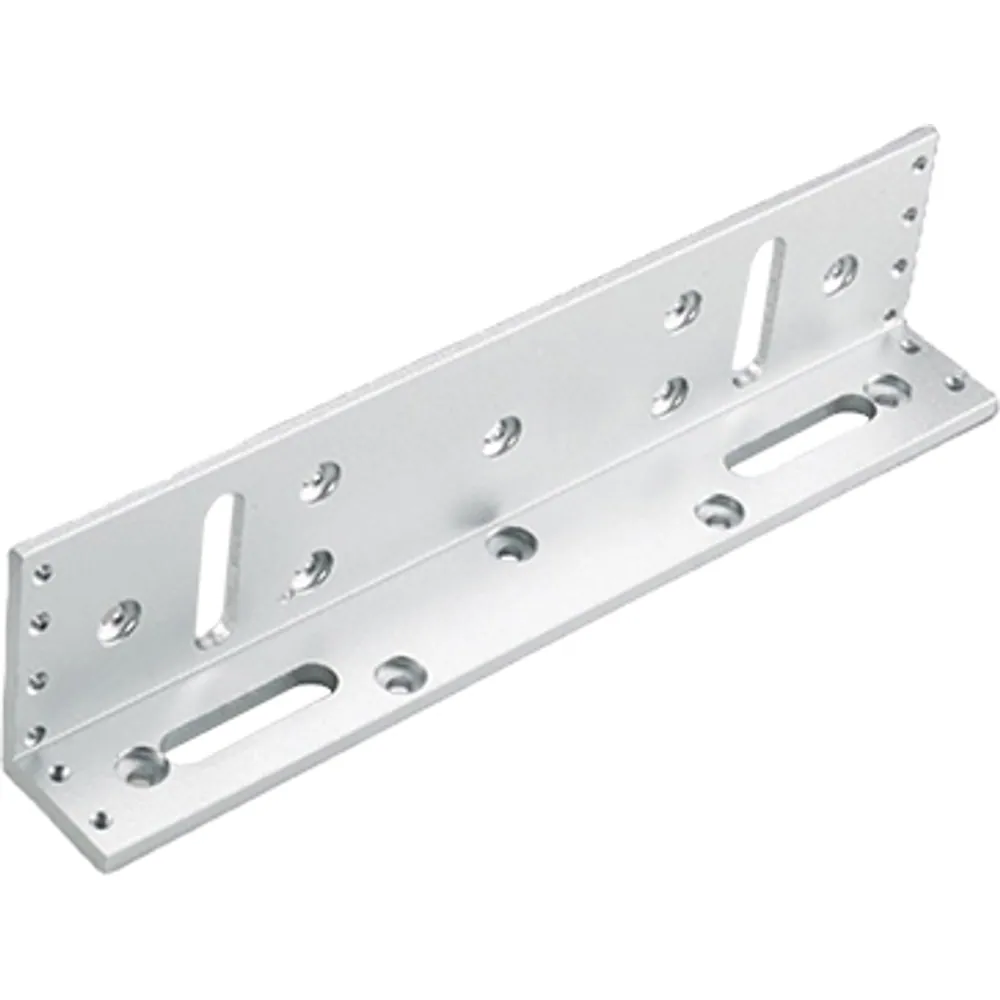

Brushed aluminum L bracket, 250 × 48 × 28 mm, that gives a 280 kg (600 lb) magnetic lock a solid mounting ledge where the door header is too narrow.
- L-shaped ledge mounts a 280 kg (600 lb) maglock on narrow or recessed headers
- 250 × 48 × 28 mm, sized for 250 mm lock bodies
- High-strength aluminum alloy with brushed finish
- For wooden, metal and fire doors opening one way through 90°
- Screw pack included
- Bracket type
- L (lock-body ledge)
- For locks
- 280 kg (600 lb) magnetic locks
- Door
- 90° one-way swing
- Material
- Aluminum alloy, brushed
- Size
- 250 × 48 × 28 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Maglock L Bracket for 280 kg (600 lb) Magnetic Locks: overview
EL-160 is an L-shaped mounting bracket for 280 kg (600 lb) magnetic locks. Use it when the underside of the header is too narrow, recessed or uneven to take the lock body directly: one leg screws to the frame and the other forms a flat 250 mm ledge for the lock, keeping its face in line with the armature on the door.
The bracket is high-strength aluminum alloy with a brushed (wire-drawn) finish, measures 250 × 48 × 28 mm and ships with a screw pack. It is listed for wooden, metal and fire doors that open one way through 90°.
A maglock resists force in straight pull, so the mount has to stay rigid. If the lock body can flex or tilt, the armature peels away at an angle when someone pulls the door and the lock holds far less than its rating. A solid aluminum ledge fixed into the frame avoids that on slim aluminum shopfront sections and trimmed timber frames.
Integration notes
The 250 × 48 mm footprint follows our 250 mm lock bodies, including EL-190, EL-200 (250 × 47 mm) and EL-110 (250 × 48 mm). Check that the door top clears the bracket leg through its swing, and fix the frame leg into solid material rather than thin trim. If the door opens toward the lock side, you need the EL-140 ZL bracket instead; for frameless glass leaves, add the EL-150 U bracket for the armature.
EL-160 specifications
Fitment
| Applicable lock | 280 kg (600 lb) magnetic lock |
|---|---|
| Door opening | 90°, single direction |
| Door types | Wooden, metal and fire doors |
Construction
| Material | High-strength aluminum alloy |
|---|---|
| Finish | Brushed (wire-drawn) |
| Dimensions | 250 × 48 × 28 mm |
Package
| Accessories | 1 screw pack |
|---|
Which maglock bracket do I need?
| Door situation | Bracket | SKU |
|---|---|---|
| Door closes toward the lock side, header wide enough | None (surface mount) | — |
| Door opens toward the lock side (typical inswing) | ZL bracket (Z-plate + L-plate) | EL-140-280 |
| Header too narrow or recessed to seat the lock body | L bracket | EL-160-280 |
| Frameless glass leaf under a framed header, 8–15 mm glass | U bracket | EL-150-280 |
Bracket sizes follow a 250 mm lock body and a 180 × 38 mm armature plate; we confirm hole alignment when you order.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EL-160-280 | L bracket for 280 kg magnetic locks, 250 × 48 × 28 mm, brushed aluminum alloy, with screw pack |
Where the EL-160 is used
- Aluminum shopfront frame with a slim header that cannot seat the lock body directly
- Timber door frame with decorative trim where a flat mounting surface is needed
- Fire door retrofit onto an existing steel frame
