CL-110 Hydraulic Door Closer, EN Size 4, Doors up to 80 kg (176 lb)
Surface-mounted hydraulic door closer, EN size 4, for doors up to 80 kg and 1,100 mm wide, with two-stage speed control, backcheck and a 1,000,000-cycle rating.
- EN size 4 closing force for doors up to 80 kg (176 lb) and 1,100 mm (43 in) wide
- Separate closing and latching speed; closing time from 90° adjustable from under 3 s to over 40 s
- Adjustable backcheck beyond 65° opening protects walls and door hardware
- Anti-freeze hydraulic fluid for steady closing speed from –20 to +55 °C
- Non-handed installation; 180° maximum opening angle
- Closing force
- EN size 4
- Max door weight
- 80 kg (176 lb)
- Max door width
- 1,100 mm (43 in)
- Opening angle
- 180° max
- Service life
- 1,000,000 cycles
- Operating temperature
- –20 to +55 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
Hydraulic Door Closer, EN Size 4, Doors up to 80 kg (176 lb): overview

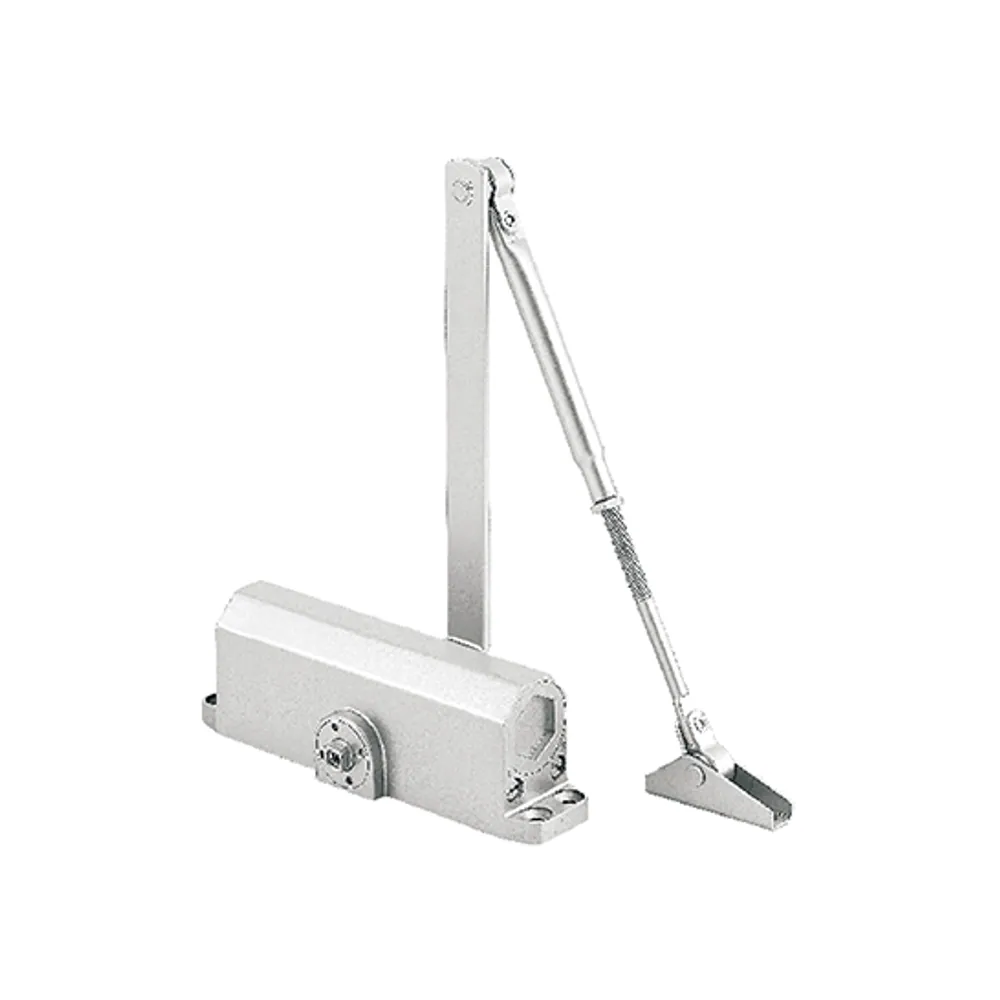

CL-110 is an overhead hydraulic door closer that returns an access-controlled door to the closed position after every passage, so the maglock or drop bolt can engage again. It has an EN size 4 closing force and handles doors up to 80 kg (176 lb) and 1,100 mm (43 in) wide, with a maximum opening angle of 180°.
Closing speed and latching speed are adjusted separately, and closing torque can also be set. Measured from 90°, the door can be tuned to close in under 3 s or slowed to more than 40 s. Once the door is opened past 65°, an adjustable backcheck adds damping so a door pushed hard does not hit the wall. Anti-freeze hydraulic fluid keeps the closing speed steady as ambient temperature changes within the –20 to +55 °C operating range.
The body is non-handed, so one SKU covers left- and right-hand doors, and it is rated for 1,000,000 cycles. Standard units have no hold-open function; a version that holds the door at 90° can be made to order.
Integration notes
The body measures 205 × 42 × 64 mm and the installation size is 188 × 19 mm. Tune the latching speed so the door closes fully onto the lock without bouncing, and confirm door weight and width against the EN size 4 limits before ordering.
More features
- 1,000,000-cycle service life; 90° hold-open version made to order
CL-110 specifications
Performance
| Closing force | EN size 4 |
|---|---|
| Max door weight | 80 kg (176 lb) |
| Max door width | 1,100 mm (43 in) |
| Max opening angle | 180° |
| Closing time from 90° | Adjustable, under 3 s to over 40 s |
| Speed control | Two-stage: closing speed and latching speed, adjusted separately |
| Closing torque | Adjustable |
| Constant-speed function | Yes; closing speed stays steady across ambient temperatures |
| Backcheck | Adjustable damping beyond 65° opening |
| Hold-open | None as standard; 90° hold-open made to order |
Mechanical & environment
| Body dimensions | 205 × 42 × 64 mm |
|---|---|
| Installation size | 188 × 19 mm |
| Handing | Non-handed |
| Hydraulic fluid | Anti-freeze |
| Operating temperature | –20 to +55 °C |
| Service life | 1,000,000 cycles |
Door fit check
| Check | CL-110 | Notes |
|---|---|---|
| Door weight | ≤ 80 kg (176 lb) | Heavier doors need a larger closer size |
| Door width | ≤ 1,100 mm (43 in) | Wider doors need a larger closer size |
| Opening angle | Up to 180° | Backcheck damps travel beyond 65° |
| Handing | Non-handed | One unit fits left- or right-hand doors |
| Hold-open | Not on standard units | 90° hold-open build made to order |
Compare your door with the CL-110 limits before ordering.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CL-110 | Hydraulic door closer, EN size 4, non-handed, no hold-open; 90° hold-open build made to order |
Where the CL-110 is used
- Maglock and drop-bolt doors that must close fully after each card entry
- Apartment lobby and corridor doors up to 1,100 mm wide
- Gym and changing-room doors where a backcheck protects walls from hard pushes
- Unheated entrances where closing speed must stay steady in cold weather
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
CL-110 FAQ
Is EN size 4 a certification?
No. It is the closing-force size class; in the EN 1154 size table, size 4 covers doors up to 1,100 mm wide and 80 kg, matching this closer. Ask for test documents if your project requires certified hardware.
Does it have a hold-open function?
Not as standard. A version that holds the door at 90° can be made to order; avoid hold-open on doors that must self-close for fire safety.
Can it be fitted to left- and right-hand doors?
Yes. The closer is non-handed, so the same unit works on either hand.
How fast can the door close?
Closing time from 90° adjusts from under 3 s to over 40 s, and latching speed is set separately so the door closes fully onto the lock.
Does it work in cold weather?
It is rated –20 to +55 °C and uses anti-freeze hydraulic fluid to keep the closing speed steady as temperature changes.
