BL-150 Offline Bluetooth Keypad Access Controller, 13.56 MHz
Offline keypad controller that opens by 13.56 MHz card, PIN or Bluetooth phone, stores 5,000 users and offers Wiegand. Black or white, 103 × 86 × 20 mm.
- Opens by 13.56 MHz card, PIN or Bluetooth phone; stores 5,000 users offline
- Reads MIFARE Classic 1K/4K, CPU and MIFARE DESFire cards per ISO/IEC 14443A/B
- User data, settings and firmware updates pushed from the phone app; no network needed
- Wiegand interface for connecting to other access-control equipment
- Built-in tamper alarm; 4 kV contact / 8 kV air ESD protection
- Frequency
- 13.56 MHz (ISO/IEC 14443A/B)
- User capacity
- 5,000
- Entry methods
- Card, PIN, Bluetooth
- Interfaces
- Wiegand, Bluetooth
- Power
- 12 V DC, ≤ 200 mA
- Dimensions
- 103 × 86 × 20 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Offline Bluetooth Keypad Access Controller, 13.56 MHz: overview

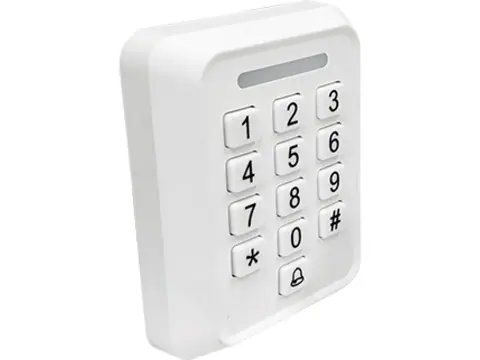

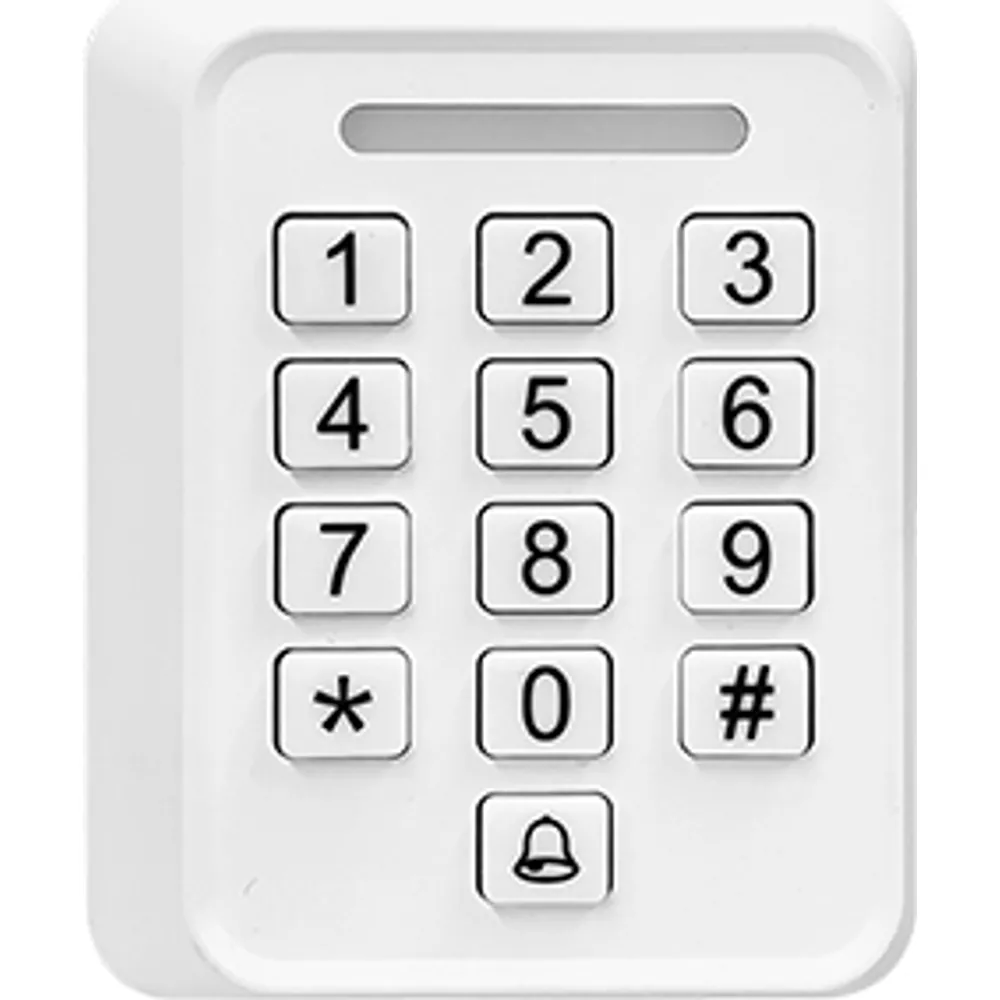

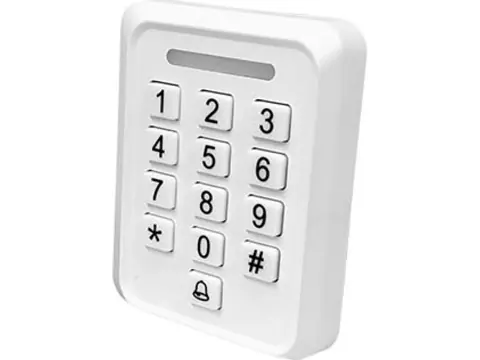

The BL-150 is an offline door controller that combines a physical keypad, a 13.56 MHz card reader and Bluetooth in one compact housing. It stores up to 5,000 users on the device and needs no network: card, PIN and phone entry all work at the door, while user lists, settings and firmware updates are pushed from the companion app. Housings come in black or white and ship without a logo, which suits residential, office and hospitality interiors as well as resellers who add their own branding.
The reader supports ISO/IEC 14443A/B and accepts MIFARE Classic 1K/4K (S50/S70), CPU (microprocessor) smart cards and MIFARE DESFire at 0–5 cm. A tamper alarm and 4 kV contact / 8 kV air ESD protection are built in. Typical jobs include apartment and office doors, staff attendance points, guard-tour checkpoints and other card-based identification tasks where a network connection is not wanted.
Integration notes

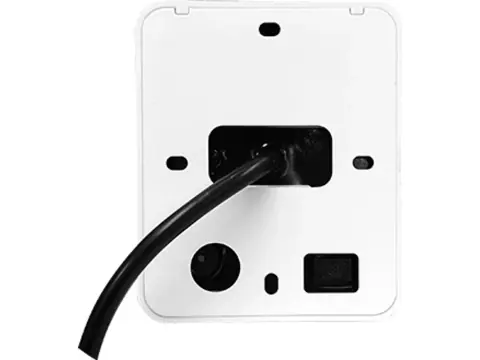

Power is 12 V DC (±5%); current stays below 130 mA at standby and 200 mA during a card read. The 103 × 86 × 20 mm body exits through a 374 mm lead, and a Wiegand interface lets the unit connect to other access-control equipment. Operating range is –20 to +60 °C at 20–80% RH, with storage up to +80 °C. No IP rating is published, so install it indoors or in a fully sheltered position. Ask for the lead color chart with your samples.
More features
- 103 × 86 × 20 mm, black or white housing, supplied without logo
BL-150 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Standard | ISO/IEC 14443A/B |
| Cards | MIFARE Classic 1K/4K (S50/S70), CPU (microprocessor) smart cards, MIFARE DESFire |
| Read distance | 0–5 cm |
| Entry methods | Card, PIN, Bluetooth phone |
| User capacity | 5,000 |
Communication & management
| Interfaces | Wiegand, Bluetooth |
|---|---|
| Management | Firmware upgrade, user data and configuration pushed from the companion app |
| Network | Not required (offline operation) |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Standby current | ≤ 130 mA |
| Card-read current | ≤ 200 mA |
| ESD protection | 4 kV contact, 8 kV air |
| Tamper | Tamper alarm |
Mechanical & environment
| Dimensions | 103 × 86 × 20 mm (±0.5 mm) |
|---|---|
| Lead length | 374 mm (±10 mm) |
| Housing color | Black or white, no logo |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Relative humidity | 20–80% |
| Ingress rating | Not specified (indoor or sheltered mounting) |
Variants
| Variant | Housing | Reader | Entry methods |
|---|---|---|---|
| BL-150-M-BT-BK | Black, no logo | 13.56 MHz ISO/IEC 14443A/B | Card, PIN, Bluetooth |
| BL-150-M-BT-WH | White, no logo | 13.56 MHz ISO/IEC 14443A/B | Card, PIN, Bluetooth |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| BL-150-M-BT-BK | Black housing: 13.56 MHz reader, keypad, Bluetooth, 5,000 users, Wiegand. | |
| BL-150-M-BT-WH | White housing: 13.56 MHz reader, keypad, Bluetooth, 5,000 users, Wiegand. |
Where the BL-150 is used
- Apartment and office doors where no network cable reaches the entrance
- Staff rooms that need card, PIN and phone entry managed by one administrator
- Staff attendance or guard-tour checkpoints using 13.56 MHz cards
- Distributor stock for white-label resale in black or white housings
BL-150 FAQ
Does it need Wi-Fi or a network connection?
No. It runs offline and stores up to 5,000 users on the device. The phone app talks to it over Bluetooth to push users, settings and firmware updates.
Which cards can it read?
13.56 MHz ISO/IEC 14443A/B cards: MIFARE Classic 1K/4K (S50/S70), CPU smart cards and MIFARE DESFire, at 0–5 cm. It does not read 125 kHz proximity cards.
Can it be installed outdoors?
No IP rating is published for this model, so we recommend indoor or fully sheltered mounting. For exposed doors, choose one of the IP55 controllers in this range.
Can it connect to an existing controller?
Yes, it has a Wiegand interface for linking to other access-control equipment. Share your controller model and we confirm the connection before dispatch.
Can I get it with my own logo?
Standard units ship without a logo in black or white. Contact us if you need custom printing or packaging for a distribution order.
