BL-110 Bluetooth Keypad Access Controller, 125 kHz + 13.56 MHz
Standalone touch-keypad door controller that opens by PIN, 125 kHz or 13.56 MHz card, or phone over Bluetooth 5.0. IP55, onboard relay, fire-alarm input.
- Opens by PIN, 125 kHz EM card, 13.56 MHz smart card or phone over Bluetooth 5.0
- Reads MIFARE Classic, CPU and MIFARE DESFire cards (ISO/IEC 14443A) plus 125 kHz EM ID cards
- Onboard relay (NO1/NC1/COM1) for standard magnetic locks and electric bolt locks
- Exit-button, door-contact and fire-alarm inputs; built-in tamper alarm
- IP55 housing, –20 to +60 °C operation, 4 kV contact / 8 kV air ESD protection
- Frequency
- 125 kHz + 13.56 MHz
- Entry methods
- PIN, card, Bluetooth 5.0 phone
- Lock output
- Relay NO / NC / COM
- Power
- 9–15 V DC, ≤ 200 mA
- IP rating
- IP55
- Dimensions
- 113 × 75 × 16 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Bluetooth Keypad Access Controller, 125 kHz + 13.56 MHz: overview

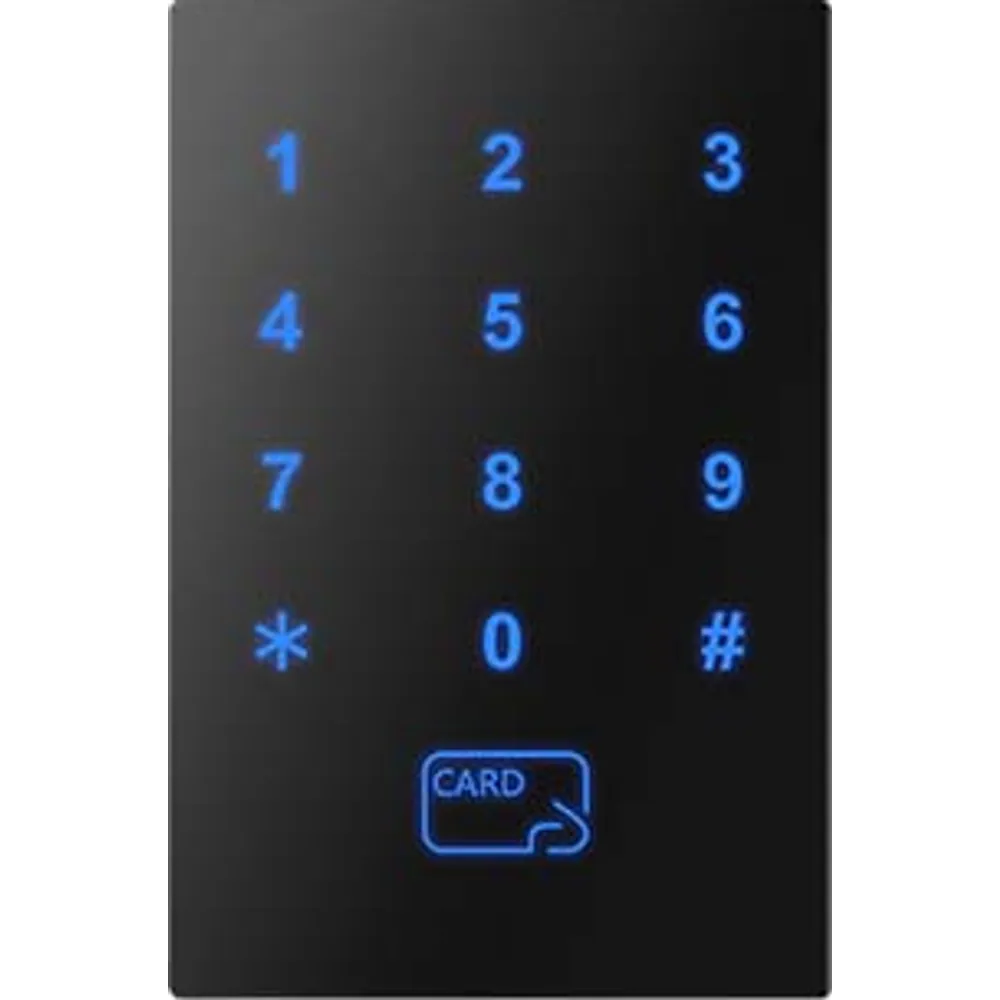

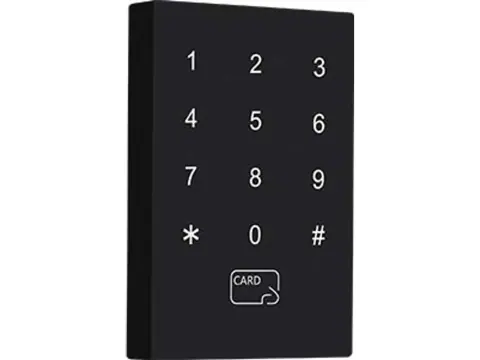

The BL-110 is a single-door access controller built around a backlit glass touch keypad. People get in with a PIN, a 125 kHz EM proximity card, a 13.56 MHz smart card or a phone over Bluetooth 5.0, and the unit switches the lock from its own relay, so no separate panel is needed. It suits apartment entrances, small offices, short-let rooms and staff-only doors where the owner wants to add or remove users from a phone instead of re-programming a keypad on site.
The 13.56 MHz side works to ISO/IEC 14443A and accepts MIFARE Classic, CPU (microprocessor) smart cards and MIFARE DESFire cards; the 125 kHz side reads EM-type ID cards and fobs, so old and new credentials can share one door. User records are added and deleted from the companion software over Bluetooth. A built-in tamper alarm sounds if the unit is pried off the wall.
The slim 113 × 75 × 16 mm housing is rated IP55, runs from –20 to +60 °C and carries 4 kV contact / 8 kV air ESD protection, which covers most sheltered entrances.
Integration notes
Power it from 9–15 V DC; it draws about 80 mA at standby and no more than 200 mA while working. The flying-lead harness gives relay contacts (NO1/NC1/COM1) for standard magnetic locks and electric bolt locks, a second normally-open contact (NO2), an exit-button input (SW1), a door-contact input (MAG) and a fire-alarm input (FSW). Confirm the phone app and management platform for your region before ordering; we check this against your project when quoting.
More features
- Slim 113 × 75 × 16 mm body with backlit touch keypad; 9–15 V DC supply
BL-110 specifications
RF & credentials
| Frequency | 125 kHz and 13.56 MHz |
|---|---|
| 13.56 MHz protocol | ISO/IEC 14443A |
| 13.56 MHz cards | MIFARE Classic, CPU (microprocessor) smart cards, MIFARE DESFire |
| 125 kHz cards | EM-type ID cards and key fobs |
| Entry methods | PIN on touch keypad, card, Bluetooth phone app |
Communication & management
| Wireless | Bluetooth 5.0 |
|---|---|
| User management | Add and delete users through companion software over Bluetooth |
Inputs & outputs
| Lock relay | NO1 / NC1 / COM1 |
|---|---|
| Second contact | NO2 (normally open) |
| Inputs | Exit button (SW1), door contact (MAG), fire alarm (FSW) |
| Tamper | Built-in tamper alarm |
| Compatible locks | Standard magnetic locks and electric bolt locks |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Standby current | 80 mA |
| Operating current | ≤ 200 mA |
| ESD protection | 4 kV contact, 8 kV air |
Mechanical & environment
| Dimensions | 113 × 75 × 16 mm (±1.0 mm) |
|---|---|
| Keypad | Backlit glass touch keypad |
| Ingress rating | IP55 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +60 °C |
| Environmental | RoHS compliant |
Wire colors
| Wire | Label | Function |
|---|---|---|
| Red | 12V | +12 V DC supply |
| Black | GND | Ground |
| Orange | COM1 | Relay common |
| Gray | NO1 | Relay normally open |
| Blue | NC1 | Relay normally closed |
| White | NO2 | Second normally-open contact |
| Yellow | SW1 | Exit-button input |
| Purple | MAG | Door-contact input |
| Green | FSW | Fire-alarm input |
Flying-lead harness as documented for this unit.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| BL-110-D-K-BT | 125 kHz EM + 13.56 MHz ISO/IEC 14443A reader, backlit touch keypad, Bluetooth 5.0, relay output, IP55. |
Where the BL-110 is used
- Apartment and short-let doors where the owner issues and revokes access from a phone
- Small offices or staff-only rooms that need PIN and card entry without a controller panel
- Unattended shops where staff open by phone and cleaners use a card or fob
- Sites mixing legacy 125 kHz fobs with newer 13.56 MHz cards on the same door
BL-110 FAQ
Which cards does the BL-110 read?
It reads 125 kHz EM-type ID cards and fobs, and 13.56 MHz ISO/IEC 14443A cards including MIFARE Classic, CPU smart cards and MIFARE DESFire. Both frequencies can be enrolled on the same door.
What kind of lock can it drive?
The onboard relay has NO, NC and COM contacts, so it can switch a standard magnetic lock or an electric bolt lock. Feed the lock from a power supply sized for its current draw.
Can it be mounted outside?
The housing is rated IP55 and operates from –20 to +60 °C, which suits covered or sheltered exterior positions. For doors exposed to driving rain, mount it under an overhang or add a rain hood.
How are users added and removed?
Users are added and deleted from the companion software over Bluetooth, with no network cabling to the door. Tell us your region and we confirm the app option before you order.
Does it have a fire-alarm input?
Yes. The green FSW lead is a fire-alarm input, alongside the exit-button (SW1) and door-contact (MAG) inputs.
