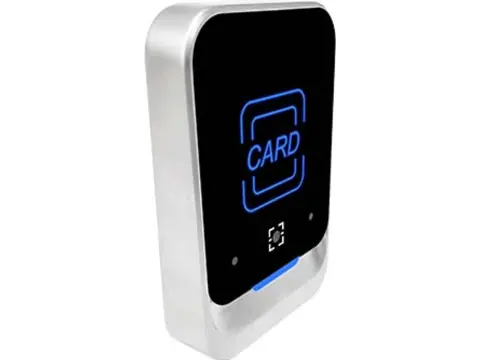

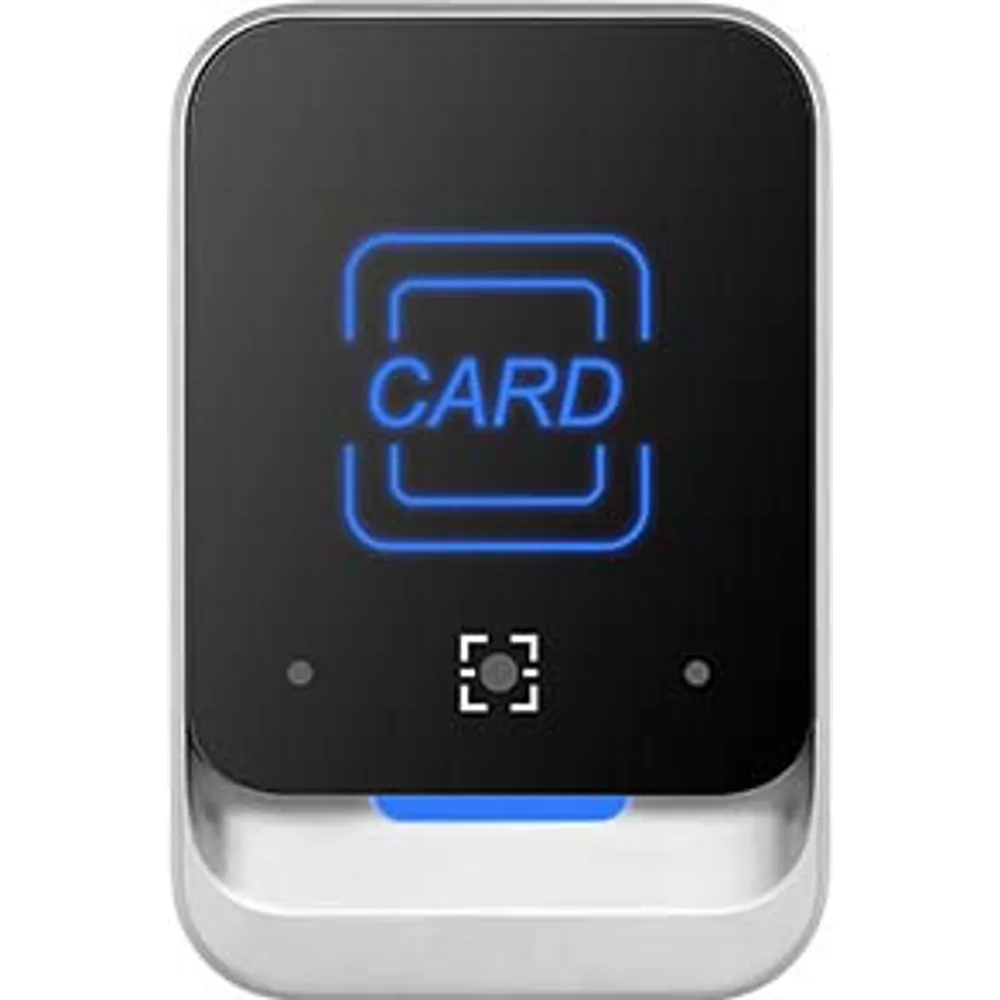

BL-130 4G LTE Cat-1 Cloud Access Controller with Bluetooth & QR
Cellular 4G LTE Cat-1 door controller that manages users from the cloud and opens by QR code, Bluetooth 5.0 or 125 kHz/13.56 MHz card. IP55, relay output.
- 4G LTE Cat-1 link to a cloud platform: add and delete users remotely with no site LAN
- Opens by QR code, Bluetooth 5.0 phone, 125 kHz EM card or 13.56 MHz card
- 13.56 MHz side handles MIFARE Classic, MIFARE DESFire and CPU cards (ISO/IEC 14443A)
- Relay contacts, second NO output, and SW1 exit, MAG door and FSW fire-alarm inputs
- IP55, –20 to +60 °C, built-in tamper alarm, 4 kV contact / 8 kV air ESD
- Network
- 4G LTE Cat-1 + Bluetooth 5.0
- Credentials
- QR code, 125 kHz, 13.56 MHz
- Lock output
- Relay contacts
- Power
- 9–15 V DC, ≤ 200 mA
- IP rating
- IP55
- Dimensions
- 120 × 80 × 22.67 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
4G LTE Cat-1 Cloud Access Controller with Bluetooth & QR: overview
The BL-130 is a door controller for sites with no local network. A 4G LTE Cat-1 modem links it to a cloud platform, so users can be added or removed remotely, while people at the door open it with a QR code, a phone over Bluetooth 5.0 or a card. It fits remote gates, rental units, construction offices and unstaffed shops where running an Ethernet cable to the door is not practical.
At the door it accepts both legacy 125 kHz EM ID cards and 13.56 MHz ISO/IEC 14443A credentials such as MIFARE Classic, MIFARE DESFire and CPU smart cards. The 120 × 80 × 22.67 mm housing is IP55 rated, handles –20 to +60 °C and has 4 kV contact / 8 kV air ESD protection. A tamper alarm is built in and sounds from the unit itself.
Integration notes
Supply 9–15 V DC; the unit draws about 80 mA at standby and up to 200 mA in operation. The harness provides relay contacts for standard magnetic or electric bolt locks, a second normally-open output (NO2), and exit-button (SW1), door-contact (MAG) and fire-alarm (FSW) inputs. Wiegand communication is also listed for linking to other access equipment.
This is a 4G variant, and the LTE band set depends on the cellular module fitted. Confirm LTE band compatibility with your country and carrier before ordering, and confirm which cloud platform and phone app will be used in your region; we check both before quoting a project.
More features
- 120 × 80 × 22.67 mm housing; 9–15 V DC, ≤ 200 mA
BL-130 specifications
RF & credentials
| Frequency | 125 kHz and 13.56 MHz |
|---|---|
| 13.56 MHz protocol | ISO/IEC 14443A |
| 13.56 MHz cards | MIFARE Classic, CPU (microprocessor) smart cards, MIFARE DESFire |
| 125 kHz cards | EM-type ID cards and key fobs |
| Other entry methods | QR code, Bluetooth 5.0 phone |
Communication & management
| Cellular | 4G LTE Cat-1 (LTE bands to be confirmed for your country) |
|---|---|
| Wireless | Bluetooth 5.0 |
| Wired | Wiegand |
| User management | Add and delete users remotely over 4G |
Inputs & outputs
| Lock relay | NO1 / NC1 (see harness table) |
|---|---|
| Second contact | NO2 (normally open) |
| Inputs | Exit button (SW1), door contact (MAG), fire alarm (FSW) |
| Tamper | Built-in tamper alarm |
| Compatible locks | Standard magnetic locks and electric bolt locks |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Standby current | 80 mA |
| Operating current | ≤ 200 mA |
| ESD protection | 4 kV contact, 8 kV air |
Mechanical & environment
| Dimensions | 120 × 80 × 22.67 mm (±1.0 mm) |
|---|---|
| Ingress rating | IP55 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +60 °C |
| Environmental | RoHS compliant |
Wire colors
| Wire | Label | Function |
|---|---|---|
| Red | 12V | +12 V DC supply |
| Black | GND | Ground |
| Blue | NO1 | Relay normally open |
| Yellow | NC1 | Relay normally closed |
| Purple | NC | Relay contact (confirm on harness label) |
| Orange | NO2 | Second normally-open contact |
| Gray | SW1 | Exit-button input |
| Light blue | MAG | Door-contact input |
| Light green | FSW | Fire-alarm input |
Harness colors as documented. No separate COM or Wiegand D0/D1 lead is listed, so check the label on the supplied harness before wiring the relay or Wiegand.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| BL-130-D-4G-BT | 4G LTE Cat-1 variant (confirm LTE bands for your country), Bluetooth 5.0, QR code, 125 kHz EM + 13.56 MHz cards, relay output, IP55. |
Where the BL-130 is used
- Remote yard or site gates with no network cable, managed from the cloud over 4G
- Rental apartments where the manager revokes tenant access remotely
- Construction-site offices and container cabins that move between projects
- Unstaffed shops opened by customer QR codes or staff cards
BL-130 FAQ
Will the 4G modem work in my country?
LTE band support depends on the cellular module fitted and is not part of the base specification. Tell us your country and carrier, and we confirm band compatibility before you order.
Does it need a local network or Wi-Fi?
No. User management runs over the 4G Cat-1 link to the cloud platform, and phones talk to the unit locally over Bluetooth 5.0.
Which cards does it accept?
Both 125 kHz EM ID cards or fobs and 13.56 MHz ISO/IEC 14443A cards: MIFARE Classic, MIFARE DESFire and CPU smart cards.
Can it drive a magnetic lock directly?
Yes. The relay contacts switch standard magnetic locks and electric bolt locks. Power the lock from a separate supply rated for its current.
Is it suitable for outdoor gates?
It is IP55 and works from –20 to +60 °C, so it can be mounted at sheltered gates and entrances. Add a hood where it faces direct rain.
