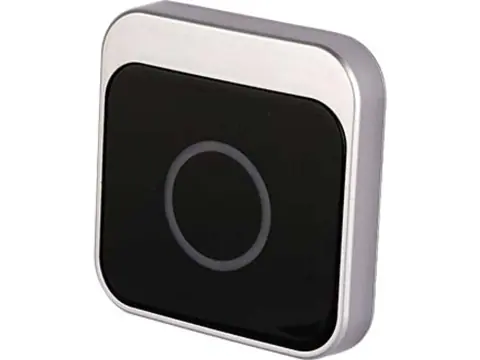

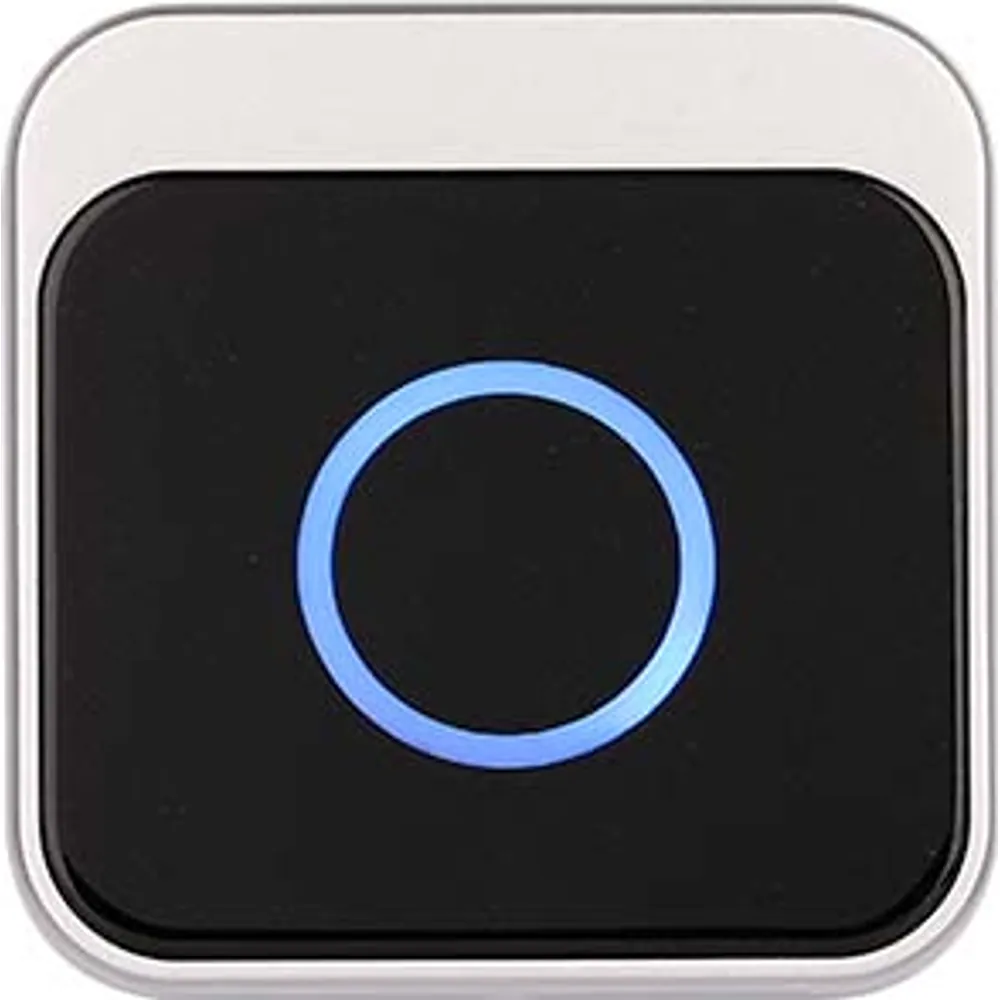

TP-130 IP65 Tamper-Proof 13.56 MHz Card Reader, Wiegand/RS485
13.56 MHz-only tamper-alarm reader in an IP65 86 mm housing: reads encrypted CPU card content, DESFire and NFC tags, outputs Wiegand or RS485.
- 13.56 MHz reader for MIFARE Classic, DESFire EV1/EV2, Ultralight/C, NTAG2xx and NFC Forum Type 1/2/4
- Reads encrypted CPU smart-card content for anti-copy credentials
- Tamper alarm on removal; IP65 housing, 86 × 86 × 15.6 mm
- Wiegand or RS485 output; firmware updates over RS485
- 9–15 V DC; about 150 mA while reading at 12 V
- Frequency
- 13.56 MHz
- Standards
- ISO/IEC 14443A/B, ISO/IEC 18092
- Output
- Wiegand, RS485
- Read range
- 0–3 cm
- IP rating
- IP65
- Dimensions
- 86 × 86 × 15.6 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
IP65 Tamper-Proof 13.56 MHz Card Reader, Wiegand/RS485: overview
TP-130 is the 13.56 MHz-only version of the 86 mm tamper-alarm reader. It fits sites that have already retired 125 kHz proximity cards, or never used them, and want a reader that can check encrypted card content instead of relying on a card serial number.
Supported credentials include MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight and Ultralight C, NTAG2xx, CPU (microprocessor) smart cards and NFC Forum Type 1, 2 and 4 tags, under ISO/IEC 14443A/B and ISO/IEC 18092. Reading the encrypted content of CPU cards gives a credential that is much harder to duplicate than a UID. Read range is 0–3 cm.
The reader raises a tamper alarm if it is pried off its mounting, and the 86 × 86 × 15.6 mm housing is rated IP65 with an operating range of –20 to +65 °C. A touch-keypad version is available for doors that also need a PIN.
Integration notes
Wire either Wiegand or RS485 to the controller and supply 9–15 V DC; at 12 V allow about 100 mA on standby and 150 mA while reading. Firmware and configuration parameters are updated over RS485 using the management utility. No third-party certification is listed for this model, so confirm the marking your market requires before ordering.
More features
- Card-only or touch-keypad version
TP-130 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| HF standards | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 18092 |
| HF cards and tags | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, CPU (microprocessor) smart cards, NFC Forum Type 1/2/4 tags |
| Encrypted read | Reads encrypted content of CPU smart cards (anti-copy) |
| Read range | 0–3 cm (depends on installation and card) |
Interfaces & management
| Communication | Wiegand, RS485 |
|---|---|
| Firmware update | Over RS485 with the management utility |
| Configuration | Parameters updated with the management utility |
| Keypad | None (card-only) or touch keypad (-K variant) |
Security
| Tamper | Tamper alarm on removal from the mounting surface |
|---|
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Current at 12 V | ≈ 100 mA standby, ≈ 150 mA operating |
Mechanical & environment
| Dimensions | 86 × 86 × 15.6 mm (±0.5 mm) |
|---|---|
| Mounting | Wall mount |
| Ingress protection | IP65 |
| Operating temperature | –20 to +65 °C (–4 to +149 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Certifications | None listed; confirm marking requirements for your market |
Supported credentials
| Band | Standards | Card and tag types |
|---|---|---|
| 13.56 MHz | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 18092 | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, CPU (microprocessor) smart cards, NFC Forum Type 1/2/4 tags |
Encrypted content can be read from CPU smart cards; read range is 0–3 cm depending on card and installation.
Tamper-alarm reader family at a glance
| SKU | Frequencies | Housing | Notes |
|---|---|---|---|
| TP-120 | 125 kHz + 13.56 MHz | 86 × 86 × 15.6 mm | Dual frequency, 86 mm footprint |
| TP-130 | 13.56 MHz | 86 × 86 × 15.6 mm | HF only, 86 mm footprint |
| TP-140 | 125 kHz + 13.56 MHz | 93.3 × 93 × 19.3 mm | Dual frequency, larger square face |
| TP-150 | 13.56 MHz | 93.3 × 93 × 19.3 mm | HF only, metal middle frame for metal mounts |
All four: IP65, tamper alarm, Wiegand or RS485, 9–15 V DC, 0–3 cm read range, card-only or touch-keypad version.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| TP-130-MS | Card-only, 13.56 MHz with encrypted CPU card reading, tamper alarm, IP65, Wiegand/RS485, 86 × 86 mm | |
| TP-130-MS-K | Touch-keypad version, 13.56 MHz, tamper alarm, IP65, Wiegand/RS485, 86 × 86 mm |
Where the TP-130 is used
- Office and campus doors standardized on DESFire or CPU smart cards
- Apartment entrances that need a tamper alarm and copy-resistant cards
- Turnstile and elevator readers reporting to an RS485 controller
- Doors where NFC Forum Type 4 credentials or NFC tags are presented
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
TP-130 FAQ
Does TP-130 read 125 kHz cards?
No, it is 13.56 MHz only. For sites with both 125 kHz and 13.56 MHz cards, use the dual-frequency TP-120 in the same housing.
Should I use Wiegand or RS485?
Both are available. Wiegand suits a short run to a standard controller; RS485 handles longer cable runs and also carries firmware updates from the management utility.
What read range should I plan for?
0–3 cm, so users should hold the card close to the reader face.
What power does it need?
9–15 V DC. At 12 V it draws about 100 mA on standby and about 150 mA while reading.
Is it certified?
No certification is listed for this model. Tell us which marks your project needs and we will confirm what documentation can be supplied.
