QC-150 QR Code & Encrypted 13.56 MHz Card Reader with Relay
Tempered-glass QR code reader with encrypted MIFARE sector and CPU-card reading, NO/COM/NC relay contacts, and Wiegand, RS485 and USB outputs.
- Encrypted reading of MIFARE Classic sectors and CPU cards, with UID mode as an option
- Scans printed and phone-screen QR codes and barcodes at 5–18 cm, ~100 ms average
- Relay with NO, COM and NC contacts on the terminal block
- Wiegand, RS485 and USB outputs plus a dedicated configuration port
- Scratch-resistant one-piece tempered-glass front, 87 × 87 × 45 mm
- Credentials
- QR / 1D codes + 13.56 MHz cards
- Card security
- MIFARE sector and CPU-card encryption, or UID
- Outputs
- Wiegand, RS485, USB, relay (NO/COM/NC)
- QR read range
- 5–18 cm
- Power
- 12 V DC ±5%, ≤ 200 mA
- Dimensions
- 87 × 87 × 45 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
QR Code & Encrypted 13.56 MHz Card Reader with Relay: overview
The QC-150 is an encrypted QR code and card reader: alongside QR scanning, its 13.56 MHz reader can check encrypted card data, not just the serial number. It reads MIFARE Classic sector data and CPU-card data using keys you define, or falls back to UID reading, which helps sites move away from easily cloned UID-only credentials while still admitting visitors by QR code.

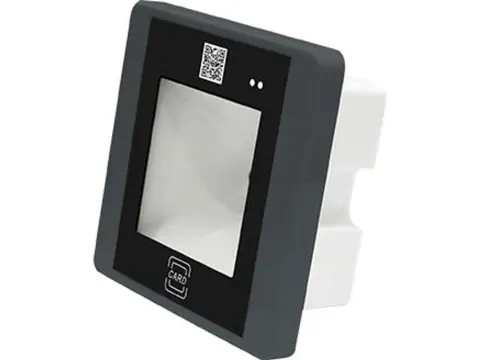

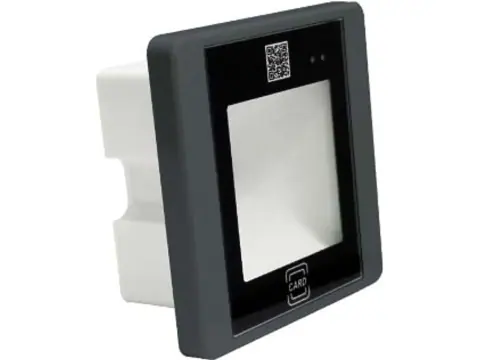

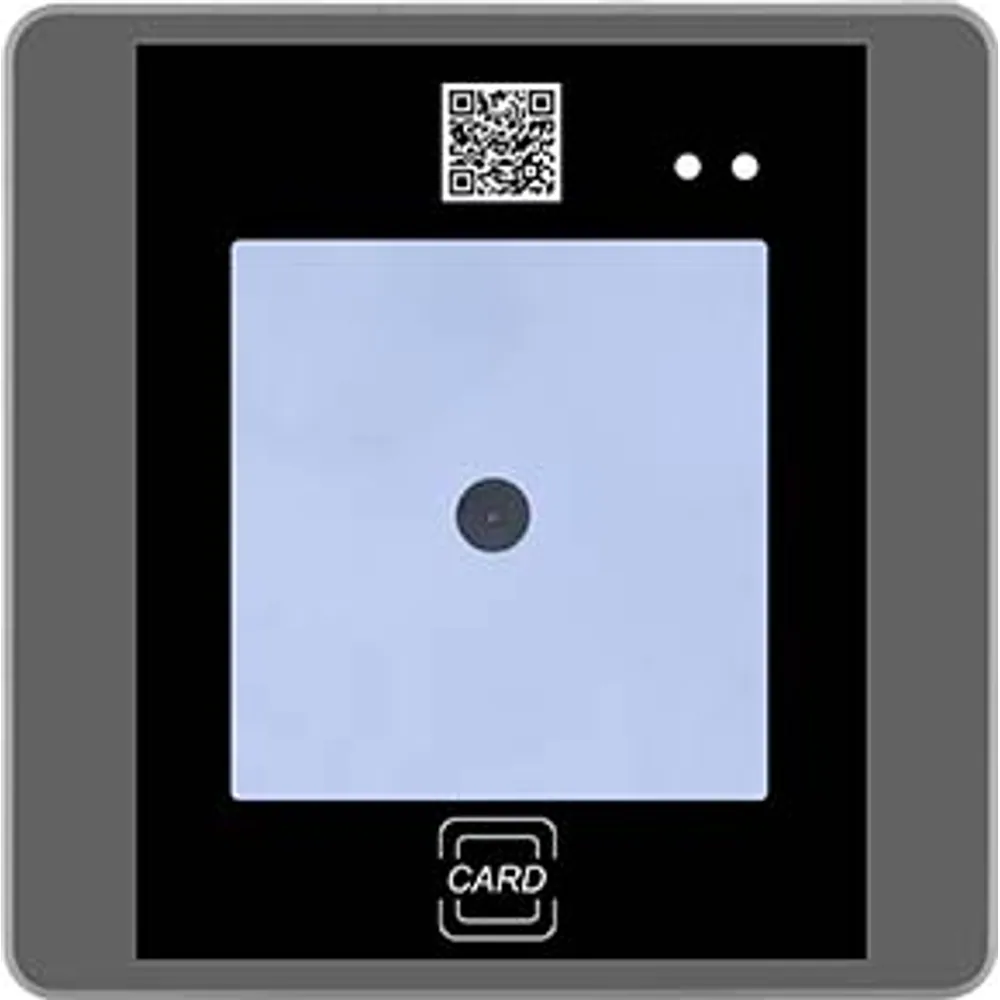

The front is a one-piece tempered-glass cover that resists scratching, on an 87 × 87 × 45 mm body. A 648 × 488 camera with two fill lights reads printed and on-screen QR codes at 5–18 cm in around 100 ms on average, tolerating any rotation and ±45° of tilt. Beyond MIFARE Classic and CPU cards, it reads UIDs of MIFARE Ultralight, MIFARE DESFire EV1 and NTAG cards, other ISO/IEC 14443A cards, ISO/IEC 15693 tags and NFC phones in card-emulation mode.
Integration notes

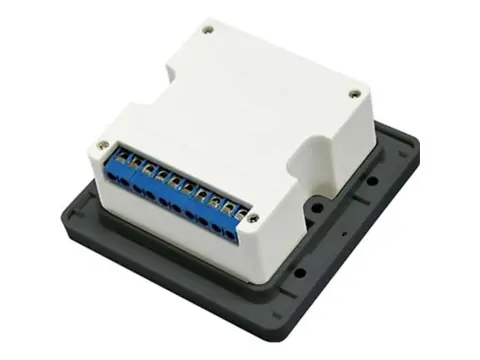

All connections land on a 10-position terminal block: 12 V DC and GND, RS485 A/B, Wiegand WG0/WG1, a relay with NO, COM and NC contacts, and a configuration port. USB is available through a Mini USB cable. Supply 12 V DC ±5%; current stays under 200 mA.
Relay ratings and trigger logic are not published, so confirm them with us before switching a lock directly from the reader. No ingress rating is stated, so mount it indoors or under cover.
More features
- 12 V DC ±5% at ≤ 200 mA
QC-150 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Encrypted read | MIFARE Classic sector encryption; CPU card encryption (UID read also supported) |
| Cards (UID read) | MIFARE Classic 1K/4K (S50/S70), MIFARE Ultralight, MIFARE DESFire EV1, NTAG, CPU cards, other ISO/IEC 14443A cards, ISO/IEC 15693 cards |
| NFC phones | Card-emulation mode (UID) |
| Card read distance | More than 5 cm (varies with card type) |
QR & barcode scanning
| Code sources | Printed (paper) and on-screen (electronic) codes |
|---|---|
| Symbologies | QR Code, Data Matrix, PDF417, UPC-A, UPC-E (E0/E1), Code 11, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, Matrix 2 of 5 |
| QR read distance | 5–18 cm (depends on code, scan angle and ambient light) |
| Decode time | 100 ms (average) |
| Presentation angle | 360° rotation, ±45° tilt |
| Field of view | 34° (H) × 26° (V) |
| Sensor resolution | 648 × 488 pixels |
| Illumination | Dual fill lights |
Interfaces
| Access control output | Wiegand (WG0/WG1) |
|---|---|
| Serial | RS485 (485A/485B) |
| USB | USB-to-Mini-USB cable, 1,500 mm |
| Relay | NO / COM / NC contacts |
| Configuration | Dedicated Config terminal |
| Wiring | 10-position terminal block |
Electrical
| Supply voltage | 12 V DC ±5% |
|---|---|
| Current | ≤ 200 mA at 12 V; ≤ 500 mA from USB 5 V |
Mechanical & environment
| Dimensions | 87 × 87 × 45 mm (±0.3 mm) |
|---|---|
| Housing | One-piece tempered-glass front cover, scratch-resistant |
| Operating temperature | –10 to +50 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% RH |
Terminal block definition
| Terminal | Function |
|---|---|
| DC (+12 V) | Power input, +12 V DC |
| GND | Ground |
| 485A | RS485 A |
| 485B | RS485 B |
| WG0 | Wiegand D0 |
| WG1 | Wiegand D1 |
| NO | Relay, normally open |
| COM | Relay, common |
| NC | Relay, normally closed |
| Config | Configuration interface |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| QC-150-MS | QR/barcode + 13.56 MHz with MIFARE sector and CPU-card encryption or UID read; Wiegand, RS485, USB; NO/COM/NC relay |
Where the QC-150 is used
- Residential communities replacing UID-only fobs with sector-encrypted MIFARE Classic cards
- Visitor entrances where guests show a QR pass and staff use encrypted cards
- Hotel back-of-house doors combining QR guest passes with CPU staff cards
- Unstaffed shops that check a customer's app QR code at the door
QC-150 FAQ
What does encrypted card reading add over UID reading?
A UID-only reader accepts any card that reports the right serial number, and UIDs are easy to copy. In encrypted mode the QC-150 authenticates to a MIFARE Classic sector or CPU card with keys you set, so a card that only copies the UID will not produce a valid read.
Can the relay open a door lock by itself?
The terminal block provides NO, COM and NC relay contacts, but contact ratings and trigger conditions are not published for this model. Tell us your lock type and we will confirm before you rely on the relay instead of a controller.
Which outputs can I use?
Wiegand (WG0/WG1) and RS485 (485A/485B) are on the screw terminal, and USB is available through a Mini USB cable. A separate Config terminal is used for setup.
Is the QC-150 suitable for outdoor use?
No ingress rating is stated, so install it indoors or in a sheltered position. For exposed entrances, the IP67 metal-frame QC-110 or QC-130 is a better fit.
