SK-180 Compact RFID Keypad Access Controller, 2,000 Users
Compact offline keypad controller for 2,000 users, in black or white with no logo. 125 kHz EM4xxx or 13.56 MHz ISO/IEC 14443 A/B versions.
- 2,000-user standalone controller that works fully offline
- 13.56 MHz: MIFARE Classic, DESFire EV1/EV2, Ultralight/C, NFC Forum Type 1/2/4 tags
- 125 kHz: EM4100, EM4102, EM4200, EM4305 and EM4450 credentials
- Read range up to 4 cm (13.56 MHz) or 5 cm (125 kHz)
- Black or white housing without logo for private labeling
- Frequency
- 125 kHz or 13.56 MHz (by variant)
- User capacity
- 2,000 users
- Read range
- 0–4 cm (13.56 MHz) / 0–5 cm (125 kHz)
- Power
- 12 V DC, ≤ 150 mA
- Dimensions
- 103.5 × 86 × 20 mm
- Colors
- Black or white, no logo
Reply within 24 hours Tested before dispatch Worldwide shipping

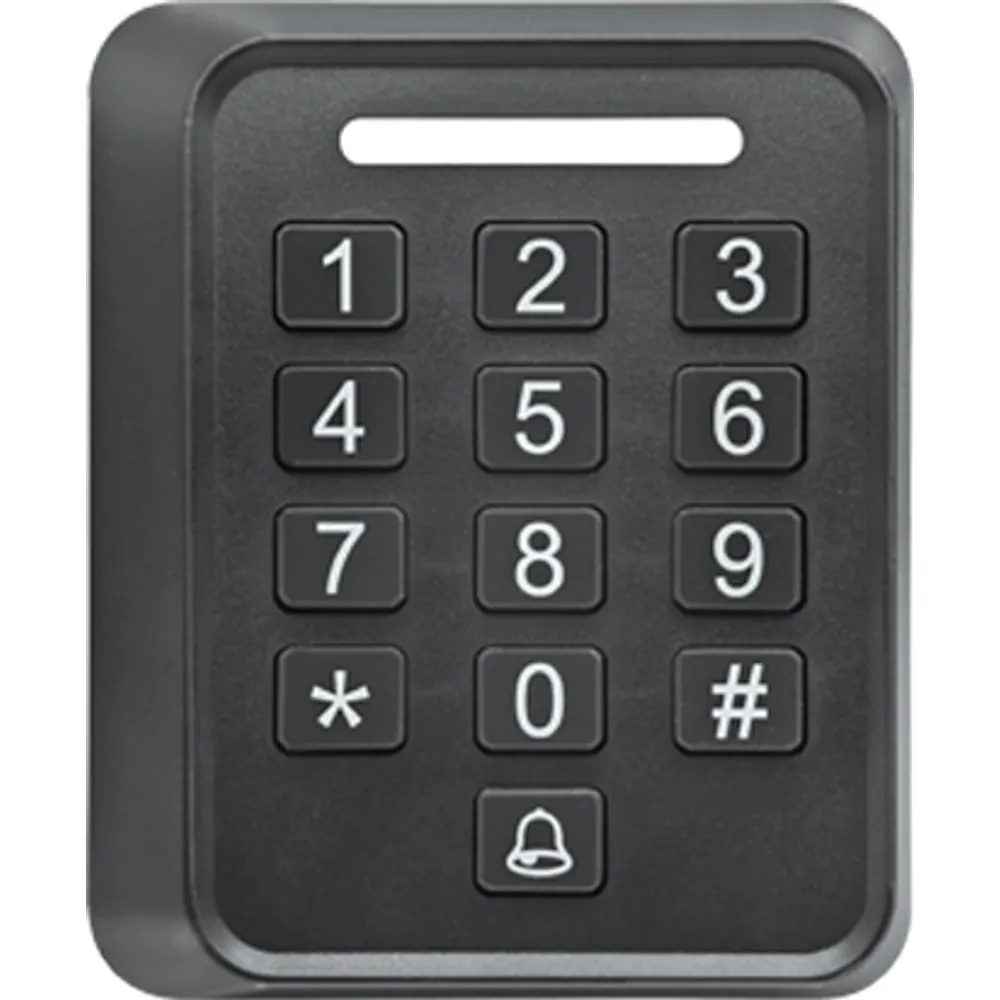

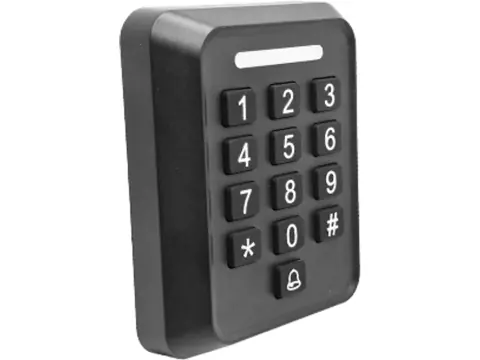

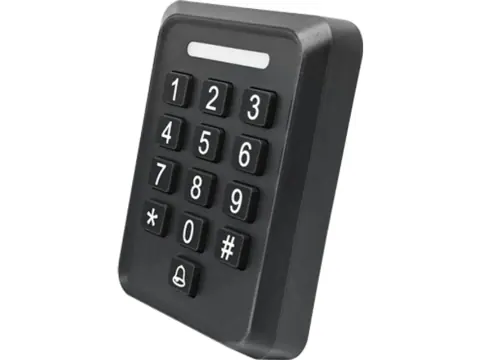

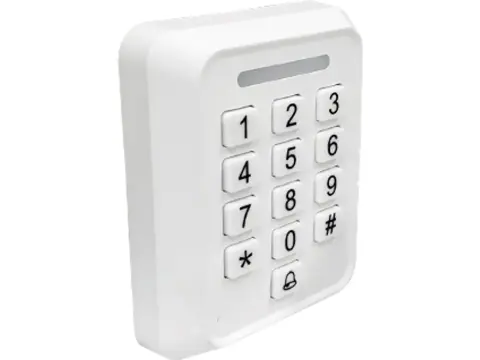

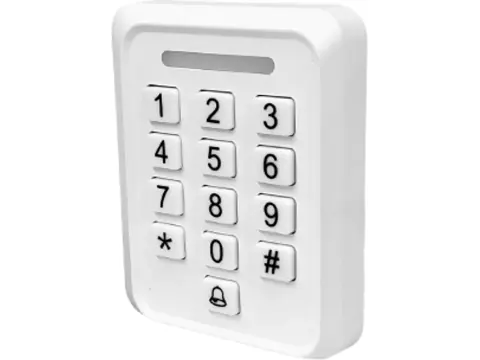

Compact RFID Keypad Access Controller, 2,000 Users: overview
The SK-180 is a compact keypad access controller that stores 2,000 users and runs fully offline. Keypad, card reader and lock control sit in one 103.5 × 86 × 20 mm housing and make access decisions without a network or PC. Housings come in black or white and carry no logo, which suits distributors and OEMs who apply their own labeling.
Two reader versions are listed. The 13.56 MHz SK-180-M reads MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight and Ultralight C cards, ISO/IEC 14443 A/B CPU cards and NFC Forum Type 1, 2 and 4 tags at up to 4 cm. The 125 kHz SK-180-E reads EM4100, EM4102, EM4200, EM4305 and EM4450 credentials at up to 5 cm.
The controller runs from 12 V DC and draws up to 150 mA when active and up to 100 mA on standby. It operates from –20 to +60 °C (–4 to +140 °F) in 20–80% non-condensing humidity, and can be stored from –40 to +80 °C. A bare unit weighs about 94.6 g (13.56 MHz) or 99.6 g (125 kHz), and the leads exit on a 150 mm pigtail.
Integration notes
The published data covers the RF and electrical specification but not a lead-by-lead wiring chart or an IP rating. Request the wiring sheet with your sample, and mount the unit indoors or under cover. Programming basics for this class of keypad are in our keypad programming guide.
More features
- Compact 103.5 × 86 × 20 mm, about 95–100 g, 150 mm lead pigtail
SK-180 specifications
RF & credentials
| Frequency | 13.56 MHz (SK-180-M) or 125 kHz (SK-180-E) |
|---|---|
| 13.56 MHz credentials | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, CPU cards, NFC Forum Type 1, 2 and 4 tags |
| 13.56 MHz protocols | ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 18092 |
| 125 kHz credentials | EM4100, EM4102, EM4200, EM4305, EM4450 |
| Read range | 0–4 cm (13.56 MHz); 0–5 cm (125 kHz); depends on credential and installation |
Access control
| User capacity | 2,000 users |
|---|---|
| Operation | Standalone, offline; integrated keypad and lock control |
Electrical
| Supply voltage | 12 V DC |
|---|---|
| Operating current | ≤ 150 mA |
| Standby current | ≤ 100 mA |
| Leads | 150 mm pigtail |
Mechanical & environment
| Housing | Black or white, no logo, physical keys |
|---|---|
| Dimensions | 103.5 × 86 × 20 mm (±0.3 mm) |
| Weight (bare unit) | Approx. 94.6 g (13.56 MHz), 99.6 g (125 kHz) |
| Operating temperature | –20 to +60 °C (–4 to +140 °F) |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Humidity | 20–80% RH, non-condensing |
| Compliance | RoHS (no other certifications listed) |
Variant matrix
| Variant | Frequency | Credentials | Read range | Housing |
|---|---|---|---|---|
| SK-180-M-BK | 13.56 MHz | MIFARE Classic, DESFire EV1/EV2, Ultralight/C, CPU cards, NFC Forum Type 1/2/4 | 0–4 cm | Black, no logo |
| SK-180-M-WH | 13.56 MHz | MIFARE Classic, DESFire EV1/EV2, Ultralight/C, CPU cards, NFC Forum Type 1/2/4 | 0–4 cm | White, no logo |
| SK-180-E-BK | 125 kHz | EM4100 / 4102 / 4200 / 4305 / 4450 | 0–5 cm | Black, no logo |
| SK-180-E-WH | 125 kHz | EM4100 / 4102 / 4200 / 4305 / 4450 | 0–5 cm | White, no logo |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| SK-180-M-BK | 13.56 MHz ISO/IEC 14443 A/B keypad controller, black, no logo | |
| SK-180-M-WH | 13.56 MHz ISO/IEC 14443 A/B keypad controller, white, no logo | |
| SK-180-E-BK | 125 kHz EM4xxx keypad controller, black, no logo | |
| SK-180-E-WH | 125 kHz EM4xxx keypad controller, white, no logo |
Where the SK-180 is used
- Private-label keypad for a distributor’s standalone access kit
- Interior office or storeroom door in a white or black finish to match the decor
- Apartment amenity room opened with residents’ 13.56 MHz NFC tags or fobs
- Small gym or studio entrance holding up to 2,000 members
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
SK-180 FAQ
Which credentials does the SK-180 read?
The 13.56 MHz version reads MIFARE Classic, DESFire EV1/EV2, Ultralight and Ultralight C cards, ISO/IEC 14443 A/B CPU cards and NFC Forum Type 1, 2 and 4 tags. The 125 kHz version reads EM4100, EM4102, EM4200, EM4305 and EM4450.
Does it need a network or software to run?
No. It stores up to 2,000 users internally and makes access decisions offline.
Can I put my own brand on it?
The black and white housings ship without a logo, so distributors can apply their own labels. Contact us for custom printing or packaging on volume orders.
What power does it need?
12 V DC, with up to 150 mA while working and up to 100 mA on standby, plus the current of the lock you connect.
