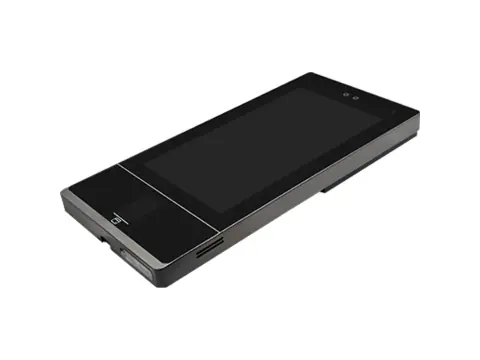

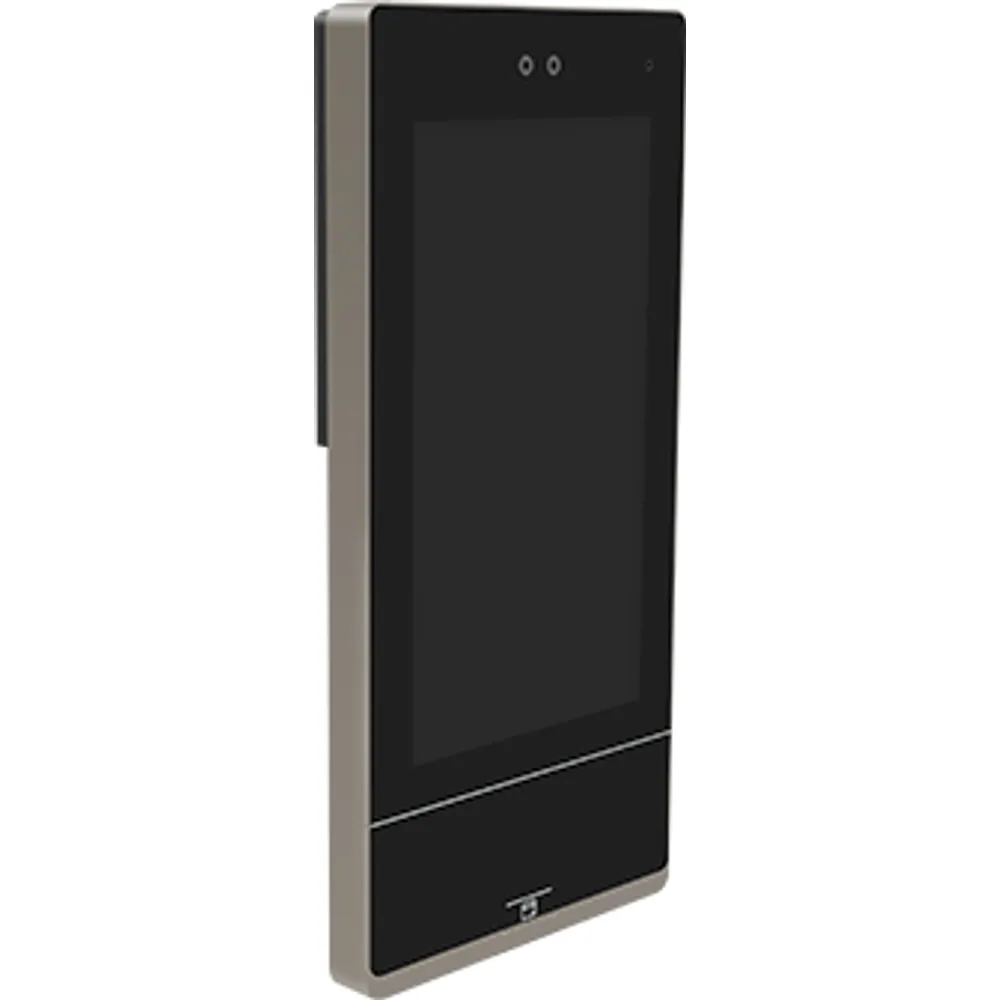

FR-130 7-Inch Face & Fingerprint Access Terminal, Video Intercom
IP65 terminal with 7-inch touchscreen, binocular face camera and under-display optical fingerprint sensor. 10,000 users, 300,000 logs, IC/CPU cards, video intercom link.
- Face, under-display optical fingerprint and 13.56 MHz card in one IP65 terminal
- Megapixel binocular camera with visible-light high-speed recognition
- Video intercom link: one-touch call, call recording and remote door release via indoor monitor
- 10,000 users, faces, fingerprints and IC cards; 300,000 event logs
- TCP/IP, USB flash drive export, optional Wi-Fi; optional 125 kHz EM card reader
- Verification
- Face, fingerprint, 13.56 MHz card
- Display
- 7-inch touchscreen
- Capacity
- 10,000 users / faces / fingerprints
- Interfaces
- TCP/IP, USB flash drive, optional Wi-Fi
- IP rating
- IP65
- Dimensions
- 238 × 115 × 22.3 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
7-Inch Face & Fingerprint Access Terminal, Video Intercom: overview
The FR-130 brings face recognition, an under-display optical fingerprint sensor and a 13.56 MHz card reader together in one IP65 terminal with a 7-inch touchscreen. A megapixel binocular camera runs a visible-light, high-speed recognition algorithm for quick walk-up entry, and verification methods can be combined freely, from face only to face plus fingerprint plus card for high-security rooms.
Placing the fingerprint sensor under the display greatly improves its resistance to interference from ambient light, which helps at bright entrances. The terminal also links with an indoor monitor and a wireless doorbell receiver, so a visitor can call with one touch, talk over video, have the call recorded and be let in remotely, and the doorbell alert reaches the people inside. Door-contact and alarm functions round out the access-control side, making it a fit for apartment entrances, offices and clinics.
Integration notes
Capacity is 10,000 users, 10,000 faces, 10,000 fingerprints and 10,000 IC cards, with 300,000 event records. Data moves over TCP/IP or a USB flash drive, and Wi-Fi is optional. The standard reader handles IC (MIFARE Classic) and CPU smart cards; a 125 kHz EM ID card reader can be added as an option. Power it from a 12 V DC, 3 A supply. The 238 × 115 × 22.3 mm housing operates from –5 to +45 °C at 10–90% RH. Confirm indoor-monitor compatibility with us when planning an intercom installation.
More features
- 7-inch touchscreen, 238 × 115 × 22.3 mm; 12 V DC 3 A; –5 to +45 °C
FR-130 specifications
Recognition
| Camera | Megapixel binocular (dual-lens) camera |
|---|---|
| Face recognition | Visible-light high-speed recognition |
| Fingerprint | Under-display optical sensor |
| Verification modes | Face, fingerprint and card, freely combined |
RF & credentials
| Frequency | 13.56 MHz (125 kHz optional) |
|---|---|
| Standard cards | IC (MIFARE Classic) and CPU smart cards |
| Optional reader | 125 kHz EM ID cards |
Capacity
| Users | 10,000 |
|---|---|
| Faces | 10,000 |
| Fingerprints | 10,000 |
| IC cards | 10,000 |
| Event records | 300,000 |
Interfaces & functions
| Network | TCP/IP; Wi-Fi optional |
|---|---|
| Data transfer | USB flash drive |
| Intercom | Links with indoor monitor: one-touch call, video intercom, call recording, remote door release |
| Doorbell | Wireless doorbell receiver link |
| Door functions | Door contact, alarm, record lookup |
Electrical
| Power supply | 12 V DC, 3 A |
|---|
Mechanical & environment
| Display | 7-inch touchscreen |
|---|---|
| Dimensions | 238 × 115 × 22.3 mm |
| Ingress rating | IP65 |
| Operating temperature | –5 to +45 °C |
| Operating humidity | 10–90% RH |
Variants
| Variant | Cards | Biometrics | Network |
|---|---|---|---|
| FR-130-M-F | 13.56 MHz IC and CPU cards | Face + fingerprint | TCP/IP |
| FR-130-M-F-WF | 13.56 MHz IC and CPU cards | Face + fingerprint | TCP/IP + Wi-Fi |
| FR-130-D-F | 13.56 MHz IC/CPU + 125 kHz EM ID | Face + fingerprint | TCP/IP |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| FR-130-M-F | Face + fingerprint + 13.56 MHz IC/CPU card reader, TCP/IP, IP65. | |
| FR-130-M-F-WF | As FR-130-M-F with the optional Wi-Fi module fitted. | |
| FR-130-D-F | As FR-130-M-F with the optional 125 kHz EM ID card reader added (dual frequency). |
Where the FR-130 is used
- Apartment building entrances that need a door station with video intercom and resident face entry
- Offices where staff choose face or fingerprint and visitors call reception by video
- Labs and server rooms requiring face plus fingerprint plus card verification
- Clinics and gyms with bright, sunlit entrances
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
FR-130 FAQ
Can it replace a video door station?
It links with an indoor monitor and a wireless doorbell receiver for one-touch calling, video intercom, call recording and remote door release. Confirm your indoor-monitor model with us before ordering.
Can it read 125 kHz proximity cards?
The standard reader handles 13.56 MHz IC and CPU cards. Order the FR-130-D-F if you also need 125 kHz EM ID cards.
How many users and fingerprints does it store?
Up to 10,000 users, 10,000 faces, 10,000 fingerprints and 10,000 IC cards, with 300,000 event records.
Is it suitable for outdoor entrances?
It is IP65 and runs from –5 to +45 °C, so it suits covered exterior entrances in mild climates. Check winter lows against the –5 °C limit.
How do I export records?
Collect them over TCP/IP (or Wi-Fi on the -WF variant) or copy them to a USB flash drive at the terminal.
