ST-130 UHF RFID Plant Breeding Label, 100 × 60 mm, 10 m Read
PP plant label with a 100 × 60 × 3 mm head and 360 mm overall length, reading to 10 m on a fixed UHF reader, for breeding trials, nurseries and tree farms.
- 100 × 60 × 3 mm PP label head, 360 mm overall length
- Rated 10 m with a 4 W fixed reader and 2.5 m with a handheld
- Impinj Monza 4QT chip across 860–960 MHz for US and EU band readers
- Stake-style label for pots, beds and field plots
- Unique chip ID links each plant to its breeding and growth records
- Frequency
- 860–960 MHz
- Chip
- Impinj Monza 4QT (EPC Gen2)
- Read range
- 10 m (4 W fixed reader)
- Handheld range
- 2.5 m
- Label head
- 100 × 60 × 3 mm
- Overall length
- 360 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
UHF RFID Plant Breeding Label, 100 × 60 mm, 10 m Read: overview
The ST-130 is a UHF RFID plant label for breeding programs, nurseries, tree farms and horticultural research. Each label carries a unique chip ID that links a plant or plot to its records (variety, parent lines, planting date, treatments and measurements), captured in the field instead of copied from handwritten tags.

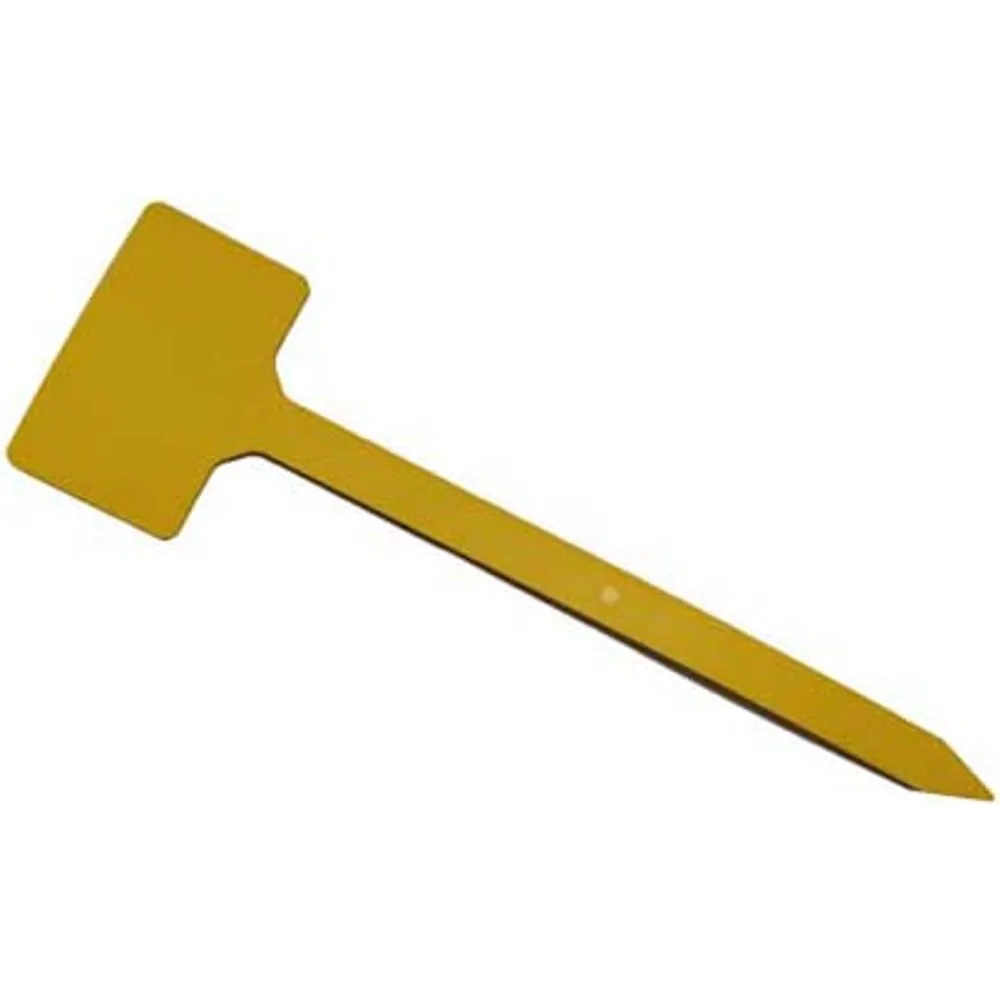

The label is molded in PP with a 100 × 60 × 3 mm head and a total length of 360 mm. The product photo shows a T-shaped stake with a pointed stem that pushes into soil or growing media, leaving the flat head visible above the plant. Inside is an Impinj Monza 4QT chip working across 860–960 MHz.
It has the longest rated range among our seal, tie and plant tags: 10 m with a 4 W fixed reader and 2.5 m with a handheld. An operator can walk a row and pick up labels without bending to each pot, and a fixed reader at a greenhouse doorway or on a trolley route can log batches as they move.
Integration notes
UHF anti-collision lets a reader inventory many labels in one pass, so use your handheld's search or filter mode to locate one plant on a crowded bench. Water and dense foliage absorb UHF energy, so expect shorter distances than the rated figures in wet, heavily planted beds, and test in your own growing conditions.
ST-130 specifications
RF & chip
| Frequency | 860–960 MHz |
|---|---|
| Chip | Impinj Monza 4QT |
| Air interface | EPC Gen2 / ISO/IEC 18000-63 passive UHF |
Read performance
| Fixed reader (4 W) | 10 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 2.5 m |
Construction
| Material | PP (polypropylene) |
|---|---|
| Label head | 100 × 60 × 3 mm |
| Overall length | 360 mm (14.2 in) |
| Form | T-shaped stake with pointed stem (per product photo) |
Seal, tie and plant tag comparison
| SKU | Type | Size | Chip | 4 W fixed reader | Handheld reader |
|---|---|---|---|---|---|
| ST-110 | One-time steel-wire cable seal | Head 100 × 26.5 × 13.4 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 5 m | 2 m |
| ST-120 | Compact one-time steel-wire cable seal | Head 36 × 23 × 11 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 0.3 m | 0.1 m |
| ST-130 | Plant breeding stake label | Head 100 × 60 × 3 mm; 360 mm overall | Impinj Monza 4QT | 10 m | 2.5 m |
| ST-140 | Cable tie tag | Head 53.5 × 30 × 1.9 mm; 330 mm overall | Impinj Monza 4QT | 0.7 m | 0.2 m |
| ST-150 | Archive file lock tag | Tag 44 × 32 × 3 mm; 83.31 mm overall | Impinj Monza 4QT | 1.5 m | 0.5 m |
| ST-160 | Leaf-shaped plant tag | Inlay pocket 52 × 20 × 2 mm | Impinj Monza 4QT | 7–8 m | 1.5–2 m |
All six tags operate across 860–960 MHz. Ranges as published with a 4 W fixed reader and an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| ST-130-GL | UHF RFID plant breeding label, PP, 100 × 60 × 3 mm head, 360 mm overall, Impinj Monza 4QT, 860–960 MHz |
Where the ST-130 is used
- Plant breeding trials where each line or plot needs a traceable ID
- Nursery stock counts with a handheld reader walking the rows
- Greenhouse batch tracking with fixed readers at doors or trolley routes
- Seedling and sapling records on tree farms and forestry nurseries
ST-130 FAQ
How far can the label be read?
The datasheet lists 10 m with a 4 W fixed reader and 2.5 m with a handheld. Wet soil and dense foliage shorten this, so test in your beds or greenhouse.
How is the label attached?
It is a T-shaped stake with a pointed stem, 360 mm long overall, pushed into soil or growing media. For hanging tags on branches, see the ST-160 leaf tag or the ST-140 cable tie tag.
Which readers can read it?
Any EPC Gen2 UHF reader operating within 860–960 MHz, which includes both the 902–928 MHz and 865–868 MHz bands.
Can we number labels with our own plant IDs?
Yes. Each label has a globally unique chip ID, and the EPC memory can be encoded with your own plant or plot numbering using a UHF reader/writer.
