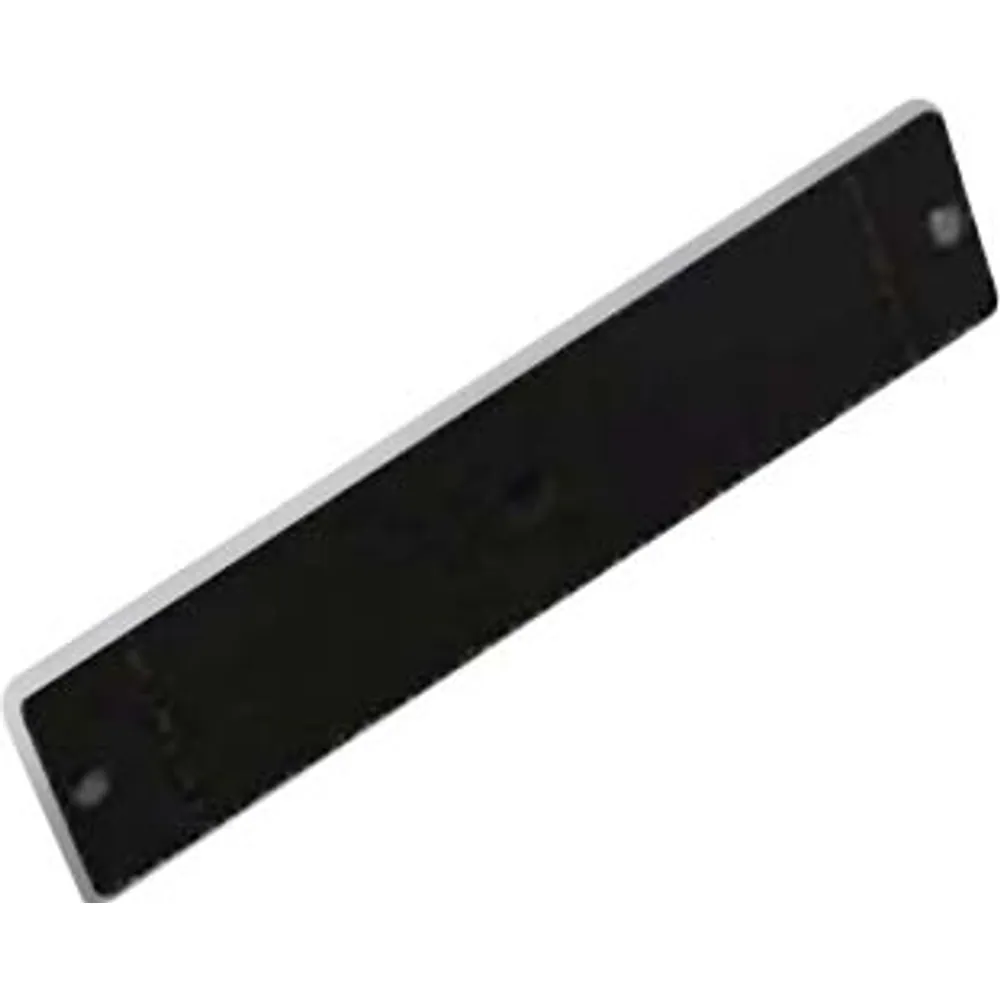

OM-190 10 m PCB On-Metal UHF RFID Tag, 90 × 20 mm
Longest-reading PCB tag in our range: 10 m on metal with a 4 W fixed reader and 6 m with a handheld, in a 90 × 20 × 3.5 mm FR4 body. NXP UCODE 8.
- 10 m on metal with a 4 W fixed reader; 6 m with a handheld
- Thin FR4 PCB body, 90 × 20 × 3.5 mm
- Highest handheld range in our on-metal tag line
- NXP UCODE 8 chip, EPC Gen2
- Order -US for 902–928 MHz or -EU for 866–868 MHz systems
- Frequency
- 902–928 MHz / 866–868 MHz
- Chip
- NXP UCODE 8
- Read range (4 W fixed, on metal)
- 10 m
- Read range (handheld)
- 6 m
- Substrate
- FR4 PCB
- Dimensions
- 90 × 20 × 3.5 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
10 m PCB On-Metal UHF RFID Tag, 90 × 20 mm: overview
OM-190 is a long, thin FR4 circuit-board tag for metal assets that need distance from a low-profile tag: machinery, steel racking, metal doors and frames, tool cabinets and returnable metal equipment. The 90 × 20 × 3.5 mm board stays flat against the surface and has a hole at each end for fixing.
The datasheet quotes 10 m on a metal surface with a 4 W fixed reader and 6 m with an Impinj R2000-based handheld. That handheld figure is the highest in our whole on-metal line, so OM-190 is the one to pick when audits are done on foot and staff cannot get close to every asset. The chip is an NXP UCODE 8, and the tag is listed for 902–928 MHz and 866–868 MHz; order OM-190-US or OM-190-EU to match your reader.
Compared with the ABS tags, OM-190 is far thinner at 3.5 mm, which helps on doors, panels and rails where a raised housing could be knocked. If space is tight, OM-180 (52 × 13 mm) quotes 8 m on metal.
Integration notes
Mount the board flat on the metal and confirm range with your own reader power and antenna. Hole size and adhesive options are not on the datasheet, so check your fixing method on samples. The EPC can be encoded on site with any Gen2 reader-writer.
OM-190 specifications
RF & chip
| Frequency band | 902–928 MHz (US) / 866–868 MHz (EU) |
|---|---|
| Chip | NXP UCODE 8 |
| Air interface | Passive UHF, EPC Gen2 (ISO/IEC 18000-63) |
Read range (datasheet)
| Fixed reader (4 W), on metal | 10 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 6 m |
Mechanical
| Housing / substrate | FR4 printed circuit board |
|---|---|
| Dimensions | 90 × 20 × 3.5 mm |
| Mounting | Through the hole at each end; confirm fixing method on samples |
| Designed for | Direct mounting on metal surfaces |
FR4 PCB on-metal UHF tags compared
| SKU | Size (mm) | Chip | Band | Fixed reader (4 W), on metal | Handheld reader |
|---|---|---|---|---|---|
| OM-190 | 90 × 20 × 3.5 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 10 m | 6 m |
| OM-180 | 52 × 13 × 3.9 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 8 m | 3.5 m |
| OM-200 | 25 × 10 × 2.5 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 3 m | 2 m |
| OM-210 | 16 × 15 × 3.8 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 2.6 m | 1.6 m |
Datasheet figures. Fixed-reader ranges are with the tag on metal and a 4 W reader; handheld ranges use an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| OM-190-US | Long-range FR4 PCB on-metal UHF tag, 90 × 20 × 3.5 mm, NXP UCODE 8, for 902–928 MHz systems | |
| OM-190-EU | Long-range FR4 PCB on-metal UHF tag, 90 × 20 × 3.5 mm, NXP UCODE 8, for 866–868 MHz systems |
Where the OM-190 is used
- Walk-by handheld audits of machinery and metal equipment
- Steel racking and tool cabinets read by fixed antennas
- Metal doors, frames and panels where a raised tag could be knocked
- Returnable metal equipment moving through logistics hubs
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
OM-190 FAQ
What is the handheld read range?
6 m with an Impinj R2000-based handheld, and 10 m with a 4 W fixed reader with the tag on metal, per the datasheet.
Which band variant do I need?
Choose OM-190-US for 902–928 MHz systems or OM-190-EU for 866–868 MHz systems. We confirm the band with you before dispatch.
How does it compare with the ABS tags?
OM-190 is only 3.5 mm thick versus 7–12 mm for our ABS tags. OM-170 (ABS) quotes more fixed-reader range at 13 m, but OM-190 has the higher handheld figure.
Can I encode my own EPC numbers?
Yes. The NXP UCODE 8 chip is EPC Gen2, so any Gen2 reader-writer can program your numbering.
Before you buy
Related buyer guides
UHF RFID Frequency by Country: 902–928 MHz vs 865–868 MHz and Other Bands
Compare UHF RFID reader bands by country, including US, EU, UK, China, India and Japan. Understand ERP, EIRP, channel conditions and radio approvals.
How to Wire a Long-Range UHF Reader to an Access Controller or Barrier
Wire a UHF reader's D0, D1 and ground to your controller, match 26/34-bit Wiegand, size 12 V power and trigger the barrier by relay. Diagrams included.
Does RFID Work on Metal? How to Choose On-Metal Tags
Yes, RFID works on metal with tags built for it. See why metal detunes standard tags, compare ABS, PCB, ceramic and label tags, and test read range properly.
Related products
OM-170
13 m Long-Range ABS On-Metal UHF RFID Tag, 69 × 23 mm
Longest-reading tag in our on-metal range: 13 m on metal with a 4 W fixed reader from a 69 × 23 × 7 mm ABS body. NXP UCODE 8; 902–928 and 866–868 MHz.
902–928 MHz / 866–868 MHzNXP UCODE 813 m
Details →
OM-110
Printable On-Metal UHF RFID Label, 65 × 35 mm
Thin PET on-metal UHF label you can print and encode in-house: 65 × 35 × 1.25 mm, Monza R6 chip, up to 6 m on metal with a 4 W fixed reader.
902–928 MHzImpinj Monza R66 m (US) / 4 m (EU)
Details →
OM-180
8 m PCB Anti-Metal UHF RFID Tag, 52 × 13 mm
Low-profile FR4 PCB on-metal UHF tag, 52 × 13 × 3.9 mm, NXP UCODE 8. Reads 8 m on metal with a 4 W fixed reader, 3.5 m with a handheld.
902–928 MHz / 866–868 MHzNXP UCODE 88 m
Details →
OM-150
8 m ABS Anti-Metal UHF RFID Tag, 135 × 22 mm
Bar-shaped ABS on-metal UHF tag, 135 × 22 × 12 mm, with an Impinj Monza 4QT chip. Covers 860–960 MHz; 8 m on metal with a 4 W fixed reader.
860–960 MHzImpinj Monza 4QT8 m
Details →
OM-130
Printable Anti-Metal UHF RFID Label, 55 × 15 mm
Narrow printable anti-metal UHF label, 55 × 15 × 1.2 mm: 3.5 m on metal with a 4 W fixed reader and 2 m with a handheld. Monza R6 chip, 902–928 MHz.
902–928 MHzImpinj Monza R63.5 m
Details →
OM-120
Tamper-Evident On-Metal UHF RFID Label, 60 × 25 mm
Frangible, tamper-evident UHF label for metal assets: 60 × 25 × 1 mm, Impinj Monza R6 chip, 902–928 MHz, 1 m on metal with a 4 W fixed reader.
902–928 MHzImpinj Monza R61 m
Details →
OM-160
Rugged ABS On-Metal UHF RFID Tag, 79 × 31 mm
Rectangular ABS tag for steel assets: 79 × 31 × 9.5 mm, Alien Higgs-9 chip, 860–960 MHz, 5–8 m on metal with a 4 W fixed reader, 2.5 m handheld.
860–960 MHzAlien Higgs-95–8 m
Details →
OM-200

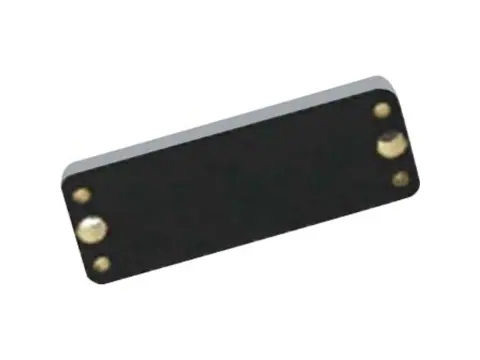

Small PCB On-Metal UHF RFID Tag, 25 × 10 mm
