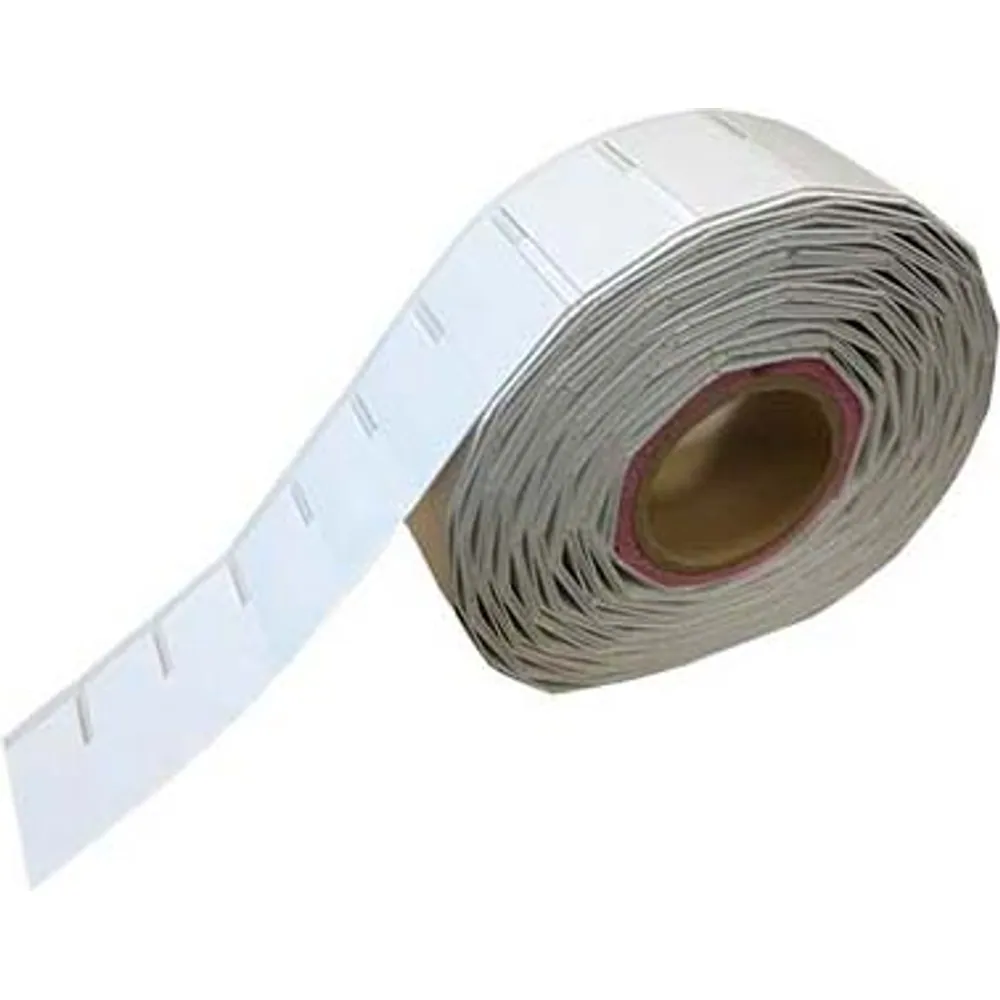

OM-110 Printable On-Metal UHF RFID Label, 65 × 35 mm
Thin PET on-metal UHF label you can print and encode in-house: 65 × 35 × 1.25 mm, Monza R6 chip, up to 6 m on metal with a 4 W fixed reader.
- Flexible PET on-metal label, 65 × 35 × 1.25 mm, follows curved metal surfaces
- 6 m on metal with a 4 W fixed reader (US settings); 4 m under EU settings
- Impinj Monza R6 chip, specified for 902–928 MHz
- Printable face and writable chip: print IDs and encode the EPC in one pass
- Usable on metal assets and on containers holding liquid
- Frequency
- 902–928 MHz
- Chip
- Impinj Monza R6
- Read range (4 W fixed, on metal)
- 6 m (US) / 4 m (EU)
- Material
- Flexible PET, printable
- Dimensions
- 65 × 35 × 1.25 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Printable On-Metal UHF RFID Label, 65 × 35 mm: overview
OM-110 is a flexible UHF RFID label for tagging steel and other metal assets where a rigid hard tag would be too thick or awkward to fit. At 65 × 35 × 1.25 mm it is the longest-reading label in our on-metal label range, and the PET build bends to follow curved surfaces such as pipes, cylinders and rounded equipment housings. It can also be applied to containers that hold liquid.
Rated range on a metal surface is 6 m with a 4 W fixed reader under US settings and 4 m under EU settings. The label is specified for the 902–928 MHz band and carries an Impinj Monza R6 chip. The EU figure indicates it can also serve 865–868 MHz systems at a shorter distance; confirm that with a sample on your own reader. No handheld figure is published for this size.
The face stock accepts printing and the chip is writable, so asset numbers, text or barcodes and the EPC can be applied in one pass on an industrial UHF RFID label printer. We can share the printer models the label has been qualified on, and quote pre-printed, pre-encoded rolls from your data file.
Integration notes
Apply the label flat to clean, dry metal in its final position before you measure range; the published figures assume a metal backing and a 4 W reader. For tamper evidence choose OM-120, and for narrow mounting areas choose OM-130 (55 × 15 mm).
OM-110 specifications
RF & chip
| Frequency band | 902–928 MHz |
|---|---|
| Chip | Impinj Monza R6 |
| Air interface | Passive UHF, EPC Gen2 (ISO/IEC 18000-63) |
Read range (datasheet)
| Fixed reader (4 W), on metal | 6 m (US settings) / 4 m (EU settings) |
|---|---|
| Handheld reader (Impinj R2000-based) | Not specified |
Mechanical
| Material | PET, flexible |
|---|---|
| Dimensions | 65 × 35 × 1.25 mm |
| Attachment | Adhesive label; conforms to curved surfaces |
| Suitable surfaces | Metal; containers holding liquid |
| Customization | Printing and EPC encoding |
Flexible on-metal UHF labels compared
| SKU | Size (mm) | Build | Chip | Band | Fixed reader (4 W), on metal | Handheld, on metal |
|---|---|---|---|---|---|---|
| OM-110 | 65 × 35 × 1.25 | Flexible PET, printable | Impinj Monza R6 | 902–928 MHz | 6 m (US) / 4 m (EU) | Not specified |
| OM-120 | 60 × 25 × 1 | Flexible PET, frangible | Impinj Monza R6 | 902–928 MHz | 1 m | Not specified |
| OM-130 | 55 × 15 × 1.2 | Flexible PET, printable | Impinj Monza R6 | 902–928 MHz | 3.5 m | 2 m |
| OM-140 | 30 × 15 × 1.2 | Flexible PET, printable | Impinj Monza R6 | 902–928 MHz | 0.6 m | 0.3 m |
Datasheet figures with the tag on a metal surface, read by a 4 W fixed reader or an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| OM-110 | Flexible printable on-metal UHF label, 65 × 35 × 1.25 mm, Impinj Monza R6, 902–928 MHz |
Where the OM-110 is used
- Tagging servers, network switches and laptops for IT asset audits
- Printed ID plus EPC on steel fixed assets, tool cabinets and machinery
- Curved metal items such as cylinders, pipes and drums
- Medical device and equipment inventories in hospitals
- Firearm and armory inventory checks
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
OM-110 FAQ
Can I print and encode OM-110 labels myself?
Yes. The PET face accepts printing and the chip is writable, so an industrial UHF RFID label printer can print text or barcodes and encode the EPC in the same pass. Ask us for the printer models the label has been qualified on.
Will it work in the EU 865–868 MHz band?
The label is specified for 902–928 MHz, but the datasheet also quotes 4 m on metal under EU settings, compared with 6 m under US settings. Test a sample with your reader before an EU rollout.
How was the 6 m read range measured?
With a 4 W fixed reader and the label mounted on a metal surface. Lower reader power, smaller antennas and handheld readers will give shorter distances.
Can it go on curved or non-metal surfaces?
The flexible build lets it wrap onto curved metal, and it is also suited to containers holding liquid. The datasheet quotes on-metal ranges only, so trial it before tagging plastic or wood.
