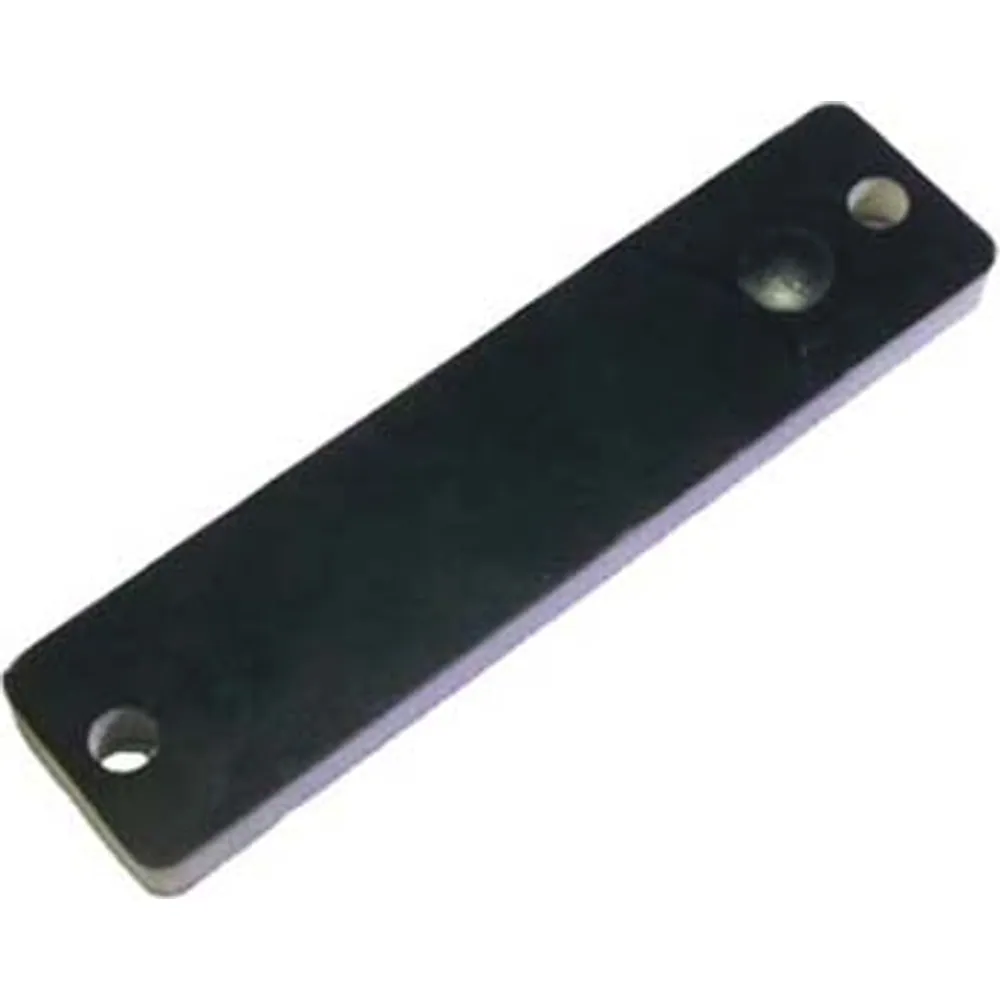

OM-180 8 m PCB Anti-Metal UHF RFID Tag, 52 × 13 mm
Low-profile FR4 PCB on-metal UHF tag, 52 × 13 × 3.9 mm, NXP UCODE 8. Reads 8 m on metal with a 4 W fixed reader, 3.5 m with a handheld.
- FR4 PCB tag, 52 × 13 × 3.9 mm, for direct mounting on metal
- 8 m on metal with a 4 W fixed reader; 3.5 m with a handheld
- NXP UCODE 8 chip, EPC Gen2
- Order -US for 902–928 MHz or -EU for 866–868 MHz systems
- Hole at each end for mechanical fixing
- Frequency
- 902–928 MHz / 866–868 MHz
- Chip
- NXP UCODE 8
- Read range (4 W fixed, on metal)
- 8 m
- Read range (handheld)
- 3.5 m
- Substrate
- FR4 PCB
- Dimensions
- 52 × 13 × 3.9 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
8 m PCB Anti-Metal UHF RFID Tag, 52 × 13 mm: overview
OM-180 is a hard FR4 circuit-board tag for metal assets where an ABS housing would be too bulky. At 52 × 13 × 3.9 mm it suits tools, instruments, IT hardware, medical equipment and firearms, and it is rigid enough to be fixed mechanically through the hole at each end.
The datasheet quotes 8 m on a metal surface with a 4 W fixed reader and 3.5 m with an Impinj R2000-based handheld, from a board under 4 mm thick. The chip is an NXP UCODE 8, and the tag is listed for 902–928 MHz and 866–868 MHz. Order OM-180-US or OM-180-EU to match your reader's regional band.
Within our PCB range, OM-180 sits between the long-range OM-190 (90 × 20 mm, 10 m) and the compact OM-200 (25 × 10 mm, 3 m). It is a good default when you want fixed-reader range from a tag that still fits on a tool body or equipment rail.
Integration notes
Mount the tag flat against the metal. The datasheet lists no hole size, adhesive or potting option, so confirm your fixing method on samples; screws, rivets or industrial adhesive are all common for PCB tags of this size. Because the chip is EPC Gen2, you can encode your own numbering with any Gen2 reader-writer.
OM-180 specifications
RF & chip
| Frequency band | 902–928 MHz (US) / 866–868 MHz (EU) |
|---|---|
| Chip | NXP UCODE 8 |
| Air interface | Passive UHF, EPC Gen2 (ISO/IEC 18000-63) |
Read range (datasheet)
| Fixed reader (4 W), on metal | 8 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 3.5 m |
Mechanical
| Housing / substrate | FR4 printed circuit board |
|---|---|
| Dimensions | 52 × 13 × 3.9 mm |
| Mounting | Through the hole at each end; confirm fixing method on samples |
| Designed for | Direct mounting on metal surfaces |
FR4 PCB on-metal UHF tags compared
| SKU | Size (mm) | Chip | Band | Fixed reader (4 W), on metal | Handheld reader |
|---|---|---|---|---|---|
| OM-190 | 90 × 20 × 3.5 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 10 m | 6 m |
| OM-180 | 52 × 13 × 3.9 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 8 m | 3.5 m |
| OM-200 | 25 × 10 × 2.5 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 3 m | 2 m |
| OM-210 | 16 × 15 × 3.8 | NXP UCODE 8 | 902–928 MHz / 866–868 MHz | 2.6 m | 1.6 m |
Datasheet figures. Fixed-reader ranges are with the tag on metal and a 4 W reader; handheld ranges use an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| OM-180-US | FR4 PCB on-metal UHF tag, 52 × 13 × 3.9 mm, NXP UCODE 8, for 902–928 MHz systems | |
| OM-180-EU | FR4 PCB on-metal UHF tag, 52 × 13 × 3.9 mm, NXP UCODE 8, for 866–868 MHz systems |
Where the OM-180 is used
- Power tools and hand tools tracked out of a tool crib
- Test instruments and IT hardware in asset registers
- Medical equipment identified with a handheld on wards
- Firearms and armory items in inventory audits
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
OM-180 FAQ
What read range does OM-180 give?
8 m with a 4 W fixed reader and the tag on metal, and 3.5 m with an Impinj R2000-based handheld, per the datasheet.
Which band variant should I order?
OM-180-US for 902–928 MHz readers and OM-180-EU for 866–868 MHz readers. We confirm the band with you before dispatch.
How thick is it?
3.9 mm. The full size is 52 × 13 × 3.9 mm on an FR4 circuit-board substrate.
Can it be embedded or potted into a part?
The datasheet does not cover embedding or potting. Tell us the material and pocket size and we will test samples for your application.
