ST-140 UHF RFID Cable Tie Tag, 330 mm, for Traceability
Zip-tie style UHF RFID tag in PP with a 53.5 × 30 × 1.9 mm head and 330 mm overall length, for tying IDs onto bundles, bags and cables; reads at 0.7 m fixed, 0.2 m handheld.
- Zip-tie style PP strap, 330 mm overall, with a 53.5 × 30 × 1.9 mm tag head
- Impinj Monza 4QT chip across 860–960 MHz for US and EU band readers
- Close-range reading: 0.7 m with a 4 W fixed reader, 0.2 m with a handheld
- Loops around bundles, sacks, cables and pipes where labels will not stick
- Globally unique chip ID for item-level traceability
- Frequency
- 860–960 MHz
- Chip
- Impinj Monza 4QT (EPC Gen2)
- Read range
- 0.7 m (4 W fixed reader)
- Handheld range
- 0.2 m
- Tag head
- 53.5 × 30 × 1.9 mm
- Overall length
- 330 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
UHF RFID Cable Tie Tag, 330 mm, for Traceability: overview

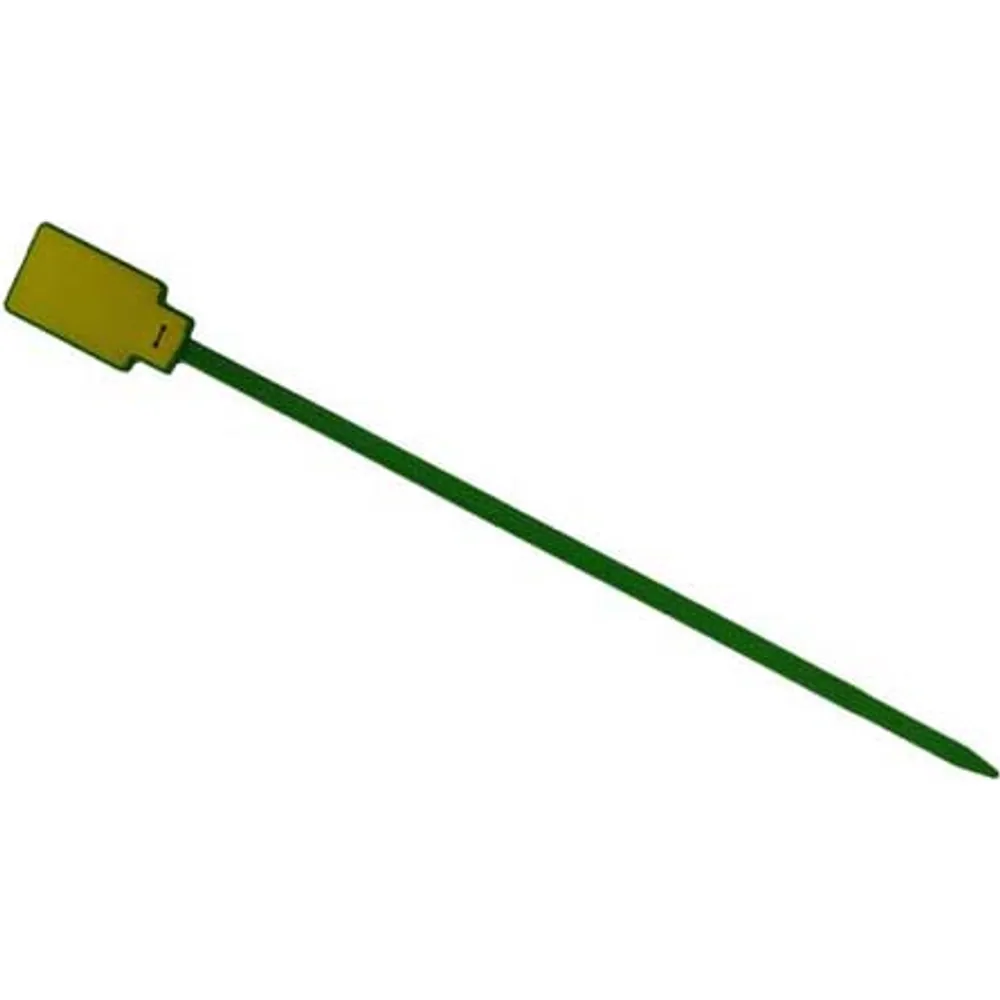

The ST-140 is a UHF RFID cable tie tag: a PP zip tie with a flat 53.5 × 30 × 1.9 mm tag head, 330 mm long overall. It attaches an ID to anything that can be looped, such as cable bundles, hose and pipe runs, sacks, parcels, garment bundles, sample bags and plant stems, where an adhesive label would peel or has nothing flat to stick to.
Inside the head is an Impinj Monza 4QT chip covering 860–960 MHz. Read range is short: 0.7 m with a 4 W fixed reader and 0.2 m with a handheld. That makes the tag a good fit for traceability steps where items are scanned one by one at a workstation, packing table or checkpoint, and a poor fit for reading at a distance.
Each tag carries a globally unique chip ID, and UHF anti-collision lets a reader handle several tags at once when they are within range. Record the ID when the tie goes on, then scan it at each step to build a chain of custody for the bundle or package.
Integration notes
The strap fastens like a standard plastic zip tie, and like one it is normally cut to remove. It is a traceability tag rather than a security seal, so pair it with a one-time steel-wire seal such as the ST-110 where tamper evidence matters.
ST-140 specifications
RF & chip
| Frequency | 860–960 MHz |
|---|---|
| Chip | Impinj Monza 4QT |
| Air interface | EPC Gen2 / ISO/IEC 18000-63 passive UHF |
Read performance
| Fixed reader (4 W) | 0.7 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 0.2 m |
Construction
| Material | PP (polypropylene) |
|---|---|
| Tag head | 53.5 × 30 × 1.9 mm |
| Overall length | 330 mm (13 in) |
| Fastening | Zip-tie strap through the head |
Seal, tie and plant tag comparison
| SKU | Type | Size | Chip | 4 W fixed reader | Handheld reader |
|---|---|---|---|---|---|
| ST-110 | One-time steel-wire cable seal | Head 100 × 26.5 × 13.4 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 5 m | 2 m |
| ST-120 | Compact one-time steel-wire cable seal | Head 36 × 23 × 11 mm; wire 280 mm × Ø1.8 mm | Alien Higgs-9 | 0.3 m | 0.1 m |
| ST-130 | Plant breeding stake label | Head 100 × 60 × 3 mm; 360 mm overall | Impinj Monza 4QT | 10 m | 2.5 m |
| ST-140 | Cable tie tag | Head 53.5 × 30 × 1.9 mm; 330 mm overall | Impinj Monza 4QT | 0.7 m | 0.2 m |
| ST-150 | Archive file lock tag | Tag 44 × 32 × 3 mm; 83.31 mm overall | Impinj Monza 4QT | 1.5 m | 0.5 m |
| ST-160 | Leaf-shaped plant tag | Inlay pocket 52 × 20 × 2 mm | Impinj Monza 4QT | 7–8 m | 1.5–2 m |
All six tags operate across 860–960 MHz. Ranges as published with a 4 W fixed reader and an Impinj R2000-based handheld.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| ST-140-GL | UHF RFID cable tie tag, PP, 53.5 × 30 × 1.9 mm head, 330 mm overall, Impinj Monza 4QT, 860–960 MHz |
Where the ST-140 is used
- Tagging cable and hose bundles for installation and maintenance records
- Sack, bag and parcel traceability at packing and dispatch stations
- Sample and specimen bags logged at an intake desk
- Binding IDs to bundled goods where adhesive labels fall off
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
ST-140 FAQ
How close does the reader need to be?
The datasheet lists 0.7 m with a 4 W fixed reader and 0.2 m with a handheld, so plan for scanning at a station or with the handheld held close to the tag.
Is it a tamper-evident seal?
No. It is a traceability tie. For visible tamper evidence on doors, hasps and valves, use a one-time steel-wire seal such as the ST-110 or ST-120.
Can the tie be reused?
Treat it as single-use. Like any tightened zip tie, removing it normally means cutting the strap.
Which UHF readers will read it?
Any EPC Gen2 reader operating within 860–960 MHz, covering both the 902–928 MHz and 865–868 MHz bands.
