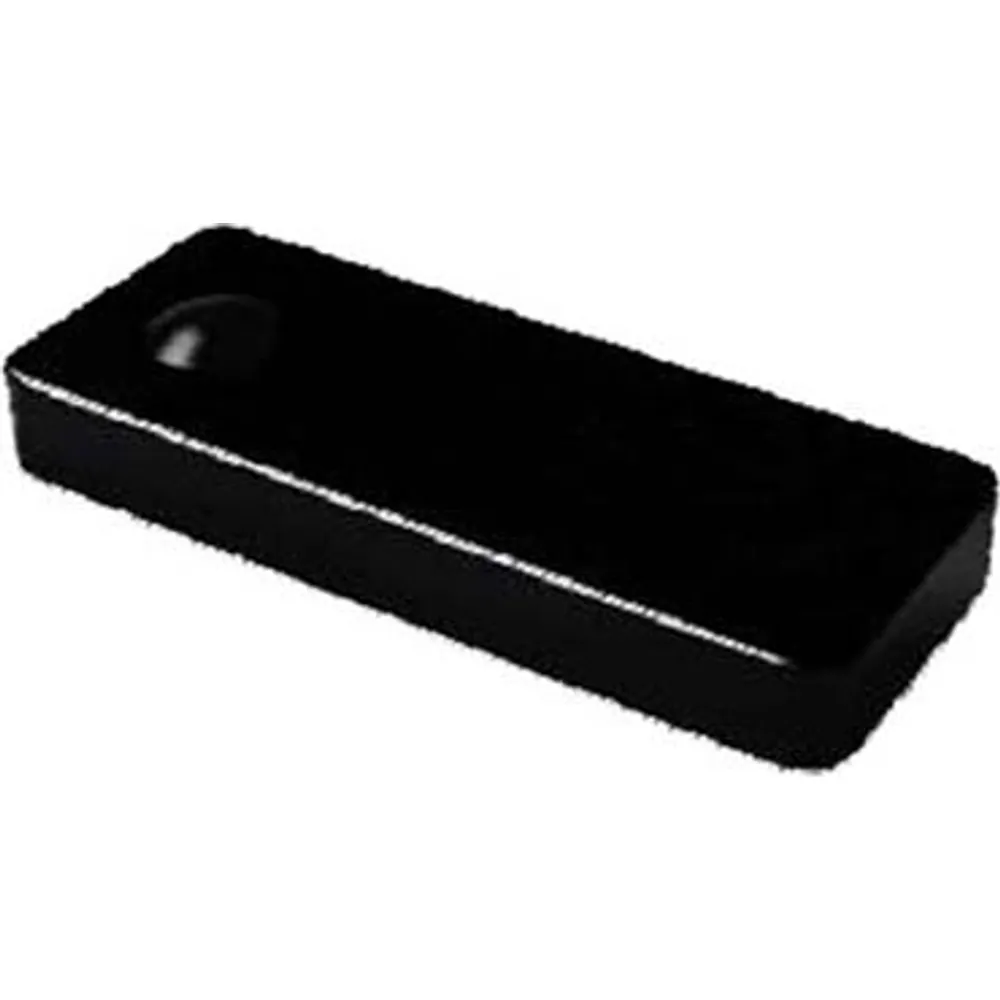

CT-130 Slim On-Metal Ceramic UHF RFID Tag, 23 × 9 mm
Slim 23 × 9 × 3 mm ceramic UHF tag for narrow metal surfaces, with an Alien Higgs-9 chip in US or EU band versions; 4 m on metal with a fixed reader, 3 m with a handheld.
- Narrow 23 × 9 × 3 mm ceramic body for tool handles, rails and part edges
- Rated 4 m on metal with a 4 W fixed reader and 3 m with a handheld
- Alien Higgs-9 EPC Gen2 chip in 902–928 MHz or 866–868 MHz versions
- Printed silver-paste antenna with an epoxy-potted chip
- Adhesive-mounted; forced removal breaks the antenna to stop ID transfer
- Frequency
- 902–928 MHz (US) / 866–868 MHz (EU)
- Chip
- Alien Higgs-9 (EPC Gen2)
- Read range, on metal
- 4 m (4 W fixed reader)
- Handheld range
- 3 m
- Dimensions
- 23 × 9 × 3 mm
- Material
- Ceramic, epoxy-potted
Reply within 24 hours Tested before dispatch Worldwide shipping
Slim On-Metal Ceramic UHF RFID Tag, 23 × 9 mm: overview
The CT-130 is a narrow 23 × 9 × 3 mm ceramic UHF RFID tag for metal items that offer little flat area: tool handles, instrument edges, rails, brackets and the rims of housings. It carries an Alien Higgs-9 EPC Gen2 chip and is listed for both 902–928 MHz and 866–868 MHz operation, so it can be ordered for either major UHF band.
Rated read distance is 4 m on metal with a 4 W fixed reader and 3 m with a handheld reader. That is enough to capture tagged items as they pass a reader portal at a tool crib, or to check a shelf of parts with a handheld without handling each one.
The body is ceramic with a printed silver-paste antenna, and the chip is bonded to the antenna and encapsulated in epoxy resin. A strong pre-applied adhesive holds it in place. A tag that is forced off breaks its antenna and stops reading, which prevents quiet swapping of IDs between assets.
Integration notes
Order CT-130-US for 902–928 MHz readers or CT-130-EU for 866–868 MHz readers. Give the tag a flat seat at least as large as its footprint and keep its face unobstructed. No temperature, chemical or IP rating is published, so qualify it with a sample before using it in wash-down, outdoor or heated environments.
CT-130 specifications
RF & chip
| Frequency | 902–928 MHz (CT-130-US) or 866–868 MHz (CT-130-EU) |
|---|---|
| Chip | Alien Higgs-9 |
| Air interface | EPC Gen2 / ISO/IEC 18000-63 passive UHF |
Read performance
| Fixed reader (4 W), on metal | 4 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 3 m |
Construction & mounting
| Substrate | Ceramic (high dielectric constant) |
|---|---|
| Antenna | Printed silver paste |
| Encapsulation | Chip bonded to antenna, potted in epoxy resin |
| Dimensions | 23 × 9 × 3 mm |
| Mounting | Pre-applied 3M adhesive |
| Tamper behavior | Antenna breaks on forced removal; tag stops responding (anti-transfer) |
| Temperature / IP rating | Not published; qualify with a sample |
Band options
| Variant SKU | UHF band | Chip | On metal, 4 W fixed reader | Handheld reader |
|---|---|---|---|---|
| CT-130-US | 902–928 MHz | Alien Higgs-9 | 4 m | 3 m |
| CT-130-EU | 866–868 MHz | Alien Higgs-9 | 4 m | 3 m |
Ceramic UHF tag family comparison
| SKU | Size | Chip | UHF band(s) | On metal, 4 W fixed reader | Handheld reader |
|---|---|---|---|---|---|
| CT-110 | 86 × 54 × 3 mm* | Alien Higgs-9 | 902–928 MHz or 866–868 MHz | Up to 10 m* | 2–3 m* |
| CT-120 | 25 × 25 × 3 mm | NXP UCODE 8 | 902–928 MHz | 6 m | 4 m |
| CT-130 | 23 × 9 × 3 mm | Alien Higgs-9 | 902–928 MHz or 866–868 MHz | 4 m | 3 m |
| CT-140 | 13 × 9 × 3 mm | Alien Higgs-9 | 902–928 MHz or 866–868 MHz | 3.5 m | 1.5 m |
Ranges as published for each tag with a 4 W fixed reader on metal and an Impinj R2000-based handheld. *CT-110: one datasheet lists 95 × 54 × 4 mm, 3 m fixed-reader range with the tag worn on the body, and 2 m handheld; confirm on sample.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| CT-130-US | 23 × 9 × 3 mm ceramic on-metal UHF RFID tag, Alien Higgs-9, 902–928 MHz | |
| CT-130-EU | 23 × 9 × 3 mm ceramic on-metal UHF RFID tag, Alien Higgs-9, 866–868 MHz |
Where the CT-130 is used
- Tool-crib check-in and check-out through a fixed UHF reader portal
- Tagging hand tools, gauges and torque wrenches on narrow handles
- Identifying metal parts, molds and fixtures in maintenance shops
- Inspection checkpoints on pipes and valves for patrol records
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
CT-130 FAQ
Which version do I need, US or EU?
Order CT-130-US if your readers operate at 902–928 MHz and CT-130-EU if they operate at 866–868 MHz. Chip, size and rated range are the same.
What read range should I plan for?
The datasheet lists 4 m on metal with a 4 W fixed reader and 3 m with a handheld. Allow margin for your reader, antenna and mounting, and confirm with a sample.
Can it go on curved surfaces?
The ceramic body is rigid, so it needs a flat seat of at least 23 × 9 mm. On curved parts, test adhesion and reading with a sample first.
Can a tag be moved to another asset?
No. Forced removal breaks the antenna and the tag stops responding, so each ID stays with the item it was first applied to.
