QT-110 QR Code Access Controller with Touch Keypad, 13.56 MHz
120 × 80 mm metal-frame QR code access controller with glass touch keypad. Reads dynamic QR codes and 13.56 MHz cards; switches a relay or outputs Wiegand/RS485.
- Reads dynamic (time-limited) QR codes on phone screens or paper, plus 13.56 MHz card UIDs
- UIDs of MIFARE Classic 1K/4K, Ultralight, DESFire EV1, NTAG, CPU and ISO/IEC 15693 cards
- Onboard NO/COM/NC relay with door-contact and exit-button inputs for standalone use
- Reader mode: Wiegand to any panel with a Wiegand input; RS485 and USB also available
- 648 × 488 sensor, ~100 ms average decode, 5–18 cm QR range, dual fill lights
- Credentials
- QR / barcode + 13.56 MHz cards
- Interfaces
- Wiegand, RS485, USB
- Lock output
- Relay NO / COM / NC
- QR read distance
- 5–18 cm
- Power
- 12 V DC, ≤ 200 mA
- Dimensions
- 120 × 80 × 22.67 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
QR Code Access Controller with Touch Keypad, 13.56 MHz: overview
The QT-110 is a standalone QR code access controller for doors with a steady flow of visitors. It reads time-limited dynamic QR codes from a phone screen or paper, plus 13.56 MHz cards and phone NFC card emulation, and releases the lock through its own relay. Couriers, contractors and short-stay guests can be sent a code that expires on schedule instead of collecting a card that has to be returned.

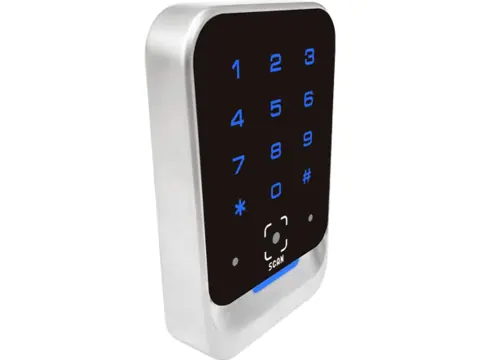

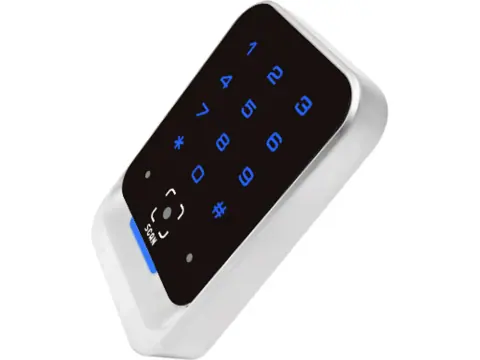

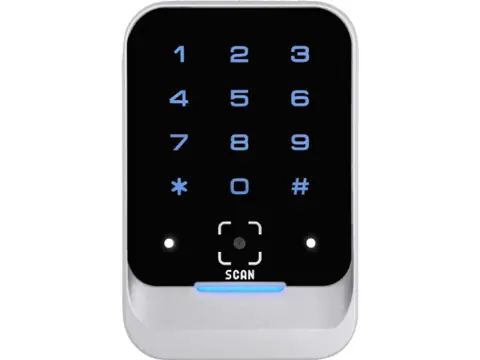

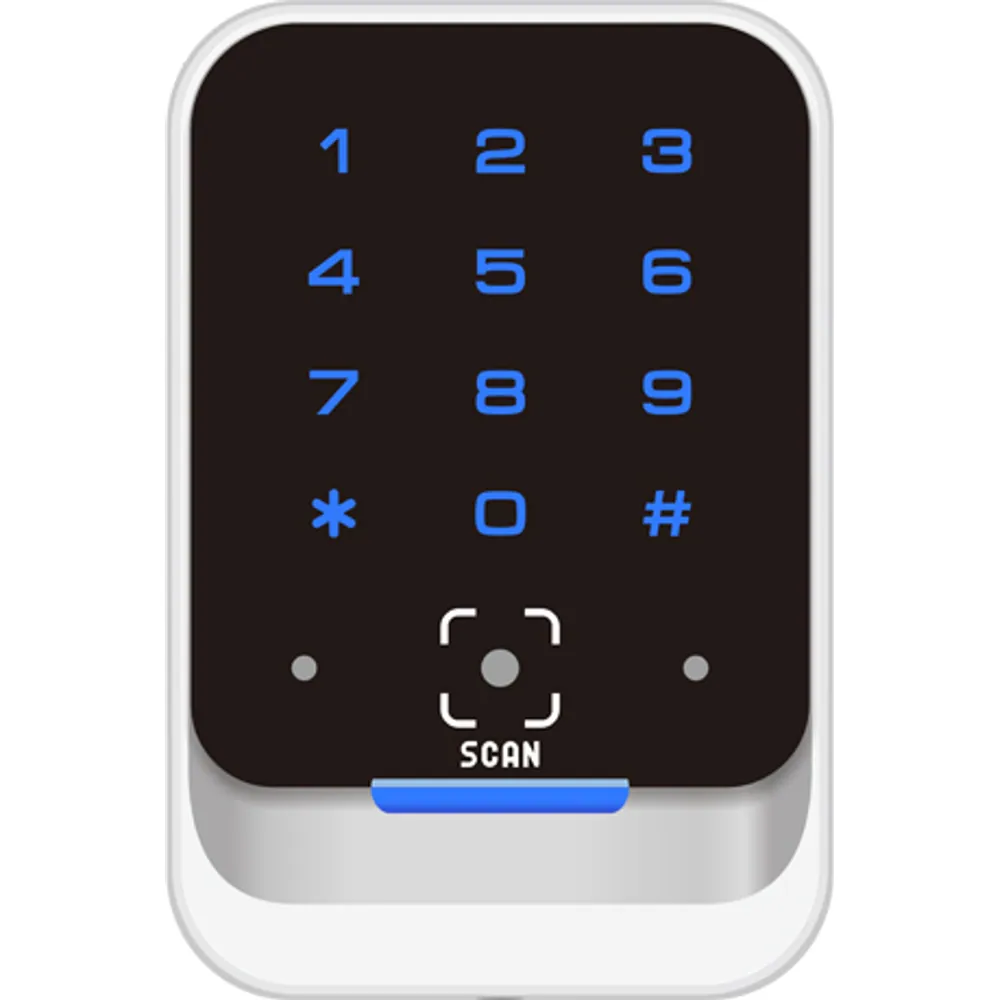

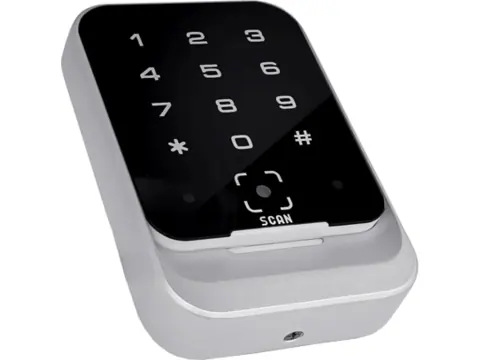

The 120 × 80 × 22.67 mm unit has a metal frame and a glass front with backlit touch keys. Its 648 × 488 image sensor and twin fill lights scan in daylight or darkness, decoding in about 100 ms on average at 5–18 cm, with full 360° rotation and ±45° tilt accepted. Besides QR it handles Data Matrix, PDF417, UPC and the common 1D symbologies. On the RF side it takes UIDs from ISO/IEC 14443A cards (MIFARE Classic, Ultralight, DESFire EV1, NTAG and CPU cards) and ISO/IEC 15693 cards.
Integration notes
Three wiring modes share one harness. Controller mode uses the NO/COM/NC relay contacts, a door-contact input (MAG) and an exit-button input (BUT). Reader mode sends Wiegand on WD0/WD1 with BEEP and GLED control lines, so the unit can sit in front of any panel that accepts a Wiegand reader. RS485 mode uses 485A/485B. Power is 12 V DC (≤ 200 mA), or 5 V through the 1.5 m USB to Mini-USB lead (≤ 500 mA). Dynamic QR codes are issued by a management app or platform; confirm which platform is available for your region before ordering.
More features
- Metal frame and glass touch keypad, 120 × 80 × 22.67 mm
QT-110 specifications
QR & barcode scanning
| Code sources | Phone-screen QR, printed QR, dynamic (time-limited) QR |
|---|---|
| Symbologies | QR, Data Matrix, PDF417, UPC-A/E0/E1, Code 11, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, Matrix 2 of 5 |
| Image sensor | 648 × 488 pixels |
| Field of view | 34° horizontal, 26° vertical |
| Reading angle | 360° rotation, ±45° tilt |
| QR read distance | 5–18 cm (depends on code, angle and ambient light) |
| Decode time | 100 ms average |
| Illumination | Dual fill lights for day and night scanning |
RF & credentials
| Frequency | 13.56 MHz, built-in antenna |
|---|---|
| Protocols | ISO/IEC 14443A, ISO/IEC 15693 |
| Card reading | UIDs of MIFARE Classic 1K/4K (S50/S70), MIFARE Ultralight, MIFARE DESFire EV1, NTAG, CPU smart cards and other ISO/IEC 14443A cards; ISO/IEC 15693 card UIDs; NFC card emulation on phones |
| Card read distance | Over 5 cm (card-dependent) |
Interfaces
| Wiegand | Reader-mode output on WD0/WD1, with BEEP and GLED control inputs |
|---|---|
| RS485 | 485A / 485B |
| USB | USB to Mini-USB lead, 1500 mm |
| Lock relay | NO / COM / NC |
| Inputs (controller mode) | Door contact (MAG), exit button (BUT) |
Electrical
| Supply voltage | 12 V DC (±5%) |
|---|---|
| Current at 12 V | ≤ 200 mA |
| Current on USB 5 V | ≤ 500 mA |
Mechanical & environment
| Dimensions | 120 × 80 × 22.67 mm (±0.3 mm) |
|---|---|
| Housing | Metal frame, glass panel, backlit touch keys |
| Operating temperature | –10 to +50 °C |
| Storage temperature | –20 to +80 °C |
| Operating humidity | 20–80% RH |
| Ingress rating | Not specified (indoor or sheltered mounting) |
Wire colors by operating mode
| Wire | Controller mode | Reader mode | RS485 mode |
|---|---|---|---|
| Red | +12 V DC | +12 V DC | +12 V DC |
| Black | GND | GND | GND |
| Blue | NO (relay normally open) | — | — |
| Pink | COM (relay common) | — | — |
| Yellow | NC (relay normally closed) | — | — |
| Light blue | MAG (door contact) | GLED (green LED control) | — |
| Gray | BUT (exit button) | BEEP (buzzer control) | — |
| Green | — | WD0 (Wiegand D0) | — |
| White | — | WD1 (Wiegand D1) | — |
| Brown | — | — | 485A (+) |
| Light green | — | — | 485B (–) |
One harness serves all three modes; the gray and light-blue leads change function between controller and reader mode.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| QT-110-M-Q-K | QR/barcode scanner + 13.56 MHz UID reader, glass touch keypad; relay, Wiegand, RS485 and USB; 120 × 80 mm metal frame. |
Where the QT-110 is used
- Apartment lobby doors where residents use cards and visitors receive expiring QR codes
- Parcel and delivery rooms that issue one-off codes instead of cards
- Short-stay rentals and hostels that send guests a QR code before arrival
- Gyms and coworking spaces that admit members by app QR code
Gym & 24/7 Fitness Club Access Control Hardware
Gym access control system hardware for 24/7 clubs: fob and wristband readers, face and QR terminals, anti-passback controllers and no-touch exit buttons.
QT-110 FAQ
What is a dynamic QR code, and does the QT-110 read them?
A dynamic QR code is time-limited and refreshes, so an old screenshot stops working. The QT-110 reads these codes; they are generated by the management app or platform paired with the controller.
Can it act as a reader for my existing panel?
Yes. In reader mode it sends Wiegand on the green (D0) and white (D1) leads and accepts buzzer and LED control. RS485 mode is available as an alternative.
Does it read encrypted card data?
No. It reads the UID of 13.56 MHz ISO/IEC 14443A and ISO/IEC 15693 cards, including MIFARE Classic, DESFire EV1, NTAG and CPU cards.
How is it powered?
Use 12 V DC (±5%) with up to 200 mA available, or connect the supplied 1.5 m USB to Mini-USB lead, which draws up to 500 mA at 5 V.
Can I mount it outdoors?
No ingress rating is published and it operates from –10 to +50 °C, so plan on indoor or fully sheltered mounting.
