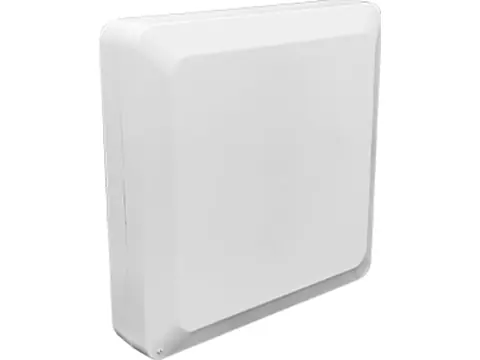

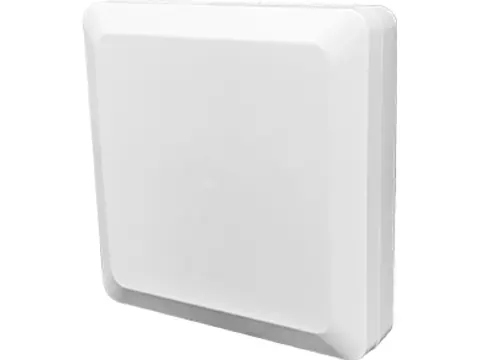

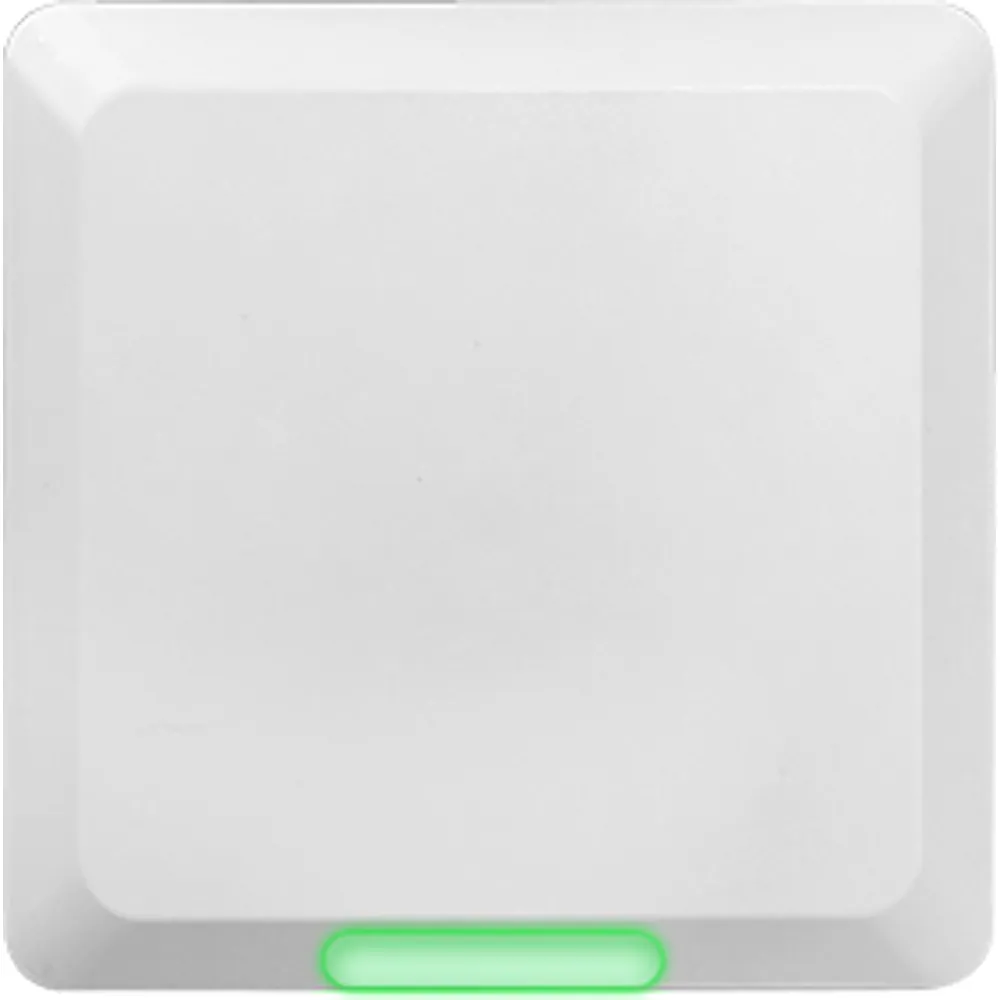

LR-170 5 m Mid-Range UHF RFID Reader, Wiegand & RS485, IP65
220 × 220 × 40 mm EPC Gen2 UHF reader with a 5 m read range for parking and gate lanes, Wiegand, USB and RS485 output, and an optional RJ45 TCP/IP version.
- 5 m read range, EPC Gen2 / ISO 18000-6C
- 220 × 220 × 40 mm white housing with no brand marking
- Wiegand, USB and RS485 output; TCP/IP via RJ45 on -NET variants
- EU 865–868 MHz and US 902–928 MHz versions
- IP65, –20 to +60 °C operation, 1.5 m pigtail
- Read range
- Up to 5 m
- Frequency
- 865–868 MHz (EU) or 902–928 MHz (US)
- Output
- Wiegand, USB, RS485; TCP/IP optional
- IP rating
- IP65
- Dimensions
- 220 × 220 × 40 mm
- Power
- 9–15 V DC
Reply within 24 hours Tested before dispatch Worldwide shipping
5 m Mid-Range UHF RFID Reader, Wiegand & RS485, IP65: overview
The LR-170 is a mid-range UHF RFID reader sized between our compact 3 m unit and the large long-range panels. Its 220 × 220 × 40 mm housing reads EPC Gen2 (ISO 18000-6C) cards and tags at up to 5 m, a practical zone for parking entry columns, staff car parks and gates where vehicles slow down but should not have to stop.
All versions output Wiegand, USB and RS485, so the reader can feed a Wiegand access controller, a parking controller on an RS485 bus or a PC. The -NET variants add a TCP/IP port on an RJ45 connection for readers that report straight to software on the LAN. EU 865–868 MHz and US 902–928 MHz versions are available, and the white housing carries no brand marking.
The reader is rated IP65, operates from –20 to +60 °C and is supplied with a 1.5 m pigtail. It runs from a 9–15 V DC supply.
Integration notes
Standby current is below 400 mA and the datasheet specifies read current below 3 A, so choose a supply with headroom for the peak. Aim the reader at the approach so that the windshield tag passes through the 5 m zone, and test with your own tags before settling on a bracket position. For lanes that need 10 m or more, look at the LR-130 or LR-140.
More features
- 9–15 V DC supply, standby current under 400 mA
LR-170 specifications
RF & tags
| Air protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|---|---|
| Frequency | 865–868 MHz (EU versions); 902–928 MHz (US versions) |
| Read range | Up to 5 m |
Interfaces
| Outputs | Wiegand, USB, RS485 |
|---|---|
| Network | TCP/IP via RJ45 on -NET variants |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Standby current | < 400 mA |
| Read current | < 3 A (datasheet maximum) |
Mechanical & environment
| Dimensions | 220 × 220 × 40 mm (±0.5 mm) |
|---|---|
| Housing | White, no brand marking |
| Cable length | 1500 mm ±10 mm (approx. 4.9 ft) |
| Ingress protection | IP65 |
| Operating temperature | –20 to +60 °C |
| Storage temperature | –20 to +80 °C |
| Relative humidity | 20–80% |
Variant matrix
| SKU | Band | Interfaces | Read range |
|---|---|---|---|
| LR-170-EU | 865–868 MHz | Wiegand, USB, RS485 | Up to 5 m |
| LR-170-EU-NET | 865–868 MHz | Wiegand, USB, RS485, TCP/IP (RJ45) | Up to 5 m |
| LR-170-US | 902–928 MHz | Wiegand, USB, RS485 | Up to 5 m |
| LR-170-US-NET | 902–928 MHz | Wiegand, USB, RS485, TCP/IP (RJ45) | Up to 5 m |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| LR-170-EU | 865–868 MHz, 5 m, Wiegand + USB + RS485, white, unbranded | |
| LR-170-EU-NET | 865–868 MHz, 5 m, Wiegand + USB + RS485 + TCP/IP (RJ45), white, unbranded | |
| LR-170-US | 902–928 MHz, 5 m, Wiegand + USB + RS485, white, unbranded | |
| LR-170-US-NET | 902–928 MHz, 5 m, Wiegand + USB + RS485 + TCP/IP (RJ45), white, unbranded |
Where the LR-170 is used
- Parking entry column reading windshield tags as cars slow for the barrier
- Residential garage door or ramp where a 5 m zone avoids reads from the street
- Staff car park reporting vehicle IDs to a PC over USB or TCP/IP
- Private-label parking kits built around an unbranded white reader
Apartment, Multifamily & Rental Property Access Control
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
LR-170 FAQ
How does the LR-170 compare with the LR-160?
Both share the same interfaces, supply range and IP65 rating. The LR-170 has a larger 220 mm housing and reads at up to 5 m, against 3 m for the 128 mm LR-160.
Which tag standard does it read?
EPC Gen2 (ISO 18000-6C) UHF cards and tags in the band of the version you order: 865–868 MHz for EU or 902–928 MHz for US.
Can it connect straight to a network?
Yes, the -NET variants add a TCP/IP port on an RJ45 connection. The standard versions use Wiegand, USB or RS485.
What power supply is required?
A 9–15 V DC supply. Standby current is under 400 mA and the datasheet lists read current under 3 A, so rate the supply for the peak.
