LR-140 20 m Long-Range UHF RFID Reader, 12 dBi, Wiegand & RS485
445 mm IP66 integrated UHF reader with a 12 dBi linear antenna that reads vehicle tags at 10–20 m and reports over Wiegand, RS485 or optional TCP/IP.
- 10–20 m read range from a 12 dBi linear-polarized integrated antenna
- Wiegand and RS485 output for access and parking controllers
- -NET-BT version adds TCP/IP data and BLE 5.1 configuration
- Continuous or triggered reading for loop-detector lanes
- Status LED with seven selectable colors
- Read range
- 10–20 m
- Frequency
- 865–868 MHz (EU) or 902–928 MHz (US)
- Output
- Wiegand, RS485; TCP/IP on -NET-BT
- Antenna
- 12 dBi, linear polarization
- IP rating
- IP66
- Dimensions
- 445 × 445 × 86.2 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
20 m Long-Range UHF RFID Reader, 12 dBi, Wiegand & RS485: overview

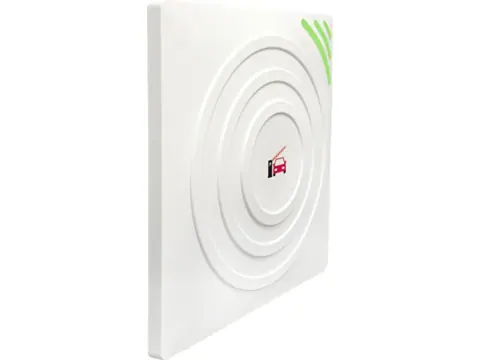

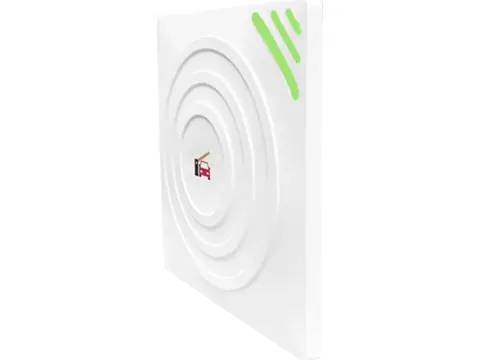

The LR-140 is the large-panel sibling of the LR-130, built for vehicle lanes where tags have to be read 10–20 m from the reader. A 12 dBi linear-polarized antenna shares a 445 × 445 mm IP66 housing with the reader electronics and a seven-color status LED, so each gate needs only the reader, a 9–15 V DC supply and a cable run to the controller.
Tag IDs leave the reader over Wiegand or RS485, ready for access controllers, parking controllers or barrier logic boards. Reading can run continuously or start on a trigger such as a ground loop that detects a car in the lane. RF output spans 19–30 dBm, giving installers room to trim the read zone on sites with adjacent lanes.
Two option levels are offered in each band. The base version uses USB for configuration; the -NET-BT version adds a TCP/IP port for networked parking software and BLE 5.1 for configuration at about 0–3 m. Order the EU version for 865–868 MHz markets, or the US version, which covers the 902–928 MHz band and ships set to 902–906 MHz, adjustable in the configuration tool.
Integration notes

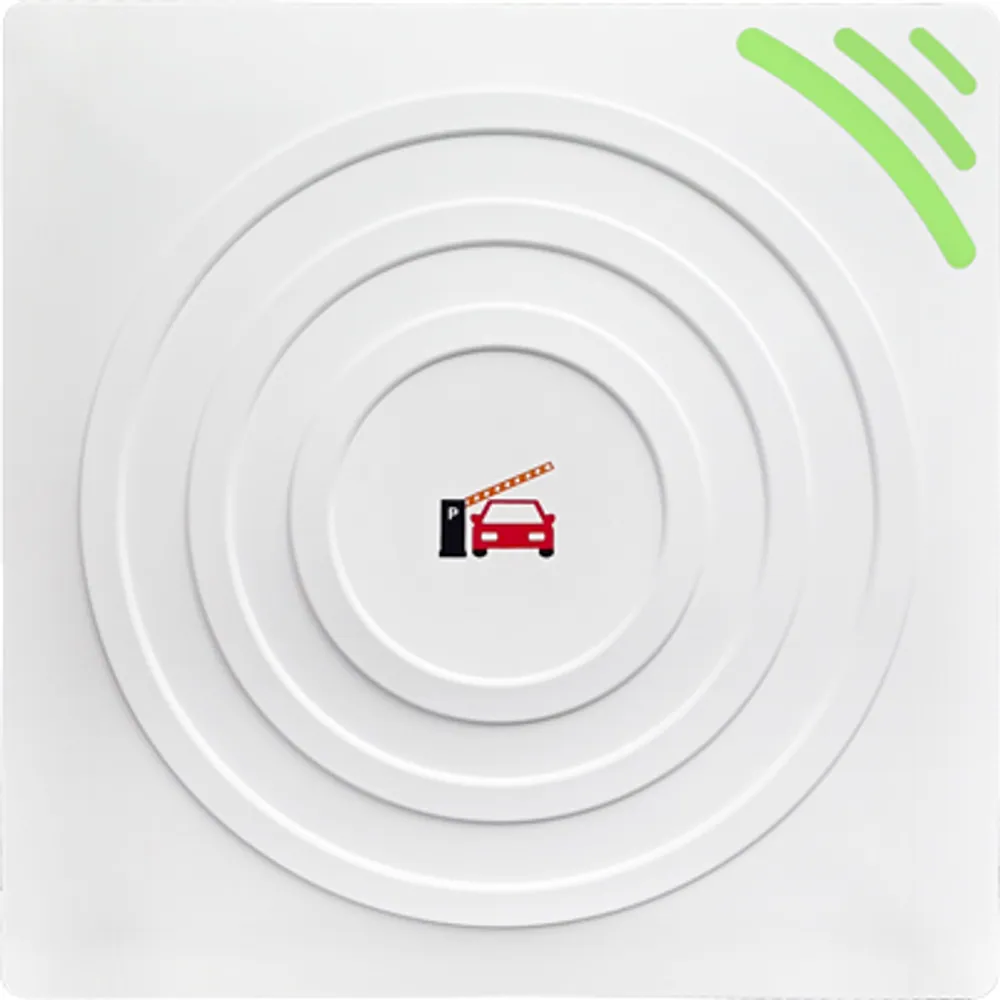

At 12 V the reader draws up to 500 mA on standby and up to 1200 mA while reading, so plan the supply for the higher figure. The housing is 86.2 mm deep; allow for that when choosing a pole or gantry position. The 10–20 m figure comes from a handheld card test, so windshield tags, coated glass and mounting angle will move the real read point. The front carries a printed vehicle icon.
More features
- IP66, –20 to +65 °C, EU 865–868 MHz or US 902–928 MHz band
LR-140 specifications
RF & tags
| Air protocol | ISO 18000-6C / EPCglobal UHF Class 1 Gen 2 |
|---|---|
| Frequency | EU: 865–868 MHz; US: 902–928 MHz band (default 902–906 MHz, adjustable) |
| RF output power | 19–30 dBm |
| Antenna | 12 dBi, linear polarization, integrated |
| Read range | 10–20 m (handheld card test; depends on installation and card) |
| Reading modes | Continuous or triggered (e.g. ground-loop detector) |
Interfaces
| Data outputs | Wiegand, RS485; TCP/IP on -NET-BT versions |
|---|---|
| Configuration | USB; Bluetooth on -NET-BT versions |
| Bluetooth | BLE 5.1, about 0–3 m depending on installation (-NET-BT only) |
| Status LED | 7 colors: red, green, blue, yellow, cyan, purple, white |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Current at 12 V | ≤ 500 mA standby; ≤ 1200 mA reading |
Mechanical & environment
| Dimensions | 445 × 445 × 86.2 mm (±0.3 mm) |
|---|---|
| Ingress protection | IP66 |
| Operating temperature | –20 to +65 °C (–4 to +149 °F) |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Compliance | RoHS |
Variant matrix
| SKU | Band | Data interfaces | Configuration | Read range |
|---|---|---|---|---|
| LR-140-EU | 865–868 MHz | Wiegand, RS485 | USB | 10–20 m |
| LR-140-EU-NET-BT | 865–868 MHz | Wiegand, RS485, TCP/IP | USB, BLE 5.1 | 10–20 m |
| LR-140-US | 902–928 MHz band (default 902–906 MHz) | Wiegand, RS485 | USB | 10–20 m |
| LR-140-US-NET-BT | 902–928 MHz band (default 902–906 MHz) | Wiegand, RS485, TCP/IP | USB, BLE 5.1 | 10–20 m |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| LR-140-EU | 865–868 MHz, 12 dBi, 10–20 m, Wiegand + RS485, USB configuration | |
| LR-140-EU-NET-BT | 865–868 MHz, 12 dBi, 10–20 m, Wiegand + RS485 + TCP/IP, USB and BLE 5.1 configuration | |
| LR-140-US | 902–928 MHz band, 12 dBi, 10–20 m, Wiegand + RS485, USB configuration | |
| LR-140-US-NET-BT | 902–928 MHz band, 12 dBi, 10–20 m, Wiegand + RS485 + TCP/IP, USB and BLE 5.1 configuration |
Where the LR-140 is used
- Gated community main entrance, reading resident windshield tags well before the barrier arm
- Industrial site gate where trucks are identified on the approach and logged over TCP/IP
- Wide two-lane entrance covered by one reader mounted on a central island
- Hotel or hospital car park that triggers reading from a loop detector to avoid reads from passing traffic
Apartment, Multifamily & Rental Property Access Control
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
LR-140 FAQ
When should I choose the LR-140 instead of the LR-130?
Choose the LR-140 when the read point needs to be 10 m or more from the reader, for example on wide gates or approach roads. Where 2–10 m is enough, the smaller LR-130 is easier to mount.
Does antenna polarization matter?
Yes. A linear-polarized antenna gives its best range when the tag antenna is aligned with it, so fit windshield tags in the same position and orientation across the fleet.
What does the -NET-BT option add?
A TCP/IP port for sending tag data to software on your LAN, plus BLE 5.1 for changing settings within about 0–3 m. Wiegand and RS485 remain available.
What power supply should I use?
A regulated 9–15 V DC supply able to deliver at least 1.2 A per reader at 12 V, because working current can reach 1200 mA.
