LR-110 30 m Long-Range UHF RFID Reader for Parking, IP66
IP66 integrated UHF reader that identifies vehicle tags at up to 12 m (9 dBi) or 30 m (12 dBi), with Wiegand 26/34, RS485, USB and optional TCP/IP.
- Rated read range up to 12 m (9 dBi, 308.5 mm panel) or 30 m (12 dBi, 445 mm panel)
- Impinj R2000 reader chip, 8–33 dBm RF output, EPC Gen2 / ISO 18000-6C multi-tag reading
- Wiegand 26/34, RS485 and USB on every unit; TCP/IP on -NET variants
- EU 865–868 MHz and US 902–928 MHz versions of both panel sizes
- IP66 housing for exposed lanes, –20 to +65 °C operating range
- Read range
- Up to 12 m (9 dBi) / up to 30 m (12 dBi)
- Frequency
- 865–868 MHz (EU) or 902–928 MHz (US)
- Output
- Wiegand 26/34, RS485, USB; TCP/IP optional
- RF output
- 8–33 dBm
- IP rating
- IP66
- Power
- 9–15 V DC, 120–500 mA
Reply within 24 hours Tested before dispatch Worldwide shipping

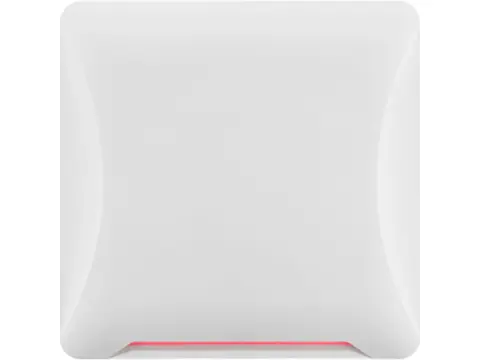

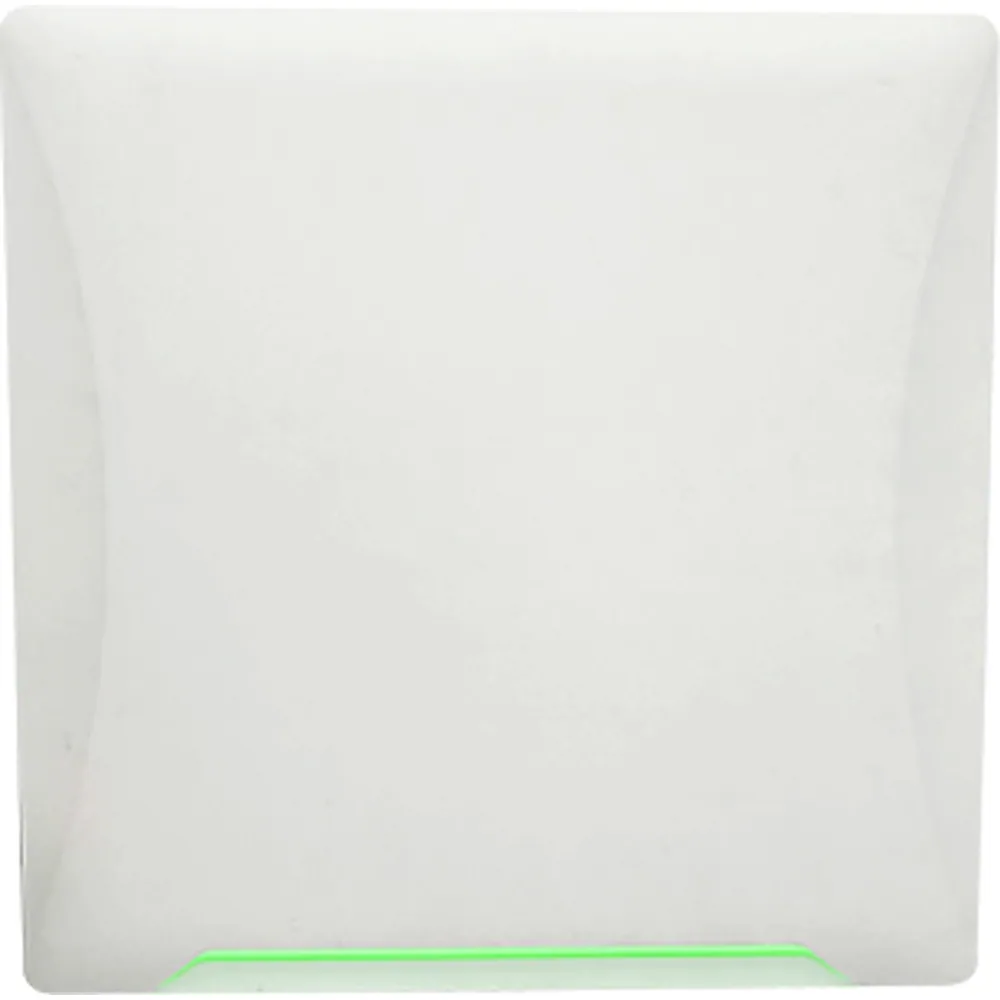

30 m Long-Range UHF RFID Reader for Parking, IP66: overview
The LR-110 is an all-in-one UHF RFID reader for car parks, gated estates and fleet yards where vehicles should be identified without stopping at the barrier. Antenna and reader electronics share one IP66 housing, so a lane needs only the reader, its cable and a Wiegand or RS485 connection to your access controller or parking server.
Two panel sizes cover different lane layouts. The 308.5 mm version pairs a 9 dBi antenna with a rated range of up to 12 m, which suits single entry lanes. The 445 mm version carries a 12 dBi antenna and is rated up to 30 m for wide gates, multi-lane entrances and long approach roads. Both are built on an Impinj R2000 reader chip with RF output from 8 to 33 dBm, read EPC Gen2 (ISO 18000-6C) tags and cope with several tags in the field at the same time.
Each size is sold in an EU 865–868 MHz version and a US 902–928 MHz version, and each can be ordered with TCP/IP added to the standard Wiegand 26/34, RS485 and USB interfaces. LED colors for the standby and card-read states are set in the configuration software, so the lane light can follow your site convention.
Integration notes
Power the reader from 9–15 V DC and budget up to 500 mA per unit. The color-coded pigtail carries Wiegand D0/D1, RS485, USB and a trigger input that activates on a low level, so a loop detector or photocell can tie reading to a vehicle being in the lane. Real-world range depends on the tag, the windshield glass and the mounting angle, so test with the tags you plan to issue before fixing the bracket.
More features
- Active-low trigger input for loop detectors or photocells
- Standby and read-state LED colors configurable in software
LR-110 specifications
RF & tags
| Air protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
|---|---|
| Reader chip | Impinj R2000 |
| Frequency | 865–868 MHz (EU versions); 902–928 MHz (US versions) |
| RF output power | 8–33 dBm |
| Antenna gain | 9 dBi (308.5 mm panel); 12 dBi (445 mm panel) |
| Rated read range | Up to 12 m (9 dBi); up to 30 m (12 dBi); depends on tag and installation |
| Multi-tag reading | Supported |
Interfaces
| Standard outputs | Wiegand 26/34, RS485, USB |
|---|---|
| Network | TCP/IP on -NET variants |
| Trigger input | 1 × input, active low (purple wire) |
| Status LED | Standby and read-state colors set in configuration software |
Electrical
| Supply voltage | 9–15 V DC |
|---|---|
| Operating current | 120–500 mA |
Mechanical & environment
| Dimensions | 308.5 × 308.5 × 67.5 mm (9 dBi); 445 × 445 × 67.5 mm (12 dBi) |
|---|---|
| Ingress protection | IP66 |
| Operating temperature | –20 to +65 °C, < 85% RH (at +25 °C) |
| Storage temperature | –20 to +65 °C, < 85% RH (at +25 °C) |
Variant matrix
| SKU | Band | Antenna | Rated range | Interfaces | Dimensions |
|---|---|---|---|---|---|
| LR-110-9-EU | 865–868 MHz | 9 dBi | Up to 12 m | Wiegand 26/34, RS485, USB | 308.5 × 308.5 × 67.5 mm |
| LR-110-9-EU-NET | 865–868 MHz | 9 dBi | Up to 12 m | Wiegand 26/34, RS485, USB, TCP/IP | 308.5 × 308.5 × 67.5 mm |
| LR-110-9-US | 902–928 MHz | 9 dBi | Up to 12 m | Wiegand 26/34, RS485, USB | 308.5 × 308.5 × 67.5 mm |
| LR-110-9-US-NET | 902–928 MHz | 9 dBi | Up to 12 m | Wiegand 26/34, RS485, USB, TCP/IP | 308.5 × 308.5 × 67.5 mm |
| LR-110-12-EU | 865–868 MHz | 12 dBi | Up to 30 m | Wiegand 26/34, RS485, USB | 445 × 445 × 67.5 mm |
| LR-110-12-EU-NET | 865–868 MHz | 12 dBi | Up to 30 m | Wiegand 26/34, RS485, USB, TCP/IP | 445 × 445 × 67.5 mm |
| LR-110-12-US | 902–928 MHz | 12 dBi | Up to 30 m | Wiegand 26/34, RS485, USB | 445 × 445 × 67.5 mm |
| LR-110-12-US-NET | 902–928 MHz | 12 dBi | Up to 30 m | Wiegand 26/34, RS485, USB, TCP/IP | 445 × 445 × 67.5 mm |
Pigtail wiring
| Wire color | Function |
|---|---|
| Red | +12 V DC (9–15 V DC input) |
| Black | GND |
| Green | Wiegand D0 |
| White | Wiegand D1 |
| Purple | Trigger input, active low |
| Gray | GND |
| Blue | USB |
| Yellow | USB |
| Gray | USB |
| Brown | RS485+ |
| Orange | RS485− |
| Gray | GND |
Wire colors in datasheet order. Three gray conductors are used (GND, USB, GND), so check the label on the harness before terminating.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| LR-110-9-EU | 9 dBi, 308.5 mm panel, up to 12 m, 865–868 MHz, Wiegand 26/34 + RS485 + USB | |
| LR-110-9-EU-NET | 9 dBi, 308.5 mm panel, up to 12 m, 865–868 MHz, adds TCP/IP | |
| LR-110-9-US | 9 dBi, 308.5 mm panel, up to 12 m, 902–928 MHz, Wiegand 26/34 + RS485 + USB | |
| LR-110-9-US-NET | 9 dBi, 308.5 mm panel, up to 12 m, 902–928 MHz, adds TCP/IP | |
| LR-110-12-EU | 12 dBi, 445 mm panel, up to 30 m, 865–868 MHz, Wiegand 26/34 + RS485 + USB | |
| LR-110-12-EU-NET | 12 dBi, 445 mm panel, up to 30 m, 865–868 MHz, adds TCP/IP | |
| LR-110-12-US | 12 dBi, 445 mm panel, up to 30 m, 902–928 MHz, Wiegand 26/34 + RS485 + USB | |
| LR-110-12-US-NET | 12 dBi, 445 mm panel, up to 30 m, 902–928 MHz, adds TCP/IP |
Where the LR-110 is used
- Hands-free entry lane at a residential or office car park, reading windshield tags before the barrier
- Wide logistics-yard gate where trucks are identified on the approach road, well ahead of the barrier
- Staff and visitor lanes on a campus, each reader wired to an existing Wiegand access controller
- Fleet depot logging vehicle entries and exits to a server over RS485 or TCP/IP
Apartment, Multifamily & Rental Property Access Control
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
LR-110 FAQ
Which variant should I choose for a single parking lane?
For one lane with the barrier a few meters from the reader, the 9 dBi version (rated up to 12 m) is usually enough. Choose the 12 dBi, 445 mm version when vehicles must be identified further out or across a wide gate.
Does it connect to a standard access controller?
Yes. The Wiegand 26/34 output wires directly to controller reader inputs (green D0, white D1), and RS485 is available for parking software that polls readers on a bus.
How do I tie reading to a vehicle being present?
The purple wire is a trigger input that activates on a low level. Connect a loop detector or photocell output to it; tell us the trigger behavior you need and we will confirm the setting before dispatch.
What power supply does each reader need?
A regulated 9–15 V DC supply. The datasheet lists 120–500 mA per reader, so a 12 V output rated at 1 A per reader leaves comfortable headroom.
Can I use the US version in Europe?
No. Order the 865–868 MHz version for European installations and the 902–928 MHz version for FCC regions, and state the destination country on your RFQ so we ship the right band.
