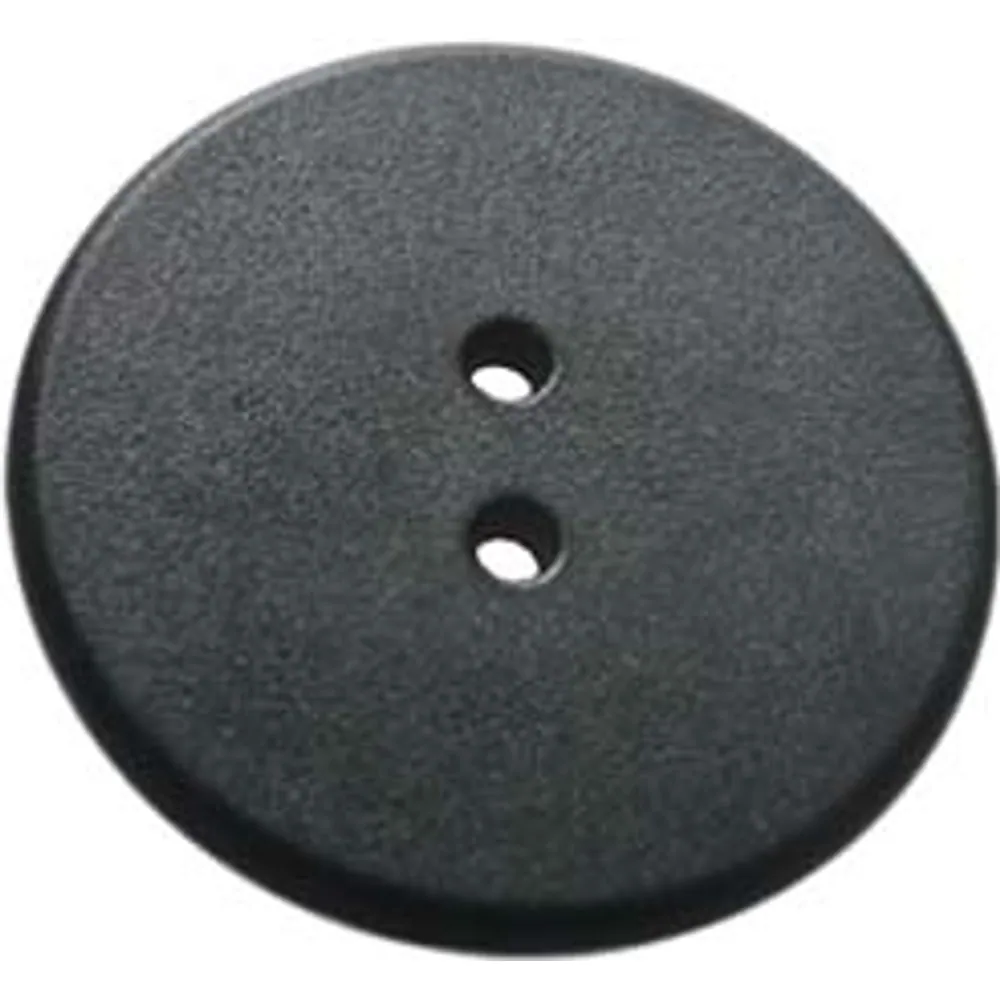

LT-130 PPS Button UHF RFID Laundry Tag, Ø25 mm, 860–960 MHz
Ø25 × 2.65 mm PPS button laundry tag with an Alien Higgs-9 chip, rated 860–960 MHz for US and EU readers; 0.9–1.2 m fixed-reader range.
- PPS button, Ø25 × 2.65 mm, for garments, uniforms and linen
- UHF antenna rated 860–960 MHz: one tag for 902–928 MHz and 865–868 MHz sites
- Alien Higgs-9 chip, EPC Gen2
- 0.9–1.2 m with a 4 W fixed reader; 0.2–0.3 m with a handheld
- Heat-resistant, rub-resistant housing for repeated laundry handling
- Frequency
- 860–960 MHz (UHF)
- Chip
- Alien Higgs-9
- Fixed-reader range
- 0.9–1.2 m (4 W reader)
- Handheld range
- 0.2–0.3 m
- Material
- PPS
- Dimensions
- Ø25 × 2.65 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
PPS Button UHF RFID Laundry Tag, Ø25 mm, 860–960 MHz: overview
The LT-130 is a Ø25 mm UHF RFID laundry tag molded in PPS, a rigid high-temperature engineering plastic, for textiles that are washed, dried and handled again and again. Its flat button form suits uniforms, workwear, robes and table linen, where every piece needs its own ID through the laundry loop.
Inside is an Alien Higgs-9 chip on an antenna rated for 860–960 MHz, so the same tag works with FCC 902–928 MHz and ETSI 865–868 MHz systems. This is the only tag in our laundry range with that global band, which makes it the default choice for groups running sites in both regions.
A 25 mm button leaves little room for antenna, and the listed figures reflect that: 0.9–1.2 m with a 4 W fixed reader and 0.2–0.3 m with an Impinj R2000-based handheld. Plan on sort tables, cabinets and close-range check-in points rather than long portal reads. The tag is described as heat-resistant and resistant to repeated rubbing, but no wash-cycle count, temperature limit or pressure rating is published for this PPS version.
Integration notes
Encode the EPC with an EPC Gen2 reader-writer at tagging and link it to the item record in your laundry software. Wash-test samples on your own program, including extraction pressure and ironing or tunnel-finisher temperatures, before tagging a full fleet.
LT-130 specifications
RFID
| Frequency | 860–960 MHz |
|---|---|
| Reader bands covered | FCC 902–928 MHz and ETSI 865–868 MHz |
| Air protocol | EPC Gen2 / ISO/IEC 18000-6C |
| Chip | Alien Higgs-9 |
Read range
| Fixed UHF reader (4 W) | 0.9–1.2 m |
|---|---|
| Handheld reader (Impinj R2000-based) | 0.2–0.3 m |
Mechanical & durability
| Material | PPS |
|---|---|
| Form | Round button |
| Dimensions | Ø25 × 2.65 mm |
| Durability | Heat-resistant; withstands repeated rubbing |
Laundry and garment tag range at a glance
| SKU | Format | Size | UHF band | Chip | Fixed reader | Handheld |
|---|---|---|---|---|---|---|
| LT-150 | Washable fabric strip | 70 × 15 × 1 mm | 902–928 MHz | NXP UCODE 8 | 7.5 m | 2 m |
| LT-140 | Silicone strip | 55 × 12 × 2.7 mm | 902–928 MHz | Alien Higgs-9 | 4 m | 2 m |
| LT-130 | PPS button | Ø25 × 2.65 mm | 860–960 MHz | Alien Higgs-9 | 0.9–1.2 m | 0.2–0.3 m |
Read ranges as listed for each tag: fixed reader at 4 W and an Impinj R2000-based handheld. Encapsulation, wet linen and dense loads reduce range.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| LT-130-GL | PPS button laundry tag, Ø25 × 2.65 mm, UHF 860–960 MHz, Alien Higgs-9 |
Where the LT-130 is used
- Hotel staff uniforms tracked through an outsourced laundry
- Hospital scrubs and gowns counted at the soiled-linen sort table
- Uniform rental fleets issuing garments from RFID-enabled cabinets
- Banquet table linen and napkins in a multi-country rental pool
LT-130 FAQ
Is the LT-130 rated for industrial washing?
It is specified as heat-resistant and able to take repeated rubbing, but no wash-cycle, temperature or pressure rating is published for this PPS version. Wash-test samples on your process; the fabric LT-150 carries a stated rating of 200+ washes and 60 bar.
Will it work with both US and European readers?
Yes. The antenna is rated for 860–960 MHz, which covers FCC 902–928 MHz and ETSI 865–868 MHz readers.
Why is its read range shorter than the other laundry tags?
The antenna has to fit inside a 25 mm button: listed range is 0.9–1.2 m on a 4 W fixed reader and 0.2–0.3 m on a handheld. For longer portal reads on 902–928 MHz, compare the LT-150 (7.5 m) or LT-140 (4 m).
How is it attached to garments?
It is a button-format tag, normally sewn on like a garment button or closed inside a hem. Check the fit on samples before tagging a whole fleet.
