EW-120 Desktop UHF RFID Reader/Writer, USB, 0–30 cm Range
Compact USB desktop UHF reader/writer and card issuer: 2 dBi antenna, 13 dBm output, 0–30 cm reads, driver-free on Windows, Linux and Android. EU or US band.
- Reads and writes EPC Gen2 / ISO 18000-6C cards and tags at 0–30 cm
- 2 dBi built-in antenna, 13 dBm RF output
- Driver-free USB (12 Mbps); Windows 10/8.1/8/7, Linux and Android
- Active auto-read mode and passive read/write mode via demo software
- Parameters adjustable with a configuration tool
- Frequency
- 865–868 MHz (EU) / 902–928 MHz (US)
- Read range
- 0–30 cm
- RF output / antenna
- 13 dBm / 2 dBi
- Interface
- USB, driver-free
- Power
- 5 V DC via USB, ≤ 180 mA
- Dimensions
- 110 × 80 × 16.9 mm
Reply within 24 hours Tested before dispatch Worldwide shipping
Desktop UHF RFID Reader/Writer, USB, 0–30 cm Range: overview

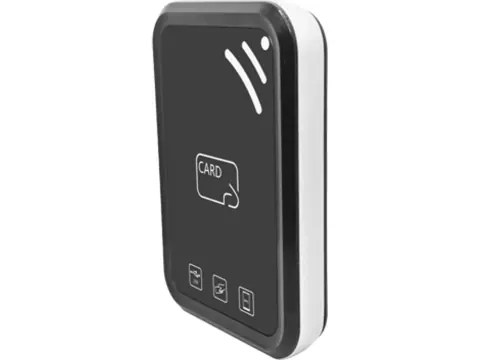

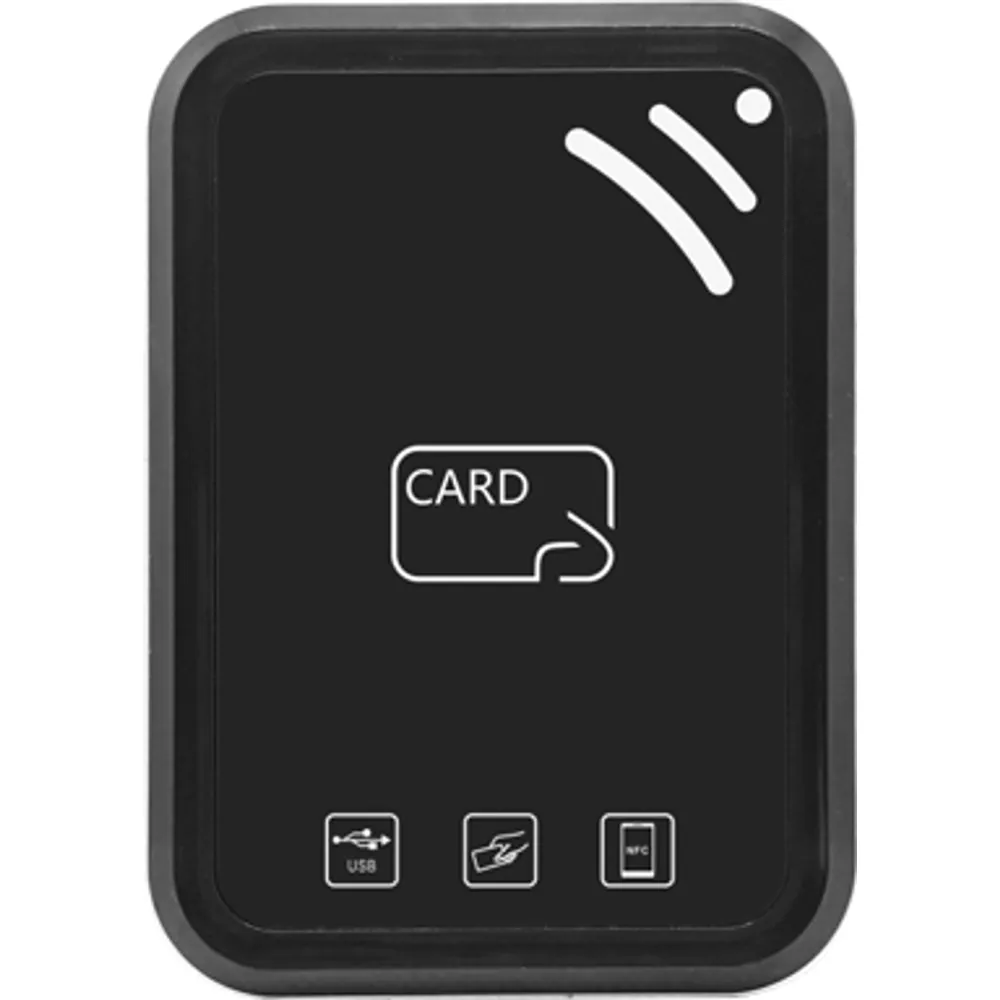

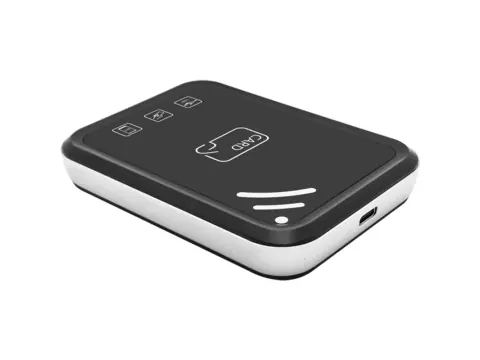

The EW-120 is a compact desktop UHF RFID reader/writer and card issuer for access-control and vehicle-management systems. It reads EPC Gen2 / ISO 18000-6C cards and tags at up to 30 cm, connects over USB without a driver, and runs with Windows 10, 8.1, 8 and 7, Linux and Android.
Two working modes cover the usual desk jobs. In active mode the unit reads tags by itself as they are presented; in passive mode the demo software drives it to read and write tag data. A configuration tool updates the reader's parameters, so one stocked model can be adapted to different projects without a hardware change.
A 2 dBi built-in antenna and 13 dBm output give a working distance of 0–30 cm, depending on the card and where the reader sits. That lets staff enroll a windshield tag or card without placing it exactly on the surface, while the field stays small enough for a shared counter.
Order EW-120-EU for the ETSI 865–868 MHz band or EW-120-US for the FCC 902–928 MHz band. Both draw 5 V from USB at ≤ 120 mA standby and ≤ 180 mA while reading, measure 110 × 80 × 16.9 mm, come in an unbranded black housing with a 1,500 mm USB cable, and are RoHS compliant.
More features
- Low draw from USB: ≤ 120 mA standby, ≤ 180 mA operating
- 110 × 80 × 16.9 mm black housing, 1.5 m USB cable, RoHS
EW-120 specifications
RF & credentials
| Frequency | 865–868 MHz (EU version); 902–928 MHz band, adjustable (US version) |
|---|---|
| Protocols | ISO 18000-6C, EPCglobal UHF Class 1 Gen 2 |
| RF output | 13 dBm |
| Antenna | Built-in, 2 dBi |
| Read range | 0–30 cm (depends on card and installation) |
| Operations | Read and write |
Interfaces & software
| Host interface | USB, driver-free |
|---|---|
| USB data rate | 12 Mbps |
| Working modes | Active reading / passive read-write via demo software |
| Configuration | Management tool for updating parameters |
| Operating systems | Windows 10, 8.1, 8, 7; Linux; Android |
Electrical
| Supply voltage | 5 V DC via USB |
|---|---|
| Current | ≤ 120 mA standby, ≤ 180 mA operating |
Mechanical & environment
| Dimensions | 110 × 80 × 16.9 mm (±0.3 mm) |
|---|---|
| Housing | Black, no logo |
| USB cable length | 1,500 mm ± 50 mm (about 4.9 ft) |
| Operating temperature | −20 to +60 °C (−4 to +140 °F) |
| Storage temperature | −40 to +80 °C (−40 to +176 °F) |
| Operating humidity | 20–80%, non-condensing |
| Compliance | RoHS |
Order codes
| SKU | Band | Interface | Supply | Cable |
|---|---|---|---|---|
| EW-120-EU | 865–868 MHz (ETSI) | USB, driver-free | 5 V DC | 1,500 mm |
| EW-120-US | 902–928 MHz (FCC) | USB, driver-free | 5 V DC | 1,500 mm |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| EW-120-EU | Desktop reader/writer, EU band (865–868 MHz), USB, black, 1.5 m cable | |
| EW-120-US | Desktop reader/writer, US band (902–928 MHz), USB, black, 1.5 m cable |
Where the EW-120 is used
- Enrolling residents' windshield tags at a property management office
- Issuing UHF employee cards at a site security desk
- Writing EPC numbers to asset tags before they go into the field
- Verifying a tag's EPC at a parking helpdesk before replacing it
Apartment, Multifamily & Rental Property Access Control
Apartment building access control hardware: anti-clone readers with matched fob sets, QR visitor codes, 4G controllers for rentals and UHF tags for gates.
RFID Asset & Tool Tracking
Build an RFID asset tracking system: on-metal, ceramic and tie-on tags matched to each asset, handheld audits, smart cabinets and IP67 HF heads for tooling.
EW-120 FAQ
How does the EW-120 differ from the EW-110?
The EW-120 reads up to 30 cm with a 2 dBi antenna and 13 dBm output in a 110 × 80 × 16.9 mm housing. The EW-110 works at 0–8 cm and adds configurable HID keyboard output of EPC, TID or USER data.
Does it need a driver?
No. USB communication is driver-free, and supported systems are Windows 10, 8.1, 8 and 7, Linux and Android.
Can I write EPC data with it?
Yes. In passive mode the demo software reads and writes EPC Gen2 / ISO 18000-6C tags.
Which band version do I need?
EW-120-EU for 865–868 MHz (ETSI) countries and EW-120-US for 902–928 MHz (FCC) countries. Match the band of the long-range readers on the same site.
Can the housing carry our own logo?
The standard unit ships in a plain black housing without a logo. Contact us if you need custom marking or packaging for a volume order.
