AN-140 2 dBi Mini Ceramic UHF RFID Antenna, 50 × 50 mm
Miniature 2 dBi ceramic patch UHF antenna on a 50 × 50 mm board with 3 m or 5 m SMA lead, for short, contained read zones inside cabinets, slots and counters.
- Ceramic patch (dielectric constant 37) on a 50 × 50 mm board for tight UHF RFID enclosures
- 2 dBi gain for short, contained read zones in cabinet cells, slots and counters
- 50 Ω impedance, VSWR ≤ 1.5 at center frequency
- Narrow –10 dB bandwidth (4 MHz min) tuned to your reader's channel plan
- Frequency temperature coefficient ≤ 20 ppm/°C for stable tuning
- Gain
- 2 dBi
- Board size
- 50 × 50 mm
- Impedance
- 50 Ω
- VSWR
- ≤ 1.5 at center frequency
- –10 dB bandwidth
- 4 MHz min
- Connector
- SMA plug on 3 m or 5 m lead
Reply within 24 hours Tested before dispatch Worldwide shipping
2 dBi Mini Ceramic UHF RFID Antenna, 50 × 50 mm: overview
The AN-140 is a 50 × 50 mm ceramic patch antenna for UHF RFID designs where space is the main constraint: individual cabinet cells, product slots in self-service fridges, checkout pads and compact enclosures. With 2 dBi gain it creates a short, contained read zone rather than a long-range field, which helps when neighboring compartments must not read each other's tags.
The small size comes from a high-permittivity ceramic (dielectric constant 37). The trade-off is bandwidth: the –10 dB bandwidth is 4 MHz minimum, far narrower than a PCB or panel antenna, so each unit is tuned to a center frequency. The ceramic's temperature coefficient is 20 ppm/°C maximum, keeping that tuning stable as the enclosure warms or cools.

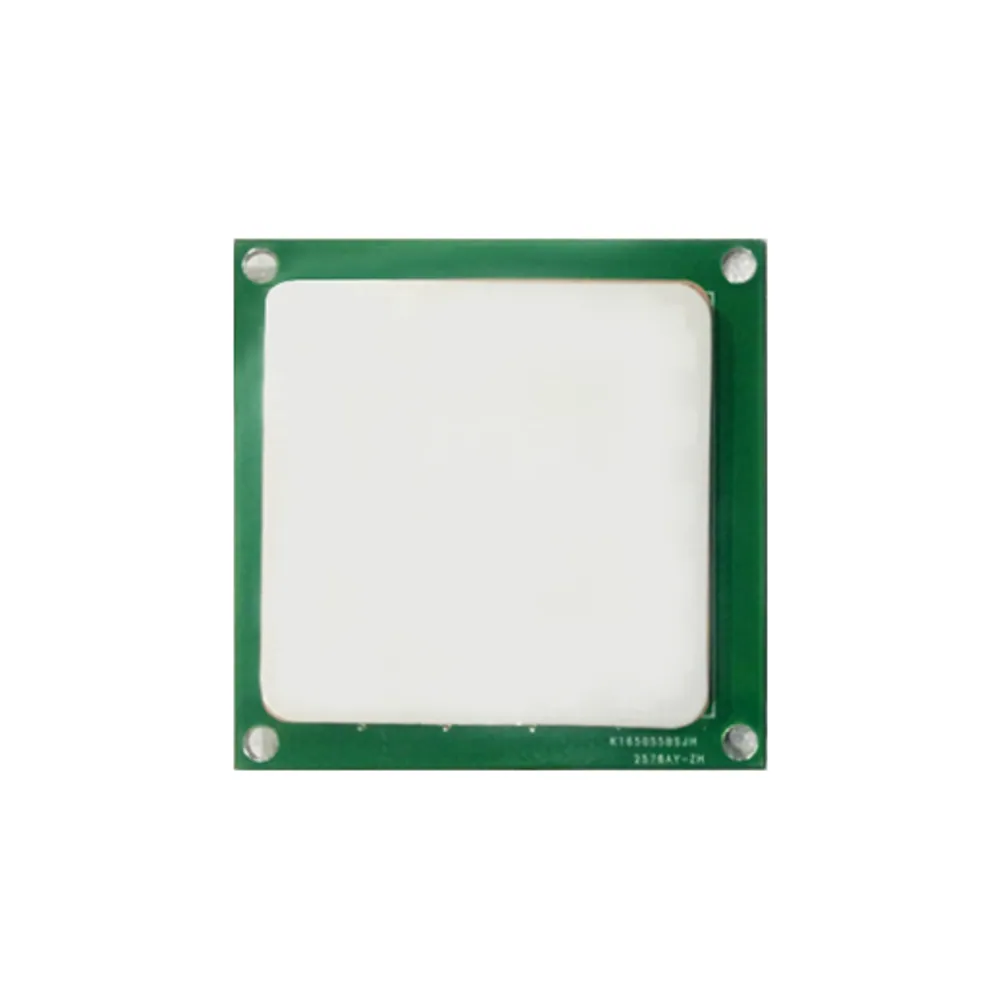

The patch sits on a PCB ground plane with corner mounting holes. It has no cover and is not waterproof, so mount it inside a dry housing.
Integration notes
Each antenna ships with a coaxial lead terminated in an SMA plug: 3 m on AN-140-3 and 5 m on AN-140-5. Impedance is 50 Ω with VSWR of 1.5 maximum at the center frequency, so it connects directly to multi-port UHF readers and reader modules. Because the passband is narrow, give us your reader's region and channel plan (for example 865–868 MHz or 902–928 MHz) on the RFQ and we confirm the tuned center frequency before dispatch. Please also confirm polarization and board thickness against a sample before finalizing an enclosure: the datasheet lists RHCP in its electrical table but linear in its ordering table, and gives 5.5 mm and 8.5 mm thickness in different sections.
More features
- Supplied with coaxial lead and SMA plug in 3 m or 5 m lengths
AN-140 specifications
RF performance
| Nominal frequency | 840/940 MHz per datasheet; center frequency confirmed per order |
|---|---|
| –10 dB bandwidth | 4 MHz min |
| Gain | 2 dBi |
| VSWR at center frequency | 1.5 max |
| Impedance | 50 Ω |
| Polarization | RHCP per electrical specification (ordering sheet lists linear; verify on sample) |
Ceramic element
| Dielectric constant | 37 |
|---|---|
| Q × f | > 40,000 GHz |
| Frequency temperature coefficient | 20 ppm/°C max |
Cable & mechanical
| Board size | 50 × 50 mm (±3 mm) |
|---|---|
| Thickness | Listed as 5.5 mm and 8.5 mm in different datasheet sections; confirm on sample |
| Cover | None; not waterproof |
| Connector | SMA plug on integrated coaxial lead |
| Cable length | 3 m (9.8 ft) or 5 m (16.4 ft) |
Cable length options
| Variant SKU | Gain | Board size | Cable length | Termination |
|---|---|---|---|---|
| AN-140-3 | 2 dBi | 50 × 50 mm | 3 m (9.8 ft) | SMA plug |
| AN-140-5 | 2 dBi | 50 × 50 mm | 5 m (16.4 ft) | SMA plug |
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| AN-140-3 | 2 dBi ceramic patch UHF antenna, 50 × 50 mm, no cover, 3 m (9.8 ft) coaxial lead with SMA plug | |
| AN-140-5 | 2 dBi ceramic patch UHF antenna, 50 × 50 mm, no cover, 5 m (16.4 ft) coaxial lead with SMA plug |
Where the AN-140 is used
- One antenna per cell in a locker-style smart cabinet so each compartment reads only its own item
- Product slots in self-service fridges and vending-style displays
- Checkout or returns pads that should read only the item placed on them
- Compact UHF enclosures where a 120 mm PCB antenna will not fit
