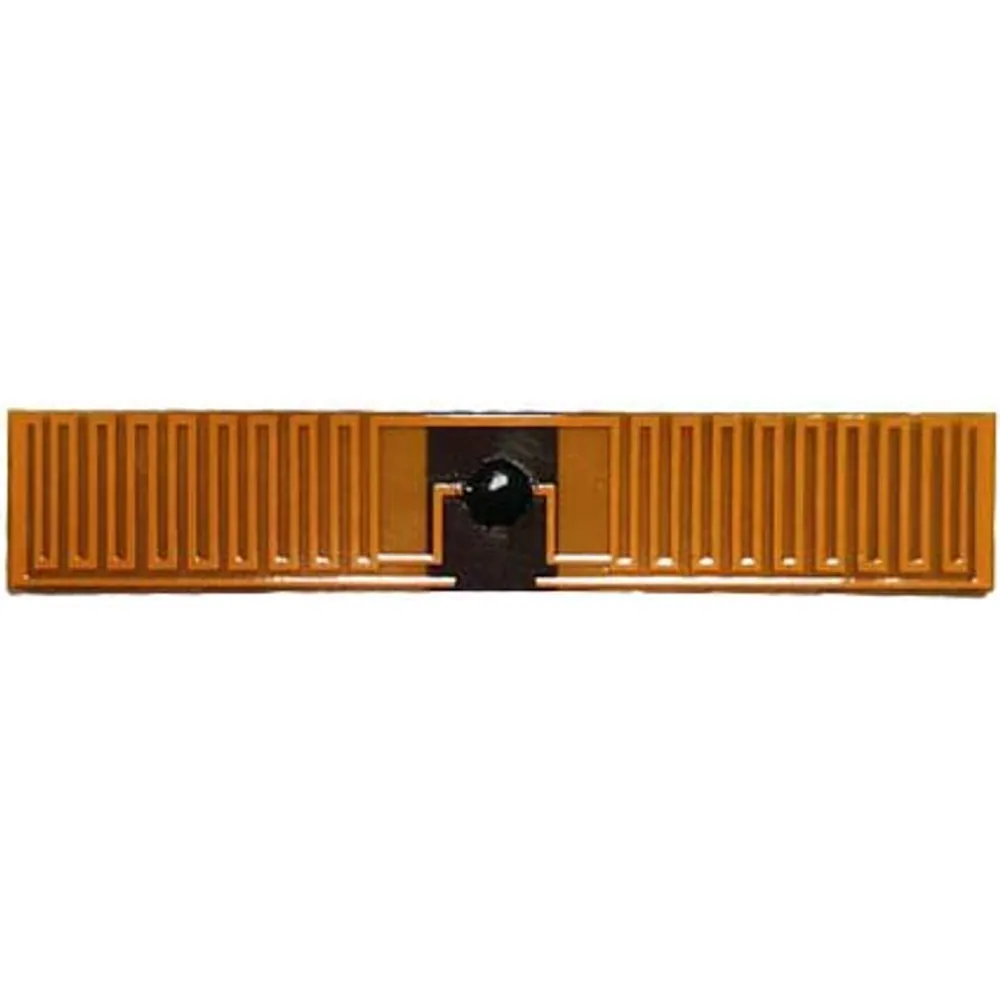

PF-110 Flexible FPC UHF RFID Inlay, 49 × 9 mm

PF-110 is a flexible FPC RFID inlay for OEMs that need to place a UHF identifier inside a finished object. The tag occupies a 49 × 9 mm footprint and can be embedded in silicone or plastic. Its flexible substrate distinguishes it from the rigid PCB tags in this range, although no minimum bend radius is specified.

The listed frequency span is 860–960 MHz and the chip is identified as H9. A fixed-reader distance of 9 m and a handheld distance of 3 m are provided. The record does not specify antenna gain, reader power, orientation or surrounding materials for those values, so they are reference figures for evaluating a sample in the final assembly.

Embedding gives the mechanical design a way to retain the identifier without using an exposed card or fob. The process still needs a verified specification: thickness, memory organization, bonding method and encapsulation conditions are not supplied here. The brief description mentions resistance to heat, pressure and corrosion without numerical limits, which does not establish a qualified molding or cleaning process.

Start with the space available in the object and the reader used in production. Test the tag after embedding, in the same orientation and material stack the product will use. Confirm the exact chip identity and RF interface before integrating the data into an inventory workflow; these details are not expanded in the available tag record.
