HF-230 13.56 MHz Multi-Protocol RFID Module, Wiegand/UART Output

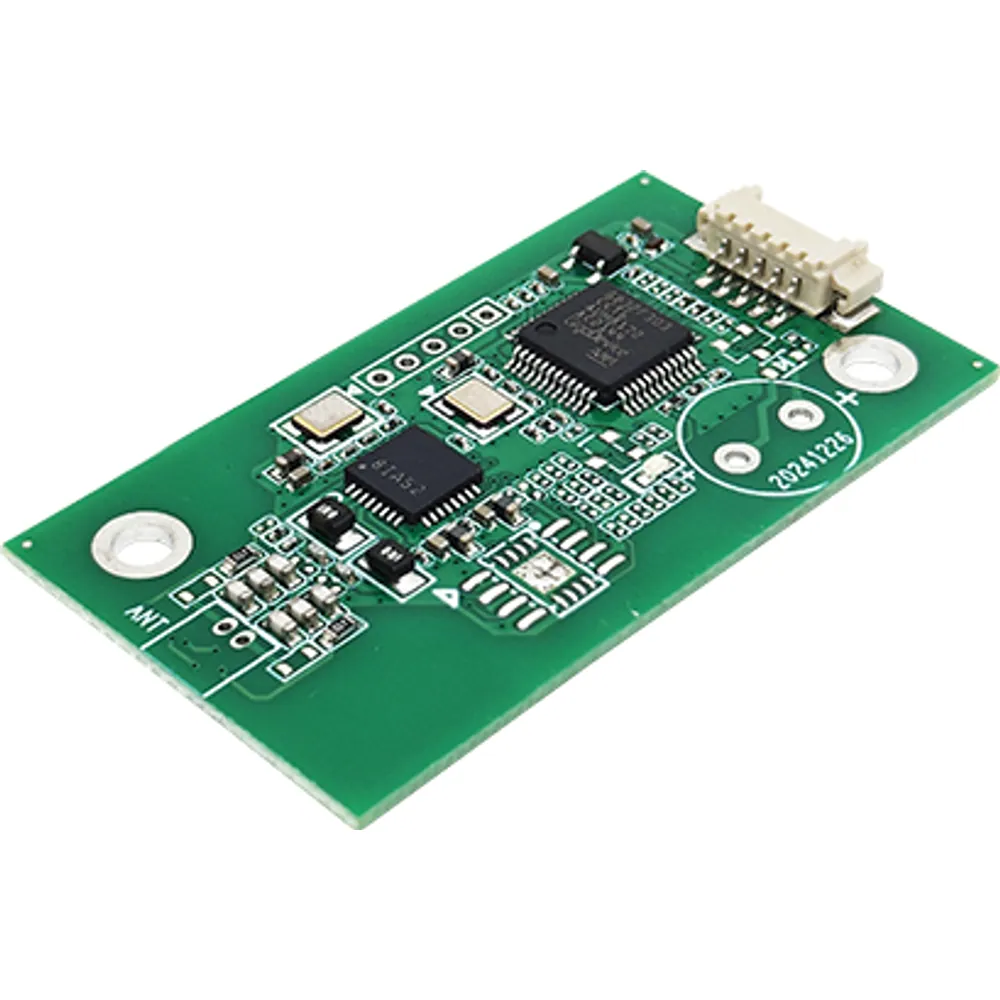

47 × 26 mm HF module reading ISO14443A/B, ISO15693 and NFC tags, with Wiegand or 3.3 V UART output, on-board or external antenna, and an optional FeliCa version.
- Reads ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092 credentials at 13.56 MHz
- MIFARE Classic, DESFire EV1/EV2, Ultralight/Ultralight C, NTAG2xx, ICODE and NFC Forum Type 1/2/4/5
- FeliCa support on -FL versions
- Wiegand or 3.3 V UART output (one at a time), 9600–115200 bps
- Built-in antenna, or 50 Ω external antenna port on -EXT versions
- Frequency
- 13.56 MHz
- Protocols
- ISO14443A/B, ISO15693, ISO18092; FeliCa on -FL
- Output
- Wiegand or UART (3.3 V), selectable
- Read distance
- 0–5 cm (card and mounting dependent)
- Power
- 5 V DC, ≤ 150 mA
- Dimensions
- 47 × 26 × 4.5 mm (±0.5 mm)
Reply within 24 hours Tested before dispatch Worldwide shipping

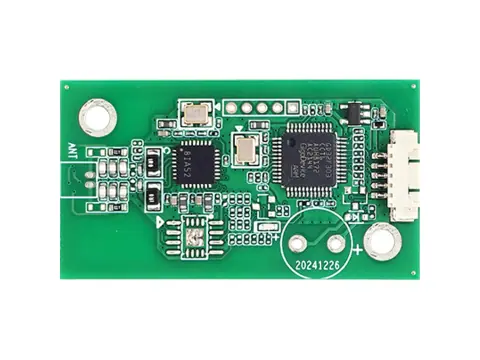

13.56 MHz Multi-Protocol RFID Module, Wiegand/UART Output: overview
The HF-230 is a 13.56 MHz multi-protocol RFID module with a selectable Wiegand or 3.3 V UART output. It is built for OEMs adding card reading to terminals, kiosks, handhelds, keyboards and fare-collection equipment. It handles ISO/IEC 14443A/B, ISO/IEC 15693 and ISO/IEC 18092 credentials, including MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight and Ultralight C, NTAG2xx and ICODE, plus NFC Forum Type 1, 2, 4 and 5 tags. The -FL versions add FeliCa.
Four versions cover two choices. First, the protocol set: standard (-M) or with FeliCa (-M-FL). Second, the antenna: the on-board antenna keeps the design to a single board, while -EXT versions provide a 50 Ω antenna port so you can place your own coil where users present the card. All four share the 47 × 26 × 4.5 mm outline and the same 5-pin host connector.
The module either scans continuously and reports every card it sees, or stays idle until the host sends a read command. UART speed is adjustable from 9600 to 115200 bps (default 115200). An SDK is available for Windows, Android and Linux, a configuration utility lets you change module parameters, and the firmware is upgradeable. Read distance is 0–5 cm, depending on the card and the mounting environment.
Integration notes
Power and data share a 5-pin, 1.25 mm pitch connector: +5 V DC, TXD/D1, RXD/D0, GND and an active-low RESET. Because Wiegand D0/D1 use the same pins as the UART, the module outputs one protocol at a time; tell us the Wiegand bit format your controller expects when you order. Signal lines run at 3.3 V, so check input thresholds on 5 V hosts. The -EXT versions add a 2-pin, 1.25 mm antenna connector (TX1, TX2). Budget up to 150 mA while reading and 120 mA in standby. The module is listed as RoHS compliant and operates from –20 to +60 °C.
More features
- SDK for Windows, Android and Linux; configurable parameters and upgradeable firmware
- 47 × 26 × 4.5 mm, 5 V DC, read distance 0–5 cm
HF-230 specifications
RF & credentials
| Frequency | 13.56 MHz |
|---|---|
| Standards | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693, ISO/IEC 18092 |
| Supported cards and tags | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, NTAG2xx, ICODE, contactless CPU (microprocessor) cards, NFC Forum Type 1, 2, 4 and 5 tags |
| FeliCa | Supported on HF-230-M-FL and HF-230-M-FL-EXT only |
| Read distance | 0–5 cm, depending on card type and installation environment |
| Antenna | Built-in (HF-230-M, HF-230-M-FL) or external, 50 Ω at 13.56 MHz (-EXT versions) |
| Reading modes | Active (automatic scan) or passive (on host read command) |
Interfaces
| Host interface | UART (3.3 V) or Wiegand — one selected at a time |
|---|---|
| Baud rate (UART) | 9600–115200 bps (default 115200) |
| SDK | Windows, Android, Linux |
| Configuration | Parameters adjustable with the configuration utility |
| Firmware | Upgradeable |
| Connectors | 5-pin, 1.25 mm pitch (power/data); 2-pin, 1.25 mm pitch antenna connector on -EXT versions |
Electrical
| Supply voltage | 5 V DC |
|---|---|
| Operating current | ≤ 150 mA |
| Standby current | ≤ 120 mA |
| Reset input | Active low (pin 5) |

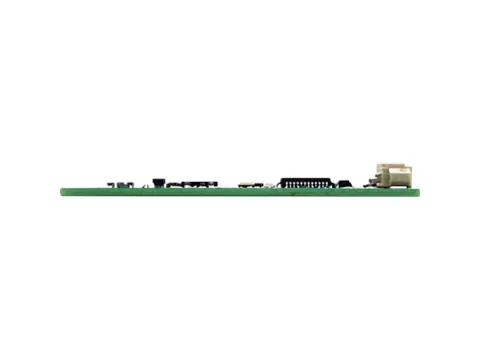

Mechanical & environment
| Dimensions | 47 × 26 × 4.5 mm ±0.5 mm |
|---|---|
| Weight | Approx. 3.6–4.1 g depending on version (see variant table) |
| Operating temperature | –20 to +60 °C (–4 to +140 °F) |
| Operating humidity | 20–80% RH, non-condensing |
| Storage temperature | –40 to +80 °C (–40 to +176 °F) |
| Compliance | RoHS |
Variant matrix
| Variant | Antenna | FeliCa | Host interface | Weight |
|---|---|---|---|---|
| HF-230-M | Built-in | No | Wiegand or UART (3.3 V) | Approx. 3.6 g |
| HF-230-M-EXT | External, 50 Ω | No | Wiegand or UART (3.3 V) | Approx. 4.0 g |
| HF-230-M-FL | Built-in | Yes | Wiegand or UART (3.3 V) | Approx. 3.8 g |
| HF-230-M-FL-EXT | External, 50 Ω | Yes | Wiegand or UART (3.3 V) | Approx. 4.1 g |
All versions share the 47 × 26 × 4.5 mm outline, 5 V DC supply and Wiegand/UART host connector.
Connector pinout
| Pin | Signal | Function |
|---|---|---|
| P1-1 | 5V | Power supply, +5 V DC |
| P1-2 | TXD/D1 | UART transmit (3.3 V) or Wiegand D1 |
| P1-3 | RXD/D0 | UART receive (3.3 V) or Wiegand D0 |
| P1-4 | GND | Ground |
| P1-5 | RESET | Reset, active low |
| P2-1 | TX1 | External antenna terminal 1 |
| P2-2 | TX2 | External antenna terminal 2 |
P1: 5-pin, 1.25 mm pitch, all versions. P2: 2-pin, 1.25 mm pitch antenna connector, -EXT versions only.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| HF-230-M | 13.56 MHz multi-protocol module (no FeliCa), built-in antenna, Wiegand or 3.3 V UART output | |
| HF-230-M-EXT | 13.56 MHz multi-protocol module (no FeliCa), 50 Ω external antenna port, Wiegand or 3.3 V UART output | |
| HF-230-M-FL | 13.56 MHz multi-protocol module with FeliCa, built-in antenna, Wiegand or 3.3 V UART output | |
| HF-230-M-FL-EXT | 13.56 MHz multi-protocol module with FeliCa, 50 Ω external antenna port, Wiegand or 3.3 V UART output |
Where the HF-230 is used
- EV chargers that start a session from a MIFARE or DESFire card over a 3.3 V UART
- Turnstile and fare-gate readers that pass card data to an existing Wiegand controller
- Library, locker or kiosk terminals that must read both ISO14443 cards and ISO15693 tags
- Handhelds and tablets for markets where FeliCa cards are in circulation (-FL versions)
- Devices with metal front panels, where an -EXT version lets the antenna sit behind a plastic window
