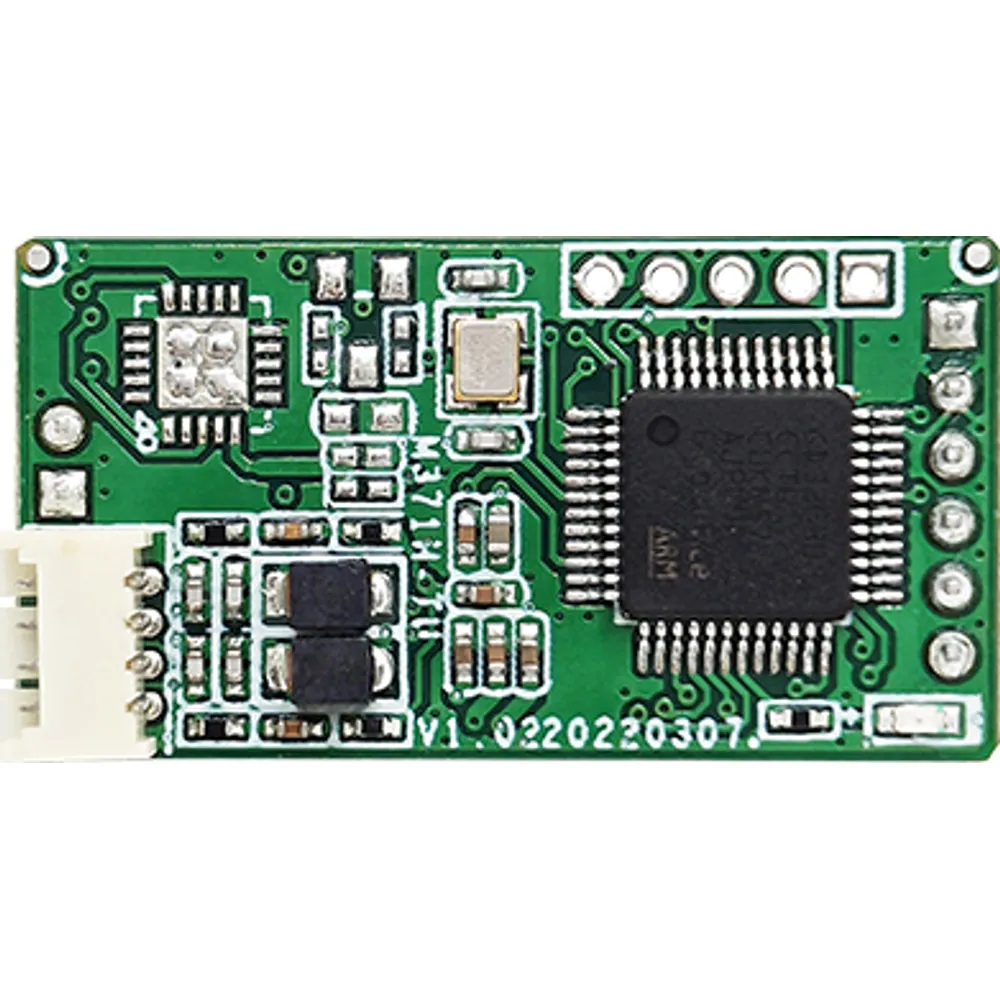

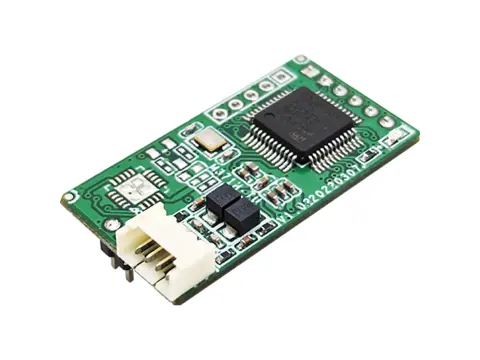

XM-200 Dual-Frequency 125 kHz + 13.56 MHz RFID Module, UART/USB
30 × 16 mm OEM module that reads 125 kHz EM and HID Prox-compatible cards plus MIFARE, DESFire, FeliCa and ICODE at 13.56 MHz, over 3.3 V UART or USB.
- Reads 125 kHz EM4100/4102/4200/4305/4450 and HID Prox-compatible credentials
- 13.56 MHz: MIFARE Classic, DESFire EV1/EV2, Ultralight C, FeliCa, ICODE, CEPAS, NFC Type 1–5
- 3.3 V TTL UART at 115200 bps plus USB full speed (12 Mbps) on one 6-pin header
- External LF and HF antennas, shaped to fit behind panels, keypads or displays
- 30 × 16 × 9.2 mm, about 1.8 g; rated –40 to +85 °C
- Frequency
- 125 kHz + 13.56 MHz
- Credentials
- EM4100 family, HID Prox-compatible, MIFARE, DESFire, FeliCa, ICODE
- Interface
- UART (3.3 V TTL) + USB
- Power
- 5 V DC, ≤ 180 mA (RF on)
- Dimensions
- 30 × 16 × 9.2 mm
- Operating temperature
- –40 to +85 °C
Reply within 24 hours Tested before dispatch Worldwide shipping
Dual-Frequency 125 kHz + 13.56 MHz RFID Module, UART/USB: overview
The XM-200 is a dual-frequency RFID module for OEMs who want one board to read legacy 125 kHz proximity credentials and 13.56 MHz smart cards. On the low-frequency side it handles EM4100, EM4102, EM4200, EM4305 and EM4450 transponders plus HID Prox-compatible cards. On the high-frequency side it reads MIFARE Classic, DESFire EV1/EV2, Ultralight and Ultralight C, FeliCa, ICODE, CEPAS, CPU cards and NFC Forum Type 1–5 tags. That makes it a practical core for door readers, turnstiles, elevator panels and EV chargers on sites moving from prox to DESFire.

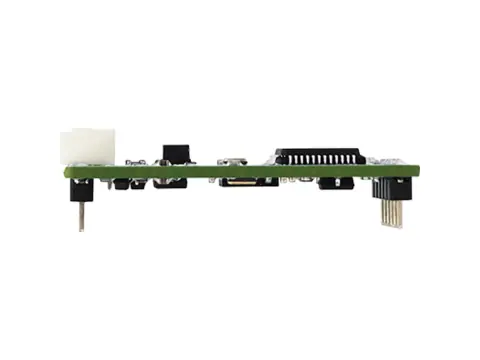

The board measures 30 × 16 × 9.2 mm and weighs about 1.8 g. Both antennas are external, so the 125 kHz coil and the 13.56 MHz loop can follow the shape of your enclosure, keypad or display instead of the other way around. Protocol coverage includes ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092 and FeliCa, the rated range is –40 to +85 °C, and a configuration tool handles settings and serial-port firmware updates.
Integration notes
A 6-pin, 2.0 mm pitch header carries 5 V DC, ground, a 3.3 V TTL UART at 115200 bps and USB full-speed (12 Mbps) data lines, so the same part can sit on a microcontroller UART or connect straight to a Windows, Linux, Android or macOS host. The antennas plug into a 4-pin, 1.25 mm connector: plan for a 490 µH ±10 µH coil at 125 kHz and a 50 Ω antenna at 13.56 MHz. Current is ≤ 180 mA with the RF field on and ≤ 30 mA with it off. CE, FCC, RoHS and Japan Radio Law approvals are listed for the module; your finished device still needs its own compliance assessment.
Third-party credential and platform names on this page are trademarks of their respective owners and are used only to describe compatibility.
More features
- Configuration tool and firmware upgrades over the serial port
- CE, FCC, RoHS and Japan Radio Law listed for the module
XM-200 specifications
RF & credentials
| Operating frequency | 125 kHz and 13.56 MHz |
|---|---|
| 125 kHz credentials | HID Prox-compatible; EM4100, EM4102, EM4200, EM4305, EM4450 |
| 13.56 MHz credentials | MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, FeliCa, ICODE, CEPAS, CPU (microprocessor) cards, NFC Forum Type 1–5 tags; ISO/IEC 14443A/B and ISO/IEC 15693 cards |
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693, ISO/IEC 18092, FeliCa |
| Antenna | External: 50 Ω at 13.56 MHz; 490 µH ±10 µH at 125 kHz |
Interfaces
| Host interfaces | UART (3.3 V TTL levels) and USB |
|---|---|
| Data rate | UART 115200 bps; USB 12 Mbps (full speed) |
| Supported host OS | Windows 10, 8.1, 8 and 7; Linux; Android; macOS |
| Configuration & firmware | Management tool for configuration; firmware upgrade via serial port |
| Connectors | 6-pin 2.0 mm (power/data); 4-pin 1.25 mm (antennas); 2-pin 2.0 mm (fixing only) |
Electrical
| Supply voltage | 5 V DC via host header, or 4.3–5.5 V via USB |
|---|---|
| Current, RF field on | ≤ 180 mA |
| Current, RF field off | ≤ 30 mA |
Mechanical & environment
| Dimensions | 30 × 16 × 9.2 mm ±0.5 mm (antennas not included) |
|---|---|
| Weight | Approx. 1.8 g |
| Operating temperature | –40 to +85 °C (–40 to +185 °F) |
| Storage temperature | –40 to +85 °C (–40 to +185 °F) |
| Operating humidity | 10–90% RH, non-condensing |
Compliance
| Certifications | CE, FCC, RoHS, Japan Radio Law (TELEC) — listed for the module; request reports |
|---|
Connector pinout
| Pin | Signal | Function |
|---|---|---|
| P1-1 | VCC | Power input, +5 V DC |
| P1-2 | GND | Ground |
| P1-3 | TXD | UART transmit (3.3 V TTL) |
| P1-4 | RXD | UART receive (3.3 V TTL) |
| P1-5 | USB_DP | USB data + |
| P1-6 | USB_DM | USB data – |
| P2-1 | HF_TX1 | 13.56 MHz antenna, pin 1 |
| P2-2 | HF_TX2 | 13.56 MHz antenna, pin 2 |
| P2-3 | LF_TX1 | 125 kHz antenna, pin 1 |
| P2-4 | LF_TX2 | 125 kHz antenna, pin 2 |
| P3-1 | NC | Mechanical fixing pin, no electrical function |
| P3-2 | NC | Mechanical fixing pin, no electrical function |
P1: 6-pin, 2.0 mm pitch host header. P2: 4-pin, 1.25 mm pitch antenna connector. P3: 2-pin, 2.0 mm pitch fixing header.
Multi-technology module family at a glance
| Variant | 125 kHz | 13.56 MHz | iCLASS/Seos-compatible | BLE 5.1 | Mobile wallet | Size (mm) |
|---|---|---|---|---|---|---|
| XM-120-P-E | EM + HID Prox-compatible | — | — | — | — | 30 × 16 × 9.2 |
| XM-130-D-P | EM + HID Prox-compatible | Yes | — | — | — | 25 × 15 × 3.0 |
| XM-140-IC-M | — | Yes | Yes | — | — | 30 × 16 × 9.2 |
| XM-150-D | EM | Yes | — | — | — | 30 × 16 × 8.8 |
| XM-160-D-IC-N | EM + HID Prox-compatible | Yes | Yes | — | Listed (Apple Wallet) | 30 × 16 × 9.2 |
| XM-170-D-BT | EM | Yes | — | Yes | — | 30 × 16 × 8.8 |
| XM-180-D-IC-BT | EM + HID Prox-compatible | Yes | Yes | Yes | Listed (Apple Wallet) | 30 × 16 × 8.8 |
| XM-190-D-P-BT | EM + HID Prox-compatible | Yes | — | Yes | — | 30 × 16 × 8.8 |
| XM-200-D-P | EM + HID Prox-compatible | Yes | — | — | — | 30 × 16 × 9.2 |
13.56 MHz support = MIFARE Classic, DESFire EV1/EV2, Ultralight/Ultralight C, FeliCa, ICODE, CEPAS, CPU cards and NFC Forum Type 1–5 tags. All nine modules use external antennas and offer both UART and USB. Sizes in mm, antennas excluded.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| XM-200-D-P | Dual-frequency module: 125 kHz EM + HID Prox-compatible, 13.56 MHz multi-protocol; UART (3.3 V TTL) + USB; external antennas |
Where the XM-200 is used
- Adding DESFire support to a 125 kHz prox door reader during a phased credential migration
- EV chargers and kiosks that must accept both legacy EM fobs and NFC tags
- Elevator panels reading staff badges of mixed technologies on one board
- Turnstile and speed-gate electronics with antennas routed under glass or acrylic lids
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
XM-200 FAQ
Can one module read both our old prox cards and new DESFire cards?
Yes. It reads 125 kHz EM and HID Prox-compatible credentials and 13.56 MHz MIFARE Classic and DESFire EV1/EV2 cards through two external antennas, so one reader can serve a mixed card population.
Should I use the UART or the USB interface?
Both are on the 6-pin header. Use the 3.3 V TTL UART at 115200 bps with a microcontroller, or the USB lines (12 Mbps) for a direct link to a Windows, Linux, Android or macOS host.
What antennas does the module need?
Two external antennas on the 4-pin, 1.25 mm connector: a 125 kHz coil of 490 µH ±10 µH and a 50 Ω antenna for 13.56 MHz. Their shape can be adapted to your enclosure.
What read range can I expect?
No fixed range is specified because it depends on the antennas you design in and on the credential. Send us your antenna or enclosure drawing and we will test samples with your cards.
Can the firmware be updated in the field?
Yes. Firmware is upgraded over the serial port using the configuration tool supplied for the module.
