XM-180 BLE 5.1 Multi-Technology Module, iCLASS/Seos/Prox + Wallet
Our most complete module: BLE 5.1 plus iCLASS, iCLASS SE, Seos and HID Prox compatibility, EM, MIFARE/DESFire/FeliCa cards and NFC mobile credentials.
- BLE 5.1: Bluetooth virtual cards and data pass-through at up to 300 bytes/s
- Listed compatibility with iCLASS, iCLASS SE, Seos and HID Prox credentials
- EM4100 family, MIFARE Classic, DESFire EV1/EV2, FeliCa, ICODE and NFC Type 1–5
- NFC mobile credentials where your platform issues them (Apple Wallet listed)
- 3.3 V TTL UART (115200 bps) and USB full speed (12 Mbps)
- Frequency
- 125 kHz + 13.56 MHz + BLE 5.1
- Credentials
- iCLASS/Seos/HID Prox-compatible, EM, MIFARE, DESFire, FeliCa
- Mobile
- BLE virtual card; NFC mobile credentials (Apple Wallet listed)
- Interface
- UART (3.3 V TTL) + USB
- Power
- 5 V DC, ≤ 190 mA (RF on)
- Dimensions
- 30 × 16 × 8.8 mm
Reply within 24 hours Tested before dispatch Worldwide shipping

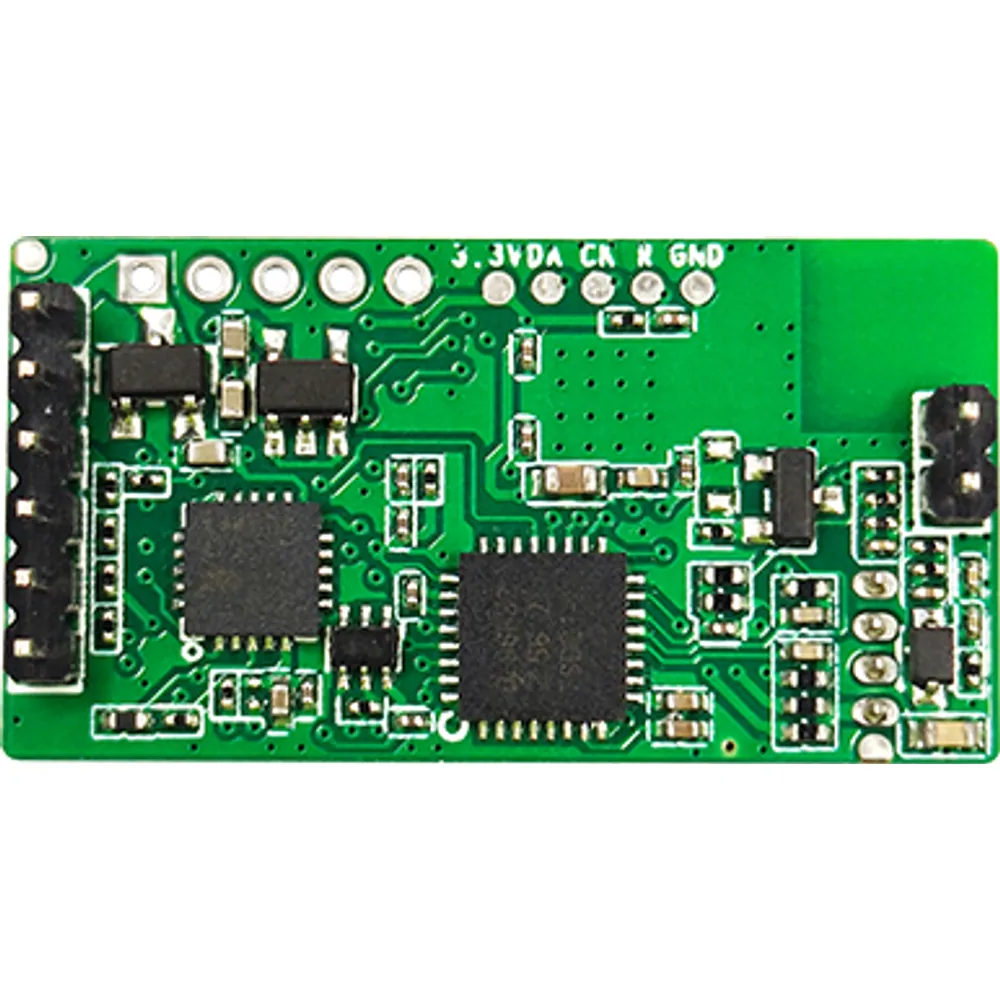

BLE 5.1 Multi-Technology Module, iCLASS/Seos/Prox + Wallet: overview
The XM-180 is the most complete board in our multi-technology range, for reader makers who want cards, NFC phones and Bluetooth handled by one module. At 125 kHz it reads HID Prox-compatible and EM4100/4102/4200/4305/4450 credentials. At 13.56 MHz its supported list includes iCLASS, iCLASS SE and Seos-compatible cards, MIFARE Classic, DESFire EV1/EV2, Ultralight and Ultralight C, FeliCa, ICODE, CEPAS, CPU cards and NFC Forum Type 1–5 tags.
On the mobile side it combines BLE 5.1 — Bluetooth virtual cards plus transparent pass-through at up to 300 bytes/s — with NFC mobile credentials where your platform issues them. Apple Wallet is listed in the module specification; wallet passes require Apple platform enrollment by your credential provider. For iCLASS and Seos, confirm whether your system needs the card serial number or the protected credential data before ordering, and we will verify it against your sample cards.
Integration notes
Power (5 V DC), GND, a 3.3 V TTL UART at 115200 bps and USB full-speed lines (12 Mbps) sit on a 6-pin, 2.0 mm pitch header. A 4-pin, 1.25 mm connector takes the external antennas in LF, LF, HF, HF order: a 490 µH ±10 µH coil for 125 kHz and a 50 Ω antenna for 13.56 MHz. The board is 30 × 16 × 8.8 mm and about 2.8 g, draws ≤ 190 mA with the RF field on and ≤ 30 mA off, and is rated from –40 to +85 °C. Avoid fully metal enclosures so the BLE link is not blocked. Firmware upgrades run over the serial port, and CE, FCC, RoHS and Japan Radio Law approvals are listed.
Third-party credential and platform names on this page are trademarks of their respective owners and are used only to describe compatibility.
More features
- 30 × 16 × 8.8 mm, about 2.8 g; rated –40 to +85 °C
XM-180 specifications
RF & credentials
| Operating frequency | 125 kHz and 13.56 MHz; Bluetooth LE 5.1 |
|---|---|
| 125 kHz credentials | HID Prox-compatible; EM4100, EM4102, EM4200, EM4305, EM4450 |
| 13.56 MHz credentials | iCLASS, iCLASS SE and Seos-compatible (data returned to be confirmed per credential); MIFARE Classic, MIFARE DESFire EV1/EV2, MIFARE Ultralight, MIFARE Ultralight C, FeliCa, ICODE, CEPAS, CPU (microprocessor) cards, NFC Forum Type 1–5 tags; ISO/IEC 14443A/B and ISO/IEC 15693 cards |
| Protocols | ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693, ISO/IEC 18092, FeliCa |
| Antenna | External: 50 Ω at 13.56 MHz; 490 µH ±10 µH at 125 kHz |
| Mobile credentials | NFC mobile credentials where your platform issues them; Apple Wallet listed in the specification (platform enrollment required) |
Interfaces
| Host interfaces | UART (3.3 V TTL levels) and USB |
|---|---|
| Data rate | UART 115200 bps; USB 12 Mbps (full speed); BLE up to 300 bytes/s |
| Bluetooth | BLE 5.1: Bluetooth virtual card and transparent data pass-through |
| Supported host OS | Windows 10, 8.1, 8 and 7; Linux; Android; macOS |
| Configuration & firmware | Management tool for configuration; firmware upgrade via serial port |
| Connectors | 6-pin 2.0 mm (power/data); 4-pin 1.25 mm (antennas); 2-pin 2.0 mm (fixing only) |
Electrical
| Supply voltage | 5 V DC via host header, or 4.3–5.5 V via USB |
|---|---|
| Current, RF field on | ≤ 190 mA |
| Current, RF field off | ≤ 30 mA |
Mechanical & environment
| Dimensions | 30 × 16 × 8.8 mm ±0.5 mm (antennas not included) |
|---|---|
| Weight | Approx. 2.8 g |
| Operating temperature | –40 to +85 °C (–40 to +185 °F) |
| Storage temperature | –40 to +85 °C (–40 to +185 °F) |
| Operating humidity | 10–90% RH, non-condensing |
Compliance
| Certifications | CE, FCC, RoHS, Japan Radio Law (TELEC) — listed for the module; request reports |
|---|
Connector pinout
| Pin | Signal | Function |
|---|---|---|
| P1-1 | VCC | Power input, +5 V DC |
| P1-2 | GND | Ground |
| P1-3 | TXD | UART transmit (3.3 V TTL) |
| P1-4 | RXD | UART receive (3.3 V TTL) |
| P1-5 | USB_DP | USB data + |
| P1-6 | USB_DM | USB data – |
| P2-1 | LF_TX1 | 125 kHz antenna, pin 1 |
| P2-2 | LF_TX2 | 125 kHz antenna, pin 2 |
| P2-3 | HF_TX1 | 13.56 MHz antenna, pin 1 |
| P2-4 | HF_TX2 | 13.56 MHz antenna, pin 2 |
| P3-1 | NC | Mechanical fixing pin, no electrical function |
| P3-2 | NC | Mechanical fixing pin, no electrical function |
P1: 6-pin, 2.0 mm pitch host header. P2: 4-pin, 1.25 mm pitch antenna connector (LF pair first). P3: 2-pin, 2.0 mm pitch fixing header.
Multi-technology module family at a glance
| Variant | 125 kHz | 13.56 MHz | iCLASS/Seos-compatible | BLE 5.1 | Mobile wallet | Size (mm) |
|---|---|---|---|---|---|---|
| XM-120-P-E | EM + HID Prox-compatible | — | — | — | — | 30 × 16 × 9.2 |
| XM-130-D-P | EM + HID Prox-compatible | Yes | — | — | — | 25 × 15 × 3.0 |
| XM-140-IC-M | — | Yes | Yes | — | — | 30 × 16 × 9.2 |
| XM-150-D | EM | Yes | — | — | — | 30 × 16 × 8.8 |
| XM-160-D-IC-N | EM + HID Prox-compatible | Yes | Yes | — | Listed (Apple Wallet) | 30 × 16 × 9.2 |
| XM-170-D-BT | EM | Yes | — | Yes | — | 30 × 16 × 8.8 |
| XM-180-D-IC-BT | EM + HID Prox-compatible | Yes | Yes | Yes | Listed (Apple Wallet) | 30 × 16 × 8.8 |
| XM-190-D-P-BT | EM + HID Prox-compatible | Yes | — | Yes | — | 30 × 16 × 8.8 |
| XM-200-D-P | EM + HID Prox-compatible | Yes | — | — | — | 30 × 16 × 9.2 |
13.56 MHz support = MIFARE Classic, DESFire EV1/EV2, Ultralight/Ultralight C, FeliCa, ICODE, CEPAS, CPU cards and NFC Forum Type 1–5 tags. All nine modules use external antennas and offer both UART and USB. Sizes in mm, antennas excluded.
Specifications can change between production batches. Confirm the current revision with us before placing volume orders.
Ordering options
Quote the SKU that matches your frequency, interface and mounting. Not sure? Send us your controller model and we will pick the variant for you.
| SKU | Configuration | Actions |
|---|---|---|
| XM-180-D-IC-BT | Dual-frequency multi-technology module with BLE 5.1: HID Prox/iCLASS/Seos-compatible, EM, MIFARE/DESFire/FeliCa, NFC mobile credentials; UART + USB |
Where the XM-180 is used
- Next-generation door readers that must accept prox, iCLASS-type, DESFire and phone credentials
- Office turnstiles where staff badges and visitor phone passes share one reader
- Elevator panels in mixed-tenant buildings with several badge technologies
- Premium residential entry panels offering an app-based key alongside cards
Elevator Access Control Readers
Elevator card readers for car panels and lift lobbies: anti-clone encrypted cards, QR codes for visitors, Wiegand or RS485 output to the floor controller.
Turnstile & Speed-Gate Readers: QR, RFID and Face
Turnstile card readers, QR scanners and face terminals for tripod, swing and speed gates, with Wiegand, RS485, RS232 or TTL output to the gate board.
XM-180 FAQ
What is the difference between the XM-180 and the XM-160?
The XM-180 adds BLE 5.1 for Bluetooth virtual cards and data pass-through. It is also slightly lower (8.8 mm against 9.2 mm), heavier at about 2.8 g, and draws up to 190 mA with the RF field on.
Can phones be used as credentials?
Yes, in two ways: Bluetooth virtual cards issued by your app or platform, and NFC mobile credentials where your platform issues them. Apple Wallet is listed in the specification and needs platform enrollment.
Does it return iCLASS/Seos secure data or only the serial number?
The specification lists compatibility but not the data returned. Send us sample credentials and the output your controller expects, and we will confirm before you order.
What antennas does it need?
A 490 µH ±10 µH coil for 125 kHz and a 50 Ω 13.56 MHz antenna, both external on the 4-pin, 1.25 mm connector with the LF pins first.
Which host operating systems are supported?
Windows 10, 8.1, 8 and 7, Linux, Android and macOS over USB, or any controller with a 3.3 V TTL UART.
